Titanium Underwater Housing for Deep Sea Applications

Deep-sea exploration is reaching increasingly greater depths, creating demand for more robust and corrosion-resistant pressure housings. Titanium underwater housings are now the best way to protect highly sensitive underwater devices in the harshest conditions.

What Is a Titanium Underwater Housing?

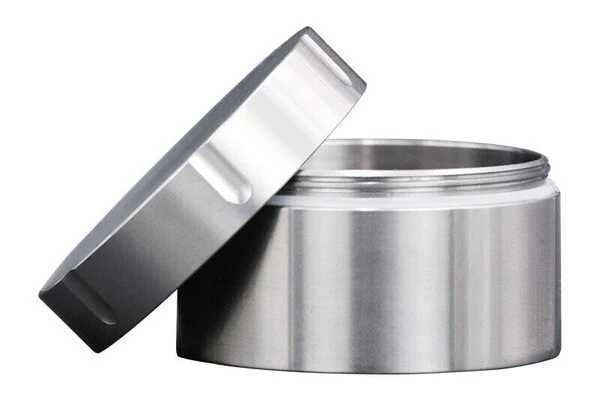

A titanium underwater housing is a high-strength pressure housing designed to protect sensitive electronics, sensors, and instruments from extreme deep-sea pressure. Under the ocean's surface, there are crushing pressures, corrosive saltwater, and temperatures that are very close to freezing. These housings protect the sensitive parts inside from these tough conditions.

Titanium pressure housings are better in a number of ways than aluminum or stainless steel enclosures:

- Superior corrosion resistance in seawater, even after long periods of use

- Higher strength-to-weight ratio, which lowers the system's general weight without lowering its reliability

- Long-term structural stability, keeping its shape through repeated pressure cycles

- Very little magnetic disturbance, which is important for sensitive sensor and tracking equipment

For deep-sea applications beyond 2000 meters, titanium is widely regarded as the preferred material due to its unmatched combination of mechanical performance and environmental resistance.

How Deep Can Titanium Pressure Housings Go?

For every 100 meters of water depth, the hydrostatic pressure goes up by about 1 MPa. This means that the forces working on a housing at large ocean depths are enormous:

- 1000 m = about 10 MPa

- 3000 m = about 30 MPa

- 4000 m = about 40 MPa

Most titanium underwater housings that are approved for 4000m are made with the following design features to make them last:

- 50–60 MPa is the design pressure

- Safety factor: 1.25 to 1.5 times the highest working pressure

- Finite Element Analysis (FEA) evaluation to model how stress is distributed in the real world

The exact wall thickness depends on the width of the housing, the titanium grade chosen, and the structure of the end cap. At this point, careful engineering makes sure that the housing meets the depth requirement while still being light enough and having the right total size and weight.

Material Options for Titanium Underwater Housings

It is important to pick the right type of titanium to get the best balance of strength, weight, and resistance to rust.

Grade 5 (Ti-6Al-4V)

- Yield strength: ~830 MPa

- Tensile strength: up to 1020 MPa

- Weight: 4.43 grams per cubic centimeter

- Perfect for structural pressure housings in deep sea that need to be very strong

Grade 2 (Commercially Pure Titanium)

- Very good protection to rust in sea settings

- Not as strong as Grade 5 in terms of mechanical strength

- Good for medium-depth jobs where extra-high strength isn't necessary

Grade 5 (Ti-6Al-4V) is usually chosen for underwater systems that work between 3000 m and 6000 m because it has great engineering qualities and has been used successfully in high pressure situations.

Manufacturing Process

Every step in the process of making an effective titanium underwater housing needs to be done with great care. Professional companies that make titanium housings usually follow a strict process that includes:

- A forged titanium billet was used as the initial raw material to protect the grain structure.

- 5-axis CNC precise machining for tight tolerances and complicated shapes

- O-ring sealing groove with a surface finish of Ra ≤ 0.8 μm to make sure the O-ring seals well

- Gas Tungsten Arc Welding (GTAW) is an option for multi-piece structures if needed.

- A stress-relieving heat process to get rid of any remaining cutting stresses

Full NDT (Non-Destructive Testing) Inspection Before Delivery

Complete testing procedures, such as those listed below, further confirm the stability of the housing:

- Testing for hydrostatic pressure to mimic working depth conditions

- Helium leak tests (≤ 1×10⁻⁹ Pa·m³/s) to make sure the seal works

- Ultrasonic and X-ray inspection to find any problems inside

These methods of making and testing make sure that every titanium housing meets the high standards needed for placement deep in the ocean.

Applications of Titanium Underwater Housings

These are some of the many underwater businesses and uses that titanium pressure housings are used for:

AUV & ROV Systems

Battery compartments, sonar modules, guidance systems, and control electronics must withstand repeated deep-sea dives.

Subsea Oil & Gas

Long-term tracking tools, instrument cases, and underwater sensor pods that stay on the ocean floor for a long time.

Marine Research

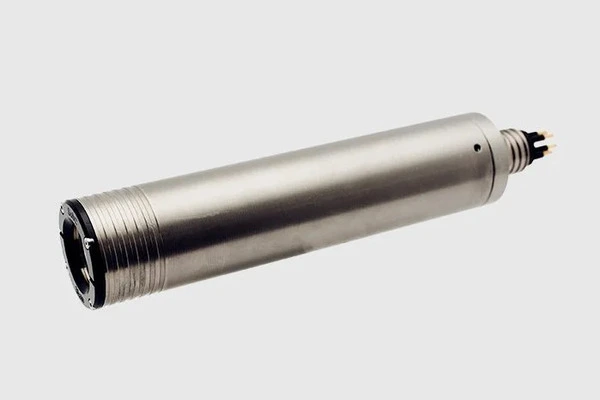

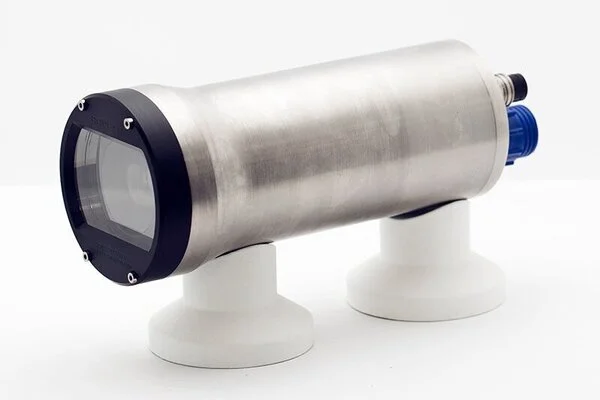

Deep-sea cameras, CTD (Conductivity, Temperature, and Depth) systems, and acoustic tracking systems are used to study the ocean and the environment.

The dependability and longevity of titanium underwater housings have a direct effect on the success of missions and the safety of operations in all of these areas.

Why Choose a Titanium Housing Manufacturer in China?

Baoji, Shaanxi Province, China, is known as the "Titanium Valley" because it is a center for handling and making titanium. Manufacturers with years of experience in this area offer:

- The ability to machine parts to specifications for unusual shapes and sizes

- Small-batch production for prototypes and orders with low volumes

- Materials that meet ASTM standards, with full mill test results and the ability to track them

- Prices that are competitive with Western sellers

- Short wait times made possible by large-scale production

For businesses that want high-quality underwater options at a low cost, working with a qualified titanium housing maker in China can cut costs by a large amount while keeping top-notch quality.

Conclusion

As underwater research reaches greater depths and more extreme conditions, the demand for pressure housings that are stable and perform reliably will continue to grow. For mission-critical deep-sea applications, titanium underwater housings offer the ideal combination of strength, corrosion resistance, and lightweight design. To ensure long-term operational success beneath the ocean surface, selecting the appropriate material and a reliable production partner is essential.

Partner With Us for Your Titanium Underwater Housing Needs

Baoji Huacan New Metal Materials Co., Ltd., located in Baoji City, Shaanxi Province, in the heart of China's “Titanium Valley,” specializes in high-performance titanium and titanium alloy products. Our core capabilities include forging, precision die forging, and CNC machining. With over 40 CNC lathes, CNC machining centers, gantry machining centers, and other advanced equipment, we manufacture titanium bars, plates, tubes, flanges, and fully custom-made parts.

Our products serve industries worldwide, including chemical, medical devices, energy, aerospace, and shipbuilding. Our team is ready to provide standard titanium pressure housings or fully customized deep-sea pressure chambers with efficiency, precision, and reliability. Contact us now at Joy@hc-titanium.com.
