Selecting the Right Titanium Tube Sheet for Demanding Applications

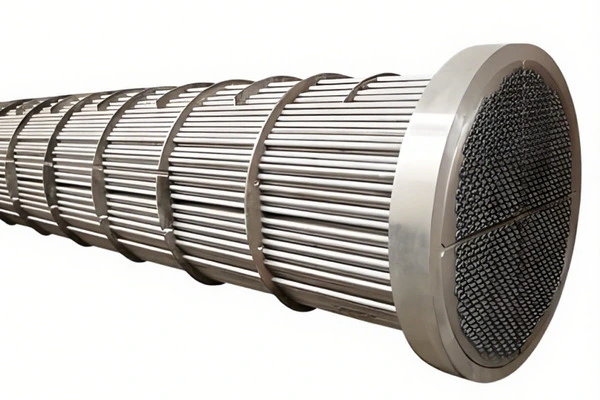

If you've ever worked on a heat exchanger or pressure vessel in marine, offshore, or chemical environments, you already know this:

A tube sheet is not just another plate — it's often the component that determines the long-term reliability of the entire system. Leaks, corrosion around tube holes, sealing failures… most of these issues don't appear on day one. They manifest months or even years later, often with costly consequences.

Choosing the right titanium tube sheet isn't just about picking a strong material — it's about preventing problems before they occur.

Start with Real Operating Conditions, Not Just the Drawing

We frequently receive project inquiries that begin with technical drawings, but drawings alone only tell part of the story. They show dimensions, tolerances, and structural details, yet they rarely explain the actual service environment or operating conditions. The first and most important question should always be: where will this tube sheet actually operate? Understanding the environment is critical before selecting materials or finalizing the design.

If the tube sheet is submerged in seawater or installed in an offshore application, titanium is almost always the safest long-term material choice. Titanium tube sheet performs exceptionally well in chloride-rich environments, offering far better resistance to pitting, crevice corrosion, and general degradation than most stainless steels. This reliability translates into longer service life and reduced maintenance risks.

However, titanium is not a universal solution. We have seen cases where the material selection was technically correct, but the structural design created tight crevices or oxygen-deprived zones. Over time, these areas became vulnerable weak points. Even titanium requires thoughtful design that ensures adequate oxygen access and minimizes local stress concentrations to maintain long-term integrity.

Material Selection: Don't Over-Spec or Under-Spec

A common misconception in material selection is the belief that “stronger is always better.” While higher strength alloys may appear to provide a greater safety margin, the reality is more nuanced. Over-specifying a material can significantly increase raw material costs, complicate machining processes, extend production lead times, and even introduce unnecessary fabrication challenges. The optimal choice is not simply the strongest option available, but the one that best matches the actual service conditions and performance requirements.

To better understand this, it is helpful to distinguish between commonly used titanium grades:

- Grade 2 Titanium (Commercially Pure): Grade 2 titanium offers outstanding corrosion resistance, particularly in marine and chemical environments. For many seawater and chloride-rich applications, it provides more than sufficient strength while remaining easier to machine and fabricate compared to higher-strength alloys. Its balanced properties and cost-effectiveness make it the preferred choice for a wide range of industrial heat exchangers and tube sheets.

- Grade 5 Titanium (Ti-6Al-4V): Grade 5 is a high-strength alloy with excellent mechanical performance and good corrosion resistance. It is better suited for applications involving higher pressure, significant structural loads, or weight-sensitive designs where superior strength-to-weight ratio is critical.

The key principle is to match the alloy to the actual operational demands rather than automatically selecting the “strongest available” material. A professional supplier should help evaluate strength requirements, corrosion exposure, machinability, and overall cost balance — not simply recommend the highest grade by default.

Most Failures Happen in the Details

Even the best material can fail if the design and manufacturing aren't carefully considered.

For tube sheets, critical factors include:

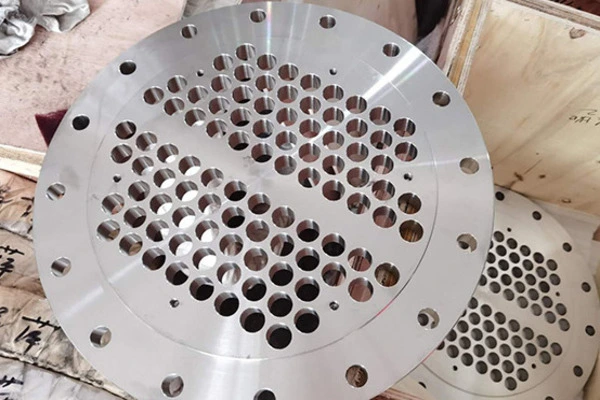

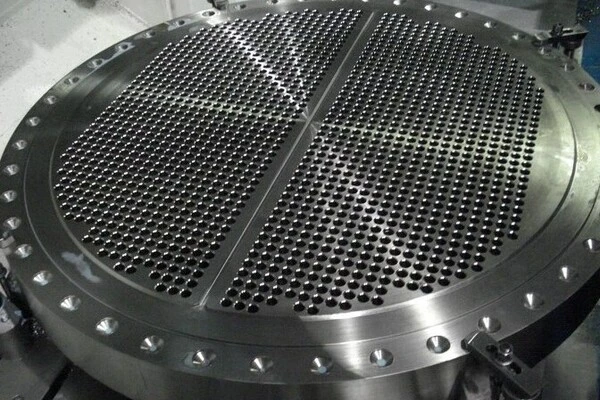

- Tube hole alignment and dimensional accuracy

- Surface finish on sealing areas

- Assembly tolerances and stress induced during machining

Small deviations — even fractions of a millimeter — in these areas can cause leaks or reduce service life. These issues aren't easily corrected after installation; they must be addressed during design and fabrication.

Titanium's Advantages — And Its Limitations

Titanium is widely valued for its stable, naturally forming oxide layer, which acts as a highly effective barrier against corrosion. When the surface is scratched or slightly damaged, this oxide film can rapidly regenerate, allowing the material to “self-repair” and maintain long-term durability in aggressive environments such as seawater and chemical processing systems.

However, this only works when:

- Oxygen is accessible to the material surface

- Design avoids stagnant zones or deposits

Even titanium can experience localized corrosion if the design creates crevices or limits oxygen contact. This is why we always assess material, design, and operating environment together — excellent performance is the combination of all three.

Long-Term Reliability and Maintenance Benefits

A titanium tube sheet usually costs more upfront than stainless steel, but the long-term benefits are significant:

- Minimal maintenance

- Reduced downtime

- Lower risk of leakage

- Extended service life

For these reasons, many customers turn to titanium after experiencing repeated corrosion or leakage problems with other materials. In many cases, the decision is not about minimizing initial cost, but about avoiding far greater operational and replacement expenses over the equipment's lifetime.

Key Takeaways for Engineers and Buyers

If you only remember a few points:

- Select materials based strictly on actual operating conditions, including temperature, pressure, and corrosion exposure, rather than relying on assumptions or past experience alone.

- Match the alloy grade to the real operational load and stress level; the highest strength option is not always the most suitable or cost-effective choice.

- Ensure critical areas such as tube holes and sealing surfaces are machined accurately to maintain tight sealing and structural reliability.

- Design components to avoid crevices, oxygen-limited zones, and galling risks that may cause localized damage.

- Check compatibility between base materials, fasteners, and sealing elements to prevent galvanic corrosion.

Conclusion

Selecting the right titanium tube sheet means thinking beyond initial strength or cost. Long-term reliability depends on aligning material grade, design details, and real operating conditions. Proper machining, oxygen access, and crevice-free design are just as critical as alloy selection. When correctly specified and manufactured, a titanium tube sheet delivers durability, reduced maintenance, and lower lifetime risk in demanding environments.

About HC-Titanium

At Baoji Huacan New Metal Materials Co., Ltd., we specialize in custom titanium tube sheets and precision components for marine, subsea, and chemical applications.

We go beyond simply machining to drawings. We focus on:

- Accurate tube hole positioning and uniformity

- Surface finish of sealing areas

- Stress control during machining

- Realistic assessment of operational conditions

If you're planning a project and want a second opinion before production, please contact us at joy@hc-titanium.com, we provide guidance to ensure your components perform reliably for decades.
