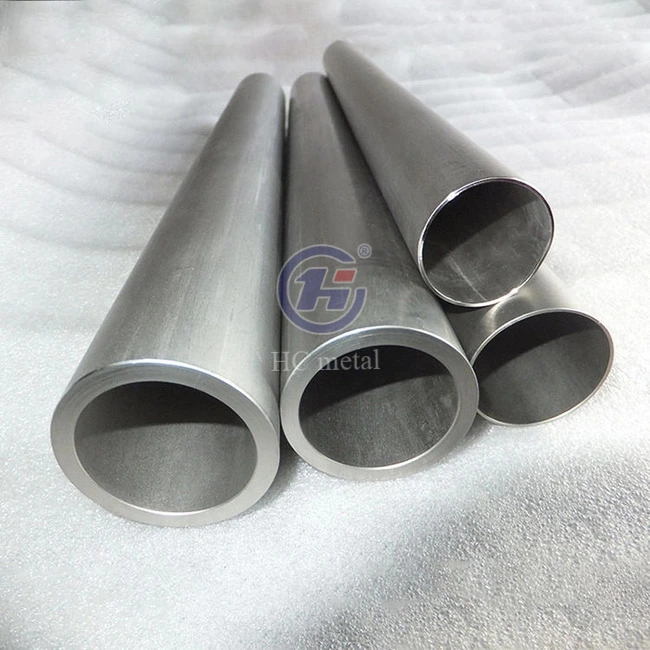

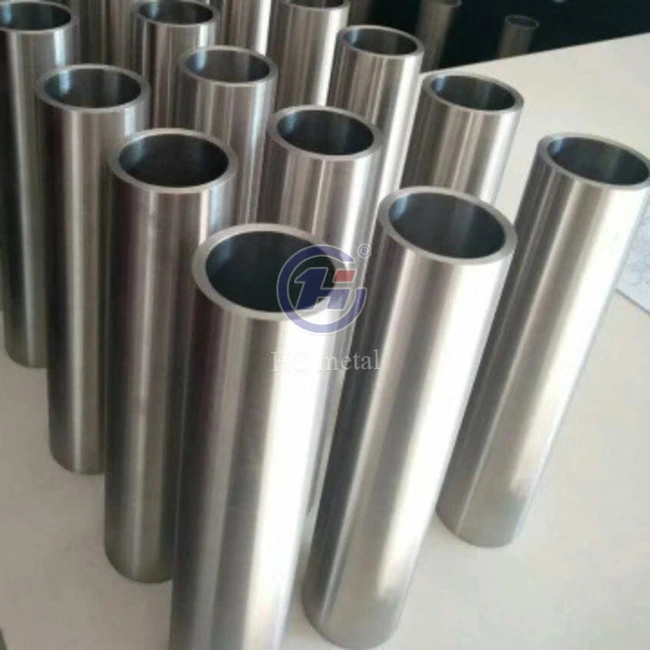

Seamless Titanium Pipe for Industrial & Aerospace Applications — Zero-Failure Performance

Baoji Huacan's seamless titanium pipe is engineered for environments where failure is not an option. It is made from solid titanium billets by extrusion or rotary piercing—no weld seams or heat impacted zones—and has consistent strength across the whole circle. With diameters from 6mm to 600mm, wall thickness from 0.5mm to 20mm and lengths up to 6000mm, it is completely compliant with ASTM B338. We have bespoke sizes available in Grade 2, Grade 5, and Grade 9 titanium to suit your specific needs.

Parameter	Details
Type	Seamless (no weld joints)
Material Grade	Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23
Outer Diameter	6mm – 600mm
Wall Thickness	0.5mm – 20mm
Length	Up to 6000mm (customized available)
Surface Finish	Mill finish; polishing, anodizing available
Standard	ASTM B338, ASTM B861
Customization	OEM/ODM, drawing-based, custom dimensions

No weld seams No longitudinal connections All around consistent hoop strength and pressure resistance

Excellent corrosion resistance: The stable titanium oxide coating provides protection in seawater, moist chlorine, nitric acid and H₂S conditions

High strength-to-weight ratio: Grade 2 has ~345 MPa tensile strength; Grade 5 ~895 MPa – both at far lower weight than steel

Wide thermal range: Mechanical integrity from cold temperatures to ~400°C

Fatigue resistance: Seamless construction avoids fracture growth from seams under cyclic pressure loads

Our Precision Parts Processing Workshop

Titanium precision parts processing

Offshore Oil & Gas & Desalination Used in riser systems, fire water lines, subsea umbilicals. Titanium is very resistant to stress corrosion cracking in high temperature sea water, as compared to stainless steels.

Aerospace Hydraulic & Fuel Systems Seamless titanium pipe is the ideal choice for high-pressure hydraulic lines in airframes and jet engines. Titanium’s superior strength-to-weight ratio means lighter aircraft and reduced fuel usage.

Chemical Processing: For shell and tube heat exchangers processing powerful oxidizers like nitric acid or wet chlorine, seamless construction is essential to minimize the onset of leaks from weld defects and to enhance process safety.

Medical Devices & Marine: Biocompatibility and seawater immunity make titanium the preferred material for implant-related components and marine structural tubing.

Motorcycle Performance Parts

Additive Manufacturing Applications

Aerospace Components


Aerospace Components

Baoji Huacan has over 40 precise CNC equipment for prototype and large production runs, including lathes, machining centers and gantry systems.

Annual manufacturing capacity of titanium goods is more than 1000 tons, and melting capacity is more than 5000 tons per year. With over 10 years of titanium machining expertise, we have supported over 100 worldwide customer partnerships in the aerospace, chemical and marine industries.


Vacuum Melting	Breakdown Forging	Forging & Rolling

Our multi-stage inspection procedure includes all manufacturing stages:

Raw material inspections: Chemical composition analysis by spectrometer, checks of supplier certification

In-process control: Real-time dimensional monitoring at each production step

Non-destructive examination: Ultrasonic testing identifies interior fissures, gaps or inclusions

Final inspection: CMM, caliper and mechanical properties testing to ASTM, AMS and DIN standards

Documentation: Full traceability records of materials, inspection reports and MTC certifications issued for each batch

Certifications

Baoji Huacan has ISO 9001 quality management system accreditation, encompassing the whole chain of manufacturing from raw material procurement to end shipping. Each production lot is backed by full documentation including material test certificates (MTC) and certificates of compliance (COC).

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What is the minimum order quantity?

A: MOQ is flexible. Contact us with your project details and we'll offer the best arrangement for your volume.

Q: Can you produce to ASTM B338 and ASTM B861?

A: Yes. Our product production complies with both standards, and documentation is provided with every shipment.

Q: Which titanium grades are available?

A: We supply Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, and Grade 23, with other grades available on request.

Q: What is the typical lead time?

A: Lead time depends on order size and specification. Contact us for a confirmed production schedule.

Method	Details
Inner Protection	Vacuum-sealed bags with desiccants
Outer Packaging	Sturdy wooden crates for bulk shipments
Component Protection	Custom foam inserts for delicate or thin-wall tubes
Documentation	Detailed labeling and traceability documentation
Shipping Options	Air freight (urgent orders) / Sea freight (bulk orders)
