Grade 2 Titanium Plate for Industrial Applications — Corrosion-Resistant, Lightweight & Fully Customizable

Grade 2 titanium plate is the recognized workhorse of the commercially pure (CP) titanium family, defined under UNS R50400 and governed by ASTM B265, ASME SB-265, and AMS 4902. At Baoji Huacan, we supply this material with a density of 4.51 g/cm³, tensile strength ≥ 345 MPa, and elongation ≥ 20% — combining moderate strength with exceptional ductility. With 10+ years of titanium machining experience, 1,000+ tons of annual production capacity, and 100+ international client collaborations, we deliver fully customized titanium plate solutions built to your exact drawings and specifications.

Why Choose Our Grade 2 Titanium Plate

You're not just buying a material — you're solving a real engineering problem.

Traditional 304/316 stainless steels suffer from pitting and stress corrosion cracking in chloride-rich or marine environments. Grade 5 titanium (Ti-6Al-4V) is strong but difficult to cold-form and costly for large fabrications. Our CP titanium plate bridges this gap perfectly.

It forms a stable, self-healing TiO₂ oxide film on contact with oxygen, offering corrosion immunity that supports 20+ year service life in aggressive media. It's also approximately 45% lighter than steel — a real advantage when weight matters.

Material Advantages & Specifications

01 Material Advantages

· Superior corrosion resistance — immune to seawater, wet chlorine, and oxidizing acids

· Excellent cold formability — alpha-phase structure supports stamping, bending, and complex geometry fabrication

· Outstanding weldability — compatible with TIG, MIG, and electron beam welding processes

· Non-magnetic — suitable for electromagnetic-sensitive applications

· High strength-to-weight ratio — ~45% lighter than steel, structurally reliable in critical zones

· Thermal stability — low expansion coefficient of 8.6 µm/m·K

02 Techinical Specifications

Parameter	Value / Option
Material Grade	Grade 2 Titanium (UNS R50400)
Material Standard	ASTM B265 / ASME SB-265 / AMS 4902
Density	4.51 g/cm³
Melting Point	~1,660°C
Ultimate Tensile Strength	≥ 345 MPa
Yield Strength (0.2% offset)	≥ 275 MPa
Elongation	≥ 20%
Fe (max)	0.30%
O (max)	0.25%
C (max)	0.08%
N (max)	0.03%
H (max)	0.015%
Thickness	Customized
Size / Dimensions	Customized (per drawings)
Surface Finish	Polished / Annealed / Natural / Customized
Available Grades	Grade 2, 5, 7, 9, 23

Product Application

Marine & Offshore — Absolute chloride immunity benefits seawater pipes, desalination equipment and ship hull components.

Chemical Processing — CP titanium’s chemical inertness makes it suitable for reactor linings, heat exchangers and pressure vessels in oxidising acid or wet chlorine conditions.

Industrial Piping – Lightweight piping systems when lengthy service life and corrosion resistance balance greater upfront material prices.

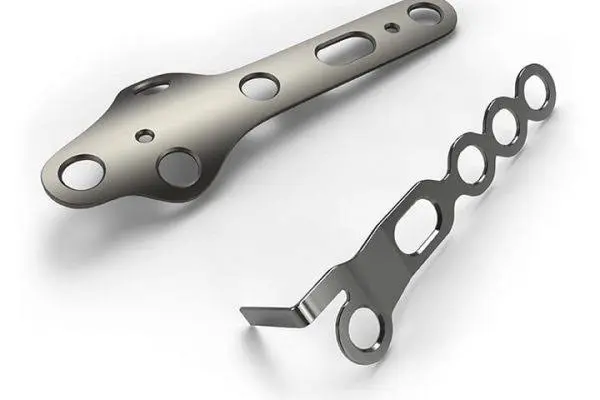

Medical Devices: Biocompatibility and non-magnetic qualities allow its use in medical enclosures and components near to implants.

Aerospace Structural Parts — Weight-critical non-load-bearing structural panels and firewall components for grade 2 titanium plate.

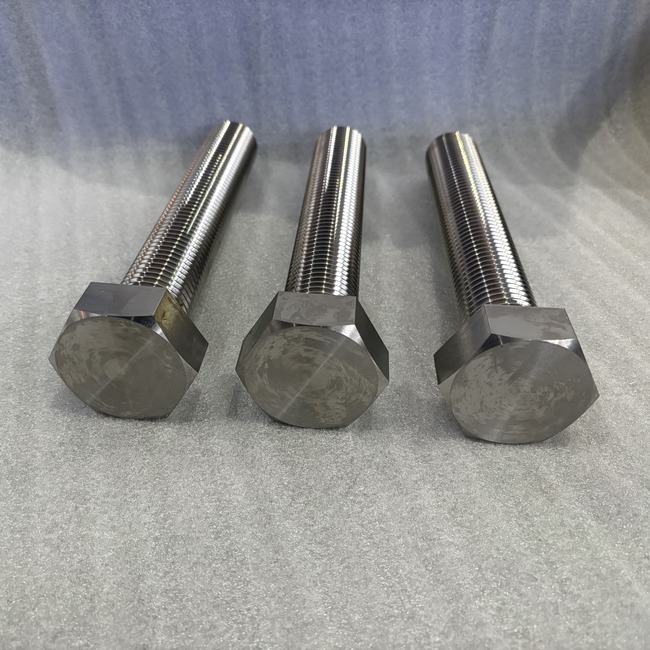

Motorcycle Performance Parts

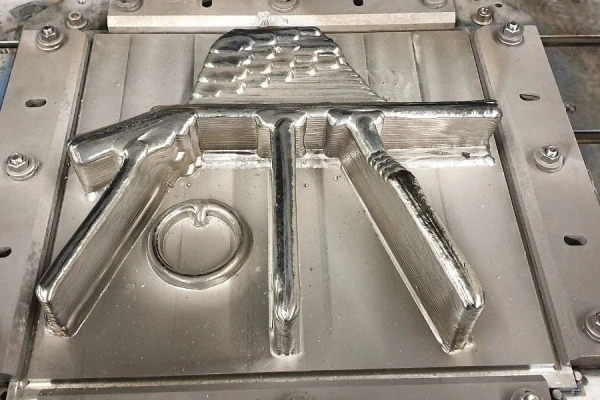

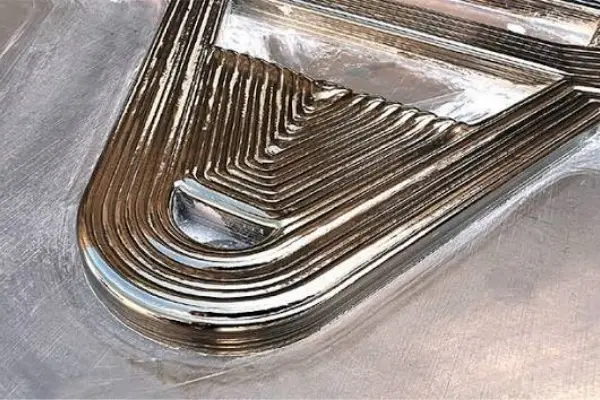

Additive Manufacturing Applications

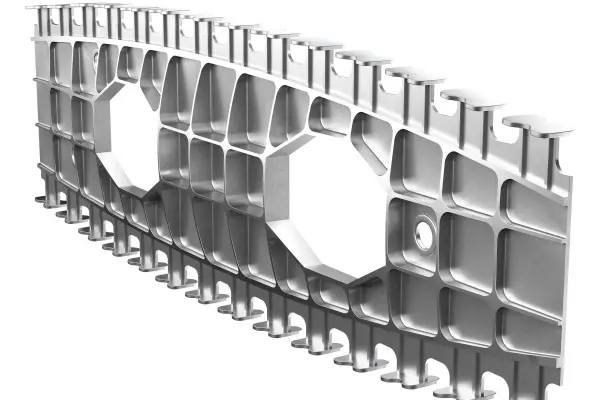

Aerospace Components

Aerospace Components​​​​​​​

Manufacturing Capability

Baoji plant has more than 40 high-precision CNC equipment, including lathes, machining centers and gantry systems. Annual manufacturing capacity is over 1,000 tonnes of finished titanium goods, melting capacity is above 5,000 tonnes and forging capacity is above 3,000 tonnes.

We enable prototype runs, small- and large-scale manufacturing with consistent quality in all order sizes.

Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment
Rolling	Surface Treatment	Dimensional Inspection

Quality Control

Our multi-stage inspection protocol covers every order:

· Raw material verification — spectrometer-based chemical composition analysis

· In-process dimensional checks — real-time monitoring throughout rolling and machining

· Ultrasonic non-destructive testing — detects internal voids, cracks, and inclusions

· CMM dimensional inspection — ensures compliance with your drawing tolerances

· Mechanical property testing — tensile, yield, and hardness per ASTM/AMS/DIN standards

· Surface inspection — roughness testing and visual defect checks before shipment

Certifications

Baoji Huacan New Metal Materials Co., Ltd. is certified to the ISO 9001 quality management system, from raw material selection to final inspection. Material traceability records, MTC, EN10204 3.1 certifications and COC are available upon request.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

FAQ

Packaging & Shipping

Customiztion Options

Every order is built to your specifications. You can customize:

· Dimensions — thickness, width, length per your drawings

· Surface finish — polished, annealed, natural, or special coatings

· Material grade — Grade 2, 5, 7, 9, or 23 available

· Custom markings — laser marking or CNC engraving with part numbers or logos

· OEM/ODM support — full drawing-based production available

Submit your technical drawings or specifications to Joy@hc-titanium.com for a tailored quote.
