How titanium alloy improves the vibration stability of wheel lug bolts?

Due to their low density, high strength-to-weight ratio, and corrosion resistance, Titanium wheel lug bolt are becoming more popular in high-performance automobiles. When compared to regular steel bolts, titanium can lower the weight of the wheel end while still having the right mechanical qualities for tough jobs. But the vibration behavior depends on the wheel, tire, hub, suspension and fastening system as a whole, not just the bolt material.

Material Properties: Why Titanium Damps Wheel Vibrations?

Titanium metal has a number of qualities that affect how wheel bolts work mechanically. People often think about using Ti-6Al-4V for high-performance tasks since it has a low mass and good strength and fatigue performance. While these traits can help make lightweight wheel ends, they shouldn't be taken as proof that titanium instantly reduces vibrations better than steel.

High Strength-to-Weight Ratio

Titanium wheel lug bolts are stronger than many other types of steel fixings while also being lighter. This lets designers cut down on the weight of fasteners while still getting the mechanical performance they need. As long as several parts are optimised at the same time, lower density can be helpful, but lug bolts alone don't save much weight.

For wheel uses that are very important for safety, strength shouldn't just be judged by the material grade. The performance of a fastener is affected by its thread geometry, bolt dimensions, preload, surface condition, manufacturing quality, and the type of wheel joint used.

Elastic Modulus and Damping Capacity

The amount of elasticity of titanium metals is less than that of steel. The elastic modulus of Ti-6Al-4V is about 114 GPa, while the elastic modulus of most steels is around 200 GPa. This means that the same amount of stress can cause a titanium bolt to change shape more easily.

Even though titanium has a lower elastic modulus, that doesn't mean it is better at damping. It's not fair to call the bolt a shock absorber or something that automatically gets rid of more vibration than steel. Tire uniformity, wheel balance, suspension characteristics, joint stiffness, and working conditions can all affect how much a wheel vibrates.

Fatigue Resistance

When the fastener is designed and made properly, a Titanium wheel lug bolt can provide good fatigue performance. Fatigue behaviour is affected by thread geometry, stress concentration, surface finish, preload, material quality, and loading that happens over and over again.

For race or high-performance cars, figuring out how fatigued a material is shouldn't just look at its formal features. It should also look at how it was used in real life. For effective service, it's important to do the right cutting, measuring, checking, and fitting.

Weight Reduction Effects on Rotational and Unsprung Mass

The lightweight nature of titanium wheel lug bolts plays a significant role in improving vibration stability through the reduction of rotational and unsprung mass:

Decreased Rotational Inertia

Titanium wheel lug bolts contribute to a reduction in the wheel's overall rotational inertia. This decreased mass at the wheel's perimeter results in quicker acceleration and deceleration, allowing the wheel to respond more rapidly to road surface changes. The improved responsiveness helps to mitigate vibrations before they can build up and propagate through the vehicle.

Reduced Unsprung Weight

Unsprung weight refers to the mass of components not supported by the vehicle's suspension system. By utilizing lightweight titanium wheel lug bolts, the unsprung weight is reduced, leading to several benefits:

- Improved suspension response to road irregularities

- Enhanced tire contact with the road surface

- Reduced transmission of vibrations to the vehicle body

These factors collectively contribute to a smoother ride and improved handling characteristics, further enhancing the vibration stability of the wheel assembly.

Dynamic Balance Improvement

The uniform weight distribution of titanium wheel lug bolts around the wheel hub aids in maintaining proper dynamic balance. This balanced configuration minimizes the potential for vibration-inducing imbalances, especially at high speeds or during cornering maneuvers.

Installation, Corrosion, and Galling: Real-World Impacts

Material selection is only one part of wheel fastener performance. Correct installation, corrosion control, and galling prevention are equally important for titanium wheel lug bolt.

Precise Installation and Torque Retention

Torque should not be assumed to translate directly into a fixed clamping force. The relationship depends strongly on thread friction, bearing friction, lubrication, surface finish, coatings, and thread condition.

For this reason, titanium wheel lug bolt should be installed according to the manufacturer's specified torque and lubrication procedure. Using an incorrect lubricant or applying a generic torque value can produce an unsuitable preload.

Temperature changes can also influence joint preload. The effect depends on the thermal expansion behavior of the bolt, wheel, hub, and other components in the joint. Therefore, thermal stability should be evaluated at the complete assembly level rather than attributed solely to titanium.

Corrosion Resistance and Long-Term Performance

One important advantage of titanium wheel lug bolt is their excellent corrosion resistance. Titanium forms a stable passive oxide layer that provides protection in many atmospheric and moisture-exposed environments.

This can be useful for vehicles operating in:

- Coastal environments with salt exposure

- Areas where road salt is used during winter

- Wet or muddy off-road conditions

Corrosion resistance can help preserve the fastener's surface condition, but it does not eliminate the need for inspection. Thread condition, mechanical damage, contamination, galvanic interactions, and contact with dissimilar materials should also be considered during service.

Anti-Galling Properties

Galling requires particular attention when using titanium threaded fasteners. Titanium alloys can be susceptible to adhesive wear and thread seizure when mating surfaces experience high pressure and sliding contact.

Therefore, titanium wheel lug bolt should not be promoted as inherently superior to steel in anti-galling performance. Appropriate thread finishes, coatings, lubricants, and controlled installation procedures may be required to reduce galling risk.

These measures can help with:

- Installation and removal during wheel service

- Protection against thread damage

- Consistent performance during repeated assembly

The selected treatment should always be compatible with the manufacturer's torque specifications and application requirements.

Conclusion

Titanium wheel lug bolt can offer practical advantages in specialized automotive applications through low density, a high strength-to-weight ratio, good fatigue performance, and corrosion resistance. However, their effect on vibration should be presented realistically. Titanium does not automatically provide superior damping, and reducing lug bolt mass produces only a limited change in total rotational inertia.

Reliable wheel fastening depends on correct dimensions, thread design, material quality, preload, surface treatment, and installation procedures. For performance and racing applications, these factors should be evaluated together with wheel balance, tire characteristics, suspension design, and operating conditions.

At Baoji Huacan New Metal Materials Co., Ltd., we provide titanium fastener solutions with a focus on material selection, CNC machining, dimensional control, and quality inspection. Our ISO 9001 certified production system supports consistent manufacturing for customized titanium components. We can discuss titanium grade, thread specifications, dimensions, surface treatment, and application requirements according to customer drawings and technical specifications.

Frequently Asked Questions

Are titanium wheel lug bolts compatible with all vehicles?

No. Compatibility depends on thread diameter, thread pitch, bolt length, seat type, head design, wheel specifications, and required clamping force. Always verify the complete specification before replacing OEM fasteners.

How often should titanium wheel lug bolts be replaced?

Replacement requirements depend on the manufacturer, vehicle application, service conditions, and inspection results. Check for thread damage, galling, deformation, or other defects and follow the specified replacement schedule.

Can titanium wheel lug bolts be reused after removal?

Reuse depends on the manufacturer's requirements. If reuse is permitted, the fastener should be inspected for thread damage, galling, deformation, and surface defects before reinstallation. Always follow the specified torque and lubrication procedure.

Elevate Your Vehicle's Performance with Titanium Innovation

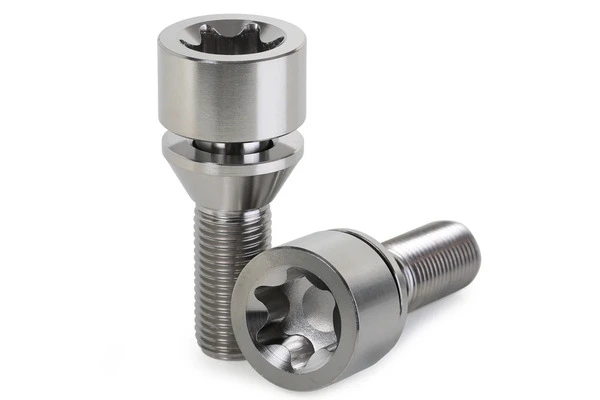

Our Ti-6Al-4V titanium wheel lug bolt can be CNC machined according to application-specific requirements, including M14x1.25 configurations where applicable. Available specifications can be tailored for thread size, pitch, length, seat type, and surface treatment.

For a quotation or technical evaluation, please provide the vehicle model or OEM fastener specification, thread size and pitch, bolt length, seat type, required quantity, drawing, and intended application. Contact Joy@hc-titanium.com or Sherry@hc-titanium.com to discuss your titanium fastener requirements.
