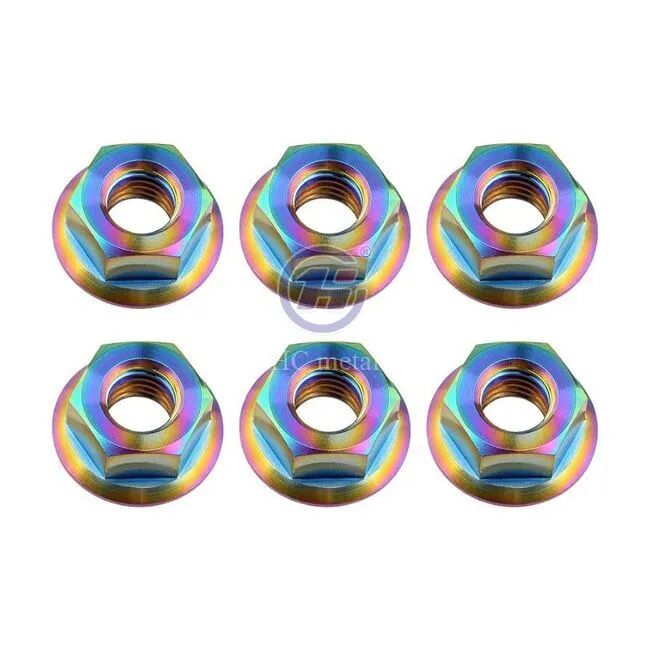

DIN 6923 M6 Titanium Nut — High-Strength Flange Fastener for Lightweight Engineering

The DIN 6923 M6 titanium nut is a precision hexagon flange nut manufactured from Ti-6Al-4V (Grade 5) alloy, combining M6 × 1.0mm pitch threading with an integrated load-distributing flange. It delivers tensile strength exceeding 895 MPa at a density of just 4.43 g/cm³ — approximately 45% lighter than equivalent steel fasteners. Backed by Baoji Huacan's 10+ years of titanium machining experience, 40+ CNC machines, and ISO 9001 certification, this nut is engineered for motorsports, aerospace, UAV, and marine environments.

Why Choose Our DIN 6923 M6 Titanium Nut for Your Application

Baoji Huacan supplies titanium flange nuts built to perform where standard fasteners fail. The integrated flange eliminates the need for a separate washer, reducing assembly time and part count — a real advantage on production lines.

The serrated flange face creates a natural locking action under vibration. This is critical in motorsports and UAV applications where fastener loosening causes operational risk.

Ti-6Al-4V resists chloride corrosion, saltwater, and acidic media, outperforming 316 stainless steel. It also stays non-magnetic, protecting sensitive electronic environments from interference.

Technical Specifications

Parameter	Details
Material Grade	Ti-6Al-4V (Grade 5 Titanium); Grade 2 available
Material Standard	ASTM B348 / AMS 4928
Product Standard	DIN 6923 / ISO 4161 Reference
Thread Size	M6 × 1.0 mm Pitch
Mechanical Properties	Tensile Strength ≥895 MPa; Yield Strength ≥825 MPa
Surface Finish	Polished / Anodized / Customized

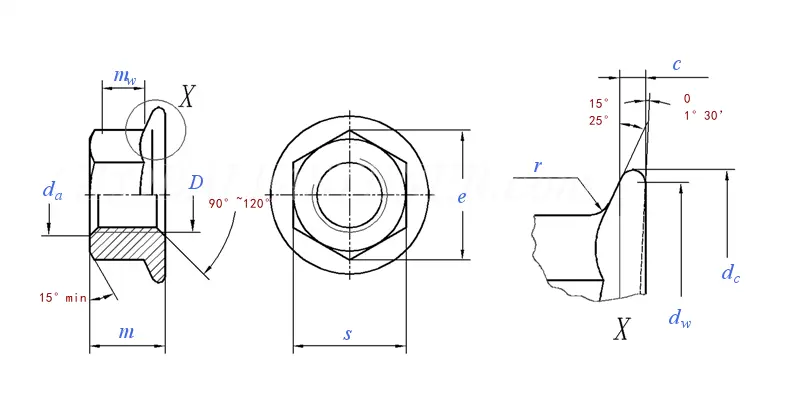

Thread Size			M5	M6	M8	M10	M12	M14	M16	M20
D
P	Pitch	Coarse thread	0.8	1	1.25	1.5	1.75	2	2	2.5
		Fine thread 1	/	/	1	1.25	1.5	1.5	1.5	1.5
		Fine thread 2	/	/	/	-1	-1.25	/	/	/
c	min		1	1.1	1.2	1.5	1.8	2.1	2.4	3
da	min		5	6	8	10	12	14	16	20
da	max		5.75	6.75	8.75	10.8	13	15.1	17.3	21.6
dc	max		11.8	14.2	17.9	21.8	26	29.9	34.5	42.8
dw	min		9.8	12.2	15.8	19.6	23.8	27.6	31.9	39.9
e	min		8.79	11.05	14.38	16.64	20.03	23.36	26.75	32.95
m	max		5	6	8	10	12	14	16	20
m	min		4.7	5.7	7.6	9.6	11.6	13.3	15.3	18.9
mw	min		2.2	3.1	4.5	5.5	6.7	7.8	9	11.1
s	max=nominal size		8	10	13	15	18	21	24	30
s	min		7.78	9.78	12.73	14.73	17.73	20.67	23.67	29.67
r	max		0.3	0.36	0.48	0.6	0.72	0.88	0.96	1.2

Motorsports & Cycling: Used on sprocket carriers, exhaust manifold studs, and frame components. The flange protects aluminum surfaces from gouging, and titanium handles exhaust thermal cycling without seizing.

Aerospace & UAV: M6 is a standard structural fastener size for FPV drone frames and commercial UAV assemblies. Weight reduction directly extends flight time, while the flange maintains connection integrity under motor vibration.

Marine & Chemical Processing: Offshore rigging and chemical valve assemblies rely on titanium's immunity to pitting and crevice corrosion in seawater and acidic environments — especially where maintenance access is difficult.

Bicycle & Cycling

Motorcycle Modification

Automotive Performance & Racing

RC Models & Drones

Marine Equipment

Precision Equipment

· Integrated flange design — distributes clamping load over a wider bearing surface, protecting soft substrates like aluminum and carbon fiber

· Serrated or smooth flange — serrated face prevents loosening under vibration; smooth face prevents abrasion on delicate surfaces

· ~45% weight saving vs. equivalent steel nuts at comparable strength

· Non-magnetic — safe for electronics-sensitive assemblies

· Anti-galling options — PVD coating or DLC coating available to reduce friction and prevent titanium cold-welding

· Corrosion immunity — resistant to chlorides, seawater, and acidic media

Material Features

Baoji Huacan operates 40+ CNC lathes, machining centers, and gantry systems in Baoji — China's recognized titanium manufacturing hub. Annual production capacity exceeds 1,000 tons of finished components.

Forging capability backed by a 4,000-ton hydraulic press ensures reliable raw material quality upstream. Melting capacity exceeds 5,000 tons annually using VAR and plasma arc furnaces.

This vertical integration — from ingot to finished fastener — means tighter process control and faster delivery on custom orders.

Production begins with verified Ti-6Al-4V bar stock, checked by XRF spectrometry for composition accuracy. Precision CNC turning ensures thread profiles meet 6H tolerance class consistently.

Thread machining is performed using calibrated tooling monitored throughout each production run. Go/No-Go gauge checks are applied to every batch, not just samples.

Post-machining, parts undergo surface treatment — polishing or anodizing — per your specification. OEM and drawing-based production is fully supported for custom geometry.


Material Preparation	Heading / Forging	Heat Treatment	Precision Machining

Thread Manufacturing	Cleaning	Inspection	Surface Treatment

Every batch follows a strict multi-stage inspection protocol:

· XRF material verification — confirms titanium grade before machining begins

· In-process dimensional monitoring — tolerances checked at each production stage

· Go/No-Go thread gauging — 100% thread inspection for 6H compliance

· Coordinate Measuring Machine (CMM) — final dimensional verification

· Surface inspection — roughness testing, visual burr and defect checks on serrated faces

· Mechanical proof load testing — verifies axial load capacity before shipment

· Full documentation — MTC, COC, EN10204 3.1 certificates available on request

Certifications

Baoji Huacan holds ISO 9001 quality management system certification, covering raw material selection through final inspection. Production conforms to ASTM B348, AMS 4928, and DIN standards. Full material traceability documentation is provided with each shipment.

Your application likely has unique requirements for DIN 6923 m6 titanium nut. Baoji Huacan supports full OEM/ODM customization:

· Thread & pitch — metric or custom, per drawing

· Flange type — serrated or smooth contact face

· Surface finish — natural titanium, polished, anodized (multiple colors), PVD coated

· Material grade — Grade 2, Grade 5, Grade 7, Grade 9, Grade 23

· Dimensions — diameter, hex height, flange diameter per customer drawings

· Laser marking or CNC engraving — part numbers, logos, traceability codes

· Prototype through mass production — small batches and volume orders both supported

Method	Details
Component Protection	Custom foam inserts for precision parts
Moisture Control	Vacuum-sealed bags with desiccants
Bulk Shipments	Sturdy wooden crates
Documentation	Full labeling, MTC, packing list, traceability records
Shipping Options	Air freight (urgent) / Sea freight (bulk)

Q: How do I prevent galling when installing titanium nuts?

A：Apply an anti-seize compound before installation. PVD or DLC coating on the nut also reduces friction significantly. Never install dry under load.

Q: Can this nut replace Grade 8.8 steel in my assembly?

A：Yes. Ti-6Al-4V offers comparable strength to Grade 8.8 steel with substantial weight savings and far superior corrosion resistance.

Q: What torque should I use for M6 Ti-6Al-4V nuts?

A：Typically 9–12 Nm dry. Reduce by 20–30% when anti-seize paste is applied to avoid over-stretching the bolt.

Q: Is the serrated flange always required?

A：No. Smooth flange versions are available — recommended when fastening onto carbon fiber or delicate anodized surfaces.

Q: Will titanium cause galvanic corrosion on aluminum?

A：In saltwater environments, titanium is noble and can cause aluminum to corrode sacrificially. Use dielectric grease or insulating washers in mixed-metal assemblies.

Q: Is the product available in custom sizes?

A：Absolutely. All dimensions, thread specs, and structural features are customizable based on your drawings or requirements.
