Titanium alloy rod

Product Introduction

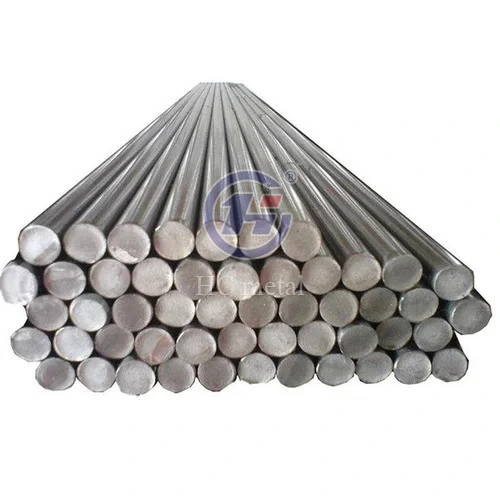

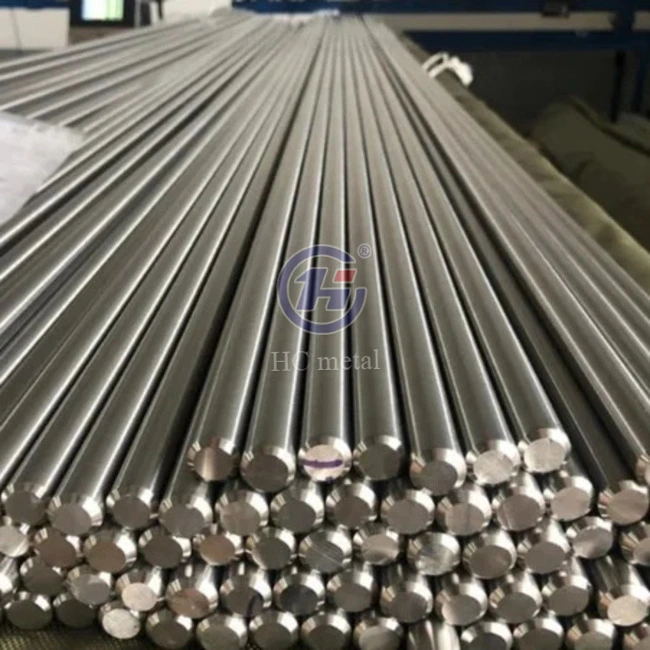

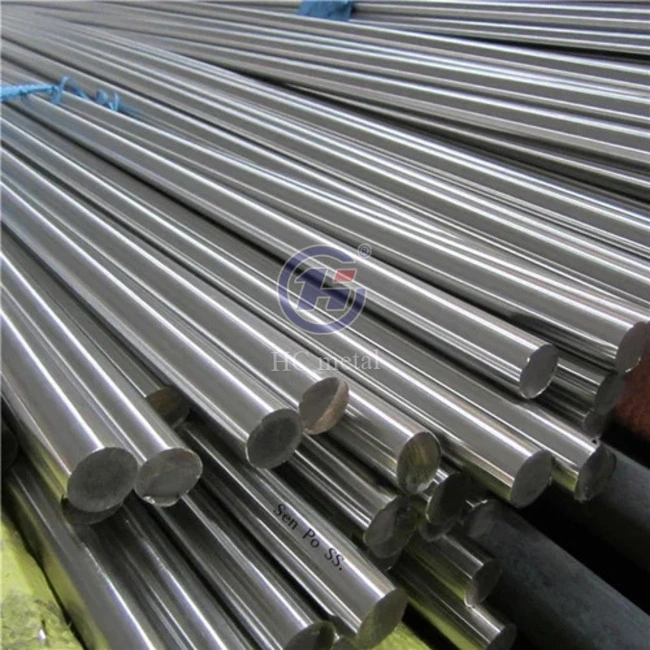

Baoji Huacan's titanium alloy rod is engineered from Ti-6Al-4V (Grade 5), delivering tensile strength up to 1000 MPa with a density of just 4.43 g/cm³. Diameter from 1mm to 250mm Length up to 6000mm All rods conform to standards ASTM B348 and AMS 4928. With more than 10 years’ expertise in titanium machining and 40+ CNC machines, we have an annual production capacity of 1000+ tons. We sell high-performance titanium bars to aerospace, medical, chemical and energy industries across the world.

Techinical Specifications

Product Features

High specific strength. At 4.43 g/cm³, this alloy delivers strength comparable to steel at just 60% of its weight — a critical advantage in aerospace structural design.

Outstanding corrosion resistance. A self-forming TiO₂ passive oxide layer protects the bar against seawater, chloride environments, and oxidizing acids — making it ideal for marine and chemical use.

Non-magnetic & biocompatible. The non-magnetic property prevents electromagnetic interference, while biocompatibility supports use in medical implants and surgical components.

Thermal stability. Grade 5 rods perform reliably up to 400°C under extended conditions, suitable for engine components and high-temperature industrial environments.



Our Precision Parts Processing Workshop



Titanium precision parts processing

Titanium precision parts processing

Titanium precision parts processing

Product Application

Aerospace. Used as feedstock for aircraft structural frames, fasteners, landing gear components, and engine parts where high strength-to-weight ratio is non-negotiable.

Medical devices. Grade 23 (Ti-6Al-4V ELI) bars — with lower oxygen and iron content — meet ISO 5832-3 for orthopedic implants, bone screws, and surgical instruments.

Marine & chemical processing. These bars have a passive oxide layer which leads to a strong resistance to chloride stress corrosion making them ideal for seawater pipelines, heat exchangers and reactor components.

Energy Sector . Used in offshore drilling equipment, nuclear components and desalination systems where corrosion and mechanical failure are severe risks.​​​​​​​

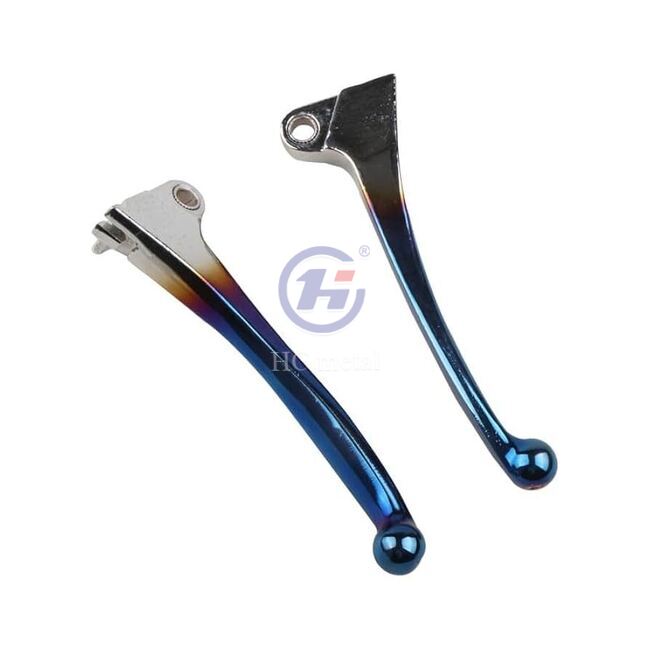

Motorcycle Performance Parts

Additive Manufacturing Applications

Aerospace Components

Aerospace Components

Manufacturing Capability

Our production infrastructure in Baoji — China's Titanium Valley — includes:

· Melting: VAR and PAM furnaces with 5,000+ tons annual melting capacity

· Forging: 4,000-ton hydraulic press and ring-rolling machines, 3,000+ tons annual capacity

· Rolling: Precision rolling mills with tight tolerance and uniform grain control

· Machining: 40+ CNC lathes and machining centers, including gantry systems

This integrated in-house capability means shorter lead times and full traceability across every production stage.

Vacuum Melting	Breakdown Forging	Forging & Rolling

Quality Control

Each batch goes through a multi-stage inspection protocol:

1. Raw material verification — spectrometer-based chemical composition analysis

2. In-process dimensional checks — monitoring tolerances throughout forging and machining

3. Ultrasonic testing (UT) — detecting internal voids, cracks, or inclusions without damaging the part

4. CMM dimensional inspection — confirming diameter, straightness, and length accuracy

5. Mechanical property testing — tensile strength, yield strength, and hardness verified against ASTM/AMS/DIN

6. Surface inspection — roughness testing and visual defect review before packaging

Certifications

The quality management system of Baoji Huacan is certified by ISO 9001 and covers the entire production process from the receipt of raw materials to the final shipping. Each batch has full material traceability records, inspection reports and product certificates (MTC/COC available on request).

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

FAQ

Packaging & Shipping

We protect every order with packaging designed for titanium's surface sensitivity:

· Vacuum-sealed bags with desiccants for moisture and oxidation protection

· Custom foam inserts for precision or polished bars

· Sturdy wooden crates for bulk or long-length shipments

· Detailed labeling and documentation for easy customs clearance and traceability

For urgent orders we can ship by air freight, for economy bulk delivery internationally we can ship by sea freight.

Customiztion Options

Your project likely has unique requirements for titanium alloy rod, and our manufacturing is built for that. We support:

· Custom diameter and length based on your drawings

· Multiple titanium grades: Grade 2, 5, 7, 9, 23

· Surface treatment options: polished, anodized, PVD coated, or natural mill finish

· Custom marking: laser engraving or CNC-engraved part numbers

· Prototype to mass production — small batch and volume orders accepted

Send your drawing or specification to sherry@hc-titanium.com for a rapid technical review.
