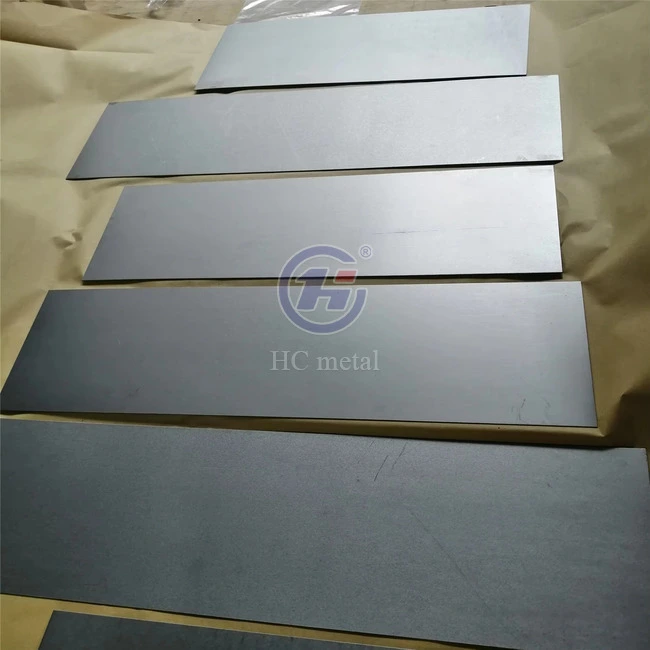

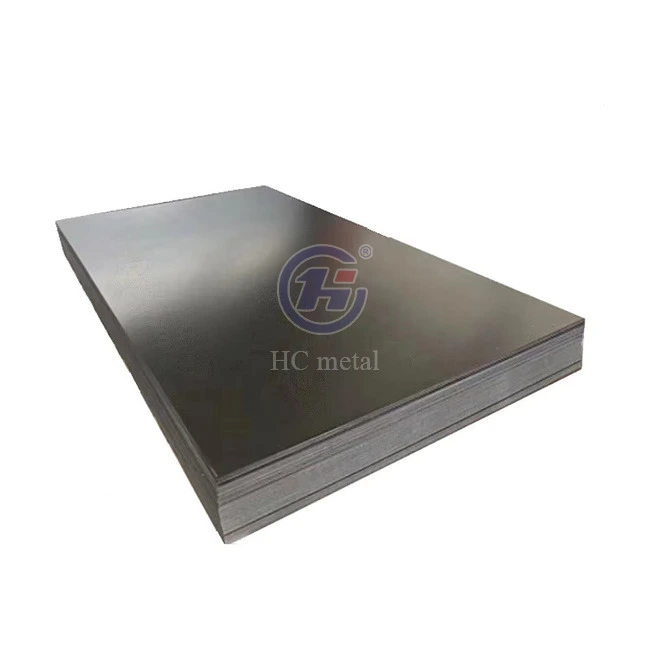

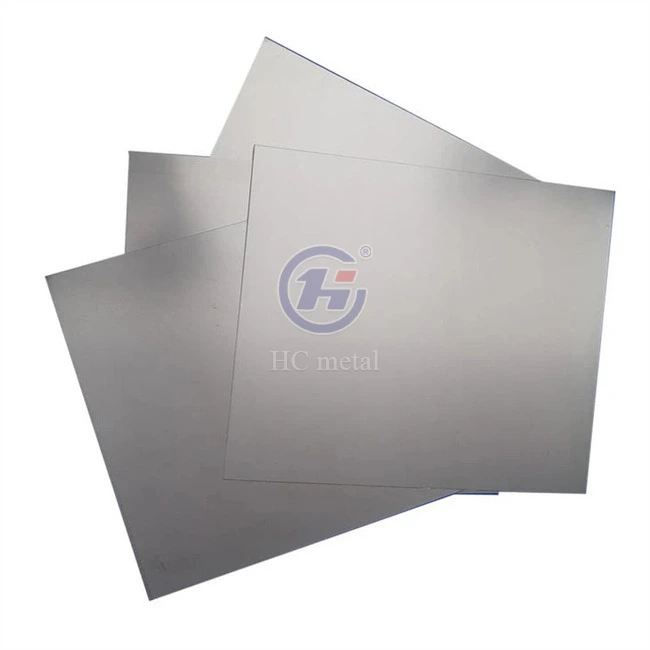

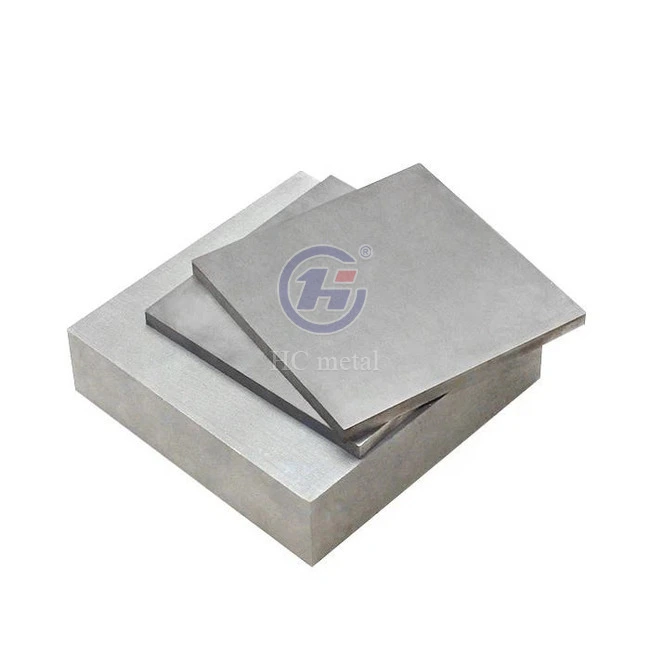

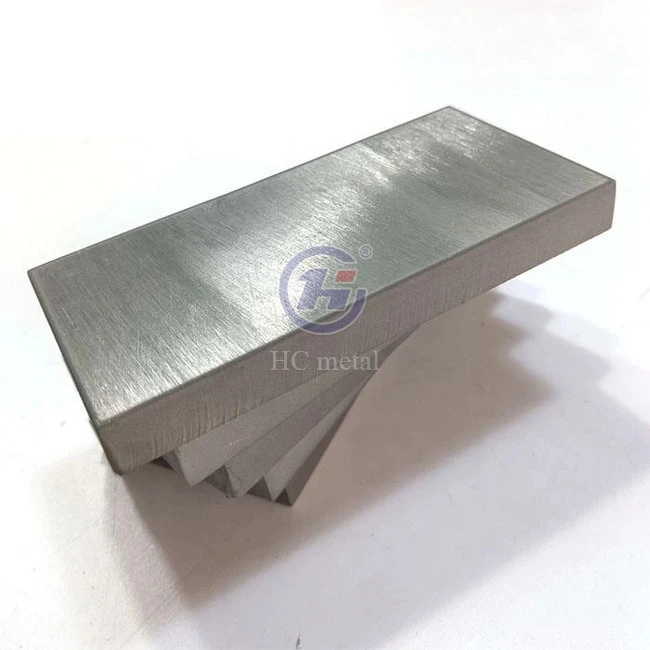

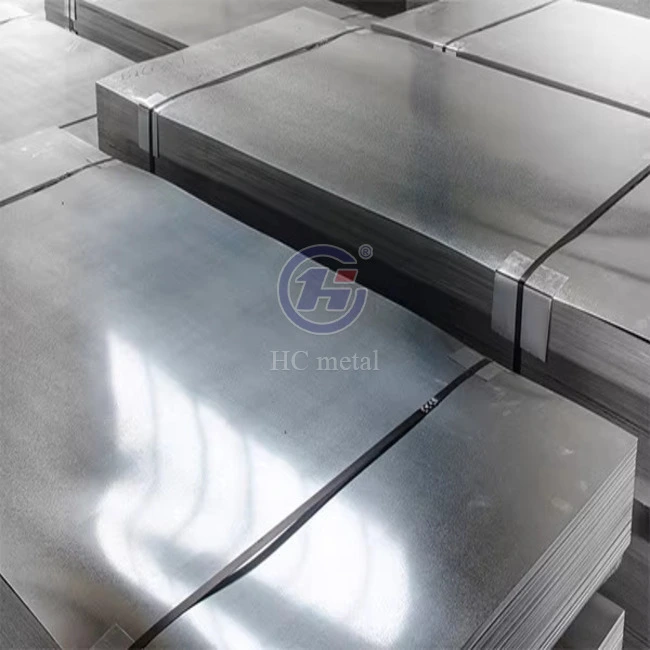

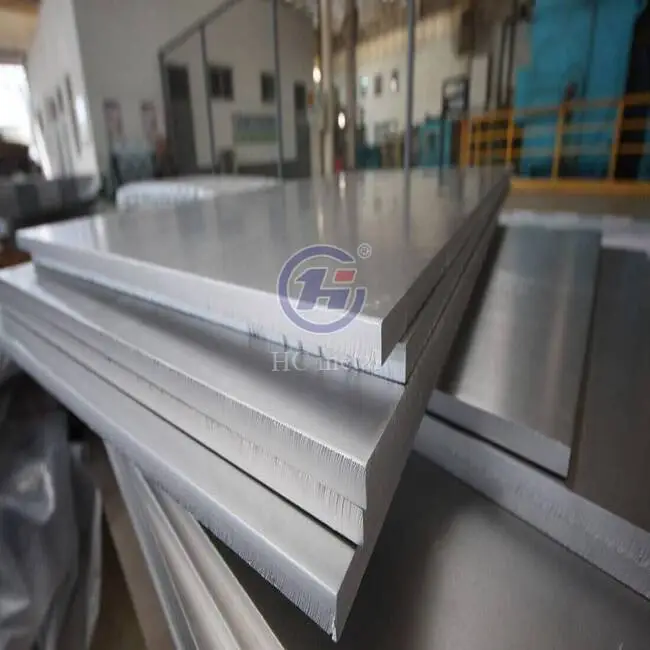

Pure Titanium Plate for Industrial Use — ASTM B265 Compliant, Custom Sizes Available

Baoji Huacan's pure titanium plate is manufactured from commercially pure titanium (Grade 1–4), fully compliant with ASTM B265. It is available in thicknesses from 0.1mm up to 50mm and widths up to 1500mm and has a density of only 4.51 g/cm³ – some 60% lighter than steel. This titanium sheet is resistant to corrosion and is easily formed, and may be cut to bespoke lengths for the demanding needs of the chemical processing, aerospace and medical sectors.

Why Choose Our Pure Titanium Plate

Choosing the correct flat metal product for hostile situations is really a problem. Stainless steel is unsuitable for high chloride environments. Nickel alloys add to the expense. Our titanium plate eliminates both the difficulties.

The self-healing TiO2 naturally develops a passive oxide layer that rapidly regenerates when damaged, providing long-term protection with no coatings or maintenance. Yield strengths from 170 MPa (Grade 1) to 480 MPa (Grade 4) and elongations of more than 20% provide you strength and formability in one material.

We have more than 10 years of expertise in titanium manufacture, with an annual production capacity of over 1,000 tons and more than 100 worldwide customer partnerships, and we offer consistent quality on every order.

Parameter	Details
Material Grade	CP Titanium Grade 1, 2, 3, 4
Material Standard	ASTM B265, ASME SB265
Thickness	0.1–50 mm
Width	Up to 1500 mm
Length	Custom cut lengths available
Surface Finish	Mill finish or polished
Density	Approx. 4.51 g/cm³
Yield Strength	Approx. 170 MPa (Gr. 1) to 480 MPa (Gr. 4)
Elongation	≥ 20%, depending on grade
Customization	Custom sizes and specifications available

The single-phase alpha microstructure of commercially pure titanium contains at least 99% titanium, making it fundamentally different from alloy grades like Grade 5. This structure delivers exceptional weldability and cold formability — ideal for complex fabricated assemblies.

The non-magnetic nature of CP titanium makes it valuable in sensitive electromagnetic environments. Its full biocompatibility means zero toxic ion release, which matters greatly in medical device manufacturing. Low density — 45% lighter than steel — reduces structural weight without sacrificing fatigue resistance.

Our Precision Parts Processing Workshop

Chemical processing: For plate heat exchangers and reaction vessels with wet chlorine gas, hypochlorites and nitric acid. Long service life guarantyd by resistance against crevice corrosion where stainless steel would otherwise fail.

Hydrometallurgy & Electrolysis Cathode sheets for electrolytic copper foil manufacturing. Stable dimensionally in high current density, acidic electrolytes without contamination of the finished product.

Aerospace: Low density and reliable fatigue performance make titanium sheet a practical choice for weight-critical structural components.

Medical Devices: CP titanium plates compliant with ASTM F67 — including pure titanium plate — are machined into cranioplasty plates and bone fixation devices, thanks to biocompatibility and a modulus of elasticity close to human bone.

Be used in a wide range of industries.

Bicycle & Motorcycle Performance Parts

Additive Manufacturing Applications

Aerospace Components


Medical & Laboratory Equipment


Marine & Offshore Equipment

Automotive Performance Parts

Our facility in Baoji — China's Titanium Valley — operates 40+ high-precision CNC machines, including machining centers and gantry systems. Annual production capacity exceeds 1,000 tons of finished titanium products, with melting capacity surpassing 5,000 tons per year.

This infrastructure means shorter lead times and reliable delivery whether your order is a few sheets or a full production run.


Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment

Rolling	Surface Treatment	Dimensional Inspection

BJHC follows a strict multi-stage inspection protocol. Incoming titanium is verified by spectrometer for chemical composition. In-process dimensional checks are performed at every production stage.

Ultrasonic testing may uncover internal faults without hurting the product. Finished plates are measured using CMM equipment and mechanical qualities are evaluated to ASTM, ASME and DIN standards. Each batch is supplied with a comprehensive Material Test Certificate (MTC) according to EN 10204 3.1.

Certifications

Our manufacturing facility is ISO 9001 certified for the quality management system of all processes from raw material input to final shipping. This guaranties a constant management of the process and a traceable record for each order.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What is the difference between Grade 1 and Grade 2?

A: Grade 1 contains the lowest amount of oxygen hence it is the softest and most malleable. Grade 2 has moderate strength and good formability and is the most extensively used grade for industrial purposes.

Q: Is it possible to fuse titanium plate to steel?

A:Direct fusion welding leads to the formation of fragile intermetallic complexes. Titanium must be bonded to steel via explosion bonding or by mechanical attaching.

Q: What paperwork comes with every shipment?

A：Each order is supplied with a Material Test Certificate (MTC) as per EN 10204 3.1 showing chemical composition, mechanical qualities, heat number and conformity with standard.

Q: What about high temperature performance of CP titanium?

A: It has excellent mechanical qualities up to around 315 degrees C. Above 400°C surface embrittlement by oxygen absorption may occur. For service at high temperatures consider the titanium alloy grades.

Method	Details
Moisture Protection	Vacuum-sealed bags with desiccants
Bulk Shipment	Sturdy wooden crates
Delicate Components	Custom-designed foam inserts
Documentation	MTC, COC, and traceability labels
Shipping Options	Air freight for urgent orders or sea freight for cost-effective delivery

Every order is treated as a custom project. You can specify thickness, width, length, grade, and surface finish based on your application requirements. OEM and ODM manufacturing is fully supported.

Drawing-based production is available for complex plate profiles or machined components. We accommodate prototype orders, small batch production, and large-volume supply equally well.
