Titanium Gr 7 ANSI Flanges: High-Performance Corrosion Resistance

Welcome to Baoji Huacan New Metal Technology Co., Ltd., your trusted manufacturer and supplier of premium titanium gr 7 ansi flanges. Located in the heart of China's "Titanium Valley," we specialize in producing high-performance titanium and titanium alloy products, including our top-of-the-line titanium gr 7 ansi flanges. Our commitment to quality, innovation, and customer satisfaction makes us the go-to choice for industries demanding superior corrosion resistance and durability.

Product Introduction

Titanium gr 7 ansi flanges are essential components in various industrial applications, particularly where extreme corrosion resistance is required. These flanges, made from Grade 7 titanium (Ti-0.2Pd), offer exceptional resistance to oxidizing and reducing acids, including hot salty solutions. Our titanium gr 7 ansi flanges are designed to meet ANSI (American National Standards Institute) specifications, ensuring compatibility and reliability in your piping systems.

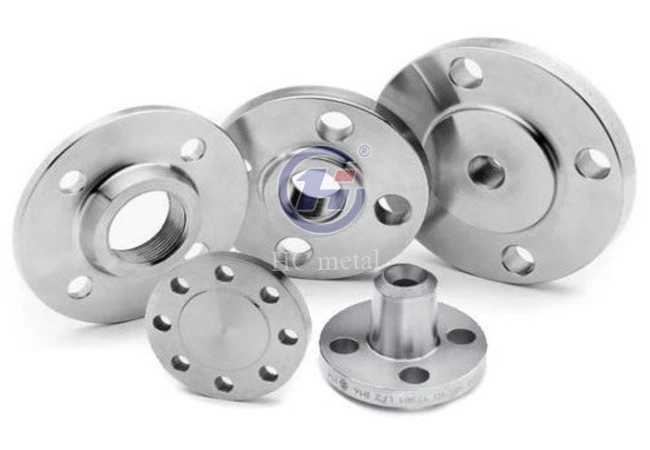

annealed titanium wire

Technical Specifications

Material: Grade 7 Titanium (Ti-0.2Pd)
Standard: ANSI B16.5, B16.47
Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
Size Range: 1/2" to 24"
Face Type: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Surface Finish: 125-250 AARH (3.2-6.3 μm Ra)
Chemical Composition:
- Titanium: Balance
- Palladium: 0.12-0.25%
- Iron: 0.30% max
- Oxygen: 0.25% max
- Carbon: 0.08% max
- Nitrogen: 0.03% max

Product Features and Advantages

Superior Corrosion Resistance: Excellent performance in oxidizing and reducing environments, including hot chloride solutions.
Enhanced Strength: Higher strength-to-weight ratio compared to stainless steel flanges.
Lightweight Design: Reduces overall system weight, ideal for offshore and aerospace applications.
Low Thermal Expansion: Ensures dimensional stability in varying temperatures.
Excellent Fatigue Resistance: Prolongs service life in cyclic loading conditions.
Biocompatibility: Suitable for pharmaceutical and food processing industries.

Product Show

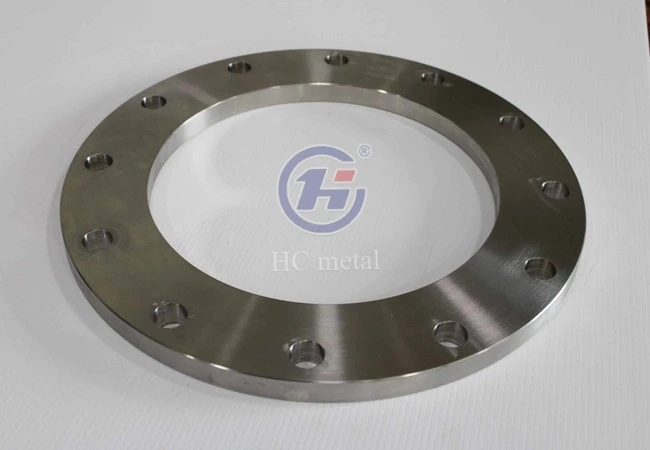

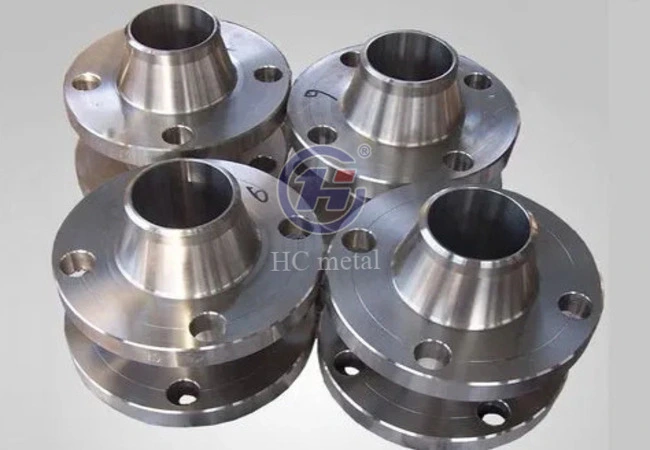

Titanium Gr 7 ANSI Flanges

Applications

Our titanium gr 7 ansi flanges find extensive use in:
Chemical Processing: Handling aggressive chemicals and acids
Oil & Gas: Offshore platforms and subsea equipment
Desalination Plants: Seawater handling systems
Aerospace: Fuel systems and hydraulic lines
Power Generation: Heat exchangers and condensers
Pharmaceutical: Clean room equipment and sterile processing
Pulp and Paper: Bleaching equipment and chemical storage

Manufacturing Process

At Baoji Huacan, we employ state-of-the-art manufacturing processes to ensure the highest quality titanium gr 7 ansi flanges:
Material Selection: Sourcing premium Grade 7 titanium ingots
Forging: Precision die forging for optimal grain structure
Heat Treatment: Controlled heating and cooling for desired mechanical properties
Machining: High-precision CNC machining for accurate dimensions
Surface Treatment: Pickling and passivation for enhanced corrosion resistance
Quality Control: Rigorous inspections and testing at every stage

Sponge Titanium Preparation

Vacuum Melting

Forging and Homogenization

Rolling

Annealing

Surface Treatment

Quality Assurance and Certification

Our commitment to quality is evident in our certifications and quality control measures:
ISO 9001:2015 Quality Management System
ASTM and ASME material compliance
100% PMI (Positive Material Identification) testing
Ultrasonic testing for internal defect detection
Hydrostatic pressure testing
Material Test Reports (MTR) provided with each order

Spectrometer

Ultrasonic Flaw Detector

Coordinate Measuring Machine

Hardness Tester

Tensile Testing Maching

Surface Roughness Tester

Microscope and Metallographic Analyzer

Calipers

Our Factory

FAQ

Q: What is the minimum order quantity for titanium gr 7 ansi flanges?

A: We can accommodate orders starting from a single piece to large batch productions.

Q: Can you provide samples before bulk order?

A: Yes, we offer sample pieces for testing and evaluation. Contact our sales team for details.

Q: How does Grade 7 titanium compare to other grades for flange applications?

A:Grade 7 offers superior corrosion resistance, especially in hot chloride environments, making it ideal for severe service conditions where other grades might fail.

Q: Can you provide flanges with custom bolt patterns?

A: Yes, we can manufacture flanges with custom bolt patterns to meet your specific requirements.

Packaging and Logistics

We ensure the safe delivery of your titanium gr 7 ansi flanges through:
Individual protective wrapping
Sturdy wooden crates or pallets
Vacuum-sealed packaging for long-term storage
Customized packaging solutions available
Global shipping options with tracking

Custom

designed foam inserts for delicate components

Vacuum

sealed bags with desiccants for moisture protection

Wooden Crate Packaging

Sturdy wooden crates for bulk shipments

Labeling & Documentation

Detailed labeling and documentation for easy tracking

Packaging

Why Choose Baoji Huacan for Your Titanium Gr 7 ANSI Flanges?

Expertise: Over a decade of experience in titanium fabrication
Comprehensive Capabilities: From forging to precision machining, all in-house
Quality Focus: Stringent quality control and international certifications
Custom Solutions: Tailored products to meet your specific requirements
Competitive Pricing: Direct-from-manufacturer rates
Technical Support: Expert assistance throughout your project
Fast Turnaround: Efficient production and reliable delivery times

OEM and Customization Services

We offer full customization services for your titanium gr 7 ansi flanges:
Custom dimensions and specifications
Special surface finishes and coatings
Non-standard designs and prototyping
Material grade variations (e.g., Grade 2, Grade 5)
Specialized testing and documentation

Contact Us

Ready to elevate your project with our premium titanium gr 7 ansi flanges? Contact our expert team today:

Email: Joy@hc-titanium.com or Sherry@hc-titanium.com
Tel & WhatsApp: +86 19991588029 or +86 18161773898

Experience the Baoji Huacan difference – where quality meets innovation in titanium gr 7 ansi flanges. Let's build a stronger, more corrosion-resistant future together!
