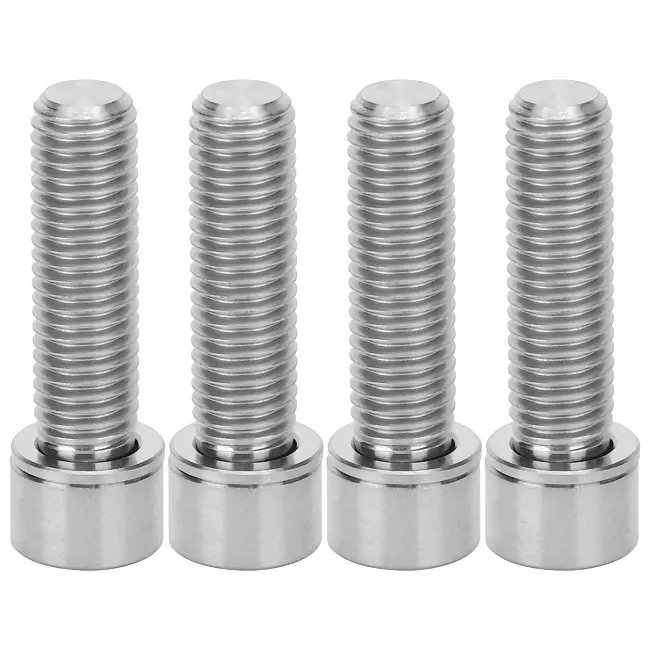

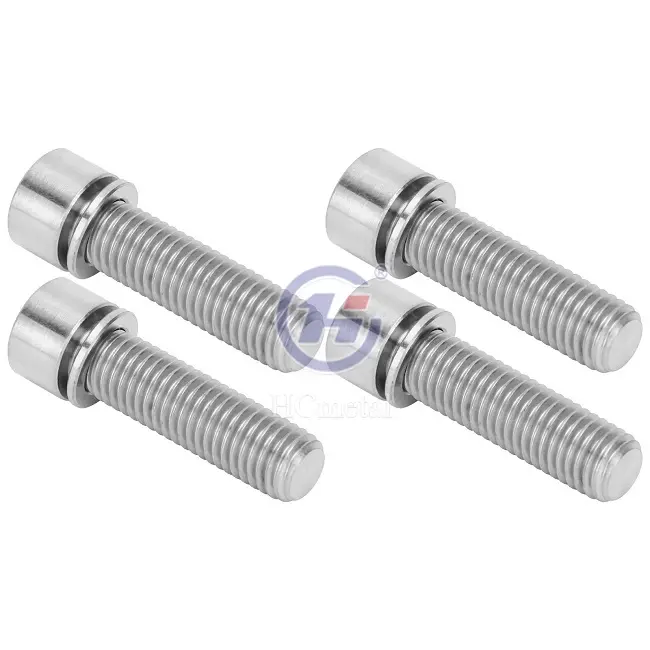

M6 Titanium Bolt for Aerospace, Cycling & Marine Applications — Lightweight, High-Strength Fastener Solutions

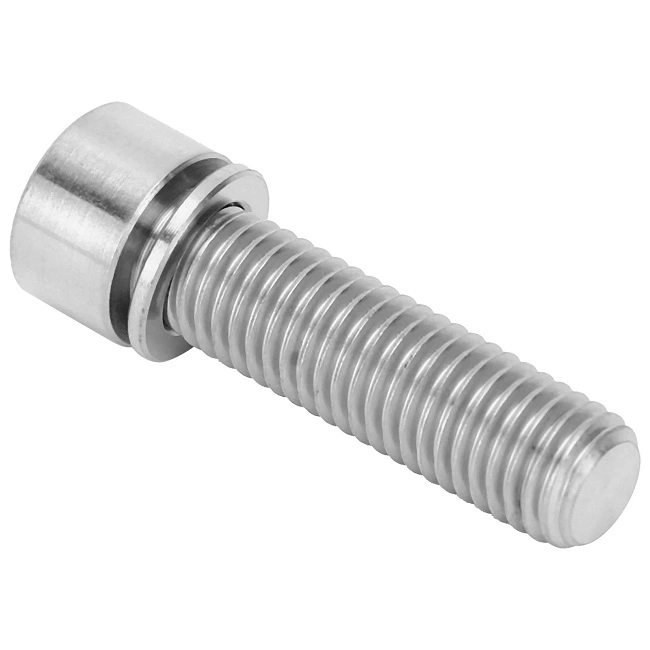

The m6 titanium bolt from Baoji Huacan is engineered for demanding applications where weight, strength, and corrosion resistance all matter. Made from Titanium Grade 5 (Ti-6Al-4V), it delivers tensile strength of 895–1000 MPa while weighing roughly 45% less than steel equivalents. Available in hex, button, and socket cap head styles, with lengths from 10–60mm and finishes including raw, polished, or anodized. Standards DIN 912 and ISO 7380 apply. Custom sizes, threads, and markings are fully supported.

Parameter	Details
Material	Titanium Grade 5 (Ti-6Al-4V)
Thread Size	M6 × 1.0 mm
Length Range	10–60 mm; custom lengths available upon request

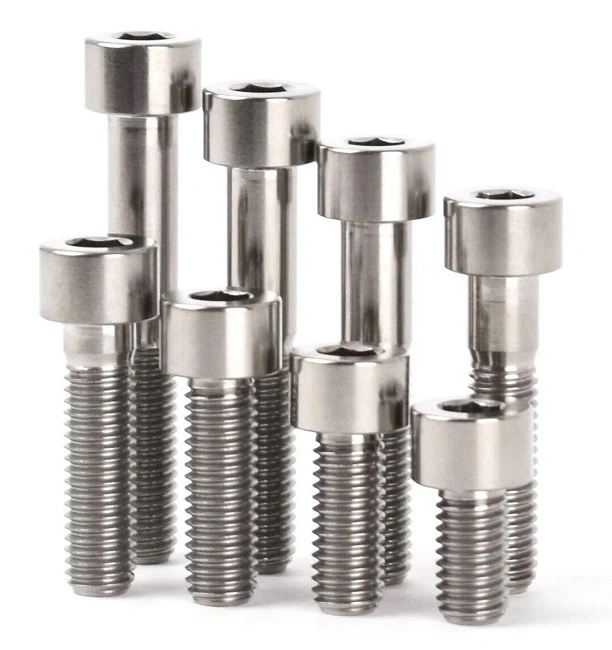

Head Type	Socket Cap, Button Head, or Hex Head, depending on design
Applicable Standard	ISO 4762 (DIN 912) for socket cap screws; ISO 7380 for button head screws
Thread Tolerance	6g external thread, subject to drawing requirements
Surface Finish & Customization	Natural titanium finish, polished, or anodized; custom dimensions and laser marking available

Cycling & Motorsport: Titanium M6 bolts are widely used on brake calipers, stems, and rotors. They resist seizing caused by road salt and sweat while cutting rotational mass — a real competitive edge.

Aerospace & UAV: Drone frames and satellite structures demand maximum strength at minimum weight. These bolts maintain preload under high-frequency vibration where aluminum shears and steel fatigues.

Marine & Chemical Processing: Desalination plants, electroplating racks, and underwater sensor housings benefit from titanium's near-total immunity to saltwater and acidic attack — preventing joint failures that destroy standard fasteners.

Bicycle Components

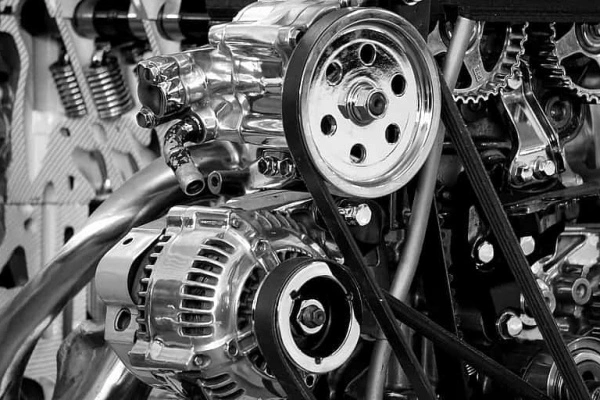

Automotive Components

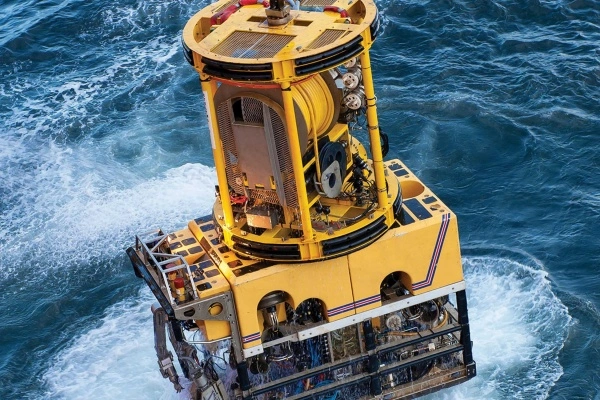

Marine Equipment

45% lighter than steel — reduces rotational and total assembly mass
895–1000 MPa tensile strength — outperforms 316 stainless steel
TiO₂ passive film — self-healing corrosion barrier in saltwater and acids
Non-magnetic — safe for MRI equipment and sensitive electronics
Stable from cryogenic temps up to ~400°C — broad thermal tolerance
Thread tolerance 6g — precision fit, reduces cross-threading risk

Material Features

Weight savings alone don't tell the whole story. When you switch to our titanium fastener, you get a combination of mechanical performance and chemical durability that steel and stainless simply can't match.

Titanium Grade 5 offers a yield strength of ~828 MPa, outperforming 316 stainless steel — at half the weight. The naturally forming TiO₂ passive film means your bolts stay corrosion-free even in saltwater, acidic, or chloride-rich environments. No red rust. No seized joints from road salt or sweat.

For engineers dealing with carbon fiber-to-aluminum joints, galvanic corrosion is a real problem. Our titanium bolts, when paired with proper insulation, dramatically reduce that risk. They're also fully non-magnetic, making them ideal for MRI and precision electronics assembly.

Every bolt starts with verified Grade 5 titanium bar stock, inspected against ASTM B348 for chemical composition — confirming aluminum content of 5.5–6.75% and vanadium at 3.5–4.5%.

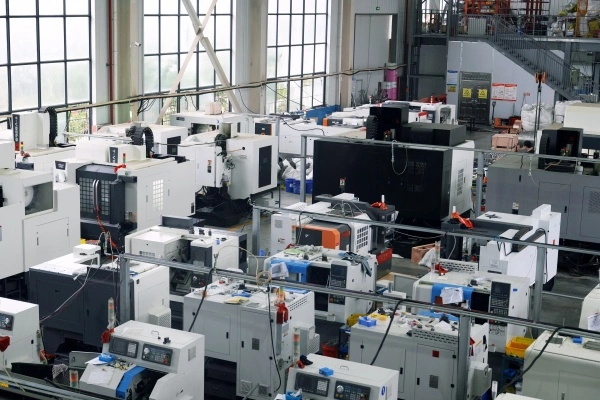

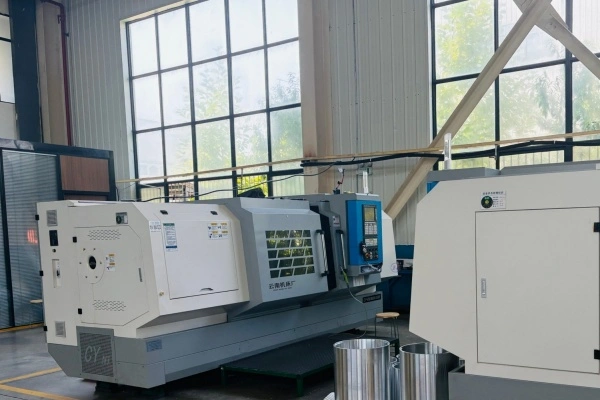

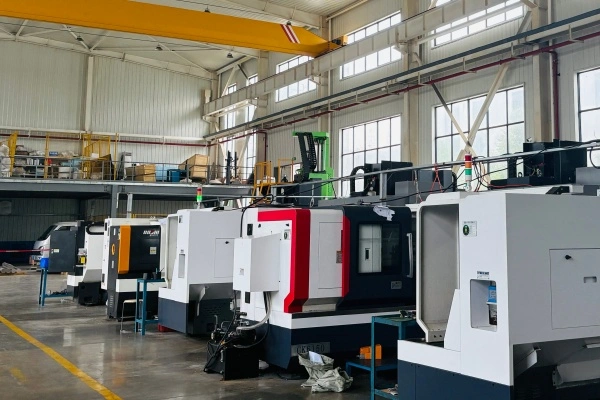

CNC precision turning and thread machining are performed on our fleet of 40+ advanced CNC lathes and machining centers. This ensures tight dimensional tolerances and consistent thread geometry across every batch, whether you order a prototype run or a large production quantity.

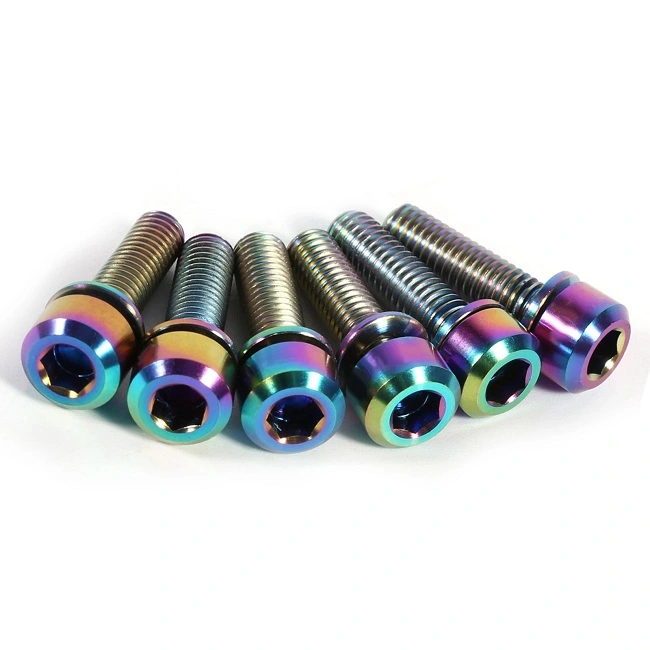

Post-machining, parts are deburred and surface-treated per your specification — raw, mechanically polished, or anodized. Anodizing is especially popular for motorsport and cycling applications, where color-coded fasteners help with quick identification.


Material Preparation	Heading / Forging	Heat Treatment	Precision Machining

Thread Manufacturing	Cleaning	Inspection	Surface Treatment

Our QC process covers every stage — from incoming material XRF verification to final GO/NO-GO thread gauge inspection. Dye Penetrant Inspection (DPI) detects micro-cracks on finished surfaces. CMM equipment confirms dimensional accuracy. Tensile and shear testing verifies breaking loads exceed 16,000 N for Grade 5 batches.

Full documentation including MTC, EN10204 3.1, and COC is available upon request.

Certifications

Baoji Huacan holds ISO 9001 quality management system certification, covering the full production chain from raw material sourcing to final shipment inspection.

You're not limited to standard configurations. We support full OEM/ODM manufacturing based on your drawings or specifications.

Customizable parameters include thread pitch, length, head type, drive type, surface finish, and logo marking. Grade 2, Grade 7, Grade 9, and Grade 23 titanium materials are also available depending on your corrosion and strength requirements.

Ready to upgrade your fasteners with m6 titanium bolt? Email Joy@hc-titanium.com for custom specifications, samples, or bulk pricing.
