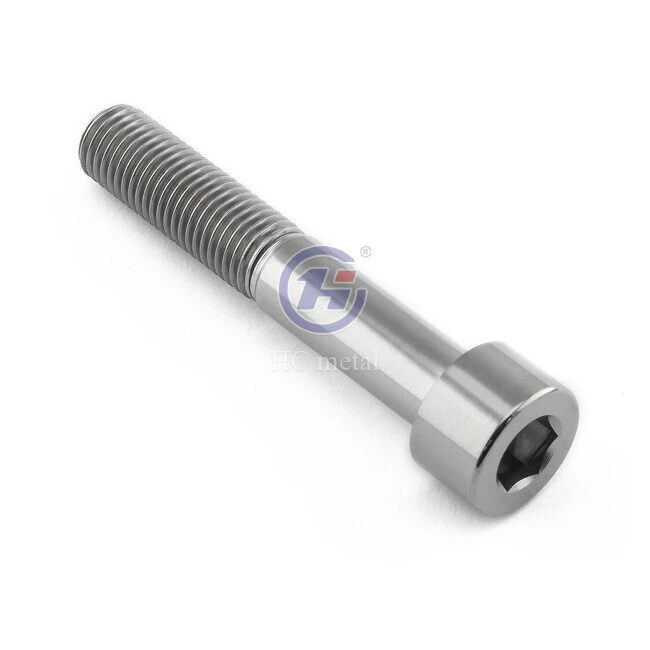

DIN912 M14 Titanium Bolt — Socket Cap Fastener for High-Performance Industrial Applications

The DIN912 M14 titanium bolt is a precision-engineered socket cap fastener manufactured from Ti-6Al-4V (Grade 5) alloy, delivering a minimum tensile strength of ≥895 MPa with a density of just 4.43 g/cm³ — roughly 45% lighter than equivalent alloy steel bolts. The M14 bolt is manufactured to DIN 912 / ISO 4762 with a thread pitch of 2.0mm and lengths of 30mm to 200mm. The surface treatments include burnt, polished, and anodised colour choices.

Why Choose Our DIN912 M14 Titanium Bolt

The appropriate fastener selection significantly affects system dependability, weight economy, and long-term maintenance costs. This is what makes our M14 titanium bolt unique:

You can count on material integrity. All bolts are produced from approved Ti-6Al-4V Grade 5 alloy, validated by XRF spectrographic examination prior to manufacturing. No substitutes, no cheating.

Lightweight, without sacrifice. The density is 4.43 g/cm3, compared with 7.85 g/cm3 for steel. Tensile strength is similar to Class 8.8 or 10.9 steel fasteners, but at almost half the weight. That’s important in aircraft, motorsport and marine constructions.

Natural corrosion resistance. Titanium instantly forms a passive TiO₂ oxide film on its surface. This makes it immune to chlorides, sulfides, and oxidizing acids — no coatings required for most harsh environments.

The non-magnetic performance. It is essential for MRI housings, delicate instruments and electronic assemblies where magnetic interference is not permitted.

Technical Specifications

Category	Parameter	Specification / Details
Basic Info	Product Standard	DIN 912 / ISO 4762
	Head Type	Socket Cap Head (Cylindrical Head)
	Drive Type	Internal Hex / Allen Key (Hexagon Socket)
Dimensions	Thread Size	M14 × 2.0 mm Pitch
	Length Range	30 mm – 200 mm (Customizable)
	Thread Tolerance	Class 6g
Material & Performance	Material Grade	Grade 5 Titanium (Ti-6Al-4V / UNS R56400)
	Tensile Strength	≥ 895 MPa
	Yield Strength	≥ 828 MPa
	Density	4.43 g/cm³
	Operating Temp	Cryogenic up to 400°C
Finish & Customization	Surface Finish	Polished, Burnt Blue/Purple, Anodized Colors (Gold, Black, Rainbow, etc.)
	Custom Service	Non-standard sizes available per engineering drawings or samples

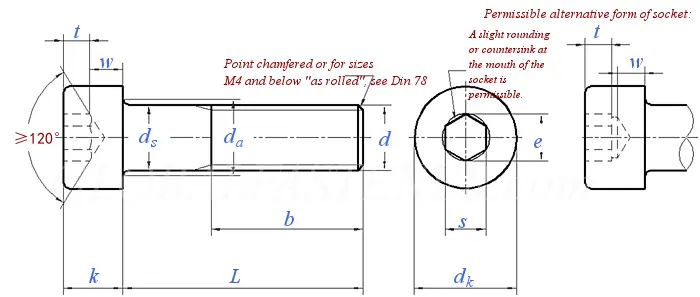

Thread Size D			M1.4	M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	M42	M48	M56	M64	M72	M80	M90	M100
P	Pitch	Coarse Thread	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4.5	5	5.5	6	6	6	6	6
		Fine Thread Pitch-1	-	-	-	-	-	-	-	-	1	1.25	1.25	1.5	1.5	1.5	1.5	1.5	2	2	2	2	3	3	3	4	4	4	4	4	4
		Fine Thread Pitch-2	-	-	-	-	-	-	-	-	-	1	1.5	-	-	2	2	2	-	-	-	-	-	-	-	-	-	-	-	-	-
dk	plain head	max	2.6	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27	30	33	36	40	45	50	54	63	72	84	96	108	120	135	150
	knurled heads	max	2.74	3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27	21.33	24.33	27.33	30.33	33.39	36.39	40.39	45.39	50.39	54.46	63.46	72.46	84.54	96.54	108.54	120.54	135.63	150.63
	min		2.46	2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	32.61	35.61	39.61	44.61	49.61	53.54	62.54	71.54	83.46	95.46	107.46	119.46	134.37	149.37
da	max		1.8	2	2.6	3.1	3.6	4.7	5.7	6.8	9.2	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	45.5	52.6	63	71	79	87	97	107
ds	max		1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20	22	24	27	30	33	36	42	48	56	64	72	80	90	100
ds	min		1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.73	19.67	21.67	23.67	26.67	29.67	32.61	35.61	41.61	47.61	55.54	63.54	71.54	79.54	89.46	99.46
e	min		1.5	1.73	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72	16	16	19.44	19.44	21.73	21.73	25.15	27.43	30.85	36.57	41.13	46.83	52.53	62.81	74.21	85.61	97.04
k	max		1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20	22	24	27	30	33	36	42	48	56	64	72	80	90	100
k	min		1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.57	19.48	21.48	23.48	26.48	29.48	32.38	35.38	41.38	47.38	55.26	63.26	71.26	79.26	89.13	99.13
s	Nominal Size		1.3	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14	17	17	19	19	22	24	27	32	36	41	46	55	65	75	85
	min		1.32	1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.032	17.05	17.05	19.065	19.065	22.065	24.065	27.065	32.08	36.08	41.08	46.08	55.1	65.1	75.1	85.12
	max		1.36	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.212	17.23	17.23	19.275	19.275	22.275	24.275	27.275	32.33	36.33	41.33	46.33	55.4	65.4	75.4	85.47
t	min		0.6	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9	10	11	12	13.5	15.5	18	19	24	28	34	38	43	48	54	60
w	min		0.5	0.55	0.55	0.85	1.15	1.4	1.9	2.3	3	4	4.8	5.8	6.8	7.8	8.6	9.4	10.4	11.9	13.1	13.5	15.3	16.3	17.5	19	22	25	27	3

Offshore & Subsea Engineering Titanium’s high-pressure saltwater corrosion resistance offers advantages for ROV housings, platform sensor arrays and subsea structural connections. cathodic protection is eliminated and replacement frequency is greatly reduced.

Motorsport and Performance Automotive: Fasteners for suspension wishbones, brake calliper mounts and chassis sub-frames need strong shear stress capacity and low unsprung mass. Ideal for performance engines and wheel hub assemblies The M14 size is an ideal fit.

Chemical Processing: Flange joints on heat exchangers and reactors processing chlorine or bleaching chemicals need materials that resist seizing and chemical attack. Titanium bolts avoid fastener failure in these situations from causing harmful spills.

Bicycle & Cycling

Motorcycle Modification

Automotive Performance & Racing

RC Models & Drones

Marine Equipment

Precision Equipment

· 45% weight reduction vs. alloy steel at equivalent strength ratings

· Passive TiO₂ surface film provides natural protection in marine, chemical, and saline environments

· Non-magnetic — suitable for MRI, electronic, and instrumentation applications

· Temperature stability from cryogenic conditions up to 400°C

· Galvanic compatibility with carbon fiber composites — no corrosion risk in CFRP assemblies

· Biocompatible material — suitable for medical-adjacent structural applications

Product Features

Baoji Huacan operates from China's "Titanium Valley" in Baoji, Shaanxi Province, with over 10 years of titanium machining experience. Our facility includes:

· 40+ CNC lathes and machining centers, including gantry systems

· 4,000-ton hydraulic press for precision forging

· Annual production capacity exceeding 1,000 tons of machined titanium parts

· Annual melting capacity exceeding 5,000 tons of titanium ingots (VAR and PAM furnaces via strategic partners)

· Support for prototype, small batch, and mass production

Each bolt begins with certified Ti-6Al-4V bar stock, inspected for chemical composition before entering production. The manufacturing sequence includes precision CNC turning, thread machining with Go/No-Go gauge verification, and head forming through cold or hot forging depending on dimensional requirements.

Over 40 CNC lathes and machining centers at our Baoji facility ensure tight dimensional tolerances are maintained throughout. Post-machining, each bolt undergoes deburring, surface treatment, and a final dimensional check using coordinate measuring machines (CMM) and digital gauges.

Thread quality is verified using 6g tolerance ring gauges, strictly complying with DIN 912 geometric requirements for head height, head diameter, and drive key dimensions.


Material Preparation	Heading / Forging	Heat Treatment	Precision Machining

Thread Manufacturing	Cleaning	Inspection	Surface Treatment

Our multi-stage inspection process ensures every DIN912 M14 titanium bolt meets your exact specifications:

PMI Verification: XRF spectrographic analysis confirms Ti-6Al-4V elemental composition on incoming material. This eliminates the risk of lower-grade substitution.

Thread Inspection: Go/No-Go ring gauges at 6g tolerance verify every thread before shipment. Dimensional checks using CMM, micrometers, and height gauges ensure DIN 912 geometric compliance.

Mechanical Testing: Tensile and yield strength are tested on sample batches to confirm ≥895 MPa and ≥828 MPa minimum values respectively.

Surface & Defect Inspection: Fluorescent Dye Penetrant Inspection (DPI) identifies surface fractures or laps caused by thread rolling – important stress raisers that are not visible to the naked eye.

Final Documentation Each batch is delivered with material test certificates (MTC), inspection reports and complete traceability records of materials.

Certifications

Baoji Huacan’s quality management system has been certified to ISO 9001, encompassing all the production chain from raw material selection to final inspection. All our production methods are in compliance with ASTM, AMS and DIN international standards.

Your application drives our design. We support full OEM/ODM manufacturing based on customer drawings or specifications.

· Thread: Metric or imperial, custom pitch and size

· Seat type: Conical, ball, flat — per your wheel fitment

· Dimensions: Custom length, hex size, and outer diameter

· Surface finish: Black PVD standard; natural titanium finish available

· Marking: Laser engraving or CNC-engraved part numbers/logos

· Batch size: Prototype to mass production supported

Packaging & Protection	Function & Value
Custom Foam Inserts	Tailored cushioning to eliminate collisions and protect precision thread/head surface.
Vacuum-Sealed Bags with Desiccants	Complete moisture-proof & anti-corrosion barrier for long-distance transit.
Reinforced Wooden Crates	Heavy-load protection engineered for international sea/rail freight.
Traceability Labeling & Documentation	Barcode labeling + MTC & CoC included to guarantee 100% full batch traceability and hassle-free customs clearance.

Q: How does galling affect titanium M14 bolts during installation?

A：Titanium has a greater coefficient of friction than steel and galling (cold welding) under torque is an issue. Always install using an anti-seize substance such as molybdenum disulphide (MoS2). Specify an anodised surface finish and you will also greatly decrease the possibility of galling.

Q: What torque value should I use for an M14 titanium bolt?

A：Generally, torque titanium bolts to approximately 70–80% of the equivalent steel torque value to avoid yielding. Exact values depend on your lubrication method and k-factor. We recommend consulting your assembly engineer for critical joints.

Q: Are these bolts compatible with carbon fiber components?

A：Yes. Titanium is galvanically compatible with carbon fiber reinforced polymer (CFRP). Unlike aluminum or steel, titanium does not create a galvanic couple that accelerates corrosion, making it the preferred fastener material in composite structures.

Q: Can you supply small prototype quantities?

A：Yes. We support prototype, small batch, and full production runs. Contact us with your drawing or specification to discuss minimum order quantities and lead times.

Q: What material certifications are available?

A：We provide MTC (Material Test Certificates), EN 10204 3.1 certificates, and Certificates of Conformance (COC) upon request. XRF composition reports are available for PMI verification.
