How to Avoid Deformation During Titanium Rod Welding?

It's important to keep an eye on the heat, insulation, joint alignment, and welding process when you're welding titanium rods. Titanium can react with oxygen and nitrogen at high temperatures. Heating and cooling unevenly can also cause distortion. To keep the shape and structure of a titanium rod, it is important to follow the right steps for preparation and welding. This article talks about useful ways to keep deformation under control while welding and the things that should be thought about for various joint designs and material situations.

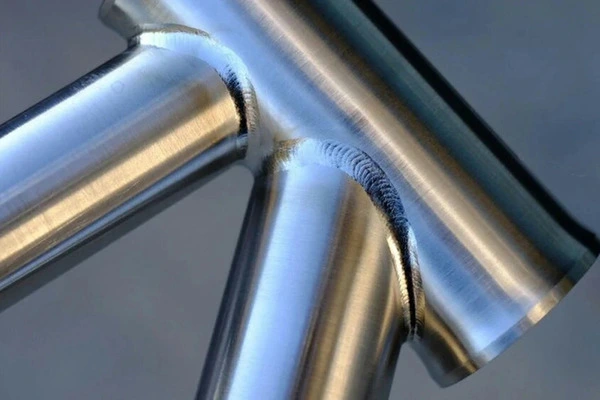

Use Low-Heat Welding and Narrow Beads

When welding titanium rods, it's important to keep an eye on the heat because too much or random burning can make the distortion worse. Welders shouldn't rely on a fixed current or travel speed. Instead, they should set the right parameters based on the rod diameter, joint design, material grade, and welding procedure that is being used.

Pulsed TIG Welding for Titanium Rod Joints

When titanium rods are joined, pulsed TIG (Tungsten Inert Gas) welding can give you precise control over the arc energy. Changing between peak and background current can help control the amount of heat that comes in, but the right settings depend on the shape of the joint and the thickness of the material.

When using pulsed TIG welding:

- Select peak current according to the required penetration and joint design.

- Set background current based on the welding procedure rather than using one universal percentage.

- Select pulse frequency according to the equipment, joint geometry, and desired heat control.

- Maintain a consistent travel speed and torch position to keep heat distribution uniform.

- Use adequate inert gas coverage to protect the weld pool and heated titanium surfaces.

Pulsed welding can help control heat accumulation, but it does not automatically guarantee lower distortion or complete penetration. Welding parameters should be validated through an appropriate procedure before production.

Narrow Bead Technique for Titanium Material

Using controlled, relatively narrow beads can help limit unnecessary heat input and reduce distortion. The objective is to deposit only the amount of filler metal required for the joint rather than creating an unnecessarily wide weld.

When applying this technique:

- Select filler diameter according to the joint design and required weld size.

- Maintain a short, consistent arc length.

- Move the torch smoothly without excessive weaving.

- Use multiple controlled passes when required by the joint configuration.

- Keep the weld area clean before and during welding.

These practices help control the heat-affected zone and reduce localized heating in the titanium material.

Proper Shielding Gas Selection

Shielding gas is one of the most important factors in titanium welding. Argon is commonly used because it provides effective inert shielding and is suitable for many TIG applications. Helium or argon-helium mixtures may also be considered when additional arc energy or penetration is required, but the gas selection should follow the welding procedure and equipment requirements.

Protection should cover not only the weld pool but also the hot electrode and heated titanium surfaces behind the arc. Inadequate shielding can cause discoloration, contamination, and reduced weld quality. The gas flow rate, torch configuration, trailing shield, and surrounding environment should therefore be evaluated together rather than relying on gas composition alone.

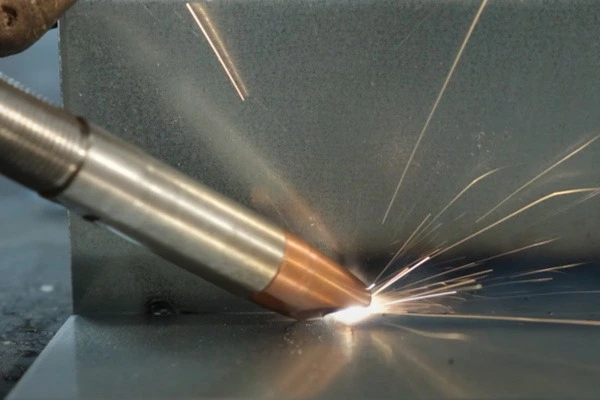

Apply Robust Fixturing and Tack Welds

Proper fixturing helps maintain joint alignment while controlling movement caused by thermal expansion and contraction. Fixtures should provide adequate support without restricting the joint in a way that creates excessive residual stress.

Design and Use of Specialized Fixtures for Titanium Rod Welding

Custom fixtures can improve repeatability when welding titanium rod assemblies. When selecting fixture materials and designs:

- Use suitable thermally conductive materials, such as copper or aluminum, where heat dissipation is required.

- Ensure the fixture can accommodate the specified rod diameter and joint geometry.

- Keep the fixture clean and prevent unsuitable materials from contaminating the weld area.

- Provide sufficient access for the torch and shielding system.

- Allow controlled thermal expansion where necessary.

Copper backing bars can be useful for heat management in selected joint designs, but their use should be evaluated for fit, access, cleanliness, and the required welding procedure.

Strategic Tack Welding for Titanium Material

Tack welds help maintain alignment before the main weld is deposited. Their number and spacing should be determined by rod diameter, joint length, geometry, and the applicable welding procedure rather than by a universal distance.

For consistent tack welding:

- Use clean joint surfaces and properly fitted components.

- Keep tack welds sufficiently small while providing reliable alignment.

- Inspect each tack for contamination, cracking, or other visible defects.

- Control heat accumulation between tack welds.

- Maintain adequate shielding throughout the tack welding operation.

These practices can reduce movement during subsequent welding and help maintain the required dimensions of the titanium material.

Copper Backing Bars for Heat Dissipation

Copper backing bars can help remove heat from selected weld areas because copper has high thermal conductivity. The backing surface should fit the joint properly and remain clean during welding.

When using copper backing:

- Ensure consistent contact with the workpiece where the joint design permits.

- Keep the copper surface free from contaminants.

- Avoid placing unsuitable compounds where they could enter the weld area.

- Consider water-cooled backing only when required by the welding procedure and heat-management needs.

The purpose of backing is to support heat control without compromising shielding or introducing contamination

Sequence Welds to Balance Distortion

Welding sequence affects how thermal expansion and contraction are distributed through an assembly. A suitable sequence can reduce cumulative distortion, although the best approach depends on the joint configuration and component dimensions.

Balanced Welding Pattern for Titanium Rod Assemblies

A balanced sequence can help distribute thermal stresses more evenly. Depending on the assembly, useful approaches may include:

- Welding from areas that provide stable alignment toward less constrained sections.

- Alternating between suitable sides or locations when the design allows.

- Using skip sequences for appropriate long joints.

- Allowing sufficient cooling to prevent excessive heat accumulation.

The sequence should be established during procedure development rather than applied as a universal pattern to every titanium rod assembly.

Intermittent Welding Technique for Titanium Material

Intermittent welding can help control cumulative heat when the joint design permits welding in separate sections. Shorter weld segments can reduce continuous heat buildup, but segment length should be determined according to joint dimensions and welding requirements.

A controlled approach may include:

- Dividing a long joint into suitable sections.

- Completing sections according to a planned sequence.

- Monitoring temperature between passes.

- Alternating locations where appropriate to distribute heat.

This approach can help maintain dimensional stability without compromising the required weld size or continuity.

Back-Step Welding for Long Titanium Rod Joints

Back-step welding is another sequencing method that can be considered for suitable long joints. Instead of progressing continuously in one direction, the weld is divided into sections and deposited in a planned reverse sequence. Its application should consider joint geometry, access, restraint, and the expected direction of distortion. The technique should be qualified as part of the welding procedure rather than assumed to provide the same result for every titanium rod joint.

Conclusion

Controlling the amount of heat used, insulation, joint preparation, fixturing, and weld process are all important for keeping titanium rods from deforming during welding. TIG welding can accurately control the heat, and the right covering can keep titanium from getting contaminated by air at high temperatures. Alignment can be kept even better with the right tack welding and attachment design.

There isn't a single welding setting or order that works for all uses of titanium rod. When making a welding procedure, you should think about the rod diameter, alloy grade, joint configuration, filler metal, equipment, and production needs. Visual inspection and, if needed, non-destructive tests can also be used to make sure the quality of the weld.

We at Baoji Huacan New Metal Materials Co., Ltd. are experts at making titanium rods for tough industrial uses. Our production skills include precise rolling and CNC cutting, which lets us make titanium goods that meet specific technical and size requirements. Our technical team can help customers talk about the grade of the material, its dimensions, its surface condition, its machining needs, and the inspection paperwork.

FAQ

What are the main challenges in welding titanium rods?

The main challenges include preventing atmospheric contamination, controlling heat input, maintaining joint alignment, and providing adequate shielding over the weld and heated areas.

Can titanium rods be welded to other metals?

Welding titanium to dissimilar metals is generally more difficult because of differences in melting behavior, thermal properties, and metallurgical compatibility. Some combinations can form brittle intermetallic compounds. The specific material pair and joint design must therefore be evaluated before selecting a welding method.

What type of welding is best for titanium rods?

TIG welding is commonly used when precise control and high-quality shielding are required. The most suitable process depends on rod dimensions, joint configuration, production volume, and applicable welding requirements.

Maximizing Titanium Rod Performance in Welded Structures

The performance of welded titanium structures depends on both material selection and process control. Titanium offers a useful combination of strength, low density, and corrosion resistance, but these properties can only be maintained when welding is performed with suitable shielding and controlled heat input.

Post-weld inspection may include visual examination, dimensional inspection, and appropriate non-destructive testing according to the application. Heat treatment should not be presented as a universal requirement because the need for post-weld treatment depends on the alloy, material condition, component design, and applicable specification.

For customized titanium rod solutions, Baoji Huacan New Metal Materials Co., Ltd. can discuss material grades, dimensions, machining requirements, and quality-control needs with customers. For project inquiries, contact Joy@hc-titanium.com or Sherry@hc-titanium.com.
