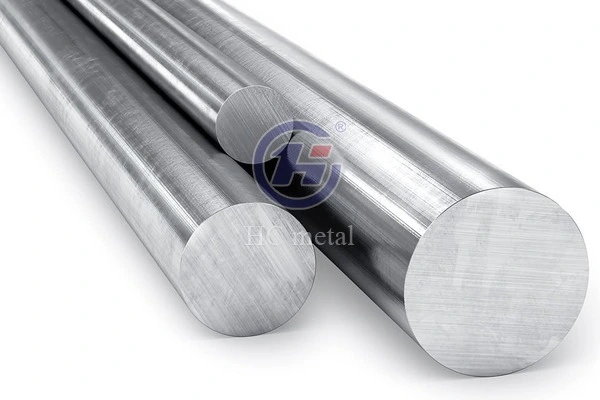

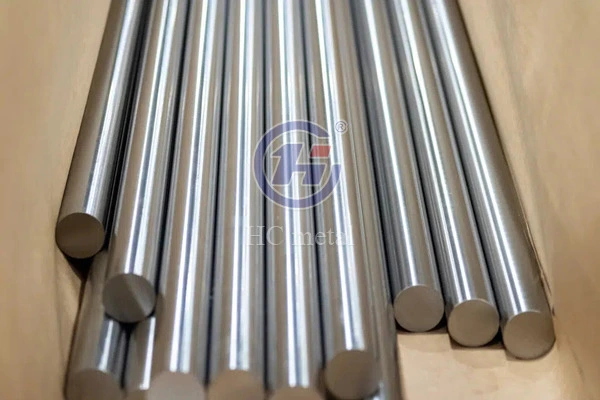

Grade 5 Titanium Rod for Industrial & Aerospace Use — High Strength, Custom Sizes Available

Grade 5 titanium rod (Ti-6Al-4V) is the most widely used titanium alloy in the world, accounting for over 50% of global titanium consumption. It comes in diameters from 6mm to 12mm and lengths from 500mm to 1000mm. It has a minimum tensile strength of 895 MPa, with a density of just 4.43 g/cm³. It is as strong as steel, yet weighs a lot less. Baoji Huacan sells this material to aerospace, medical, marine and industrial consumers with complete OEM/ODM capabilities, bespoke dimensions and guaranteed by ISO 9001 quality control.

Property	Value
Material Grade	Grade 5 Titanium (Ti-6Al-4V), UNS R56400
Material Standard	ASTM B348 or applicable AMS specification, subject to product form and supply requirements
Dimensions	Diameter: 6–12 mm; standard length: 500–1000 mm; other sizes available upon request
Mechanical Properties	Ultimate Tensile Strength: ≥895 MPa; 0.2% Yield Strength: ≥828 MPa; Elongation: ≥10%, subject to applicable specification and supply condition
Supply Condition	Annealed or other specified condition, subject to material specification
Surface Finish & Tolerance	Standard mill finish, machined, or polished; dimensional tolerances according to applicable standard or customer drawings
Quality Documentation	EN 10204 3.1 Material Test Certificate (MTC) available upon request; chemical composition and mechanical test results provided as specified

High Strength-to-Weight Ratio – Ti-6Al-4V has a tensile strength approaching heat-treated alloy steel at around 56% of the density. This implies constructions with a reduced weight without loss of load-bearing capacity.
High Corrosion Resistance – The alloy generates a stable self-healing oxide layer. It is resistant to saltwater, chlorides, mild acids and H2S conditions where stainless steel normally declines.
High-Temperature Performance – Reliable in thermal cycling situations, with mechanical integrity up to 400°C without substantial creep deformation.
Biocompatibility – Non-toxic and non-ferromagnetic, safe for MRI settings, and compatible with human tissue, thereby enabling applications in medical implants.

Our Precision Parts Processing Workshop

Titanium precision parts processing

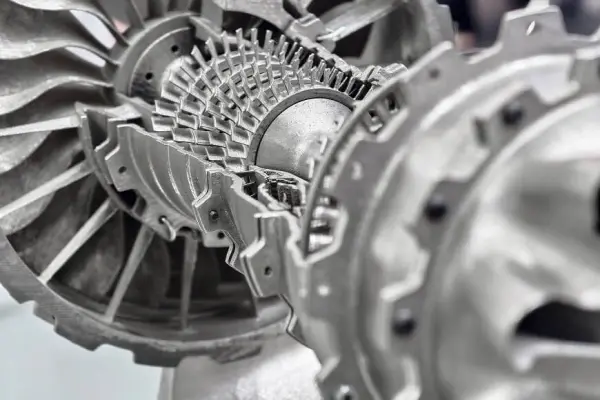

Aerospace & Aviation — Machined to fasteners, hydraulic actuators and structural components subjected to cyclic stress from -54°C to 400°C.
Medical Devices — Used in bone screws, spinal rods, and orthopedic implants. Its ~113 GPa elastic modulus closely matches human bone, reducing stress shielding.

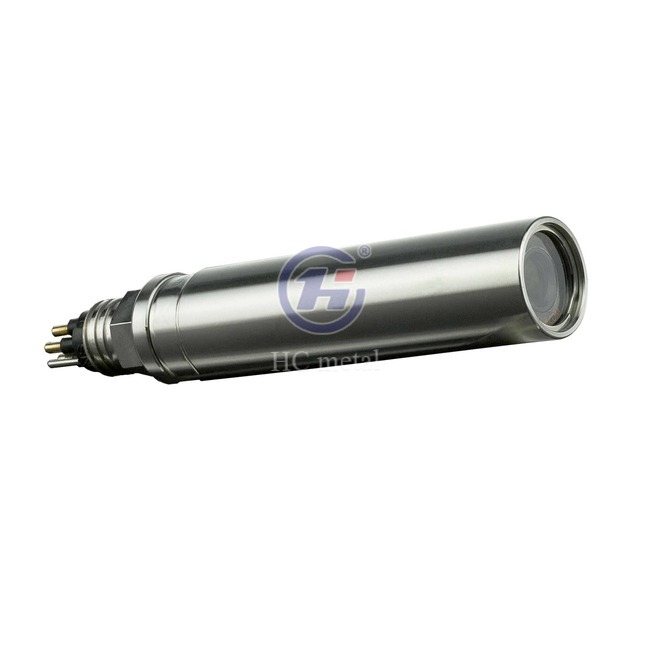

Offshore & Marine — Applied in downhole tools, valve stems, and propeller shafts exposed to high-salinity and H₂S-rich subsea environments.
Motorsport & Automotive — Supports exhaust systems and roll cage fabrication where high-cycle fatigue resistance is essential for grade 5 titanium rod.

Be used in a wide range of industries.

Aerospace Components

Automotive & Motorsport

Marine & Diving Equipment

Every batch follows a multi-stage inspection protocol. Raw materials are verified by spectrometer for chemical composition before entering production.

In-process controls monitor each manufacturing stage. Ultrasonic testing detects internal flaws without damaging the rod, ensuring structural integrity.

Final inspection includes CMMs, micrometers, surface roughness gages and mechanical property testing for tensile, yield and hardness values. Each shipment is supplied with MTC’s and EN10204 3.1 certifications and full paperwork is available.

Certifications

At Baoji Huacan, from receipt of raw materials to delivery, all processes are performed according to the ISO 9001 quality management system. All items are produced in accordance with ASTM B348 and AMS 4928.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What standards does your product meet?

A: It conforms with ASTM B348 and AMS 4928 that covers chemical composition, mechanical qualities and dimensional limits.

Q: Can you produce custom sizes outside 6–12mm diameter?

A: Sure. We may provide diameters and lengths beyond the usual range according to your designs or technical specifications.

Q: What is the minimum order quantity?

A: MOQ varies by specification. Contact us directly for details based on your project needs.

Q: Is cold bending possible?

A：Grade 1 and 2 rods can be cold bent. Grade 5 has high spring-back and typically requires heat bending.

You can customize diameter, length, surface finish, and dimensional tolerances based on your drawings or specifications. OEM and ODM orders are both supported.

Available surface treatments include natural titanium finish, mechanical polishing, anodizing, and PVD coating. Custom laser marking or CNC engraving for part identification is also available.

Small batch prototypes and mass production runs are both handled in-house, giving you a flexible supply chain for any project scale.

Contact Us

Ready to source high-performance titanium rod like grade 5 titanium rod for your next project? Contact our team at Joy@hc-titanium.com for pricing and specifications.
