How to Avoid Cross-Threading Issues When Installing Barrel Nuts?

To ensure reliable performance and service life, installing titanium barrel nuts needs to be done with precision, the right tools, and careful technique. For precision engineering tasks that need strength, weight reduction, and corrosion resistance, this guide talks about how to install titanium barrel nuts correctly and avoid making common mistakes.

Top Installation Tips for Titanium Barrel Nuts

Proper Alignment Techniques

When fitting titanium barrel nuts, it's important to make sure they are lined up correctly. First, look for dirt, wear, or damage on both the nut and the threaded rod. Thoroughly clean the threads to get rid of any dirt or debris that might get in the way of a smooth fitting. Keep the barrel nut square to the threaded rod when you place it. To start the thread by hand, slowly turn the nut anticlockwise until the thread starts smoothly. Then, turn it clockwise by hand. Cross-threading is less likely to happen with this method.

Using the Right Tools

It is very important to use the right tools when installing titanium barrel nuts. Before putting it together, make sure the thread size and pitch are correct, and use the right driver or wrench for the nut setup. When tightening, use a torque wrench that has been calibrated and stick to the torque value given by the manufacturer or on the engineering drawing. This keeps the joint from being damaged by over-tightening, thread damage, or too much pressure.

Lubrication Considerations

The right kind of lubrication can make installing titanium barrel nuts go more smoothly and may help keep the threads on two titanium pieces from rubbing against each other and creating galls. Pick a lube or anti-seize product that works with titanium and is safe for the area where it will be used. Because oil can change the link between applied force and resulting preload, use a thin, even layer instead of too much. For each titanium nut application, follow the manufacturer's advice on the type of oil to use and the amount of pressure to apply.

Common Mistakes When Threading Barrel Nuts

Forcing the Installation

When installing barrel nuts, especially titanium ones, a common mistake is to force the installation when there is resistance. This could damage both the nut and the threaded rod by cross-threading or galling. If resistance appears out of the blue, stop and check the orientation and threads. Forcing a titanium barrel nut that isn't lined up right can damage the threads, weaken the joint, and cause it to fail early in tough situations.

Ignoring Thread Pitch and Size

Another common mistake is not checking that the thread pitch and size of the barrel nut and threaded rod are compatible. There are different sizes and pitches of titanium barrel nuts, and using the wrong one can make fitting difficult and lower the joint's performance. Always check that the titanium barrel nut's specs match the engineering model or the needs of the application. Threads that don't match up can make it hard to engage, cause connections to become loose, or even break under load. This is very important in high-performance car and aircraft uses.

Neglecting Proper Cleaning and Inspection

Not paying enough attention to cleaning and inspection before installation can affect how well the threads connect and how reliable the joint is. Titanium barrel nuts and the threaded parts that fit on top of them should be cleaned and checked for damage, wear, galling, or contamination. Small pieces of dirt or metal shavings can get in the way of proper engagement and stop the part from fully seating. Controlled cleaning and inspection help keep the quality and performance of titanium parts used in medical or precision engineering tasks.

Why Choose Titanium Barrel Nuts for Precision Builds?

Unparalleled Strength-to-Weight Ratio

Titanium barrel nuts offer a high strength-to-weight ratio, making them useful where mechanical performance and weight reduction are both important. In aerospace and high-performance automotive industries, titanium fasteners can reduce component weight compared with steel while providing suitable strength for properly designed joints. This characteristic can support lighter vehicle and aircraft structures without relying solely on fastener material to determine structural performance. Titanium also provides useful mechanical performance at elevated temperatures, subject to grade, load, exposure time, and application requirements.

Corrosion Resistance and Longevity

The inherent corrosion resistance of titanium makes titanium barrel nuts suitable for many demanding environments. Titanium forms a stable passive oxide layer that protects the underlying metal and can reform when exposed to oxygen. This property provides strong resistance in many marine and industrial environments, although performance varies with chemical concentration, temperature, and exposure conditions. In marine, chemical processing, and selected medical applications, titanium barrel nuts can provide long service life when the material grade and surface condition are properly selected.

Biocompatibility and Versatility

Titanium's biocompatibility makes titanium barrel nuts useful for selected medical and prosthetic applications when the appropriate grade, processing, and regulatory requirements are satisfied. This property, combined with titanium's strength and low density, supports applications in medical devices and specialized equipment. Beyond medical uses, titanium barrel nuts can be applied across aerospace, high-performance bicycles, motorsports, marine equipment, and other precision engineering applications where weight, strength, and corrosion resistance are relevant.

Conclusion

It is important to install titanium barrel nuts correctly so that precision systems stay strong and work well. Engineers and workers can lower the risks of cross-threading and galling by using the right alignment, the right tools, controlled greasing, and the right amount of force. Titanium barrel nuts are useful in situations where weight and longevity are important due to their high strength-to-weight ratio, corrosion resistance, and material flexibility. Choosing the right materials and designing joints correctly are still important for getting reliable long-term performance.

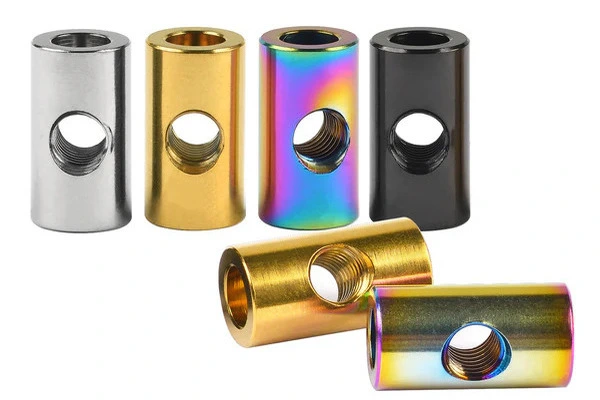

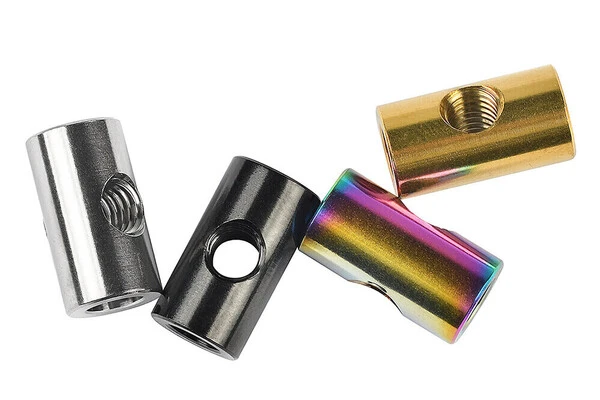

At Baoji Huacan New Metal Materials Co., Ltd., we produce titanium barrel nuts according to specified material grades, dimensions, and thread requirements. Our Grade 5 Titanium (Ti-6Al-4V) barrel nuts are available for aerospace, high-end bicycling, motorsports, and marine applications. With an ISO 9001 certified quality management system and controlled manufacturing processes, we support consistent production and inspection. For custom solutions or more information about titanium barrel nut manufacturing, contact our team at Joy@hc-titanium.com or Sherry@hc-titanium.com.

FAQ

Q: What makes Baoji Huacan's titanium barrel nuts superior?

A: Our titanium barrel nuts are manufactured from Grade 5 Titanium (Ti-6Al-4V), offering a strong strength-to-weight ratio and excellent corrosion resistance. Our ISO 9001 certified quality management system supports consistent manufacturing and inspection.

Q: Can you customize titanium barrel nuts for specific applications?

A: Yes, we can customize titanium barrel nuts according to customer drawings and specifications, including dimensions, thread requirements, configurations, and selected surface finishes. Our technical team can support the process from design review through production.

Q: What industries do you serve with your titanium products?

A: Our titanium barrel nuts and other products serve industries including aerospace, high-end bicycling, motorsports, medical equipment, marine technology, and other precision engineering applications.

Q: How do you ensure the quality of your titanium barrel nuts?

A: We use dimensional inspection, material documentation, process controls, and final inspection according to agreed requirements. Applicable ASTM, AMS, ISO, or customer specifications are selected according to the product and application.

Q: What are the advantages of using titanium barrel nuts over steel alternatives?

A: Titanium barrel nuts can provide substantial weight reduction compared with steel while offering excellent corrosion resistance and a high strength-to-weight ratio. Actual weight savings and temperature capability depend on the component design, titanium grade, joint requirements, and operating conditions.
