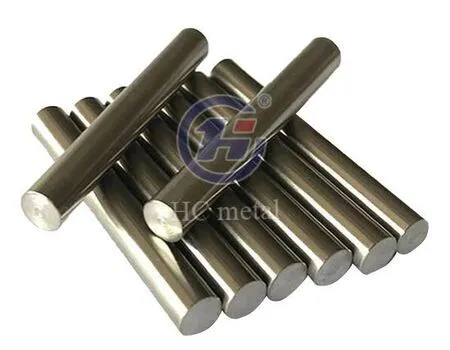

Niobium Titanium Rod for Superconducting & Industrial Applications — High Purity, Custom Size

Baoji Huacan's niobium titanium rod is a high-performance Nb-Ti alloy product engineered for superconducting and industrial-grade applications. It consists of Nb-47wt%Ti or Nb-50wt%Ti and has superconducting critical temperature (Tc) of ~9.2 K and tensile strength of 450-900 MPa. It has a density of ~6.0 g/cm3, making it clearly heavier than steel and pure niobium. 10+ years of expertise in titanium machining, 40+ CNC machines, and an annual capacity of 1,000+ tons, every rod is manufactured under ISO 9001-certified quality control.

Parameter	Value / Description
Alloy Composition	Nb-47 wt.% Ti or Nb-50 wt.% Ti

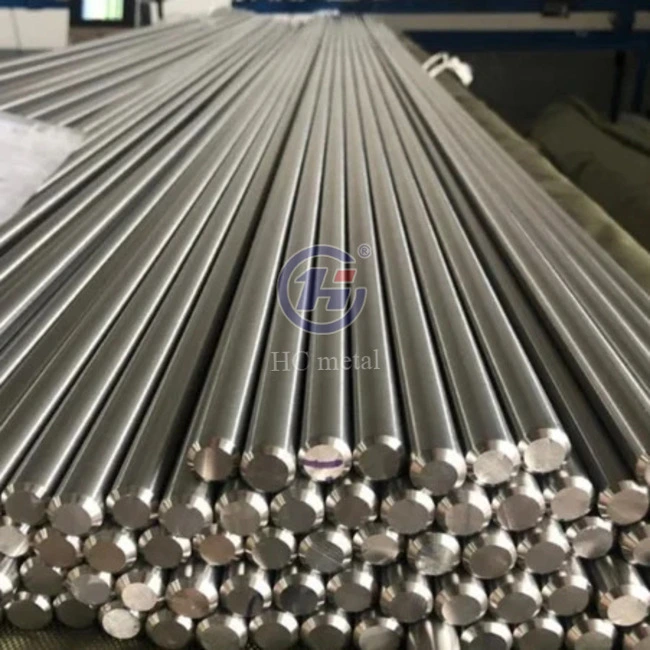

Product Form	Round Rod / Bar
Diameter	Customized; 5 mm available as a reference size
Length	Customized to customer requirements
Superconducting Transition Temperature (Tc)	Approx. 9.2 K
Upper Critical Magnetic Field (Hc2)	Composition- and condition-dependent; values above 15 T may apply near 0 K
Tensile Strength	Approx. 450–900 MPa, depending on alloy composition and work hardening
Density	Approx. 6.0 g/cm³
Applicable Standards	ASTM B884, ASTM B392, ASTM B393, as applicable to product form and requirements
Surface Finish	As-drawn or machined finish; polishing available upon request
Customization	OEM/ODM service; dimensions and specifications customized to drawings or project requirements

Exceptional Ductility: The Nb-Ti alloy rod may be co-reduced with copper matrices into thin multifilamentary wires without fracture, compared to brittle Nb3Sn.

High Strength to Weight Ratio: ~6.0 g/cm³ is much lighter than steel but yet has 450-900 MPa tensile strength.

Better Corrosion Resistance: Stable surface oxide layer resists oxidizing acids and chloride conditions.

Industry standard for cryogenic magnet systems. Superconducting Performance Tc ~ 9.2 K Hc2 > 15 T.

Composition Precision: Strict stoichiometry control ensures predictable pinning center distribution and consistent Jc values.

Our Precision Parts Processing Workshop

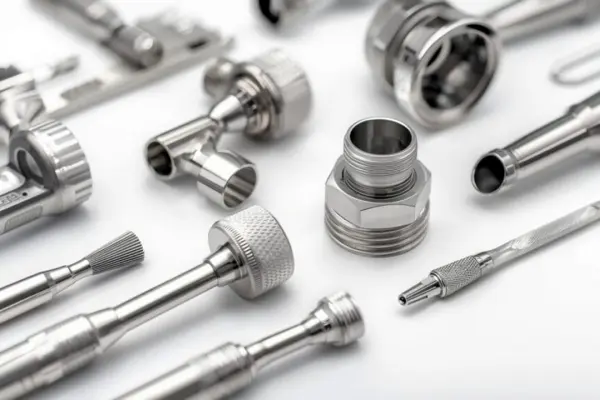

Titanium precision parts processing

Medical MRI Systems: The Nb-Ti rod is the core precursor for superconducting coils in 1.5T–3.0T MRI scanners. It enables stable, persistent magnetic fields essential for high-resolution diagnostic imaging in continuous cryogenic operation.

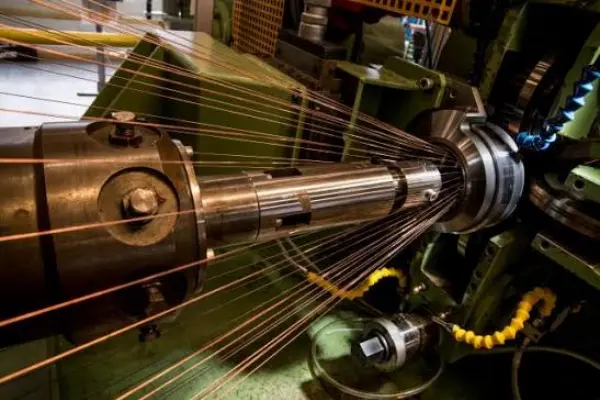

Particle Accelerators: Used in dipole and quadrupole magnets at facilities like the LHC, where performance under extreme radiation and superfluid helium cooling conditions is required.

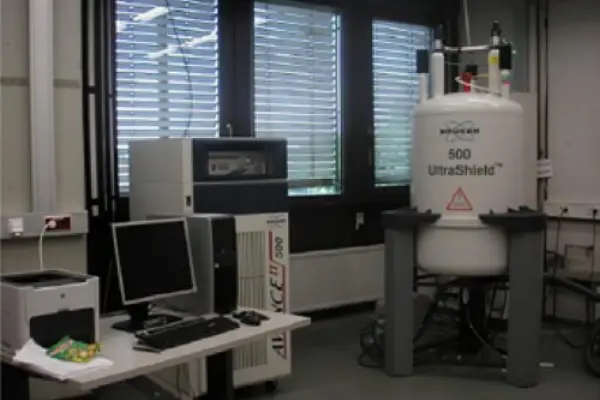

NMR Spectrometers & Lab Magnets: Provides cost-effective, stable high-homogeneity fields for R&D environments, often used in outer coil sections alongside Nb₃Sn.

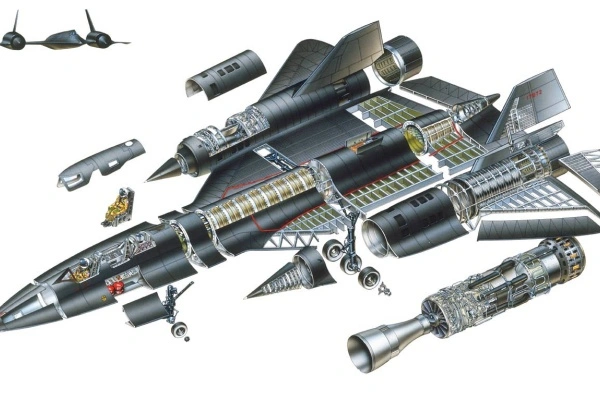

Aerospace & Industrial: The high strength-to-weight ratio and corrosion resistance make niobium titanium rod suitable for structural and chemical-process components in demanding environments.

Medical MRI Systems

Particle Accelerators

Aerospace & Industrial

NMR Spectrometers & Lab Magnet

Capability	Details
Annual Production Capacity	1,000+ tons
CNC Machining Equipment	40+ machines, including CNC lathes, machining centers, and gantry machining systems
Forging Equipment	4,000-ton hydraulic press and rapid forging presses
Melting Capacity	5,000+ tons per year, using VAR (Vacuum Arc Remelting) and PAM (Plasma Arc Melting) processes
Industry Experience	10+ years of experience in titanium and titanium alloy processing


Vacuum Melting	Breakdown Forging	Forging & Rolling

Each batch undergoes a comprehensive multi-stage inspection methodology at BJHC:

Raw Material Verification: Spectrometer chemical composition analysis and supplier certification verification.

In-process control: verification of dimensions at each step of the manufacturing process in real time.

Non-Destructive Testing: Ultrasonic testing to locate interior faults, fractures or inclusions.

Final Dimensional & Mechanical Inspection: CMM, calipers, tensile strength, yield strength and hardness testing following ASTM, AMS and DIN specs.

Surface inspection: Roughness testing, visual inspection for defects, deburring before packing.

Certifications

· ISO 9001 Quality Management System Certified

· Products comply with ASTM B884, ASTM B392/B393, and applicable AMS and DIN standards

· Full material traceability records and inspection documentation available per order

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What alloy ratio is best for MRI superconducting applications?

A：Nb-47wt%Ti is the industry standard. It provides the optimal balance of Hc2 and ductility needed for fine filament drawing.

Q: Can Nb-Ti rods be welded?

A：Yes. Welding requires an inert argon atmosphere or electron beam welding to prevent oxygen/nitrogen embrittlement that would degrade superconducting properties.

Q: How does Nb-Ti compare to Nb₃Sn?

A：Nb-Ti is ductile and can be drawn into wire before coil winding. Nb₃Sn handles higher fields but is brittle and requires a more complex wind-and-react process.

Q: What affects Critical Current Density (Jc)?

A：Jc is primarily determined by alpha-Ti pinning center precipitation during heat treatment and drawing. High homogeneity in the starting rod is essential for consistent results.

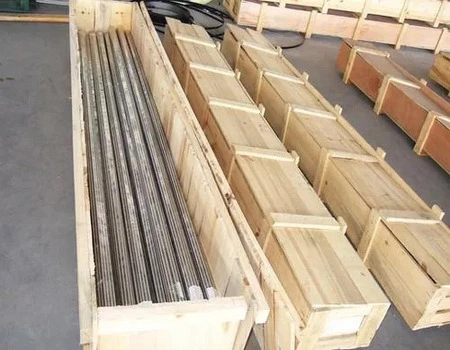

Each product order is carefully packaged to prevent surface damage and contamination during transit:

· Vacuum-sealed bags with desiccants for moisture protection

· Custom foam inserts for precision rod protection

· Sturdy wooden crates for bulk and international shipments

· Full labeling and documentation for customs clearance and traceability

We offer both air freight (urgent orders) and sea freight (cost-effective bulk shipments) to global destinations.

You can specify diameter, length, alloy ratio (Nb-47Ti or Nb-50Ti), surface finish, and tolerance class based on your project requirements. We accept:

· Custom dimensions based on technical drawings

· OEM/ODM production for branded or project-specific requirements

· Prototype, small batch, and mass production runs

· Laser marking or CNC engraving for part identification

Send us your drawings or technical requirements, and our engineering team will respond with a tailored solution.
