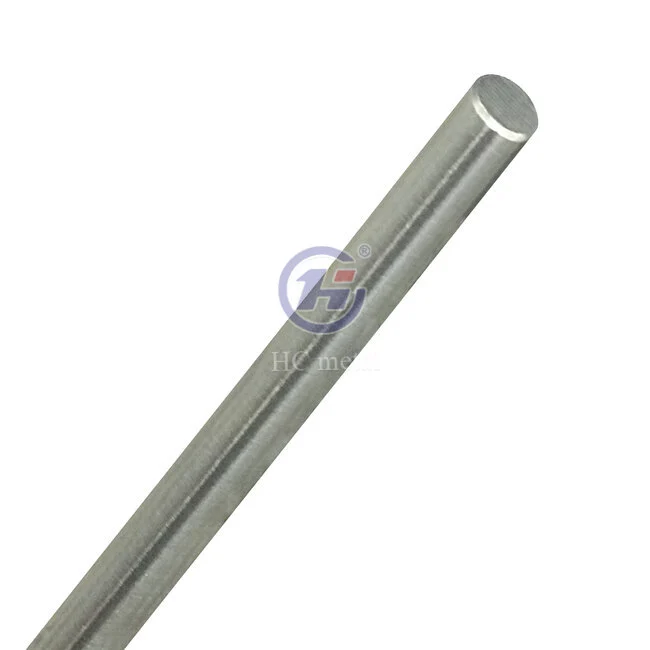

6mm titanium rod
6mm Diameter
Length 500mm
High Strength
Corrosion Resistant
Lightweight
Industrial Use
OEM Custom
Product Introduction

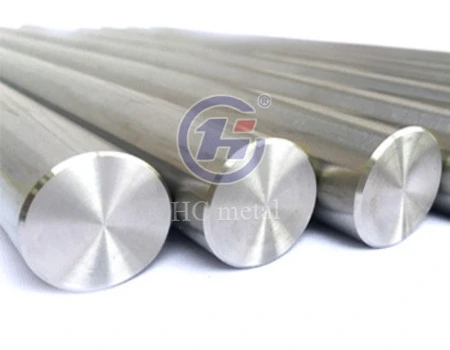

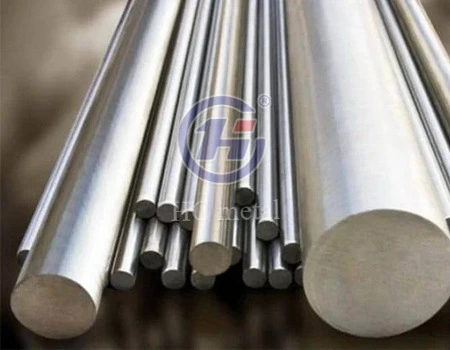

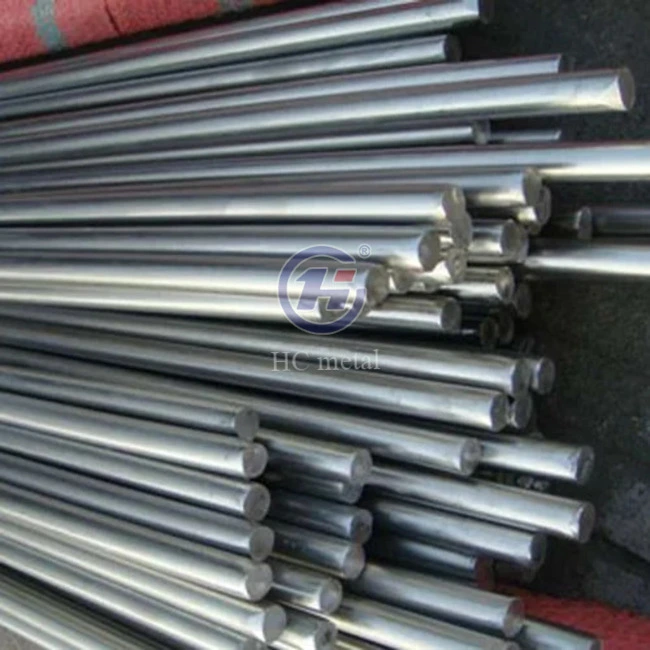

6mm Titanium Rod for Industrial & Medical Applications — High Strength, Lightweight, Custom Supply
Baoji Huacan's 6mm titanium rod is a high-precision solid cylindrical bar manufactured from Grade 2, Grade 5 (Ti-6Al-4V), or Grade 23 titanium alloys. It has a 45% weight advantage over steel without compromising structural integrity, with a tensile strength of ≥895 MPa (Grade 5) and a density of just 4.43 g/cm³. The surface polish is up to Ra <0.8μm and the diameter tolerance is kept to ISO h6 (+0/-0.008mm). This bar is suitable for aerospace, medical, marine and industrial applications and meets ASTM B348, AMS 4928 and ASTM F136 specifications.
 |
 |
Techinical Specifications
|
Parameter
|
Details
|
|---|---|
|
Product Type
|

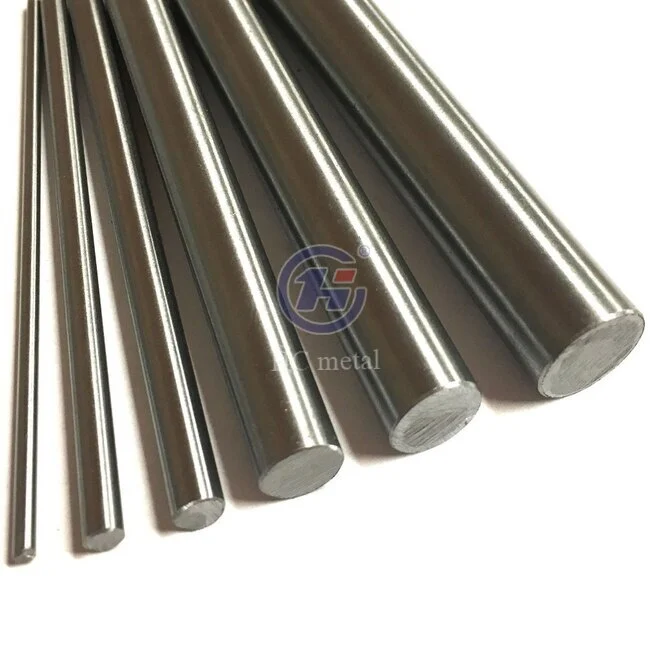

Titanium Round Rod / Titanium Bar
|
|
Available Grades
|
Grade 2, Grade 5 (Ti-6Al-4V), Grade 23 (Ti-6Al-4V ELI), Grade 7, Grade 9
|
|
Diameter
|

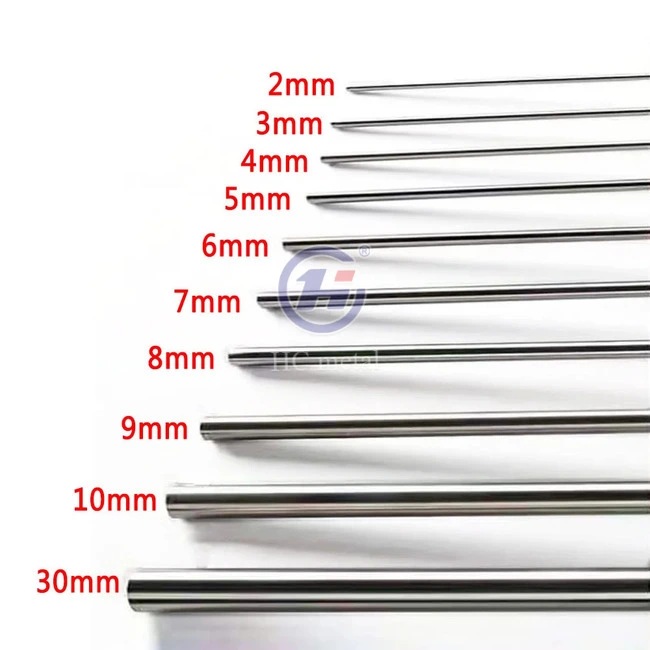

6mm (Customized diameters available)
|
|
Length
|
Customized according to customer requirements
|
|
Diameter Tolerance
|
ISO h6 (+0/-0.008mm) / ISO h7 (+0/-0.012mm)
|
|
Surface Finish
|
Acid Pickled, Polished, Centerless Ground (Ra ≤0.8μm)
|
|
Tensile Strength
|
≥895 MPa (Grade 5) / Approx. 345 MPa (Grade 2)
|
|
Yield Strength
|
≥828 MPa (Grade 5) / Approx. 275–450 MPa (Grade 2)
|
|
Density
|
4.43 g/cm³ (Grade 5) / 4.51 g/cm³ (Grade 2)
|
|
Melting Point
|
Approx. 1,660°C
|
|
Applicable Standards
|
ASTM B348, ASTM F136, AMS 4928, ISO 286-2
|
|
Customization
|
OEM/ODM, drawing-based machining, customized size, grade, and surface requirements
|
Material Advantages
High strength to weight ratio Grade 5 (steel strength at 45% less weight)
Excellent corrosion resistance Self-forming oxide coating resists seawater, chlorides and oxidising acids
Biocompatible: Non-toxic, non-magnetic, for use in implanted medical devices
Tight dimensional control. Diameter tolerance according ISO h6 for automatic CNC feeding
Wide temperature range operating: Range from -210°C to 480°C without structural deterioration
Multiple types of surface: Finishes - acid pickled, polished or precision ground
|
Feature
|
6mm Titanium Rod (Grade 5)
|
316L Stainless Steel
|
Aluminum 7075
|
|---|---|---|---|
|
Material
|
Ti-6Al-4V Titanium Alloy
|
316L Stainless Steel
|
7075 Aluminum Alloy
|
|
Tensile Strength
|
≥895 MPa
|
Approx. 515 MPa
|
Approx. 572 MPa
|
|
Density (g/cm³)
|
4.43
|
8.0
|
2.81
|
|
Weight Advantage vs Steel
|
Approx. 45% lighter
|
Baseline
|
Approx. 65% lighter
|
|
Saltwater Corrosion Resistance
|
Excellent
|
Good
|
Poor
|
|
Biocompatibility
|
Excellent
|
Limited
|
Limited
|
|
Maximum Service Temperature
|
Approx. 480°C
|
Approx. 870°C
|
Approx. 120°C
|
|
Magnetic Properties
|
Non-magnetic
|
Slightly Magnetic
|
Non-magnetic
|
|
Strength-to-Weight Ratio
|
Excellent
|
Moderate
|
Good
|
|
Typical Applications
|
Aerospace parts, marine hardware, racing components, CNC machined parts
|
Industrial equipment, marine fittings, general mechanical parts
|
Lightweight structures, automotive and bicycle components
|

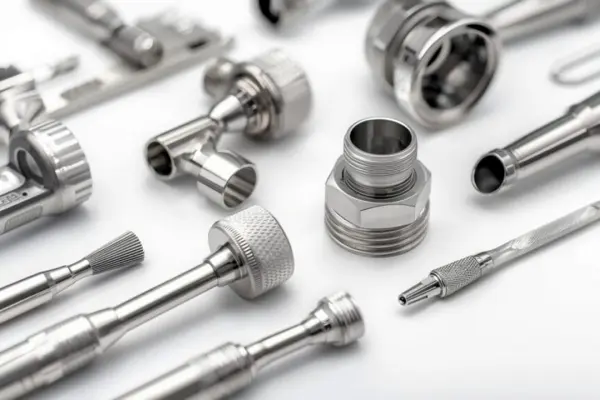

Product Application
Medical & Orthopedic
Spinal fixation rods machined with external fixator connections and dental abutments. The 6mm diameter is well suited for spinal load mechanics and low interstitial content of grade 23 lowers stress shielding but maintains fracture toughness.
Fasteners-Aero Space
Processed to bolts, rivets and hydraulic shear pins as per AMS 4928 . Rod maintains structural integrity over a wide temperature range. Weight savings translate into fuel economy throughout the lifetime of an aircraft.
Marine & Subsea Equipment
Used in ROV manipulator pins, speargun shafts & underwater drone propeller parts. Its resistance to pitting and crevice corrosion in saltwater is far better than standard 316L stainless steel.
High Performance Automotive
Used in F1 and MotoGP racing vehicles as valve train components and connecting rods when lightweight and fatigue resistance are a must.
Industrial & Chemical Processing
Applied in pump shafts, agitator components, and equipment exposed to chloride-rich or oxidizing chemical environments.

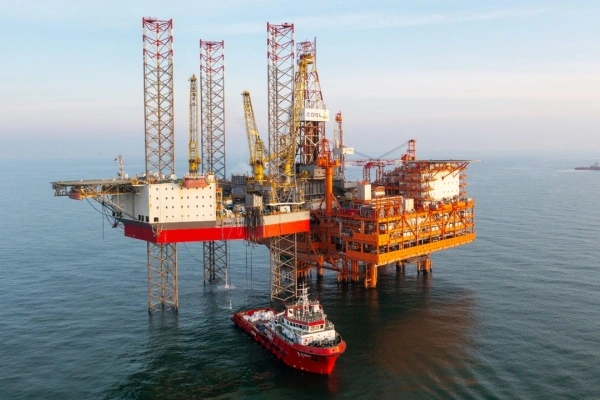

Marine & Offshore Equipment
CNC Machined Titanium Components

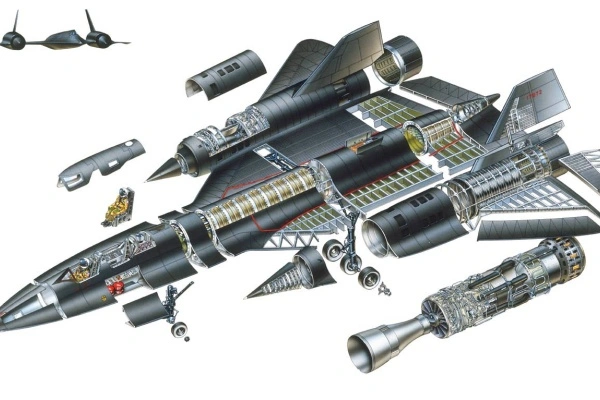

Aerospace & High-Performance Engineering Parts

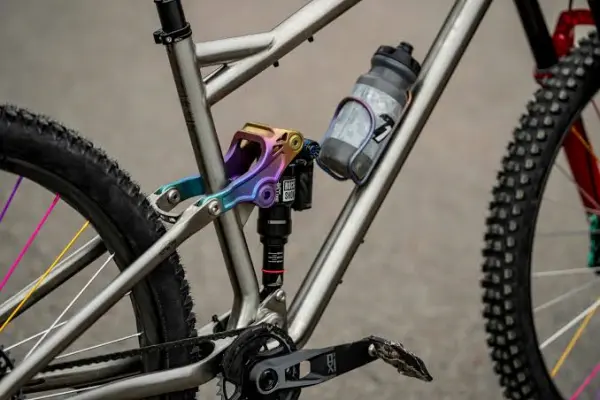

Bicycle, Motorcycle & Racing Components
Manufacturing Capability
Baoji Huacan is in China’s “Titanium Valley” in Baoji, Shaanxi, the hub of China’s titanium industry.
The shop has over 40 CNC lathes and machining centers and can produce more than 1,000 tonnes of finished titanium goods a year. Our melting partners supply 5,000+ tons/year of high-purity ingot capacity and our forging process handles 3,000+ tons/year.
Support prototype, small batch and large production schedules, lead times are adaptable to suit urgent project demands.
 |
 |
 |
| Vacuum Melting | Breakdown Forging | Forging & Rolling |
Quality Control
Quality is built into every production stage — not just checked at the end.
|
Inspection Stage
|
Method
|
|---|---|
|
Raw Material Verification
|
Optical emission spectrometer analysis and supplier material certification review
|
|
In-Process Inspection
|
Real-time dimensional checks during each machining operation
|
|
Non-Destructive Testing (NDT)
|
Ultrasonic testing to detect internal defects when required
|
|
Dimensional Inspection
|
CMM measurement, micrometers, digital calipers, and surface roughness testing
|
|
Mechanical Testing
|
Tensile strength, yield strength, and hardness testing according to ASTM / AMS / DIN standards
|
|
Final Quality Review
|
Complete inspection report and full material traceability documentation
|
Material Testing & Analysis
Ultrasonic Testing & NDT Inspection
ISO 9001 Quality Management System
FAQ
Frequently asked Questions
Learn more about titanium grades, custom machining, lead times, and OEM solutions.
Q: What requirements does your Titanium rod meet?
A: Yes. Our manufacturing is according to ASTM B348 (industrial), ASTM F136 (medical) and AMS 4928 (aerospace) standards. Material traceability documents are provided.
01
Q: Do you provide material certificates?
A: Yes. MTC, COC and paperwork EN10204 3.1 as needed.
02
Q: What is your minimum order quantity?
A：MOQ is flexible depending on grade and specification. Contact us to discuss your project volume and we'll find the best solution.
03
Q: Can you customise lengths and tolerances? A: Yes.
A: Yeah. Length, tolerance class (h6, h7 or tighter) and surface finish may be supplied per your designs or requirements.
04
Packaging & Shipping
We protect your order from production floor to final destination.
· Vacuum-sealed bags with desiccants for moisture protection
· Custom foam inserts for precision components
· Wooden crates for bulk shipments
· Detailed labeling and documentation for easy tracking and customs clearance
We use air freight for urgent orders, or sea freight for cost-effective bulk delivery.
Contact Us
Ready to source a reliable 6mm titanium rod for your next project? Contact our team at sherry@hc-titanium.com — fast response guaranteed.
