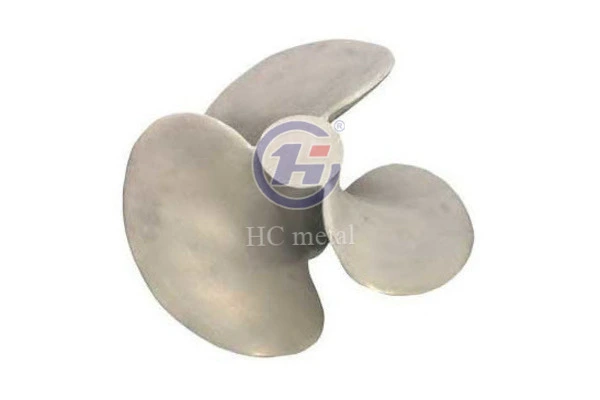

Custom Titanium Propeller for Yachts — High-Performance Marine Propulsion Solution

A custom titanium propeller for yachts represents a precision-engineered solution for luxury and high-performance marine vessels. These propellers are made of a Grade 5 Ti-6Al-4V titanium alloy with a tensile strength exceeding 900 MPa. They have a density of only 4.43 g/cm3, making them up to 50% lighter than bronze. 350mm to 900mm in size, totally adjustable count of blade, pitch, rake and hub size. Aesthetic and hydrodynamic efficiency with hand polished mirror surface finish. Natural or anodised titanium finishes available.

Parameter	Details
Material Grades	Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 (Ti-6Al-4V ELI)
Applicable Standards	ASTM, AMS, ASME, DIN, and customer-specific specifications
Tensile Strength	Up to ≥900 MPa (Grade 5 Titanium Alloy)
Density	Approx. 4.43 g/cm³
Propeller Diameter	350 – 900 mm (custom sizes available)
Blade Number	Customized according to vessel type and performance requirements
Pitch	Customized based on propulsion design requirements
Hub Size	Customized to match shaft and installation requirements
Manufacturing Process	CNC machining, precision milling, finishing, and dynamic balancing
Surface Finish	Machined Titanium Finish, Mirror Polished, Anodized Finish
Dimensional Tolerance	Manufactured according to customer drawings; ISO 484/2 Class S precision available
Dynamic Balancing	ISO 1940-1 Grade G2.5 or better
Inspection & Documentation	Material certificates (MTC), dimensional inspection reports, and traceability records available

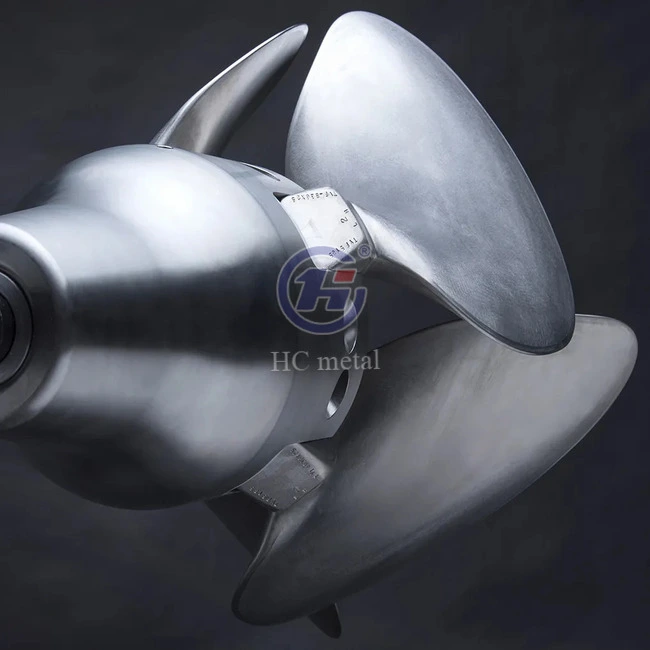

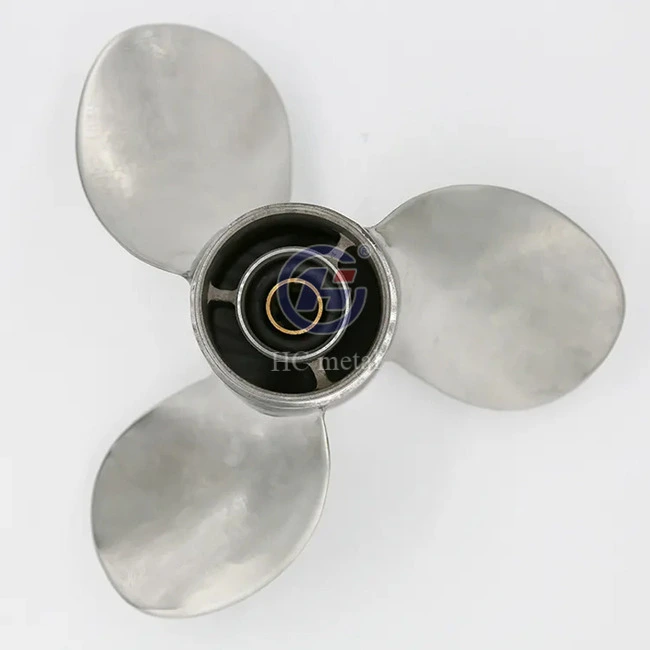

Titanium Propeller

Titanium's lower elastic modulus gives blades a slight engineered flex — this dampens shock loads on the driveshaft during gear shifts or debris impact, reducing wear on transmission bearings and extending drivetrain life.

The hand-polished mirror surface is not only visually striking but also reduces boundary layer drag, improving propulsive efficiency at cruise speeds. Compared to NiBrAl alternatives, users typically see a 10–15% reduction in fuel consumption.

You can choose from natural titanium or anodized finishes in multiple colors — combining functional protection with the premium aesthetic expected on luxury yachts.

Titanium Propeller vs. Traditional Materials

Feature	Titanium (Ti-6Al-4V)	Nickel-Aluminum Bronze	Stainless Steel
Density (g/cm³)	Approx. 4.43	Approx. 8.5	Approx. 7.9
Tensile Strength	≥900 MPa	Approx. 620 MPa	Approx. 690 MPa
Weight Advantage	About 50% lighter than bronze	Baseline	About 7% lighter than bronze
Seawater Corrosion Resistance	Excellent resistance in marine environments	Good resistance	Good resistance with proper grade selection
Cavitation Resistance	Excellent performance for high-speed applications	Moderate to good	Moderate to good
Strength-to-Weight Ratio	Superior	Medium	Medium
Maintenance Requirement	Reduced maintenance due to corrosion resistance	Regular marine maintenance required	Requires surface protection depending on environment
Typical Applications	Racing yachts, high-performance boats, lightweight marine propulsion systems	Commercial vessels, fishing boats, general marine applications	Marine equipment, shafts, and general propulsion components

Exceptional Corrosion

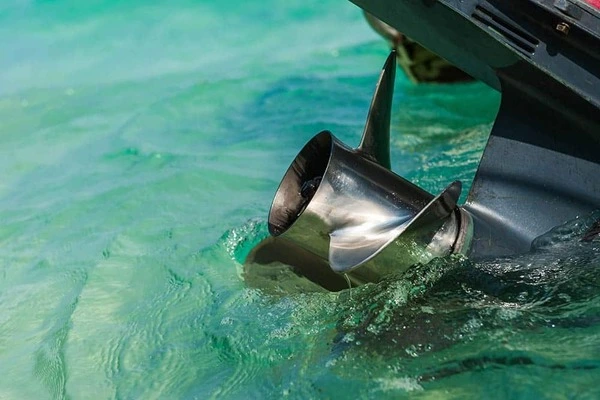

Titanium Propeller Application

Lightweight Performance

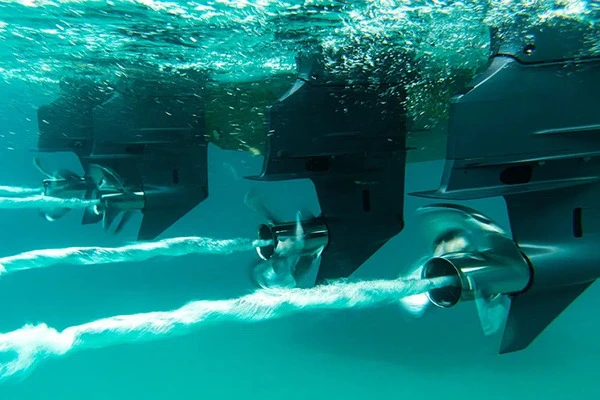

Titanium Propeller application

Underwater Equipment

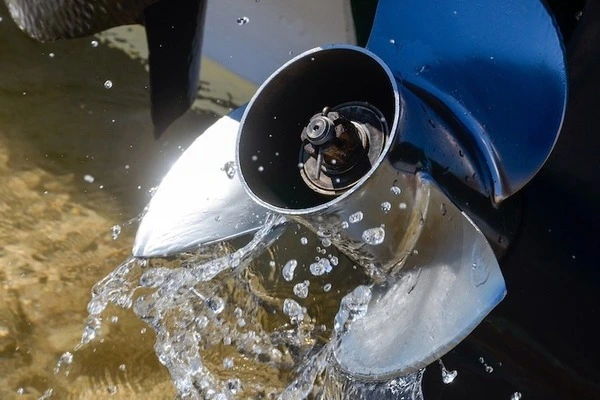

Titanium propeller Application

High-Speed Sport Yachts (40-60+ Knots) Thin blade shape breaks planing thresholds quicker and keeps maximum speed with better fuel efficiency. Cavitation resistance is very important at high blade tip speeds.

The reduction of weight decreases the shaft bearing and gearbox stresses and hence increases maintenance intervals in transoceanic deployments.

Racing Sailboat Auxiliaries & Folding Props: Minimal weight prevents stern squat and reduces drag under sail for Custom titanium propeller for yachts. High strength supports folding hinge mechanisms.

But there are actual problems for yacht owners and maritime engineers: increased stern weight, cavitation erosion, structural strain and high fuel consumption. The old bronze or stainless steel propellers just don’t cut it on modern high performance vessels anymore.

Our titanium propellers immediately eliminate these difficulties. The high yield strength of Ti-6Al-4V allows for a smaller blade shape that reduces hydrodynamic drag while retaining structural integrity. A lower rotational mass means a reduced moment of inertia for a quicker throttle response and improved manoeuvrability.

Titanium's natural oxide coating offers excellent resistance to pitting and crevice corrosion in saltwater -- including protection against stray-current corrosion. Coupled with its capacity to withstand cavitation shock waves, your propeller outlives the hull itself.

Each propeller is machined from a high-quality forged titanium billet, then precisely forged to provide a finer grain structure for improved mechanical qualities. From there, 5-axis CNC machining provides complicated blade shapes, internal channels and tight-tolerance connections that ordinary machines can’t produce.

Secondary operations include deburring, hand-polishing, optional anodising or sandblasting. Each blade surface is polished to the nominated roughness prior to the final inspection. It can accept 2D designs and 3D models. OEM/ODM production.

Receiving Drawings

Annealing

Developing Machining Process

Finish Machining

Preparing Raw Materials

Deburring

Rough Machining

Deburring

Baoji Huacan has around 40 high precision CNC equipment, including 5-axis machining centers and gantry systems. Annual manufacturing capability of >1,000 tonnes of completed parts. More than 10 years of titanium machining expertise.

Annual forging capacity of more than 3,000 tonnes, including a 4,000-ton hydraulic press and precise die-forging equipment. This guarantees the best grain structure and dimensional correctness for each propeller hub and blade.


melting	melting	forging	forging	rolling

Material identification (ASTM B348) validated by PMI spectrometer. CMM assessment of pitch distribution, blade thickness and skew to ISO 484/2 Class S tolerances demonstrate dimensional precision.

Non-destructive testing comprises Dye Penetrant Inspection (DPI) for surface cracks at blade roots, Ultrasonic Testing (UT) for subsurface hub faults and dynamic balancing to ISO 1940-1 G2.5 or better. Each package comes with full traceability paperwork.

Mechanical Properties Testing

Inner Diameter Measurement

Ultrasonic Testing

CMM Dimensional

Mounting Hole Diameter Measurement

Quality Management System Certification

Method	Details
Inner Protection	Customized foam inserts and vacuum-sealed bags with desiccants to protect precision titanium surfaces from impact, moisture, and contamination
Outer Packaging	Heavy-duty wooden crates for large, oversized, or bulk titanium components during international transportation
Product Documentation	Material certificates (MTC), inspection reports, dimensional reports, and full traceability records available upon request
Shipping Options	Express / air freight for urgent orders; sea freight for bulk shipments and cost-effective transportation
Custom Packaging Solutions	Packaging methods tailored according to product size, weight, surface requirements, and customer specifications

Q: Will a titanium propeller cause galvanic corrosion on my yacht?

A：Titanium is noble on the galvanic series. Proper insulating coupling kits and verified anode protection plans are recommended to protect adjacent metals.

Q: Can a damaged propeller be repaired?

A：Yes. Titanium welding requires an argon-controlled environment to prevent embrittlement. Repair is feasible and can restore full structural strength.

Q: What is the ROI compared to bronze?

A：The upfront cost is higher, but 10–15% fuel savings, reduced bearing wear, and extended service life deliver strong long-term returns.

Q: Why custom instead of stock titanium props?

A：Stock props don't match your hull's specific wake field. The product is optimized to your exact hull geometry, eliminating slip and vibration.
