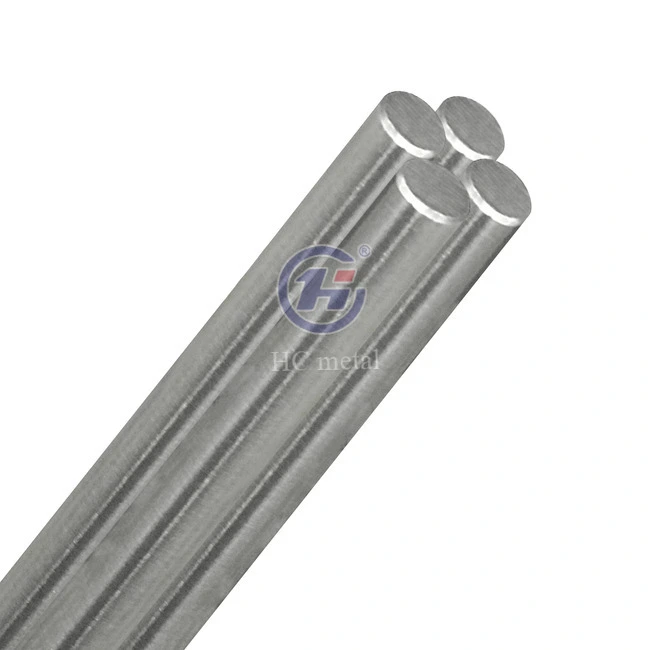

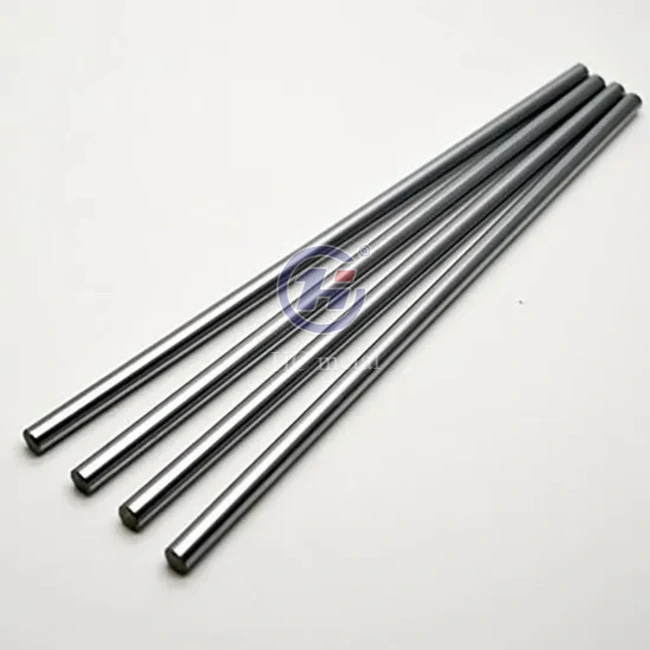

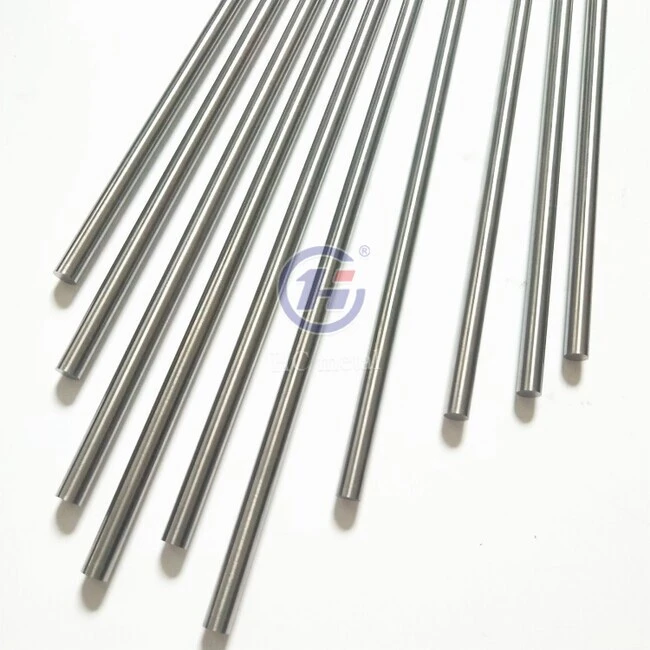

4.5mm x 66mm titanium rod

Product Introduction

Techinical Specifications

Parameter	Details
Material Grade	Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 ELI
Diameter	3 mm–custom sizes available
Length	Customized up to 3000 mm
Tolerance	ISO h6/h7/h8 or customer requirements
Surface Finish	Centerless Ground, Polished, Ra ≤0.8 μm
Standard	ASTM B348, ASTM F136, AMS 4928
Manufacturing Process	Forging, Rolling, Heat Treatment, Grinding
Quality Certification	MTC, EN10204 3.1, Ultrasonic Testing Available

Material Advantages

· Tight Tolerance: ISO h6/h7 diameter control ensures precise fit in micro-mechanical assemblies

· Superior Straightness: ≤ 0.5mm/m prevents vibration and chatter in CNC bar feeders

· Multi-Grade Availability: Grade 2 for weldability, Grade 5 for strength, Grade 23 for medical implants

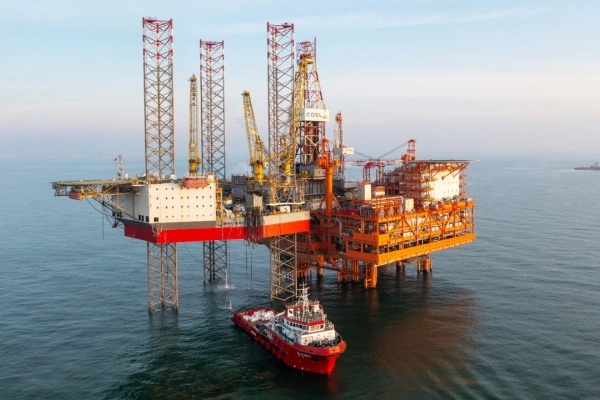

· Corrosion Resistance: Performs reliably in body fluids, seawater, and chemical environments

· Lightweight: Approximately 56% lighter than stainless steel at comparable strength

· Temperature Stability: Maintains dimensional accuracy from -55°C to 150°C

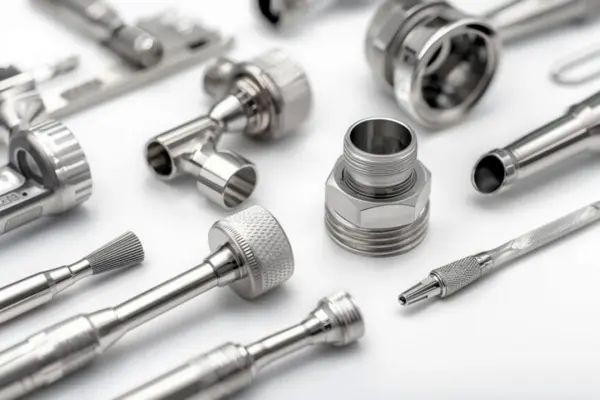

Product Application

Medical & Dental: Used as feedstock for Kirschner wires, external fixation pins, and dental abutment screws. Grade 23 ELI is required for permanent implants due to its superior fracture toughness and lower oxygen content per ASTM F136.

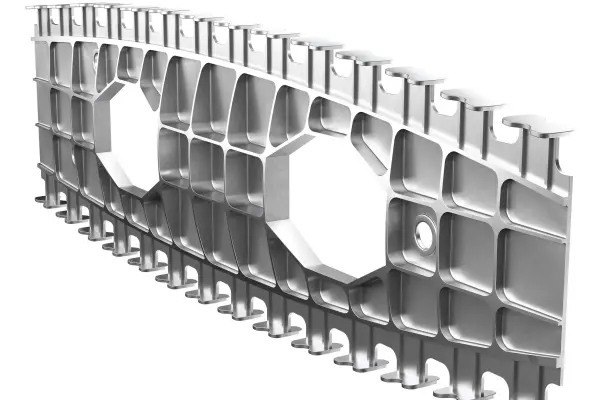

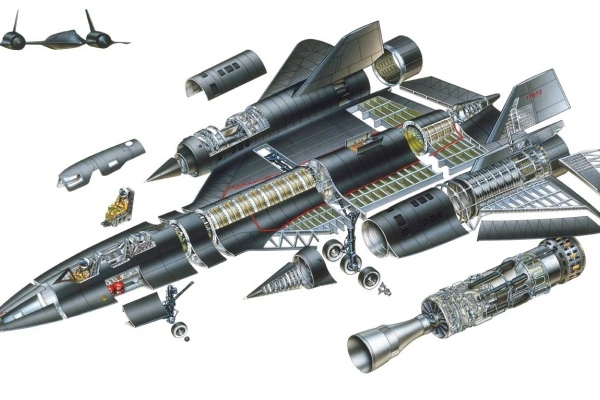

Aerospace Fastening: Deployed in non-structural rivets, locking pins, and sensor probes where localized weight reduction is critical and parts must endure rapid thermal cycling (-55°C to 150°C).

Precision Welding & Industrial : Used as a straight length TIG welding filler wire in automated welding systems. Grade 2 is very weldable; Grade 5 needs argon shielding to avoid embrittlement.

OUTDOOR & RC MODELS 3mm titanium rod Grade 5 titanium rod worked into ultralight tent stakes and RC model shafts where the need for narrow diameter and good bending resistance.

Manufacturing Capability

Baoji Huacan operates from China's "Titanium Valley" in Baoji, Shaanxi — the heart of Chinese titanium manufacturing. Our production infrastructure includes:

· VAR and PAM melting furnaces with annual capacity exceeding 5,000 tons

· 4,000-ton hydraulic press plus air hammers and rapid forging equipment

· 40+ CNC lathes and machining centers, including gantry systems

· Precision rolling mills for bar production with excellent surface finish

· Annual forging capacity exceeding 3,000 tons

This vertically integrated capability means you get consistent quality from raw ingot to finished rod — all under one roof.

Vacuum Melting	Breakdown Forging	Forging & Rolling

Quality Control

Baoji Huacan follows a rigorous multi-stage inspection protocol:

Raw Material Verification — Spectrometer-based chemical composition analysis ensures only qualified titanium enters production.

In-Process Dimensional Checks — Technicians verify diameter and straightness at each production stage to maintain tight tolerances.

Ultrasonic Testing (NDT) — Internal voids, cracks, and inclusions are detected per AMS 2631 Class A1 standards without damaging the product.

Laser Micrometer Measurement — The 4.5mm diameter is verified against h7/h8 ISO tolerance. Length is confirmed within the specified tolerance range.

Chemical Analysis (ICP Testing) — Oxygen, nitrogen, and hydrogen levels are confirmed to meet ELI requirements where applicable.

Surface Integrity Check — Eddy current testing detects surface cracks or laps from the drawing process.

Final Documentation — Every batch ships with full traceability records, inspection reports, and EN 10204 3.1 MTC upon request.

FAQ

Packaging & Shipping

Your rods arrive safely protected and clearly documented:

· Custom foam inserts for individual component protection

· Vacuum-sealed bags with desiccants to prevent moisture and oxidation during transit

· Sturdy wooden crates for bulk shipment orders

· Detailed labeling and documentation for batch tracking and customs clearance

We ship internationally by air for urgent orders or by sea for cheaper bulk deliveries.

Customiztion Options

Every order of 4.5mm x 66mm titanium rod at Baoji Huacan can be tailored to your exact requirements:

· Custom diameter and length — beyond the standard 4.5mm x 66mm size

· Custom tolerances — tight-tolerance machining per your engineering drawings

· Custom surface treatment — polishing, anodizing, PVD coating, or natural finish

· Custom end geometry — chamfered, flat-ground, or threaded ends

· Custom marking — laser engraving, part numbers, or batch identification

· OEM/ODM service — full support from design review to final delivery

Send us your drawings or specifications and we'll handle the rest.

Contact Us

Contact our team at sherry@hc-titanium.com to discuss your specifications for the 3mm titanium rod and receive a tailored solution.
