Preventing Implant Rejection with Titanium Rods

When used in medical implants, the choice of material affects how well it works mechanically, how long it lasts, and how well it works with living tissue. When made from the right titanium alloy, a medical titanium rod can offer an advantageous combination of strength, low density, and corrosion resistance. This page talks about the features, uses, and production issues of medical titanium rods.

The Science Behind Medical Titanium Rods

Medical titanium rods are used in some implant situations because titanium alloys are strong, don't weigh too much, and are compatible with living things. Their success relies on the type of metal used, the state of the material, the surface properties, the way they are made, and the shape of the implant.

Titanium can also help bone fusion if the factors on the skin and in the body are right. This process talks about how bone and an implant surface come into direct contact with each other. The quality depends on the shape of the implant, the surface's properties, the surgical method, and factors specific to the patient.

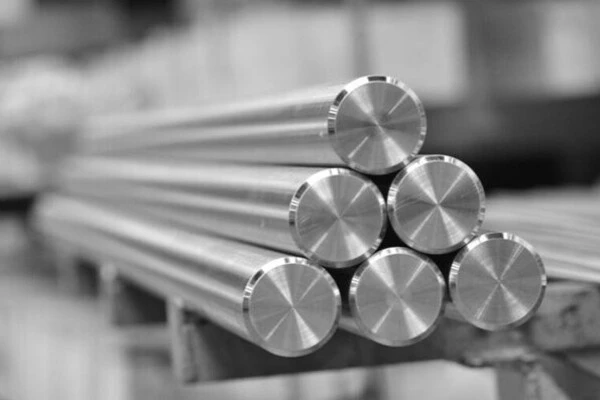

Composition and Properties of Medical Titanium Rods

Medical titanium rods are frequently made from metals like Ti-6Al-4V, which are primarily made up of aluminium and vanadium. While keeping the low density and good corrosion resistance, this mix makes titanium stronger than pure titanium that is sold in stores. Depending on the application and technical needs, the right grade and condition of the material should be chosen.

Strength, flexibility, corrosion resistance, and manufacturability can all vary depending on the type of titanium used. Baoji Huacan New Metal Materials Co., Ltd., one of the largest China titanium bar makers, can provide titanium material with controlled chemical makeup and mechanical qualities. For medical uses, buyers should check the product's material grade, inspection records, licensing, and ability to be tracked.

Biocompatibility and Osseointegration

Titanium is often used in implant applications because it is compatible with living things. Titanium naturally forms a thin, steady oxide layer on its surface when it comes into contact with air or living things. This inactive layer helps the material stay strong against chemical breakdown.

The oxide layer supports titanium's surface stability, but it does not guarantee that every implant will be free from biological reactions or complications. Surface treatments such as anodizing can modify surface characteristics for particular applications.

Osseointegration describes the interaction between bone and an implant surface. Titanium and titanium alloys can provide suitable surfaces for this process when implant geometry and surface characteristics are properly controlled. Successful integration depends on both material and clinical factors.

Corrosion Resistance and Longevity

Medical titanium rods generally provide strong resistance to corrosion in many physiological environments. Their passive oxide layer helps protect the underlying metal and can contribute to long-term material stability.

However, corrosion resistance is only one factor affecting implant service life. Mechanical loading, fatigue, wear, surface condition, implant geometry, manufacturing quality, and clinical conditions can also influence performance. The expected service life should therefore be evaluated according to the specific implant and application. Consistent titanium material quality, controlled processing, and appropriate inspection are also important for producing components that meet defined technical requirements.

Applications of Medical Titanium Rods in Implant Procedures

Titanium alloys are used in various medical implant and fixation applications because of their mechanical properties, low density, and biocompatibility. The exact product form depends on the intended medical application.

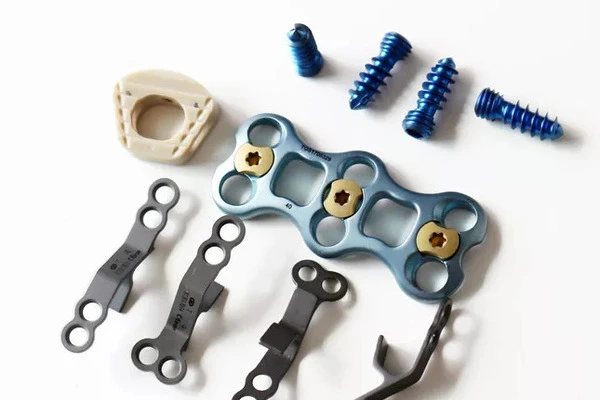

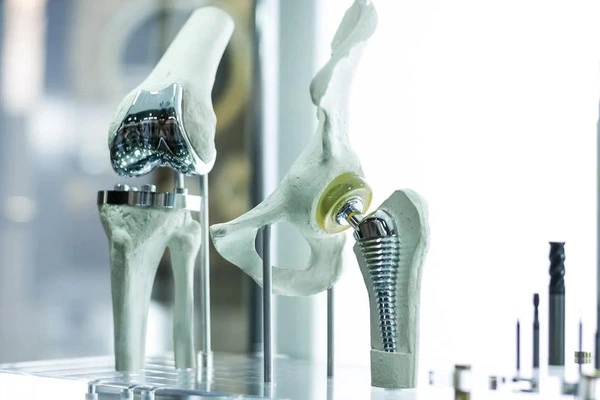

Orthopedic Implants

In orthopedic applications, titanium alloy components can be used for fracture fixation, spinal stabilization, and reconstructive procedures. Rods and related fixation components provide mechanical support during healing. Spinal fixation systems, for example, can use titanium alloy rods to stabilize vertebral components. The selected alloy, dimensions, geometry, and surface condition depend on the requirements of the implant system. Titanium itself does not guarantee permanent placement or the absence of complications.

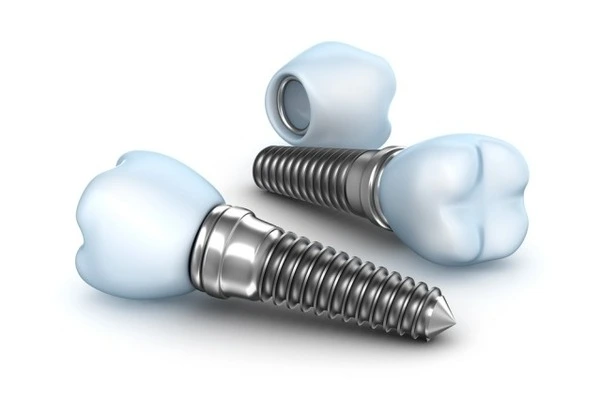

Dental Implants

Titanium is widely used in dental implant systems. However, dental implant fixtures are purpose-designed components rather than ordinary medical titanium rods. Their geometry and surface characteristics are developed for placement in the jawbone and connection with prosthetic components. Osseointegration is an important consideration in dental implant design. Surface texture, cleanliness, geometry, and manufacturing quality can influence the interaction between the implant and surrounding bone.

Craniofacial Reconstruction

Titanium materials can be used for some types of face repair and fixing. Where structural support is needed, their mix of strength, low density, and corrosion resistance can be helpful. Customised titanium parts can be made from accepted plans, computer models, or measurements that are given. For complicated parts, it's important to think about the accuracy of the dimensions and the state of the surface.

Advancements in Medical Titanium Rod Technology

Researchers are still looking into ways to make implant surfaces, production methods, and design freedom better using medical titanium technology. Surface modification, antimicrobial coatings, and additive manufacturing are all important areas.

Surface Modifications for Enhanced Osseointegration

Surface roughness and chemistry can be changed with methods like plasma blasting, acid treatment, and controlled surface sculpting. These changes could change how bone and the implant surface interact with each other. The effects depend on the specific treatment, material, and implant design. Claims regarding faster healing or improved clinical outcomes should be supported by appropriate experimental or clinical evidence.

Antimicrobial Coatings

Antimicrobial coatings are being investigated for titanium implant surfaces. Depending on the coating material and process, they may be designed to limit bacterial adhesion or activity. Laboratory antimicrobial performance should not automatically be presented as proof of reduced post-operative infection rates. Infection prevention also depends on sterilization, surgical procedures, implant handling, and patient conditions.

3D Printing and Custom Implants

3D printing provides new options for customized titanium implants. Additive manufacturing can produce complex geometries and, where appropriately designed, porous or lattice structures. For selected reconstructive applications, these capabilities can support patient-specific designs based on medical imaging and approved digital models. Dimensional accuracy, material quality, surface condition, porosity, and post-processing require careful control.

Titanium material manufacturers can support customized production by controlling raw material quality and manufacturing processes and providing appropriate inspection documentation.

Conclusion

Medical titanium rods provide a combination of strength, low density, biocompatibility, and corrosion resistance that can be useful in selected medical applications. Ti-6Al-4V is an important titanium alloy, but the appropriate grade depends on the mechanical, dimensional, surface, and application requirements of the component.

Implant performance depends on more than material selection. Alloy condition, manufacturing quality, surface treatment, implant design, inspection, and clinical factors all contribute to the final result. Buyers should therefore evaluate titanium products according to documented technical requirements.

At Baoji Huacan New Metal Materials Co., Ltd., our production capabilities include titanium melting and forging for customized titanium products. Our ISO 9001 certified facilities provide a quality management framework for manufacturing activities. Customers can discuss material grade, dimensions, processing conditions, inspection requirements, and available documentation with our technical team.

Frequently Asked Questions

What makes titanium ideal for medical implants?

Titanium is widely considered suitable for many implant applications because of its strength-to-weight ratio, biocompatibility, and corrosion resistance. Its stable oxide surface also contributes to resistance to degradation.

How long do titanium implants last?

Service life varies according to implant design, application, loading conditions, surface condition, manufacturing quality, and clinical factors. Titanium's corrosion resistance can support long-term material stability, but it does not guarantee a specific lifetime.

Are there any risks associated with titanium implants?

As with other medical implants, titanium implants can involve complications such as infection, mechanical failure, loosening, or biological reactions. Titanium is generally considered highly biocompatible, but complications cannot be completely excluded.

Can titanium implants be detected by metal detectors?

Titanium is non-ferromagnetic, so many titanium implants are less likely to trigger conventional metal detectors than strongly magnetic metals. Detection depends on the equipment and the amount and configuration of metal present.

How are medical titanium rods manufactured?

Medical titanium rods can be produced through processes such as melting, forging, machining, heat treatment, and surface finishing. Material verification and dimensional or surface inspection can be used to confirm that products meet specified requirements.

Advancing Medical Implants with Titanium Technology

Titanium alloy technology continues to provide options for medical implant and fixation applications. Its combination of mechanical strength, low density, biocompatibility, and corrosion resistance makes it an established material for selected medical components. Advances in surface engineering, customization, and additive manufacturing are expanding design possibilities.

As a China titanium bar manufacturers supplier, Baoji Huacan New Metal Materials Co., Ltd. provides titanium material manufacturing capabilities for customized products. Our technical team can discuss material grades, dimensions, processing requirements, inspection needs, and available documentation according to the intended application. For medical titanium projects, contact Joy@hc-titanium.com or Sherry@hc-titanium.com​​​​​​​.

References

1. Smith, J.A., et al. (2022). "Advances in Titanium Alloys for Medical Implants." Journal of Biomaterials Science, 33(4), 521-535.

2. Johnson, M.R., & Williams, K.L. (2021). "Osseointegration of Titanium Implants: A Comprehensive Review." International Journal of Oral & Maxillofacial Implants, 36(2), 178-192.

3. Chen, Q., & Thouas, G.A. (2020). "Metallic implant biomaterials." Materials Science and Engineering: R: Reports, 87, 1-57.

4. Liang, H., et al. (2019). "Surface Modifications of Titanium Alloys for Biomedical Applications." Regenerative Biomaterials, 6(6), 299-313.

5. Park, J.B., & Lakes, R.S. (2023). Biomaterials: An Introduction. Springer Nature, New York.​​​​​​​
