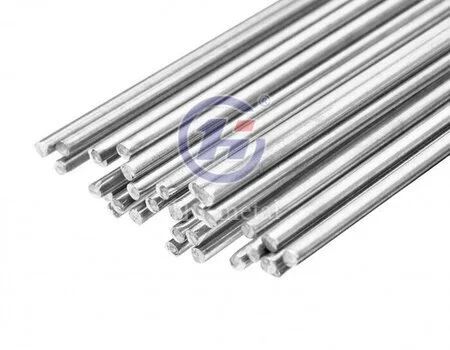

Medical Titanium Rods for Surgical Implants — Biocompatible, Precision-Machined Solutions

Medical titanium rods are precision-engineered, biocompatible cylindrical bars designed for demanding surgical implant applications. The rods are made by Baoji Huacan from Grade 2, Grade 5 (Ti-6Al-4V) and Grade 23 (Ti-6Al-4V ELI) titanium in diameters from 3-10mm and lengths from 100-500mm. All rods fulfill ASTM F136, ASTM F67 and ISO 5832 requirements. We have over 10 years of expertise cutting titanium, 40+ CNC machines and a 1,000+ ton per year capability to provide consistent quality for orthopedic, spinal and dental implant producers.

Parameter	Details
Material Grade	Grade 2 (CP Titanium), Grade 5 (Ti-6Al-4V), Grade 23 (Ti-6Al-4V ELI)
Material Standards	ASTM F67, ASTM F136, ISO 5832-3
Diameter Range	3–10 mm; custom sizes available
Length Range	100–500 mm; custom lengths available
Tensile Strength	≥ 860 MPa (Grade 23)
Yield Strength	≥ 795 MPa (Grade 23)
Elastic Modulus	Approximately 110 GPa
Density	Approximately 4.43 g/cm³
Tolerance Class	h6, h7, h9, as specified in the drawing
Surface Finish	Natural titanium, polished, or anodized; customized finishes available
Dimensional Tolerances	According to customer drawings or applicable standards

· Biocompatible: Non-toxic, non-allergenic, zero ion release into body tissue

· Corrosion Resistant: Stable TiO₂ passive layer in saline and physiological fluids

· Sterilizable: Compatible with autoclaving, gamma radiation, and EO gas sterilization

· High Fatigue Strength: Withstands millions of cyclic loading cycles without failure

· Refined Microstructure: Alpha-beta structure, free of alpha-case brittle layers

· Lightweight: ~60% the density of steel, reducing patient load

Our Precision Parts Processing Workshop

Titanium precision parts processing

Spinal Fixation Systems: Used as connecting rods in pedicle screw constructs for scoliosis correction and spinal fusion. The rod must endure millions of movement cycles inside the body — fatigue performance is critical here.

Intramedullary Nails: Machined into solid or hollow nails for femur and tibia fracture fixation. The implant sits in bone marrow, a corrosive, fluid-rich environment — making titanium's chemical stability essential.

Dental Implant Components: High-precision medical titanium rods with h6 tolerances are used to machine abutments and superstructure bars. Tight tolerances ensure a bacteria-proof seal at the implant-abutment interface.

Motorcycle Performance Parts

Additive Manufacturing Applications

Aerospace Components


Aerospace Components

· 40+ CNC lathes and machining centers

· Annual production capacity: 1,000+ tons

· Annual melting capacity: 5,000+ tons

· Annual forging capacity: 3,000+ tons

· 10+ years of titanium precision machining experience


Vacuum Melting	Breakdown Forging	Forging & Rolling

Multi-stage Inspection Raw material verification, in-process dimensional check, internal fault ultrasonic testing, CMM measurement and surface roughness assessment. Full paperwork including MTC and EN10204 3.1 certifications are provided with each batch.

ISO 9001 certified quality management system covering the full production chain from raw material intake to final shipment.

Certifications

· ISO 9001 Quality Management System Certified

· Products manufactured to ASTM F136, ASTM F67, ISO 5832-3

· Material traceability documentation available for all orders

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What titanium grades are available for medical rods?

A: We provide Grade 2, Grade 5 (Ti-6Al-4V) and Grade 23 (Ti-6Al-4V ELI). Grade 23 is the most typical grade requested for permanent implants because to its ELI designation and better ductility.

Q: Can you produce rods to my custom drawing?

A: Sure. Customer drawings and data are welcome. All dimensions, tolerances and surface treatments may be manufactured to your specifications.

Q: What criteria do your rods meet?

A：Our rods meet ASTM F136, ASTM F67 and ISO 5832-3. Material test certifications and traceability records will be sent with each order.

Q: How do you maintain the integrity of internal material?

A: All rods are ultrasonic tested to AMS 2631 Class A1 to ensure no internal cavities, fractures or inclusions.

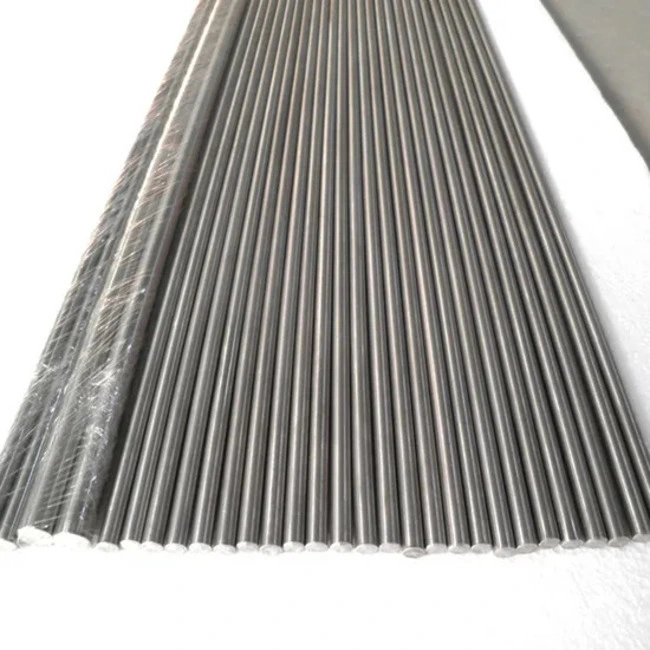

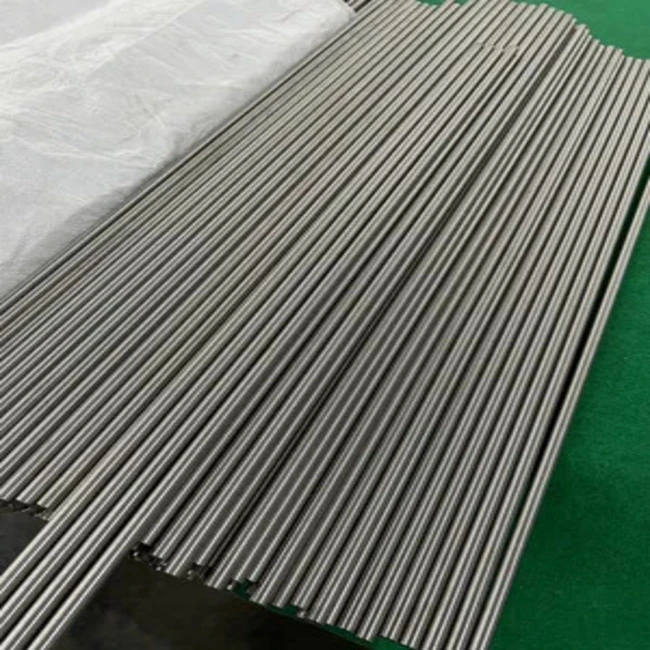

Packaging Method	Description

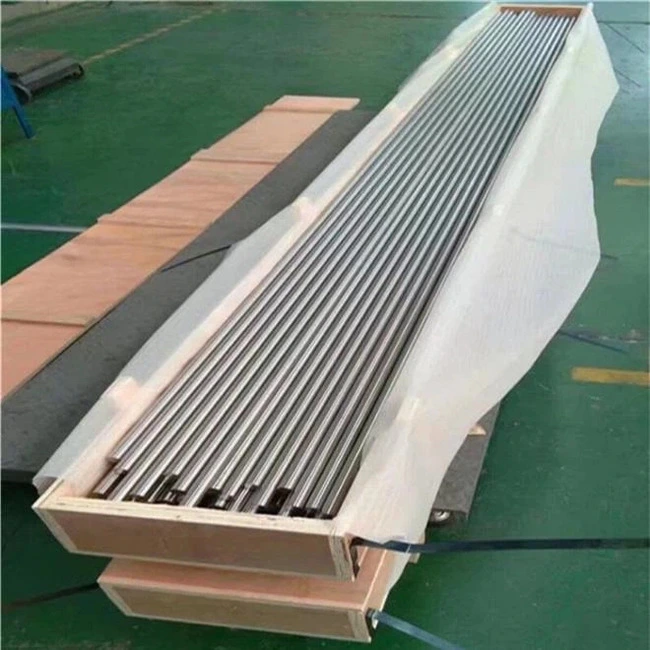

Individual Protection	Custom foam inserts to protect individual titanium rods during transit
Moisture Protection	Vacuum-sealed packaging with desiccants, where required

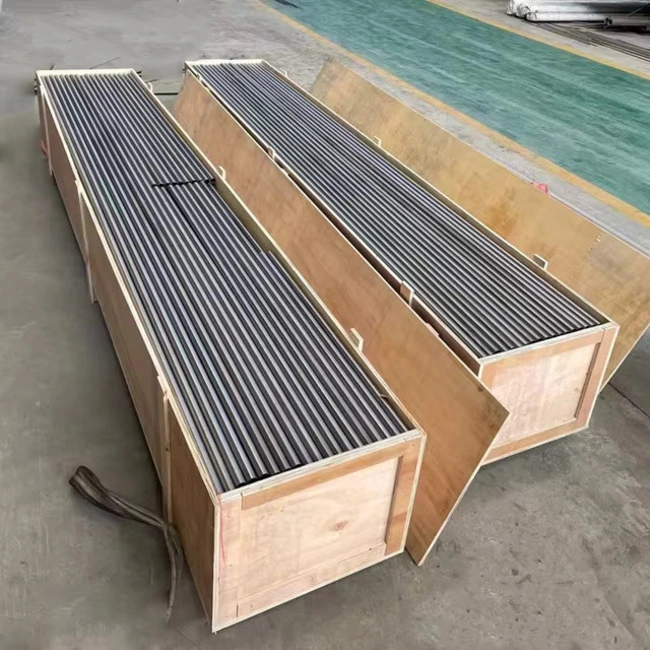

Bulk Packaging	Sturdy wooden crates for secure bulk shipment
Documentation & Traceability	Material Test Certificates (MTC), Certificates of Conformity (CoC), and product labeling, as required
Shipping Options	Air freight for urgent orders; sea freight for bulk shipments

Every order can be tailored to your design requirements. You can specify diameter, length, tolerance class, surface finish, end geometry, and laser marking.

We accept customer drawings and DXF/STEP files. Prototype, small-batch, and mass production runs are all supported. OEM and ODM programs are available for medical device manufacturers.

Contact Us

Ready to source reliable medical titanium rods for your next project? Contact our team at sherry@hc-titanium.com for specifications, samples, or pricing.
