How to Prevent Leaks in Titanium Tube-to-Sheet Connections?

It is important that the joints between titanium tubes and titanium tube sheets don't leak so that heat exchangers and other industrial equipment can keep working well. This detailed guide shows you how to stop leaks at the joints between titanium tubes and sheets. It focuses on the best ways to join things, materials that work well together, and quality control measures for tough industrial uses.

Proper Tube Rolling and Expansion Techniques

Proper tube rolling and expansion are among the most important measures for preventing leakage at titanium tube-to-tubesheet joints. To establish a reliable mechanical joint, titanium tubes must be expanded within the tube sheet holes under controlled process conditions and according to the joint design.

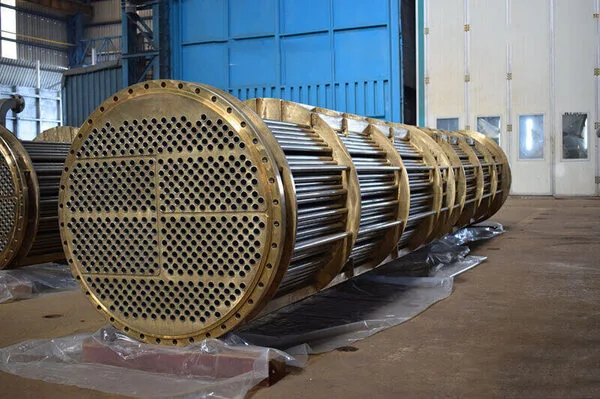

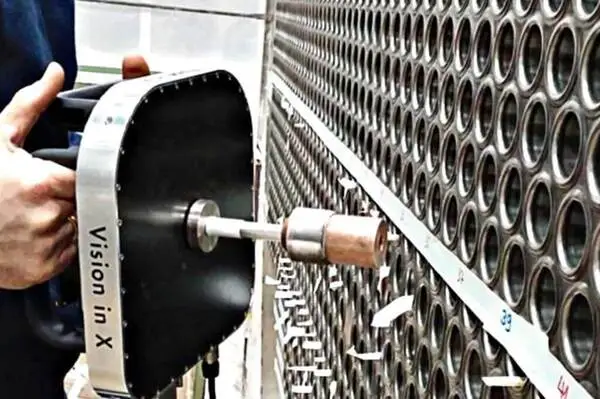

Precision Rolling for Titanium Tube Sheets

Precision rolling is important when working with titanium tube sheets. During this process, the tube is expanded within the tube sheet hole to establish the required contact and mechanical interference. For the best results:

• Use rolling tools suitable for titanium tube materials

• Maintain consistent rolling torque during the rolling process

• Monitor tube expansion carefully to avoid excessive wall reduction

• Ensure full circumferential contact and specified roll-over or expansion length as defined by the joint design and inspection criteria (e.g., minimum expansion depth, contact length, and interference fit).

Proper rolling establishes a controlled mechanical interference fit that can significantly reduce leakage risk.

Controlled Expansion Methods

Controlled expansion methods provide another approach to securing titanium tubes within the tube sheet. These techniques include:

• Hydraulic expansion: Using controlled hydraulic pressure to expand the tube

• Mechanical expansion: Employing tapered mandrels or mechanical rollers

• Explosive forming/bonding (rare and specialized): using controlled explosive energy in specific industrial forming processes—this method is uncommon for conventional tube sheet joining and requires specialized facilities and safety controls. For most tube sheet applications, hydraulic or mechanical expansion is preferred.

Each method has advantages and limitations, but all must be controlled carefully to avoid damaging the titanium tube sheet or weakening the joint.

Surface Preparation

For a reliable joint, the surfaces of both the titanium tubes and the tube sheet must be properly prepared. This includes:

• Thorough cleaning to remove dirt, oil, and other contaminants

• Light surface conditioning or controlled roughening where specified to promote consistent contact during expansion

• Using suitable lubricants compatible with the expansion process

Proper surface preparation helps rolling and expansion produce consistent contact, which reduces the risk of leakage at titanium tube-to-tubesheet joints.

Seal Welding and Hybrid Joint Strategies

Mechanical joining methods are often sufficient for preventing leaks in titanium tube-to-sheet joints. However, some applications may require additional measures. Seal welding and hybrid joining strategies can provide an additional barrier against process-fluid leakage.

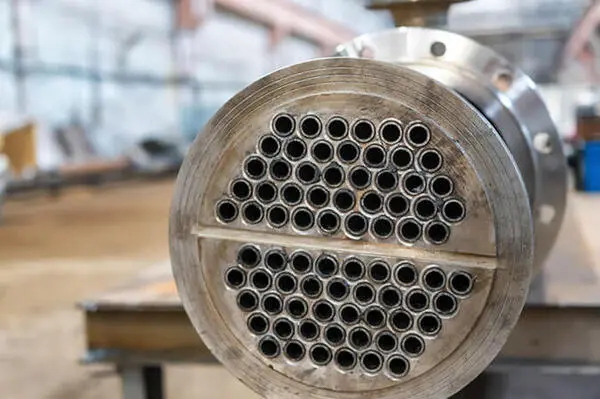

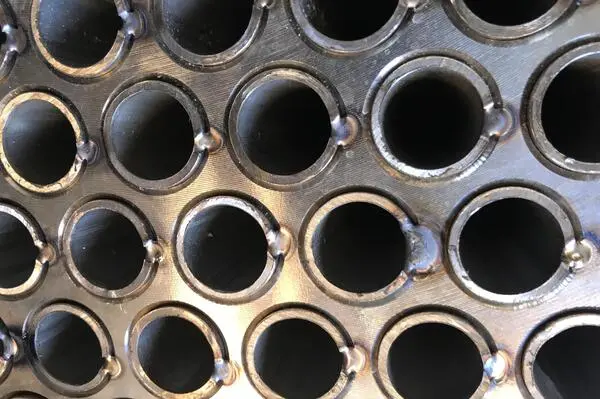

Titanium Tube Sheet Welding Techniques

Because titanium can react with oxygen and other gases at elevated temperatures, welding requires controlled shielding and suitable equipment. Important considerations include:

• using inert gas shielding (typically high-purity argon) to prevent oxidation during welding

• using qualified welders experienced in titanium alloys

• carefully controlling heat input to limit distortion and protect weld quality

• applying controlled post-weld stress relief only when required by material specification or component design; unnecessary heating of titanium should be avoided.

When titanium is properly seal-welded, a leak-tight joint between the tube and tube sheet can be achieved, reducing the risk of process fluid leakage.

Hybrid Joining Methods

Combining mechanical expansion and welding can provide additional sealing for titanium tube sheets. Some commonly considered approaches include:

• Mechanical expansion followed by seal welding

• Hydraulic expansion followed by seal welding

• Rolled joints with localized seal welds

These combined methods can provide both mechanical retention and an additional sealing barrier, improving joint reliability when the design and applicable specifications require it.

Quality Control for Welded Connections

It is very important to verify the quality of seal-welded joints in titanium tube sheets. Suitable quality control methods include:

• Visual inspection of weld profiles according to applicable acceptance criteria (e.g., AWS/ASME visual standards), supplemented by NDT such as liquid penetrant, radiographic, or ultrasonic testing where appropriate

• Non-destructive testing (NDT), such as liquid penetrant testing, radiographic testing, or ultrasonic testing where applicable

• Controlling contamination and shielding conditions to reduce risks of porosity, oxidation, and other weld defects

• Hydrostatic or pneumatic pressure testing at the specified test pressure and according to the applicable code or procedure

These quality control steps help identify potential defects and leakage paths at titanium tube-to-tubesheet joints before the equipment enters service.

Gasket and Filler Material Selection Tips

Various gasket, sealant, and filler materials can be used in suitable joint designs to reduce leakage at titanium tube-to-tubesheet connections. The selected material must be compatible with titanium, the process medium, and the operating conditions.

Selecting Compatible Gaskets for Titanium Tube Sheets

When selecting gaskets for titanium tube sheets, consider the following factors:

• Chemical compatibility with the process fluids

• Applicable temperature and pressure ratings

• Resistance to creep and stress relaxation

• Ability to conform to minor surface irregularities.

Common gasket materials for titanium applications include:

• PTFE (Polytetrafluoroethylene)

• Graphite

• Fluoroelastomers

• Expanded PTFE (ePTFE)

Gasket selection must consider chemical compatibility, temperature and pressure ratings, resistance to creep and stress relaxation, and the ability to conform to minor surface irregularities. Common materials include PTFE, expanded PTFE, graphite, and fluoroelastomers where service conditions permit.

Filler Materials for Enhanced Sealing

In some joint designs, additional sealing materials may be used to improve leak resistance at titanium tube-to-tubesheet connections. Potential materials include:

• anaerobic sealants

• epoxy-based compounds

• specialized metallic fillers

When selecting filler materials (e.g., anaerobic sealants, epoxy compounds, or metallic fillers), verify chemical compatibility with titanium and assess galvanic corrosion risk; use electrically compatible or insulated materials where necessary to avoid adverse electrochemical reactions.

Installation Best Practices

For titanium tube sheets to remain leak-tight, tubes, gaskets, sealants, and other joint components must be installed correctly. Recommended practices include:

• Thoroughly clean and prepare the mating surfaces

• Apply even, controlled pressure during assembly

• Use bolt torque values specified for the joint design

• Allow sealants or fillers sufficient time to cure

• Perform leak testing after installation

Following these installation practices helps ensure that gaskets, sealants, and other joint components perform as intended in titanium tube-to-tubesheet connections.

Conclusion

Manufacturers need to use the right joining methods, use materials that work well together, and keep an eye on quality to make sure that titanium tube-to-sheet joints don't leak. Titanium heat exchangers and other industrial equipment are less likely to leak if engineers use controlled rolling and expansion techniques, the right welding and hybrid joining methods, and pick the right gaskets and sealing materials. Checking for leaks, maintaining, and inspecting joints on a regular basis can also help make sure they stay reliable during service. This makes it possible for titanium tube sheet systems to work consistently in harsh industrial settings.

Customers who need high-quality China titanium tube sheet products and help making joints that won't leak can get it from Baoji Huacan New Metal Materials Co., Ltd. Our production facilities are ISO 9001-certified, and our technical team helps with choosing materials, machining, fabricating, and inspecting. For commercial uses, we offer titanium options that are made to specific grades, dimensions, specifications, and tolerances.

Frequently Asked Questions

What makes the joints between titanium tubes and sheets leak?

Titanium tube-to-tubesheet joints can leak if the tubes aren't properly inflated, if the welds aren't perfect, if the materials don't react chemically, or if heat cycle puts too much stress on the joint.

How often should the connections between titanium sheets and tubes be checked?

Inspection times rely on the service conditions, how important the equipment is, the level of risk, and the laws that apply. Some sites may only need to be inspected once a year, while higher-risk or more important services may need to be examined more often based on a written inspection plan. For tough jobs, the number of inspections should be based on what the job calls for.

Can titanium tube sheets be fixed if they leak?

Depending on what caused the damage and how bad it is, fixes may include re-expansion of the tube, seal welding, tube plugging, or, if the damage is really bad, replacing the tube. The repair method should be chosen after the item has been inspected and in line with the requirements of the repair process.

Why is it a good idea to use titanium for tube sheets?

Titanium has a high strength-to-weight ratio, excellent corrosion resistance, and is long-lasting in harsh work settings. It still depends on the material grade, process medium, temperature, and pressure to see if it works.

What changes when the titanium sheets and tubes get hot?

When the temperature changes, titanium tubes and tube sheets can get bigger or smaller, which can put thermal stresses in the joint. You can control these effects by designing joints correctly, choosing the right materials, and making sure the working conditions are just right.

Expert Solutions for Titanium Tube Sheet Manufacturing

Baoji Huacan New Metal Materials Co., Ltd. manufactures titanium tube sheets for heat exchangers and other industrial applications. Our manufacturing processes, including CNC machining and controlled quality inspection, support production according to customer drawings and specified requirements. Baoji Huacan New Metal Materials Co., Ltd. manufactures titanium tube sheets and related components with ISO 9001 certification, CNC machining capability, and in-house NDT services. We can produce custom designs to meet specified material grades, dimensions, tolerances, and inspection requirements. Contact our titanium team at Joy@hc-titanium.com or Sherry@hc-titanium.com with your drawings, material requirements, quantities, and inspection specifications to discuss your project and receive a suitable manufacturing solution.
