Forming and Welding Titanium for Complex Housings

Controlled forming, welding, and inspection processes are needed to make complex titanium alloy housings. The method chosen is based on the type of metal, the wall thickness, the shape, the amount of output, and the level of accuracy needed for the dimensions. This study looks at the features of the material that affect how titanium alloy housings are made, as well as popular ways to shape and join complex structures. It also talks about important handling issues that can have an impact on the quality of housing and the long-term performance of services.

Understanding Titanium Alloy Properties

Titanium alloys have a combination of mechanical and physical properties that can make them suitable for demanding housing applications. Depending on the alloy and service environment, relevant properties include:

- High strength-to-weight ratio

- Excellent corrosion resistance

- Relatively low thermal expansion

- Biocompatibility for selected applications

Titanium alloy housing makers can use these features to make buildings that are light for use in space, medicine, and the sea. When a building needs to survive tough mechanical or external conditions, the mix of strength, low density, and corrosion resistance is particularly useful. But the real working temps, loads, chemical exposure, and production needs should always guide the choice of material.

Common Titanium Alloys for Housing Applications

Several titanium alloys may be considered for housing manufacturing:

- Ti-6Al-4V: Widely used titanium alloy with a good balance of strength, weight, and processing characteristics

- Ti-3Al-2.5V: Known for good formability and weldability, particularly in suitable tubular applications

- Grade 2 Titanium: Commercially pure titanium with excellent corrosion resistance and good formabilit

When making titanium alloy housings, it's important to choose the right alloy because the material affects how it shapes, how it welds, how well it works mechanically, and how long it lasts. Before choosing a grade, manufacturers should think about the final use, temperature, corrosion exposure, weight limits, strength requirements, and wall thickness.

Challenges in Titanium Alloy Processing

Working with titanium alloys presents several processing challenges:

- High chemical reactivity at elevated temperatures

- Low thermal conductivity and localized heat concentration

- Springback during forming

- Sensitivity to atmospheric contamination during welding

To deal with these problems, you need the right tools, well-controlled process factors, and well-prepared materials. When hot forming, the temperature needs to be kept in check based on the metal and the process being done. Titanium can react with oxygen, nitrogen, and hydrogen at high temperatures, so it's important to keep the surface clean and protect it during welding.

Advanced Forming Techniques for Titanium Alloy Housings

Temperature, tools, material state, and bending must all be carefully controlled when shaping titanium metals into complicated housing shapes. Which method to use depends on how the housing is designed and how it needs to be made.

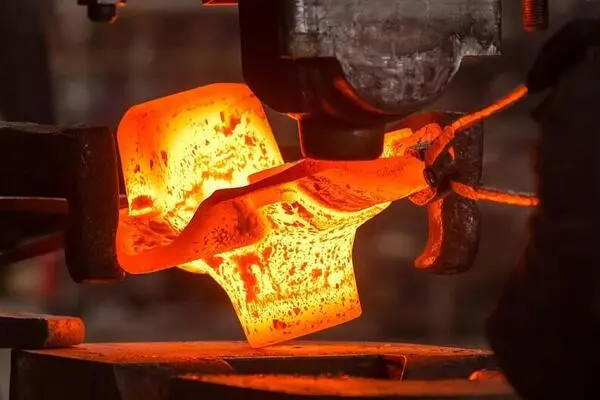

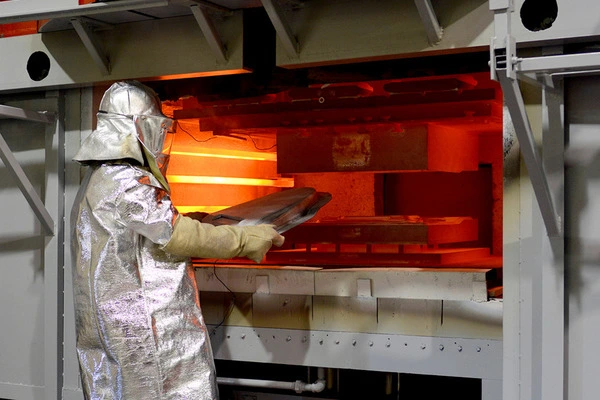

Hot Forming of Titanium Alloy Housings

Titanium alloys are shaped by hot forming within a fixed temperature range that is chosen based on the type of alloy, the thickness of the material, the amount of distortion, and the conditions of the tool. Increasing the temperature can make some titanium metals and making processes much easier and lessen the force needed to shape them.

This process can provide several benefits for titanium alloy housing manufacturing:

- Reduced springback

- Improved material formability

- Lower forming forces

Titanium alloy housing producers may use heated dies, controlled heating systems, and temperature monitoring to maintain consistent forming conditions. Proper temperature control helps reduce the risk of excessive oxidation, dimensional variation, or unwanted changes in material properties. The specific forming temperature should be established from the applicable alloy and process requirements rather than using one temperature range for every titanium grade.

Superplastic Forming for Complex Titanium Alloy Housings

Superplastic forming (SPF) is a specialized process used with selected titanium alloys under controlled elevated-temperature and low-strain-rate conditions. When the alloy exhibits superplastic behavior, substantial uniform deformation can be achieved with limited localized necking.

Potential advantages include:

- Production of complex, integrated titanium alloy housings

- Reduced numbers of separate components and some joining operations

- Efficient production of lightweight structures with complex shapes

SPF can be useful for aerospace structures where reducing part count and weight is important. Successful processing requires accurate control of temperature, strain rate, gas pressure, sheet condition, and forming time. The suitability of SPF depends on the alloy, component geometry, required thickness distribution, and production volume.

Hydroforming Titanium Alloy Housings

Hydroforming uses pressurized hydraulic fluid to form suitable titanium sheets or tubes against a die. It can be considered for tubular or shell-like housing structures where complex contours are required.

Potential benefits include:

- Formation of complex tubular or shell-like structures with fewer joints

- Good dimensional control when process parameters are properly managed

- Efficient material utilization for suitable component designs

Titanium alloy housing manufacturers may use hydroforming for selected aerospace, medical, or other engineered components. The process can reduce the number of forming and joining operations, but its suitability depends on material thickness, tube or sheet condition, pressure requirements, tooling design, and the desired geometry.

Precision Welding Techniques for Titanium Alloy Housings

Welding is an important joining process in titanium alloy housing manufacturing. Because heated titanium is sensitive to atmospheric contamination, welding requires suitable shielding, clean joint preparation, controlled heat input, and appropriate post-weld inspection. Several welding methods can be selected according to housing thickness, geometry, production volume, and joint requirements.

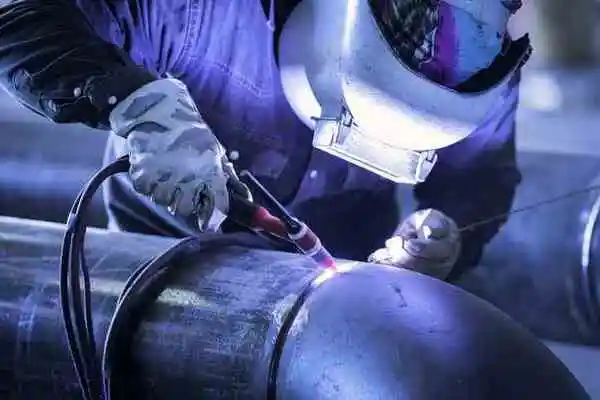

Gas Tungsten Arc Welding (GTAW) for Titanium Alloy Housings

GTAW, also known as TIG welding, is widely used where precise heat input and weld control are required. The process can produce high-quality joints when the welding procedure, shielding, and surface preparation are properly controlled.

Important considerations include:

- Accurate control of heat input

- Suitable shielding coverage

- Careful joint and surface preparation

Titanium alloy housing welders commonly use high-purity argon or another qualified shielding-gas arrangement appropriate for the procedure. The torch, trailing shield, and, where necessary, backside purge should provide adequate protection of the hot metal. Tungsten electrode selection should follow the welding procedure and equipment requirements rather than assuming one electrode type is suitable for every application. Clean handling and removal of surface contamination are essential for maintaining weld quality.

Electron Beam Welding for Complex Titanium Alloy Housings

Electron beam welding (EBW) is a precision joining process that can be useful for selected aerospace, medical, and other high-integrity titanium components. Welding takes place in a controlled vacuum environment, which can reduce exposure to atmospheric gases during the process.

Potential advantages include:

- Deep penetration with a relatively narrow heat-affected zone

- Controlled welding in a vacuum environment

- Suitable for certain complex or thick-section joints

Titanium alloy housing manufacturers may consider EBW for applications requiring precise joints or reduced weld distortion. Hermetic sealing may also be achievable when the joint design, welding procedure, surface preparation, and subsequent leak testing meet the specified requirements. Specialized equipment and qualified procedures are necessary to maintain repeatable welding quality.

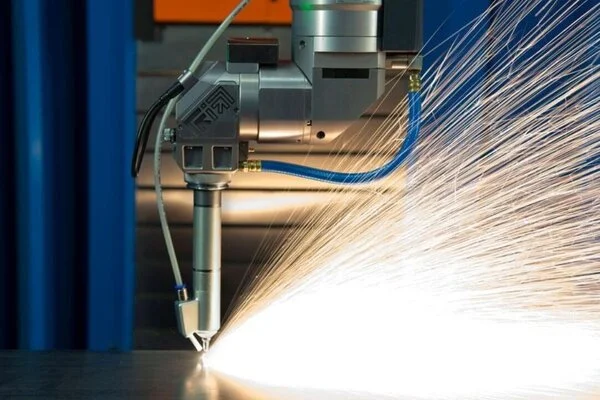

Laser Welding Techniques for Titanium Alloy Housings

Laser welding can be selected when low heat input, controlled penetration, and precise joining are required. The process is suitable for certain thin sections and complex geometries.

Potential benefits include:

- Low heat input and limited distortion

- High welding speeds for suitable production conditions

- Precise joining of thin sections and detailed geometries

Titanium alloy housing producers may use continuous-wave or pulsed laser systems depending on material thickness and joint design. Laser power, travel speed, focal position, shielding-gas flow, joint fit-up, and beam alignment all affect weld quality. Proper shielding is especially important for titanium because inadequate protection can cause oxidation and negatively affect the weld.

Conclusion

Producing complex titanium alloy housings requires coordinated material selection, forming, welding, machining, and inspection. Hot forming, superplastic forming, and hydroforming can be considered for different housing geometries, while GTAW, electron beam welding, and laser welding provide different options for joining titanium components. The appropriate manufacturing route depends on alloy grade, dimensions, wall thickness, geometry, production volume, and required performance.

For B2B procurement, buyers should confirm the titanium grade, housing dimensions, wall thickness, tolerances, surface requirements, welding specifications, quantity, and applicable inspection requirements. Material certificates, dimensional inspection, weld inspection, and other testing can provide evidence that the finished titanium material and housing meet agreed specifications.

Baoji Huacan New Metal Materials Co., Ltd. supplies titanium and titanium alloy products for custom engineering applications. The company supports housing requirements based on specified grades, dimensions, drawings, manufacturing processes, inspection requirements, and documentation needs. Customers can provide their technical requirements for evaluation before production.

FAQs

What are the main advantages of using titanium alloy for complex housings?

Titanium alloys can provide a high strength-to-weight ratio, good corrosion resistance, relatively low density, and useful performance in demanding environments. Selected grades are also suitable for applications requiring biocompatibility, making them relevant to aerospace, medical, and marine components.

How does hot forming benefit titanium alloy housing production?

Hot forming can improve the formability of suitable titanium alloys, reduce springback, and lower forming forces compared with some room-temperature operations. The appropriate forming temperature depends on the alloy, thickness, deformation level, and specific manufacturing process.

What is superplastic forming, and why is it useful for titanium alloy housings?

Superplastic forming uses selected titanium alloys under controlled elevated-temperature and low-strain-rate conditions to produce large amounts of uniform deformation. It can create complex shapes and reduce the number of separate components or joining operations required for some aerospace structures.

Why is cleanliness crucial in titanium alloy welding?

Titanium is highly reactive while heated and can absorb atmospheric gases that affect weld quality. Clean joint surfaces, suitable shielding, and adequate protection of the weld zone help reduce contamination and support consistent mechanical and visual properties.

What are the advantages of laser welding for titanium alloy housings?

Laser welding can provide low heat input, limited distortion, high welding speeds, and precise control for suitable thin sections and complex joints. Actual performance depends on laser parameters, material thickness, joint design, shielding, and process control.

Expert Titanium Alloy Housing Manufacturing Solutions

At Baoji Huacan New Metal Materials Co., Ltd., we support custom titanium alloy housing projects involving material selection, forming, welding, machining, and inspection requirements. Our facility in China's "Titanium Valley" provides access to titanium processing resources and manufacturing capabilities for customized engineering components.

Our ISO 9001 certification provides a framework for quality management and process control. For individual titanium alloy housing projects, requirements such as material grade, dimensions, tolerances, welding procedures, inspection methods, and documentation can be reviewed according to customer specifications.

For quotation or technical evaluation, contact Joy@hc-titanium.com or Sherry@hc-titanium.com. Providing the titanium grade, housing dimensions, wall thickness, quantity, drawing or CAD file, surface requirements, welding requirements, and inspection specifications can help our team evaluate the appropriate manufacturing route and prepare a suitable quotation.

References

1. Peters, M., & Leyens, C. (2003). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH.

2. Lütjering, G., & Williams, J. C. (2007). Titanium (2nd ed.). Springer-Verlag Berlin Heidelberg.

3. Donachie, M. J. (2000). Titanium: A Technical Guide (2nd ed.). ASM International.

4. Welding Handbook (9th ed.). (2001). American Welding Society.

5. Superplastic Forming of Advanced Metallic Materials: Methods and Applications. (2011). Woodhead Publishing.​​​​​​​
