DIN 1587 Titanium Acorn Nuts — High-Strength Dome Cap Fasteners for Industrial Applications

DIN 1587 titanium acorn nuts are high-precision hexagon domed cap nuts manufactured to German DIN standards, available in Grade 2 and Grade 5 titanium alloys. The closed dome design fully covers exposed bolt threads, eliminating sharp-end hazards and sealing connections from corrosion. Compared to standard steel counterparts, these titanium cap nuts deliver approximately 45% weight reduction and outstanding resistance to saltwater and chemical attack. At Baoji Huacan, we produce them using 40+ CNC machines with full OEM/ODM customization capability.

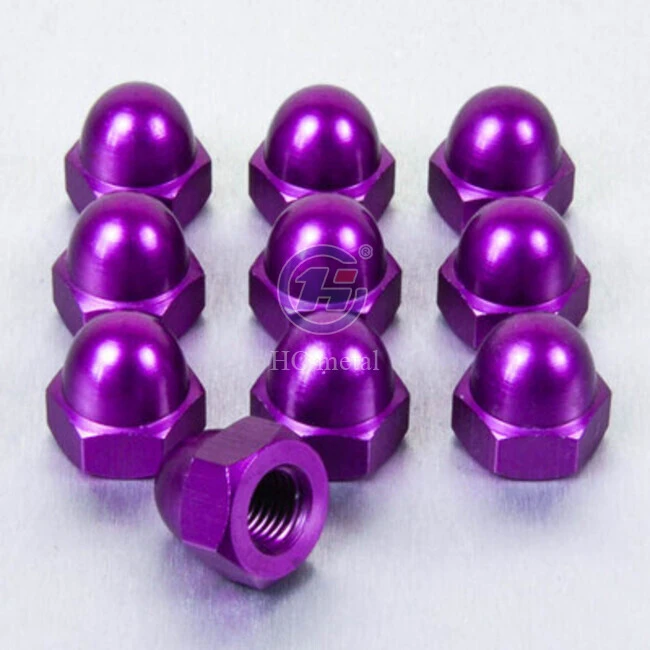

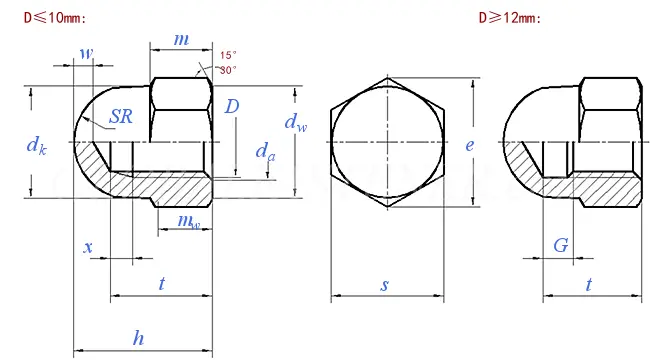

Technical Specifications

Parameter	Details
Product Standard	DIN 1587 Acorn Nut Standard
Material Grades	Grade 2 (TA2), Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 (Custom grades available)
Material Standards	ASTM B348, AMS 4928, DIN, ISO standards
Thread Type	Internal metric thread
Thread Size	Customized according to customer requirements
Thread Tolerance	6H class
Dome Height	High dome type, approximately equal to thread diameter
Dimensional Range	Fully customized based on customer drawings or specifications

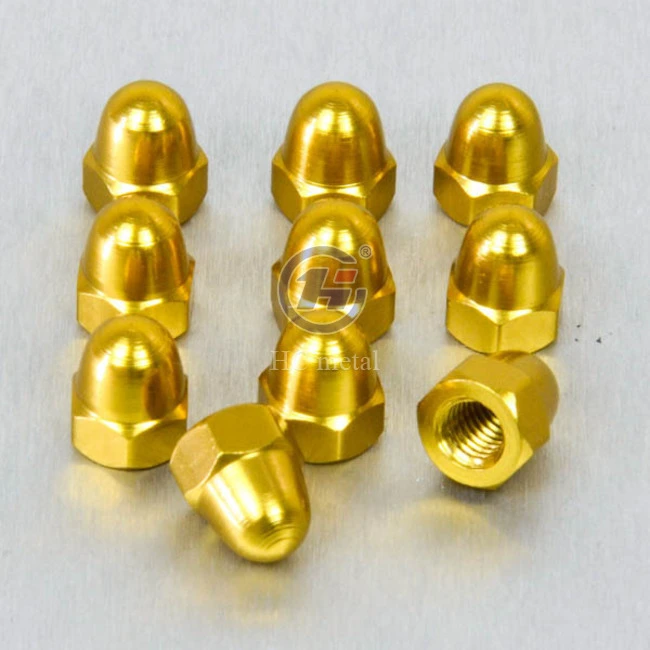

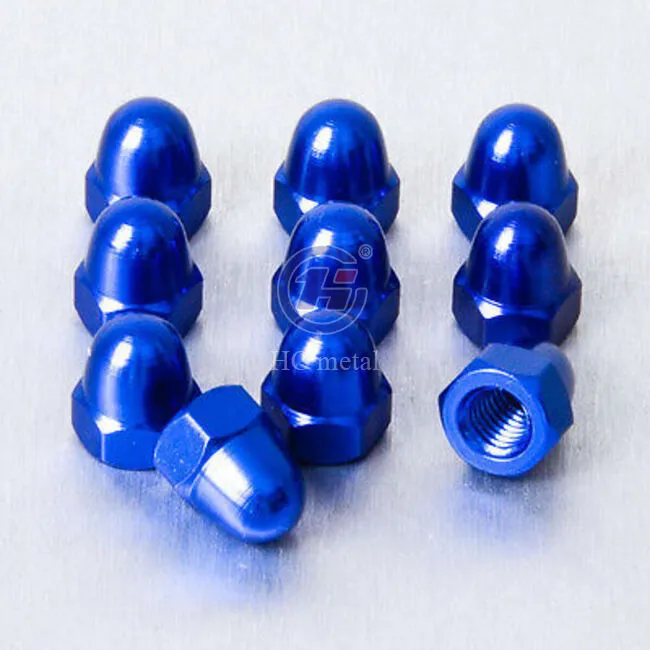

Surface Finish	Natural titanium finish, polished, anodized, or PVD coating
Tensile Strength	Up to approx. 895 MPa (Grade 5 Titanium)
Density	Approx. 4.51 g/cm³
Maximum Service Temperature	Up to 400°C (Grade 5) / 300°C (Grade 2)
Manufacturing Process	CNC machining, precision turning, prototype to mass production
Custom Options	OEM / ODM services available

Thread Size			M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24
D
P	Coarse thread		0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3
	Fine thread -1		/	/	/	1	1.25	1.5	1.5	1.5	2	2	2	2
	Fine thread -2		/	/	/	/	1	1.25	/	/	1.5	1.5	1.5	/
da	max		4.6	5.75	6.75	8.75	10.8	13	15.1	17.3	19.5	21.6	23.7	25.9
da	min		4	5	6	8	10	12	14	16	18	20	22	24
dk	min=nominal size		6.5	7.5	9.5	12.5	15	17	20	23	26	28	33	34
dw	min		5.9	6.9	8.9	11.6	14.6	16.6	19.6	22.5	24.9	27.7	31.4	33.3
e	Grade A	min	7.66	8.79	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98
e	Grade B	min	7.5	8.63	10.89	14.2	17.59	19.85	22.78	26.17	29.56	32.95	37.29	39.55
x	Coarse thread	max	1.4	1.6	2	2.5	3	3.5	4	4	5	5	5	6
x	Fine thread	max	/	/	/	2	2.5	3	3	3	4	4	4	4
G	Coarse thread	max	2.75	3	3.7	4.9	5.6	6.4	7.3	7.3	9.3	9.3	9.3	10.7
G	Fine thread	max	/	/	/	3.7	4.9	5.6	5.6	5.6	7.3	7.3	7.3	7.3
h	max=nominal size		8	10	12	15	18	22	25	28	32	34	39	42
	Grade A	min	7.64	9.64	11.57	14.57	17.57	21.48	24.48	27.48	31.38	33.38	38.38	41.38
	Grade B	min	7.42	9.42	11.3	14.3	17.3	21.16	24.16	27.16	31	33	38	41
m	max		3.2	4	5	6.5	8	10	11	13	15	16	18	19
m	min		2.9	3.7	4.7	6.14	7.64	9.64	10.3	12.3	14.3	14.9	16.9	17.7
mw	min		2.32	2.96	3.76	4.91	6.11	7.71	8.24	9.84	11.44	11.92	13.52	14.16
SR	≈		3.25	3.75	4.75	6.25	7.5	8.5	10	11.5	13	14	16.5	17
s	max=nominal size		7	8	10	13	16	18	21	24	27	30	34	36
	Grade A	min（Grade A）	6.78	7.78	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38
	Grade B	min（Grade B）	6.64	7.64	9.64	12.57	15.57	17.57	20.16	23.16	26.16	29.16	33	35
t	max		5.74	7.79	8.29	11.35	13.35	16.35	18.35	21.42	25.42	26.42	29.42	31.5
t	min		5.26	7.21	7.71	10.65	12.65	15.65	17.65	20.58	24.58	25.58	28.58	30.5
w	min		2	2	2	2	2	3	4	4	5	5	5	6
per 1000 units≈kg	Coarse thread		1.5	2.2	4.6	8.9	20.1	28.3	39.7	54.3	79.1	104	/	216
per 1000 units≈kg	Fine thread		/	/	/	11	20.1	28.3	39.7	54.3	95	104	/	216

Application Field	Description

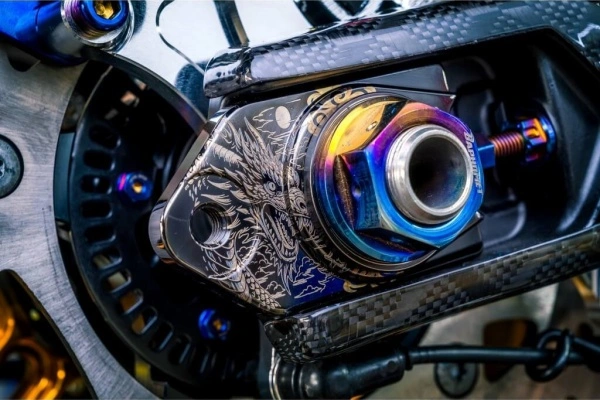

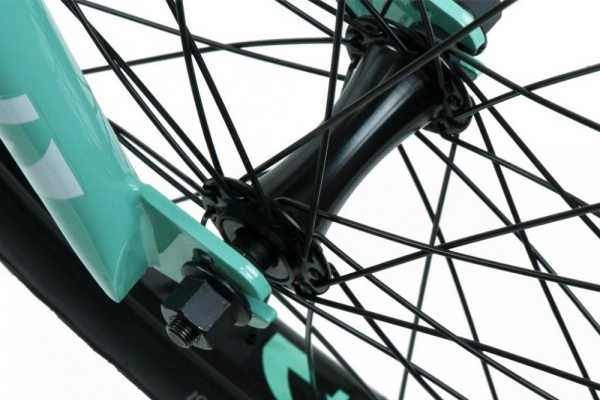

Bicycle & Cycling Components	Ideal for premium road bikes, MTB, BMX, and custom builds requiring lightweight, corrosion-resistant, and visually appealing fasteners.

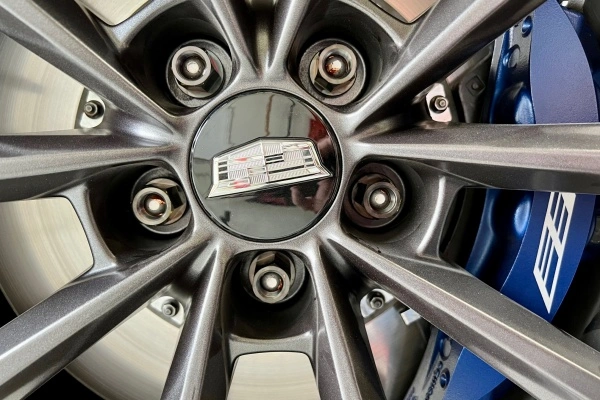

Automotive & Motorsport	Suitable for racing vehicles, performance cars, and custom modifications where weight reduction, strength, and aesthetics are critical.
