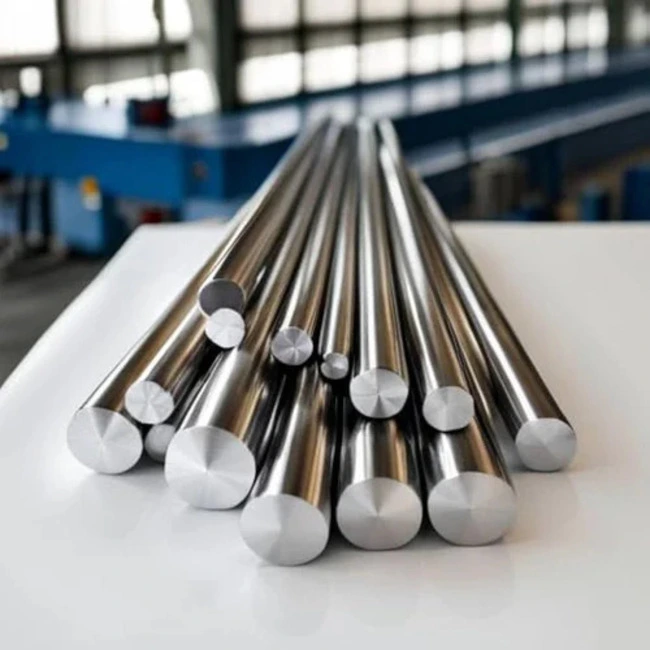

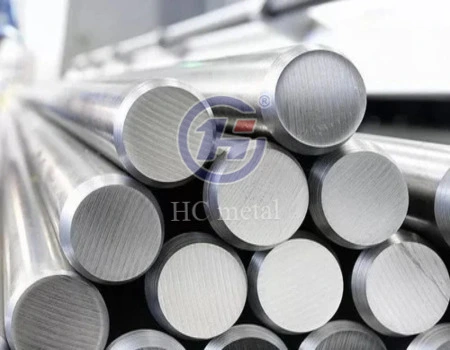

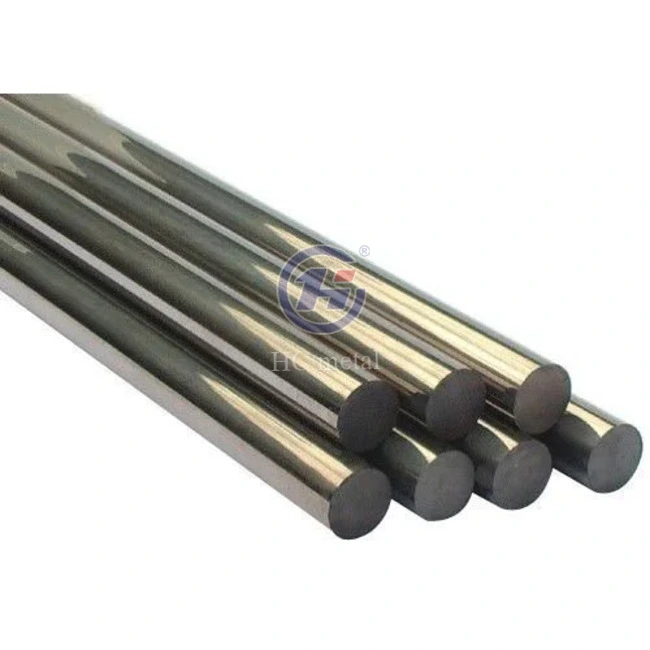

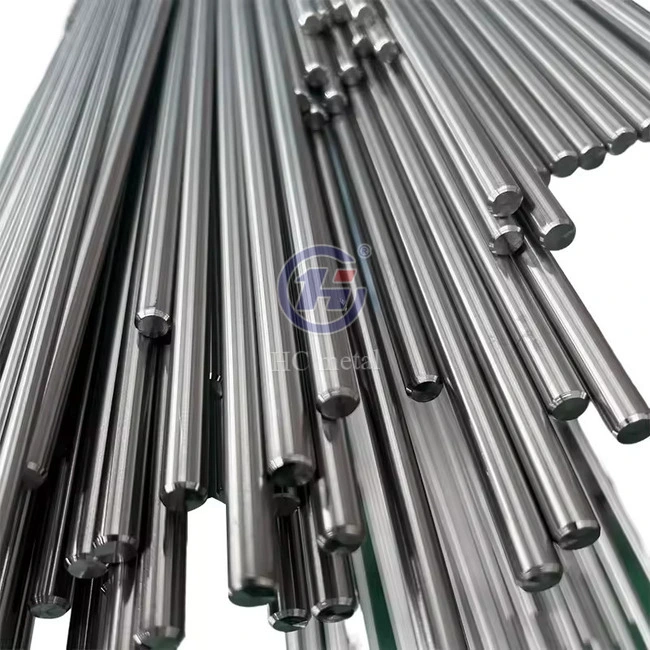

8mm Titanium Rod – Grade 5 Ti-6Al-4V Industrial Bar Stock for High-Performance Applications

Baoji Huacan's 8mm titanium rod is precision-made from Grade 5 (Ti-6Al-4V) or Grade 2 commercially pure titanium, offering tensile strength up to 950 MPa at a density of just ~4.43 g/cm³ — about 55% lighter than steel. Each rod is produced by hot rolling and centerless grinding to stringent ISO dimensional specifications (h6, h7 or h9). Huacan has 10+ years of expertise in titanium machining, operates 40+ CNC machines, has an annual production capacity of over 1000 tonnes, and serves OEM/ODM orders in prototype, small batch and mass production sizes

Parameter	Details
Material Grade	Grade 2 (CP Titanium), Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 (Ti-6Al-4V ELI)
Diameter	8 mm (Custom diameters available)
Length	Customized according to customer requirements
Dimensional Tolerance	ISO h6 / h7 / h8 / h9, or according to customer drawings
Tensile Strength	Up to 950 MPa (Grade 5 Titanium)
Density	Approx. 4.43–4.51 g/cm³
Material Standards	ASTM B348 / AMS 4928 / DIN / ISO
Surface Finish	Natural Titanium Finish, Polished, Anodized, PVD Coating
Quality Documentation	MTC, EN 10204 3.1 Material Test Certificate, and COC available
Production Capability	Prototype machining, small batch production, and mass production

· High strength-to-weight ratio — Grade 5 offers steel-level strength at 55% of the weight, reducing rotational mass in dynamic systems

· Corrosion resistance — Immune to chloride-induced stress corrosion cracking in marine and chemical environments where stainless steel 316 fails

· Biocompatibility — Biologically inert with elastic modulus (~110 GPa) closer to human bone, reducing stress shielding in orthopedic use

· MRI compatibility — Non-magnetic and radiolucent, suitable for long-term implantation

· Tight tolerance control — ISO h6 to h9 precision suitable for Swiss-style CNC turning of fasteners, pins, and shafts

Our Precision Parts Processing Workshop

Titanium precision parts processing

Medical Orthopedics: Used in external fixation frames (Hoffmann systems) and spinal rod constructs. The 8mm profile provides fracture stabilization stiffness while remaining MRI-compatible and biologically inert.

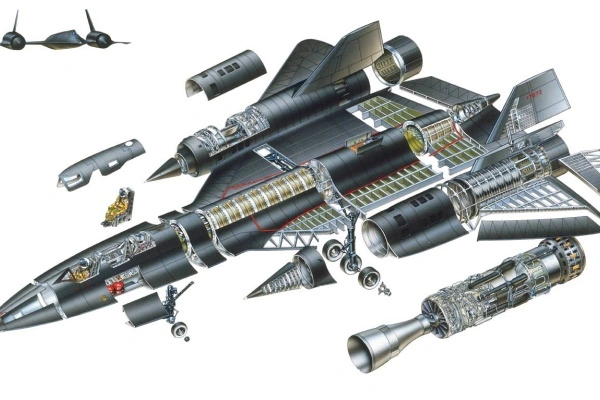

Aerospace & Racing: Serves as raw stock for machining M8 high-strength bolts, studs, and shear pins for airframes and engine casings — handling extreme cyclic loading where aluminum fails and steel adds excess mass.

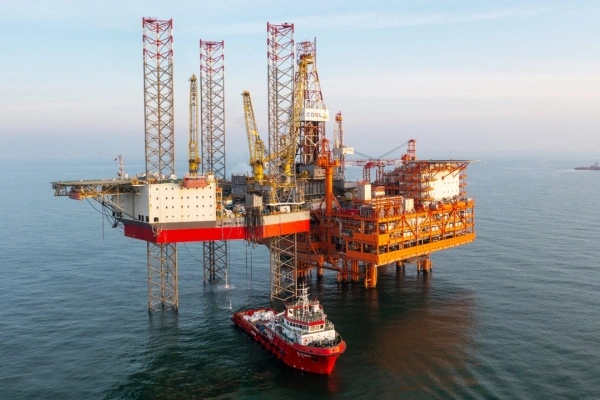

Marine & Petrochemical: Applied in pump shafts, valve stems, and sensor probe housings for desalination plants and offshore rigs, ensuring longevity in seawater and sour gas environments.

Marine & Offshore Equipment

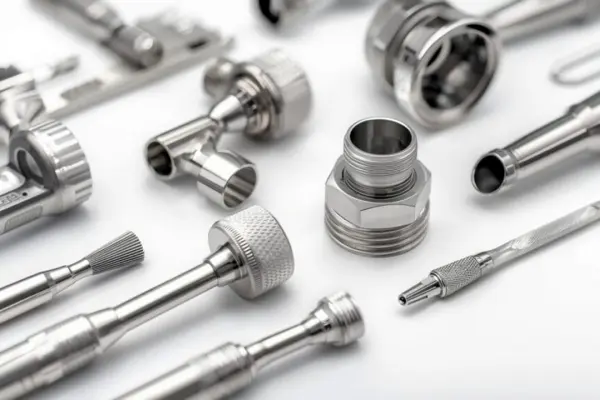

CNC Machined Titanium Components

Aerospace & High-Performance Engineering Parts

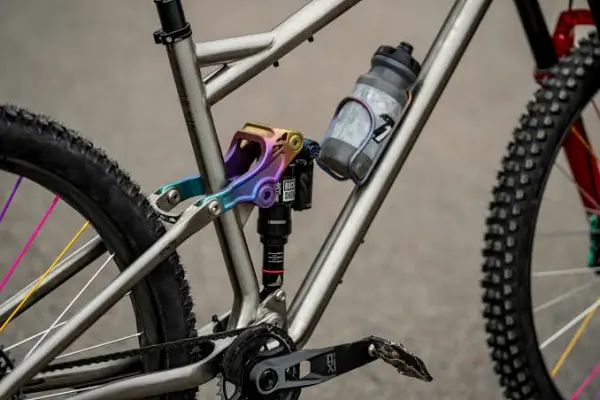

Bicycle, Motorcycle & Racing Components

Huacan has over 40 high precision CNC machines, a 4,000 tonne hydraulic press and rolling mills for tight tolerance bar manufacturing. We often tackle complicated geometries and stringent demands.

Annual manufacturing capacity of finished titanium products exceeds 1,000 tonnes. Industry experience: 10+ years. 100+ worldwide customer partnerships.


Vacuum Melting	Breakdown Forging	Forging & Rolling

Huacan has a multi-stage inspection methodology that includes raw material verification, in-process dimensional checks, ultrasonic non-destructive testing (NDT) and final CMM inspection.

Mechanical parameters such as tensile strength, yield strength and hardness are tested to ASTM, AMS and DIN standards before shipping.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: Can the product be welded?

A：Yes. TIG welding with full argon shielding (including tailings shield) is recommended to prevent alpha-case embrittlement in both CP and Grade 5 material.

Q: What is the difference between ASTM B348 and ASTM F136?

A：ASTM F136 is the medical ELI standard with stricter oxygen and iron limits for improved fracture toughness in implant applications. ASTM B348 covers general industrial use.

Q: Do you provide Mill Test Certificates?

A：Yes. Every batch ships with EN 10204 3.1 MTC, detailing chemical composition, mechanical properties, and heat batch numbers.

Q4 What tolerances can you achieve?

A：We regularly produce to ISO h6, h7, h8, and h9 depending on your application. Custom tolerance classes based on drawings are also supported.

Option	Details

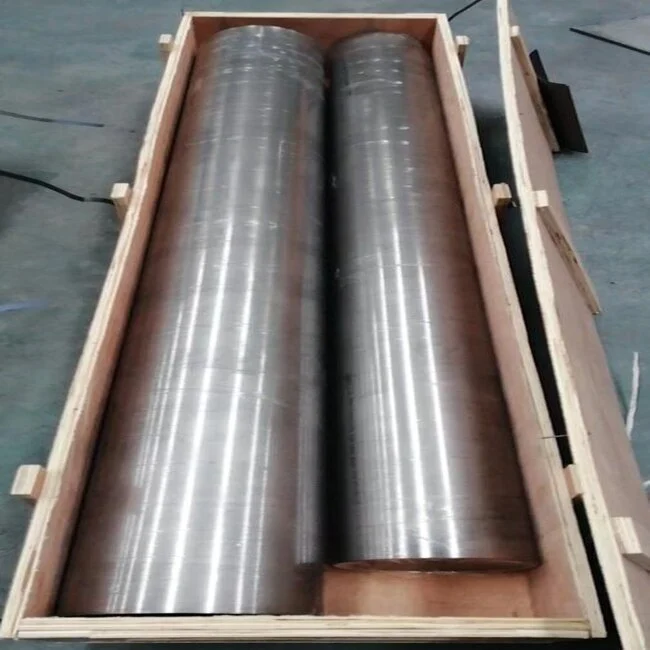

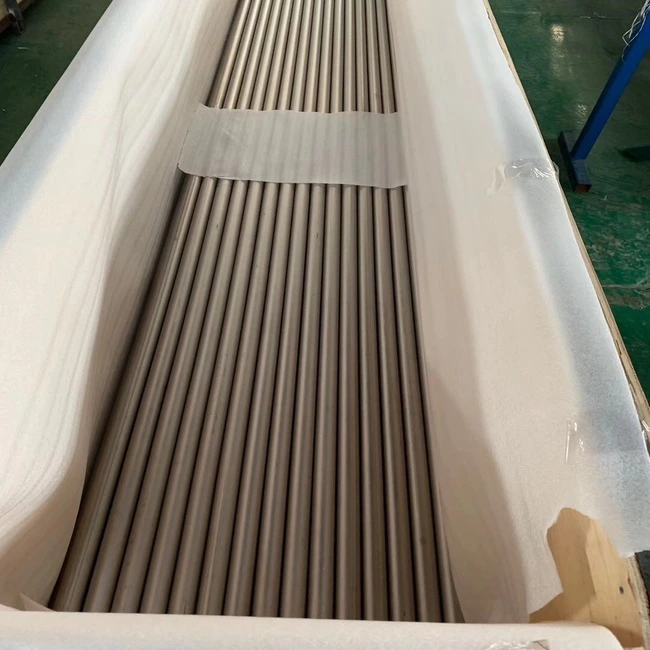

Inner Protection	Vacuum-sealed bags with desiccants to prevent moisture exposure during transit
Cushioning	Custom foam inserts to protect precision titanium rods from impact and surface damage

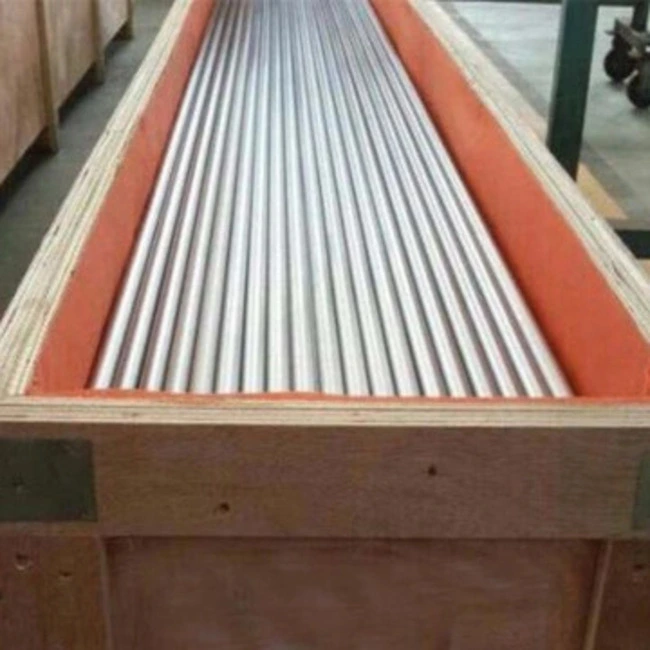

Outer Packaging	Heavy-duty wooden crates suitable for bulk shipments and long-distance transportation
Documentation	MTC, COC, packing lists, and labeled traceability records provided
Shipping Methods	Air freight for urgent orders; sea freight for bulk shipments and cost efficiency
