5mm titanium rod

Product Introduction

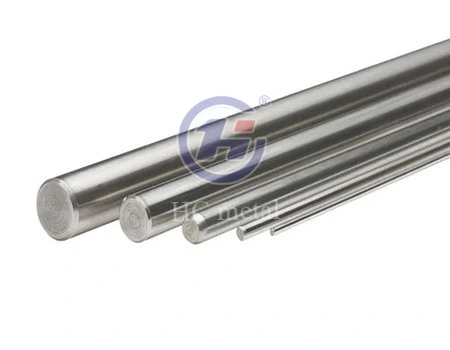

5mm Titanium Rod – High-Strength Grade 5 Ti-6Al-4V Bar for Precision Industrial Applications

Baoji Huacan's 5mm titanium rod is precision-manufactured from Grade 5 (Ti-6Al-4V) or Grade 2 commercially pure titanium, delivering an exceptional strength-to-weight ratio at just 55% the weight of steel. Hot rolled, drawn, annealed and centerless ground, each rod has precise dimensional tolerances and a superb surface quality. With over 10 years of expertise in titanium machining, 40+ CNC machines and yearly production capacity of over 1,000 tonnes, we service B2B customers in aerospace, medical, marine and industrial sectors. Full OEM and Custom specs are supported.

Why Choose Our 5mm Titanium Rod

Finding a good small diameter titanium bar is more than simply acquiring the proper size. You need consistent quality, traceable materials and a provider that knows your application.

Here's what sets our product apart. Every rod is produced under ISO 9001-certified quality management, backed by EN 10204 3.1 Mill Test Certificates. You get full material traceability from ingot to finished bar.

We support OEM orders, drawing-based customization, and small-batch to mass production — giving you complete flexibility regardless of project scale.

Techinical Specifications

Material Advantages

· High strength-to-weight ratio — steel-comparable strength at 55% of the weight

· Excellent corrosion resistance — resists saltwater, chlorides, and aggressive chemicals

· Biocompatibility — Grade 5 and Grade 23 are suitable for medical and orthopedic use

· Dimensional stability — maintains tolerances from -55°C to 400°C

· Superior machinability — annealed condition optimizes cutting performance

· Weldable — Grade 2 with TIG/Argon shielding; Grade 5 with controlled heat input



Our Precision Parts Processing Workshop



Titanium precision parts processing

Titanium precision parts processing

Titanium precision parts processing

Product Application

Aerospace Machined into high shear rivets, locking bolts and actuation linkages. Ti-6Al-4V does not lose shear strength at severe temperatures when aluminium alloys would have softened.

Medical Devices: Used as a stock material for spinal fixation rods, dental abutment pins and orthopaedic external fixation gear. 5mm diameter achieves the perfect blend of rigidity and resistance to notch-sensitivity while being MRI compatible.

Marine Equipment: Used in ROV probe housings and speargun shafts when 316L stainless steel is subject to crevice corrosion when exposed to saltwater. Titanium completely eliminates such failure mode.

Chemical & Industrial: 5mm titanium rod Grade 2 rods are suitable for chemical pipe components and sensor assemblies where galvanic corrosion would be an issue with stainless steel alternatives.

Manufacturing Capability

Our facility in Baoji — China's recognized titanium production hub — operates 40+ CNC lathes and machining centers with annual capacity exceeding 1,000 tons. Melting capacity reaches 5,000 tons per year, and forging capacity exceeds 3,000 tons annually.

This fully integrated capability means shorter lead times, consistent material quality, and direct factory pricing for your procurement team.

Vacuum Melting	Breakdown Forging	Forging & Rolling

Quality Control

BJHC applies a multi-stage inspection protocol across every order:

· Raw material verification — spectrometer-based chemical composition analysis

· In-process dimensional checks — tolerance monitoring at each production stage

· Non-destructive testing — ultrasonic testing for internal flaw detection

· Final inspection — CMM, calipers, and surface roughness testers

· Documentation — full MTC, material traceability records, and inspection reports

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

FAQ

Q: What is the difference between Grade 2 and Grade 5?

A：Grade 2 is commercially pure titanium offering superior ductility and corrosion resistance. Grade 5 (Ti-6Al-4V) delivers roughly double the strength, making it the preferred choice for structural aerospace and load-bearing medical applications.

Q: Can this rod be threaded?

A：Yes. Due to titanium's galling tendency, rolling heads or cut-threading tools with high-pressure coolant are recommended to maintain thread profile integrity.

Q: What certifications come with each shipment?

A：Each shipment includes an EN 10204 3.1 Mill Test Certificate listing heat number, chemical composition, mechanical properties, and applicable standards such as ASTM B348 and AMS 4928.

Q: Can the product be welded?

A：Grade 2 welds easily using TIG under full argon shielding. Grade 5 is weldable but requires controlled heat input to avoid brittleness in the heat-affected zone.

Q: Is heat treatment needed after machining?

A：Most rods are supplied in the annealed condition for optimal machinability. Stress-relieving after heavy machining is recommended, particularly for Grade 5 components.

Packaging & Shipping

Contact Us

Ready to order 5mm titanium rod or need a custom quote? Reach our team at sherry@hc-titanium.com  — we respond promptly to all B2B inquiries.
