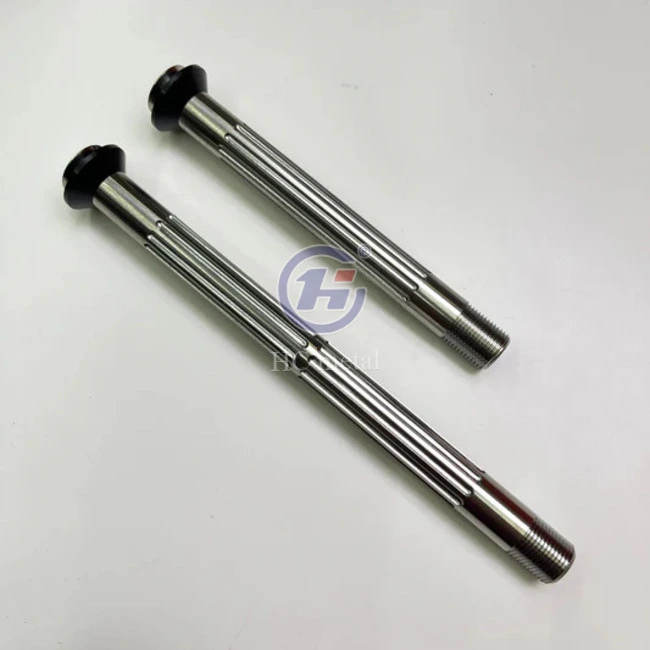

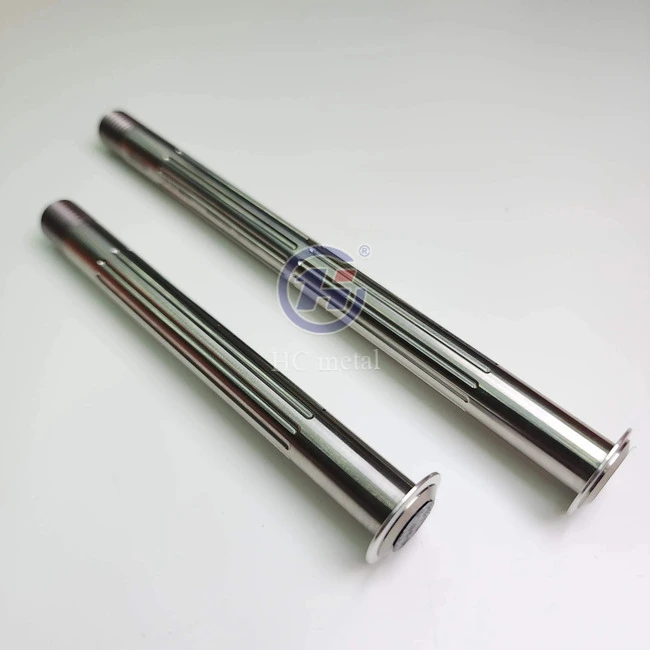

Road Bike Titanium Thru Axle — Premium Grade 5 Ti-6Al-4V Custom Cycling Component

A Road Bike Titanium Thru Axle represents the gold standard for wheel retention in modern disc-brake road cycling. Manufactured from aerospace-grade Grade 5 Ti-6Al-4V titanium alloy, it delivers superior stiffness, corrosion resistance, and fatigue performance over standard aluminum or steel axles. At Baoji Huacan, we support full OEM/ODM customization — thread pitch, length, surface finish, and geometry — all produced to your exact drawings using 40+ precision CNC machines. Whether you're a cycling brand or component distributor, our titanium thru axles are built to your specifications.

Parameter	Details
Material Grade	Grade 2, Grade 5 (Ti-6Al-4V), Grade 9, Grade 23
Material Standard	ASTM, AMS, ASME, DIN
Manufacturing Process	CNC Turning, Milling, 5-Axis CNC, Thread Machining
Thread Specification	Customized (M12×1.0, M12×1.5, M12×1.75, etc.)
Overall Length	Customized per drawing
Surface Finish	Machined, Polished, Anodized, Bead Blasted, PVD
Surface Roughness	Ra < 0.8µm (standard); customized per application
Tolerance	Per customer drawing / ±0.05mm on critical features

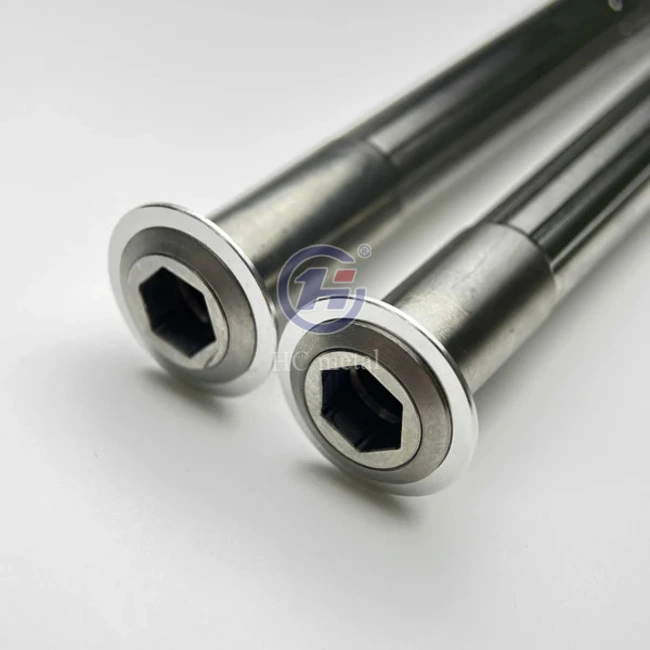

Tool Interface	Hex / Torx — customized
OEM/ODM	Available

Solutions One

This component suits any disc-brake road bicycle requiring a reliable, lightweight wheel retention system. Key use cases include:

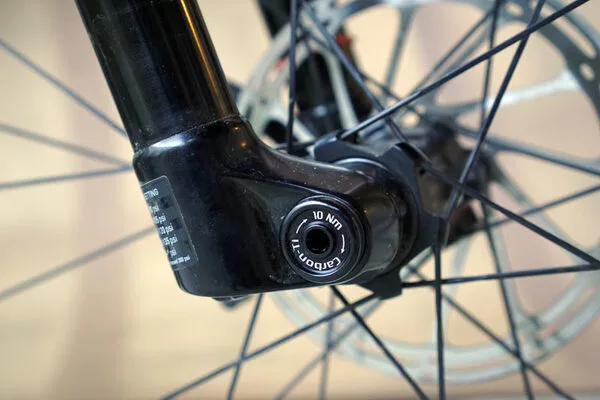

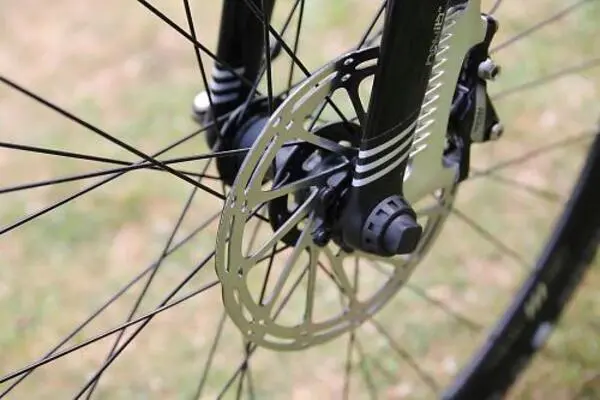

Performance road bikes benefit from reduced unsprung rotational weight, improving acceleration and handling dynamics.

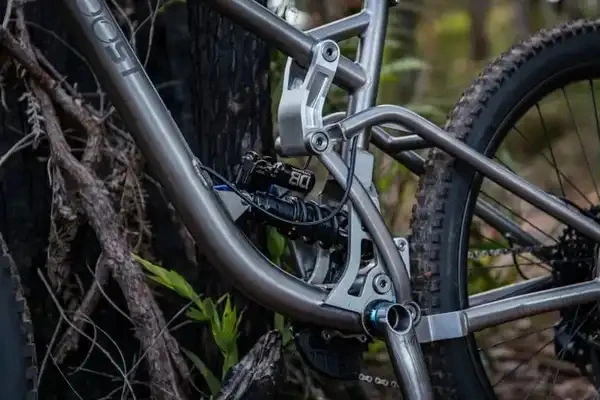

Gravel and endurance bikes exposed to wet or salty road conditions rely on titanium's corrosion resistance for long-term reliability.

Custom frame builders and OEM cycling brands require drawing-based precision for consistent hub-to-dropout fitment across production runs for Road Bike Titanium Thru Axle.

Why Choose Our Road Bike Titanium Thru Axle

Standard aluminum axles seize inside carbon frames due to galvanic corrosion. Steel axles add unnecessary rotational weight. Our titanium thru axle solves both problems simultaneously.

Grade 5 Ti-6Al-4V delivers a tensile strength far exceeding commercially pure Grade 2 titanium. It also has a distinct fatigue limit — meaning stress below a certain threshold causes zero cumulative fatigue damage, unlike aluminum, which degrades cycle by cycle.

Thread interfaces remain durable through hundreds of wheel changes. The tool interface (hex or torx head) resists rounding out, a common failure mode in softer alloy competitors. For high-mileage riders and performance-focused brands, this is a meaningful upgrade.

Each axle starts from verified titanium bar stock, cut and turned on high-precision CNC lathes. Thread machining is performed with tight pitch control — Go/No-Go ring gauges validate every thread profile.

5-axis CNC machining handles complex geometries and hollow-core designs where needed. Hollow axles are engineered to maintain torsional stiffness and shear strength while reducing rotational weight.

Secondary processes include deburring, surface finishing, and optional anodizing or PVD coating. PVD adds only 0.5–2 microns of thickness — improving surface hardness and reducing friction without affecting thread fit.

Receiving Drawings

Annealing

Developing Machining Process

Finish Machining

Preparing Raw Materials

Deburring

Rough Machining

Deburring

With 40+ CNC lathes and machining centers, including gantry systems, Baoji Huacan produces complex titanium components with consistent quality. Annual machining capacity supports high-volume OEM supply. We've served 100+ international clients across cycling, aerospace, medical, and industrial sectors.

Prototype and small-batch orders are welcome for R&D validation before full production commitment.


melting	melting	forging	forging	rolling

Material verification uses spectroscopic analysis to confirm Ti-6Al-4V composition — Grade 2 is never substituted, as it lacks sufficient tensile strength for this application.

Thread precision is validated using Go/No-Go ring gauges. Runout and concentricity are checked to ±0.05mm tolerance to prevent hub bearing pre-load issues.

Ultrasonic NDT detects internal voids from forging or machining. Torque-to-failure testing confirms the tool interface withstands forces well above standard installation torque specs.

Certifications

Baoji Huacan holds ISO 9001 quality management system certification. Every production stage — from raw material receipt to final inspection — follows documented quality procedures with full traceability documentation available upon request.

Mechanical Properties Testing

Inner Diameter Measurement

Ultrasonic Testing

CMM Dimensional

Mounting Hole Diameter Measurement

Quality Management System Certification

Each product is individually protected with custom foam inserts, vacuum-sealed with desiccants for moisture control. Bulk orders ship in sturdy wooden crates with full labeling and documentation for easy customs clearance.

Air freight is available for urgent orders. Sea freight handles cost-effective bulk shipments efficiently.

Q: Why does titanium galling occur, and how is it prevented?

A：Titanium cold-welds under pressure contact with other metals. A polished thread finish combined with copper paste or quality grease during installation prevents thread seizure completely.

Q: How do I specify the correct axle dimensions?

A：Measure Overall Length, Thread Pitch, and Thread Length from your existing axle using a vernier caliper. Share these values or your frame manufacturer's spec sheet with us.

Q: Does hollow construction reduce strength?

A：No. Hollow axles are designed with FEA analysis to maintain torsional stiffness and shear strength. Weight savings are significant; structural performance for road applications remains unaffected.

Q: Does PVD coating affect thread fit?

A：No. PVD adds only 0.5–2 microns of coating thickness. Thread tolerances and hub fitment remain fully within specification.
