GR5 Titanium Plate for Aerospace & Industrial Use — High Strength, Custom Sizes

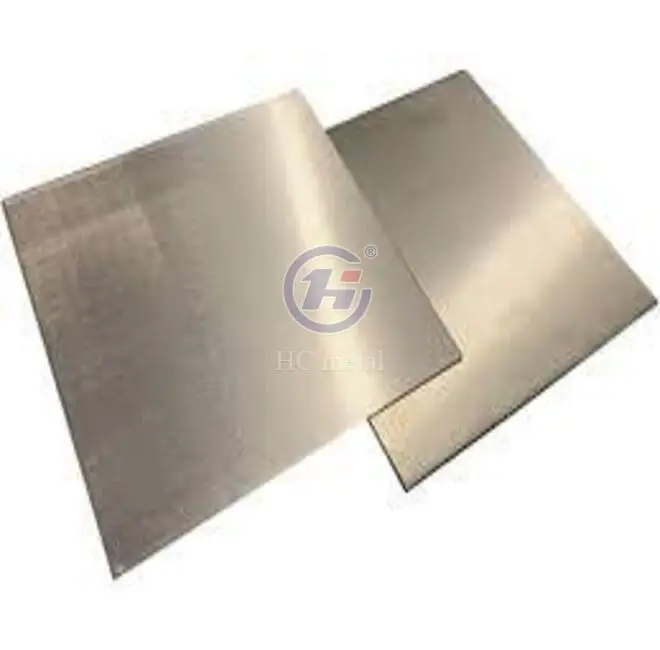

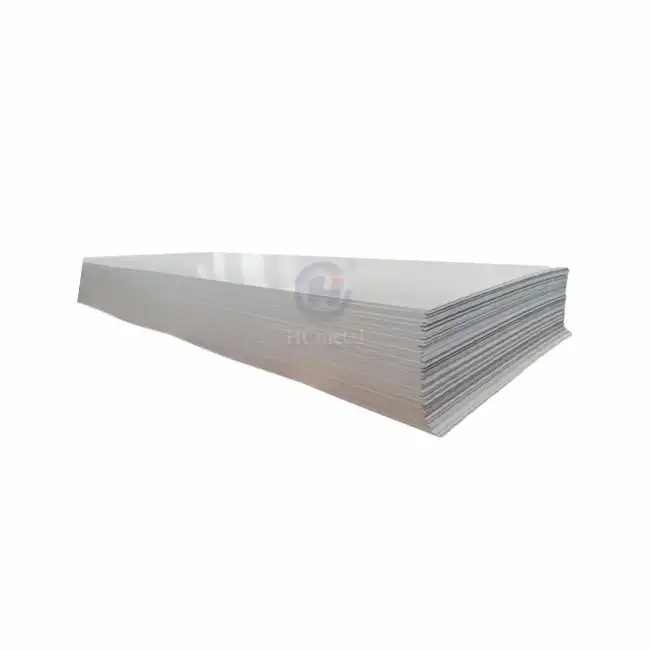

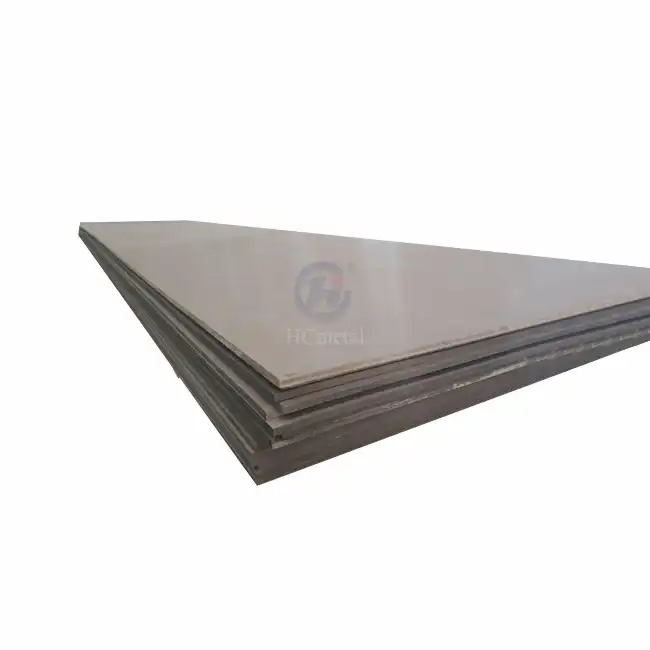

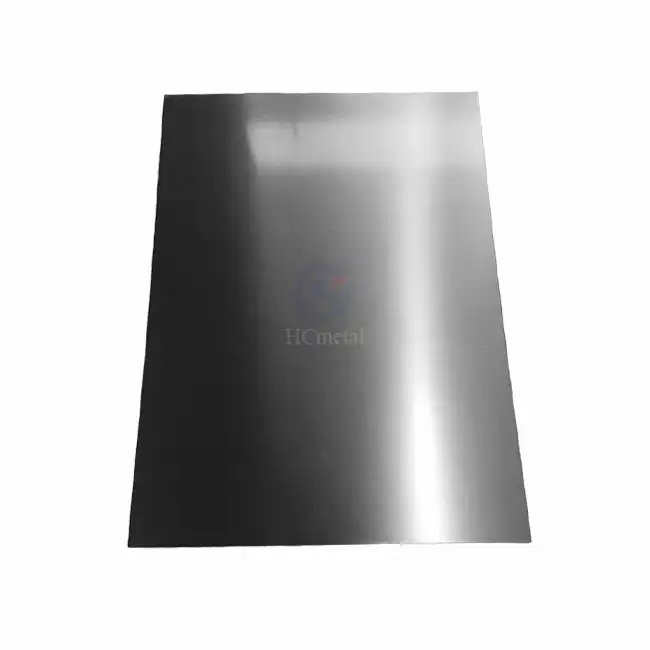

GR5 titanium plate (Ti-6Al-4V) is the most common alpha-beta titanium alloy and makes up more than 50% of worldwide titanium consumption. It is made up of 90% titanium, 6% aluminium and 4% vanadium. This alloy has a tensile strength of around 895 MPa, and a density of roughly 4.43 g/cm3, nearly 40% less than a comparable strength steel. Baoji Huacan can provide this alloy to STM B265 in thicknesses from 0.5mm to 100mm, widths up to 2000mm and in custom lengths.

Why Choose Our GR5 Titanium Plate

Located at Baoji, China’s “Titanium Valley”, Baoji Huacan is experienced over 10 years in titanium machining with more than 1,000 tonnes of yearly production capacity.

You get direct factory pricing, complete traceability and ISO 9001-certified quality monitoring from the raw material to the shipping. We have worked with over 100 multinational customers in the aerospace, marine and chemical sectors.

Every order is supported by material test certificates, dimensional inspection reports, and flexible customization. You're not buying off a shelf — you're getting a solution built around your specifications.

Techinical Specifications

Material Advantages & Specifications

01 Material Advantages

Ti-6Al-4V offers a two-phase microstructure — an alpha phase stabilized by aluminum and a beta phase stabilized by vanadium. This gives you a rare combination of high ductility and ultra-high tensile strength in one material.

This titanium plate has the same structural stability as aluminium alloys to 400°C. Unlike stainless steels, it is resistant to chloride stress corrosion cracking and is hence suited for marine and offshore situations. It can also be heat treated, which is not an option with pure titanium grades.

02 Product Structure

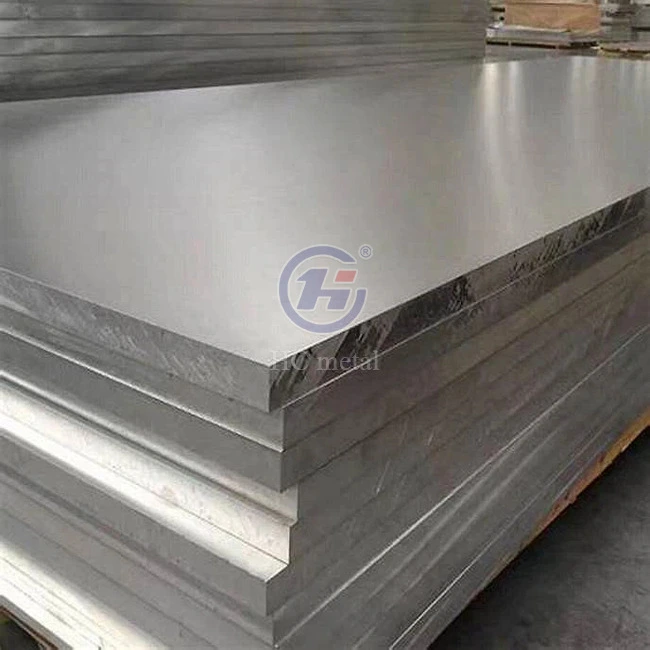

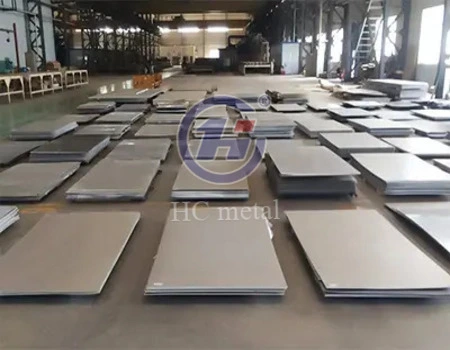

The plate features a uniform, dense grain structure achieved through controlled forging and rolling. Surface finish options include natural mill finish for industrial use or polished finish for precision components.

Custom thickness ranges, edge conditions, and surface treatments are available based on your drawings or technical requirements.

Product Application

· Aerospace: Airframes, bulkheads, engine brackets — where weight reduction without strength loss is critical

· Marine & Offshore: Seawater-facing components, drilling platform parts — leveraging chloride corrosion resistance

· Chemical Processing: Reactor linings and heat exchanger components exposed to aggressive media

· Medical Devices: Implant substrates and surgical tooling for GR5 Titanium Plate — biocompatible and fatigue-resistant

Manufacturing Capability

· 40+ CNC lathes and machining centers, including gantry systems

· Annual melting capacity exceeding 5,000 tons

· Annual forging capacity exceeding 3,000 tons

· Prototype, small batch, and mass production all supported

· Compliant with ASTM, AMS, and DIN manufacturing standards

Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment
Rolling	Surface Treatment	Dimensional Inspection

Quality Control

Each batch goes through multi-stage inspection:

1. Raw Material Verification — spectrometer composition analysis and supplier certification checks

2. In-Process Monitoring — dimensional checks at every production stage

3. Ultrasonic Testing — detecting internal cracks, voids, or inclusions

4. CMM Dimensional Inspection — confirming thickness, flatness, and tolerances

5. Surface Inspection — roughness testing and visual defect screening

6. Final Documentation — MTC, inspection report, and material traceability records included

Certifications

· ISO 9001 Quality Management System Certified

· Products compliant with ASTM B265, AMS 4911

· Material Test Certificates (MTC) provided with every shipment

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

FAQ

Packaging & Shipping

· Vacuum-sealed bags with desiccants for moisture protection

· Custom foam inserts for surface-sensitive plates

· Sturdy wooden crates for bulk or large-format shipments

· Air freight available for urgent orders; sea freight for cost-effective bulk delivery

· Full labeling and documentation for smooth customs clearance

Customiztion Options

Your project rarely fits a catalog. That's why every order is built to your requirements:

· Thickness, width, and length: customized per drawing

· Surface finish: mill, brushed, or polished

· Heat treatment condition: annealed or STA

· Edge treatment: as-cut or machined

· OEM/ODM available with laser marking or part number engraving

Submit your technical drawings or specifications and our team will respond with a tailored solution.

Contact Us

Need a reliable Ti-6Al-4V solution like GR5 Titanium Plate? Contact us at sherry@hc-titanium.com— custom sizes, fast response, factory pricing.
