5mm titanium plate

Product Introduction

5mm Titanium Plate for Industrial & Aerospace Use — High Strength, Corrosion Resistant, Custom Sizes Available

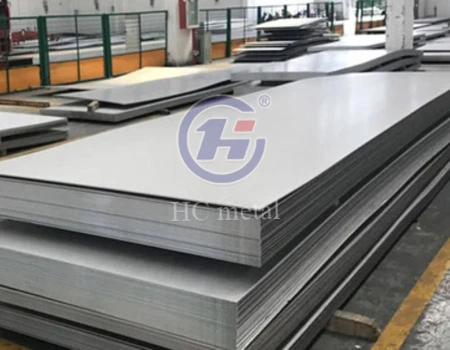

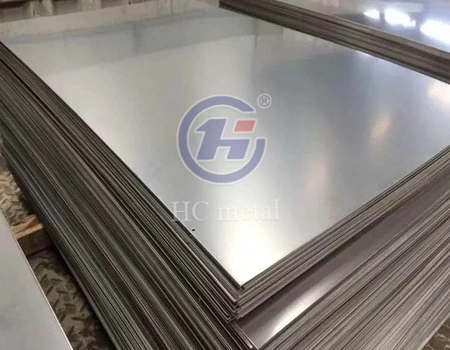

Baoji Huacan's 5mm titanium plate is a precision-rolled flat product manufactured to ASTM B265 and AMS 4911 standards. Available in Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9 and Grade 23, it offers a 45% weight savings over equal thickness stainless steel, while still providing outstanding tensile strength. This plate has a polished surface finish and a typical reference size of 200×100mm. This plate may be used in structural, chemical and aeronautical applications. We may provide special dimensions, grades and finishes.

Why Choose Our 5mm Titanium Plate

Sourced from Baoji — China's recognized "Titanium Valley" — our plates combine material purity with strict process control.

All plates are made from high-purity titanium ingots refined by vacuum arc remelting (VAR) to ensure low impurity levels and uniform chemical homogeneity. Material traceability from ingot to completed plate.

With 10+ years of titanium machining expertise and 1000+ tonnes of yearly production capacity, we do small prototype orders and large-volume B2B purchases. We have 100+ worldwide clients and have a proven track record of delivering in difficult sectors.

Techinical Specifications

Product Features

· High strength-to-weight ratio — Grade 5 Ti-6Al-4V delivers tensile performance comparable to steel at roughly half the weight

· Zero corrosion allowance — resists wet chlorine, chlorides, and seawater, eliminating the over-specification common with coated steels

· Thermal stability — withstands high differential pressures in heat exchanger applications without warping

· Non-magnetic — suitable for sensitive instrumentation and defense applications

· Weld-compatible surface — mill finish plates meet TIG and EBW welding requirements after standard pre-weld cleaning

Parts Processing Workshop



Product Application

Aerospace structural components — fuselage frames, bulkheads, and landing gear connection plates built to AMS 4911 Grade 5. The 5mm thickness provides shear strength for high G-force loads while keeping aircraft weight minimal.

Chemical process heat exchangers — Grade 2 plates act as structural dividers in plate-and-frame exchangers and tube sheets for desalination plants, resisting microbiologically influenced corrosion (MIC) over long service life.

Deep-sea pressure housings — AUV hulls and oceanographic sensor casings require non-magnetic, pressure-resistant enclosures. A 5mm titanium plate handles moderate-depth hydrostatic pressure reliably.

Medical and energy equipment — where biocompatibility, corrosion resistance, and lightweight design are simultaneously required.

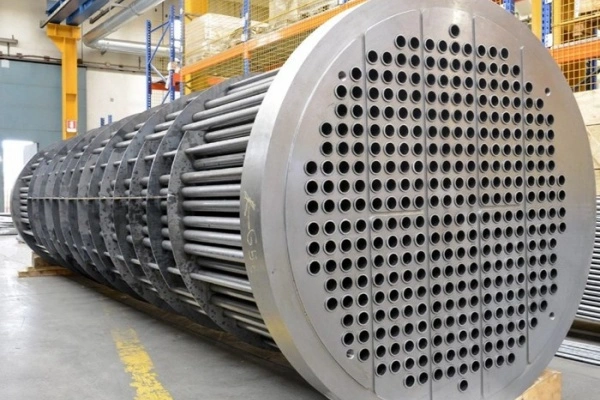

Chemical Process Heat Exchangers

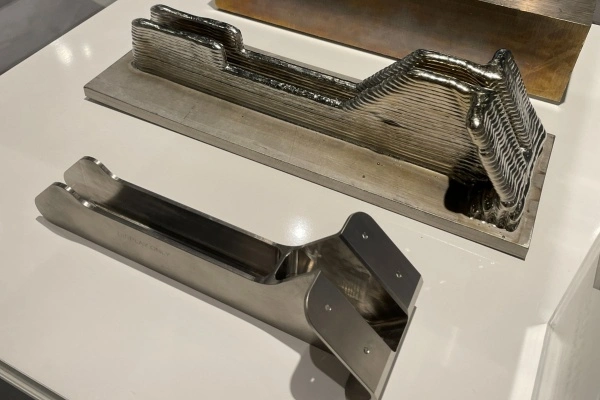

Additive Manufacturing Applications

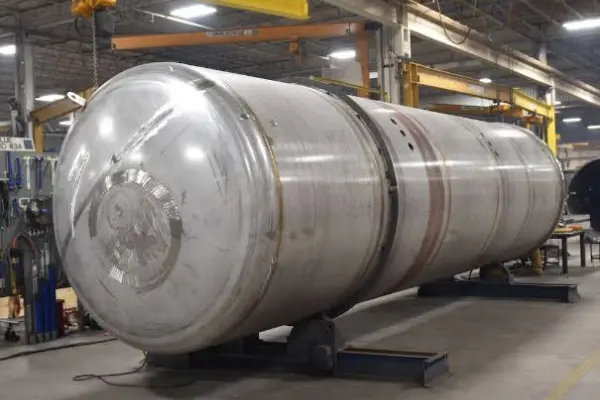

Pressure Housings

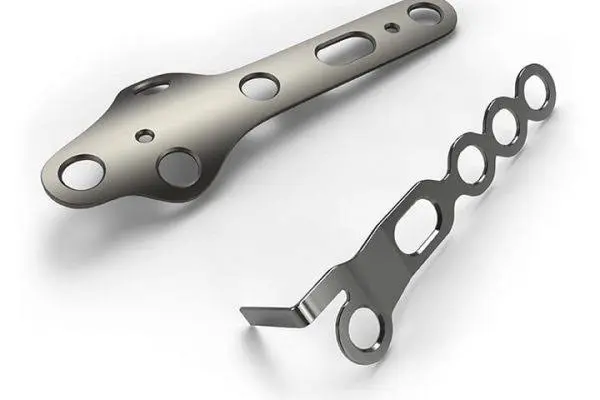

Medical equipment

Manufacturing Capability

Our facility operates 40+ high-precision CNC machines, including lathes, machining centers, and gantry systems. Annual production capacity exceeds 1,000 tons of finished titanium products.

Upstream, our partner melting facilities run VAR and PAM furnaces with annual melting capacity exceeding 5,000 tons. Forging capacity exceeds 3,000 tons annually, supported by a 4,000-ton hydraulic press.

This integrated supply chain — from ingot to finished plate — gives you shorter lead times and full material traceability.

Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment
Rolling	Surface Treatment	Dimensional Inspection

Quality Control

BJHC follows a multi-stage inspection protocol at every production step:

· Raw material verification — spectrometer-based chemical composition analysis on all incoming titanium

· In-process dimensional checks — real-time monitoring during rolling and machining

· Ultrasonic testing (UT) — detects internal flaws such as voids, cracks, or inclusions

· CMM and gauge inspection — confirms flatness, thickness, and dimensional accuracy on finished plates

· Surface roughness testing — evaluates finish quality before packaging

· Final documentation — full inspection report, material traceability record, and MTC issued per shipment

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

FAQ

Q: Can the product be cold bent?

A：Grade 5 at 5mm is difficult to cold form due to high spring-back. Hot forming at 600°C–650°C is recommended. If cold forming is necessary, use a minimum bend radius of 5T–6T and perform stress relief annealing immediately after.

Q: What cutting method preserves edge quality?

A：Waterjet cutting is preferred — it removes the Heat Affected Zone entirely. Laser cutting is faster but produces a brittle HAZ that must be machined away before welding or fatigue-critical use.

Q: What documents ship with the plate?

A：Every order includes an EN 10204 3.1 Mill Test Certificate with actual composition and mechanical test data, plus dimensional inspection records and a certificate of conformance.

Q: Is discrete plate different from coil-leveled sheet?

A：Yes. Specify "discrete plate" for machining applications. Coil-leveled 5mm sheet retains residual stress that causes warping during CNC operations.

Packaging & Shipping

Each plate is protected based on order type and destination:

· Vacuum-sealed bags with desiccants for moisture-sensitive surface finishes

· Custom foam inserts for polished or precision-cut plates

· Wooden crates for bulk or heavy shipments

· Detailed labeling and documentation for customs clearance and batch traceability

Shipping options include air freight for urgent orders and sea freight for cost-effective bulk deliveries worldwide.

Contact Us

Ready to source a reliable 5mm titanium plate for your project? Contact us at sherry@hc-titanium.com — our team responds within 24 hours.
