Astm b265 titanium plate

Product Introduction

ASTM B265 Titanium Plate — Industrial-Grade Sheet & Plate Solutions for Corrosion-Resistant Applications

Baoji Huacan's astm b265 titanium plate includes Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, and Grade 23, all produced to the highest standards of ASTM B265. With a density of 4.51 g/cm³—45% lighter than steel—and tensile strengths ranging from 345 MPa (Grade 2) to 895 MPa (Grade 5), these plates provide improved corrosion resistance and structural reliability. With our 10 years of titanium machining expertise, 1000 metric tonnes of annual capacity, and ISO 9001 certification, we can tailor plate cutting to your precise specifications.

Techinical Specifications

Parameter	Details
Material Standard	ASTM B265
Available Grades	Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 (Ti-6Al-4V ELI)
Example Dimensions	200 × 100 mm; custom dimensions available according to drawings
Thickness	5 mm standard; custom thickness available
Tensile Strength	Grade 2: ≥345 MPa; Grade 5: ≥895 MPa
Yield Strength (0.2% Offset)	Grade 2: ≥275 MPa; Grade 5: ≥828 MPa
Elongation	Grade 2: typically ≥20%; Grade 5: typically ≥10%
Density	Approximately 4.51 g/cm³
Service Temperature	Application-dependent; maximum temperature depends on alloy grade, stress, and service conditions
Surface Finish	Mill finish, polished, anodized, or PVD coated — customized finishes available
Certification	MTC, EN 10204 3.1, COC available upon request
Customization	Custom dimensions, thickness, tolerances, holes, surface finish, and machining available

Product Features

Titanium plates produced under ASTM B265 offer a unique combination of properties that few metals can match:

· Self-healing oxide layer — provides natural immunity to chlorides, seawater, and oxidizing acids without any coating

· High strength-to-weight ratio — up to 45% lighter than equivalent steel, reducing structural load

· Excellent formability — 20–24% elongation in CP grades allows complex shaping and cold forming without cracking

· Weldability — Grade 2 is widely used in welded assemblies; oxygen and iron content are strictly controlled to ensure clean welds

· Thermal stability — maintains structural integrity up to 316°C for CP grades, suitable for elevated-temperature industrial environments

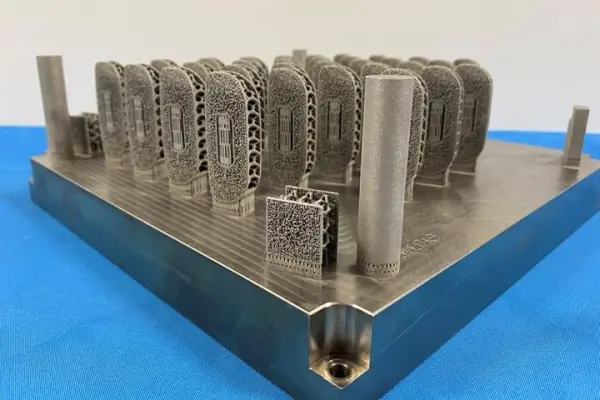

Product Application

Chemical Processing

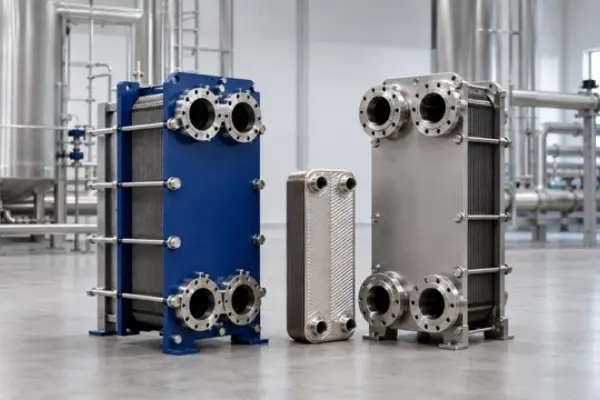

The grade 2 and grade 7 plates are used in heat exchangers, reaction vessels, and piping systems for wet chlorine, nitric acid, and hypochlorites. They resist crevice corrosion and stress-corrosion cracking where stainless steel fails quickly.

Structural Components for Aerospace

Grade 5 (Ti-6Al-4V) astm b265 titanium plate is utilised for bulkheads, firewalls, and landing gear. Reduces airframe weight without affecting performance under high G-forces and heat cycling.

Marine & Desalination

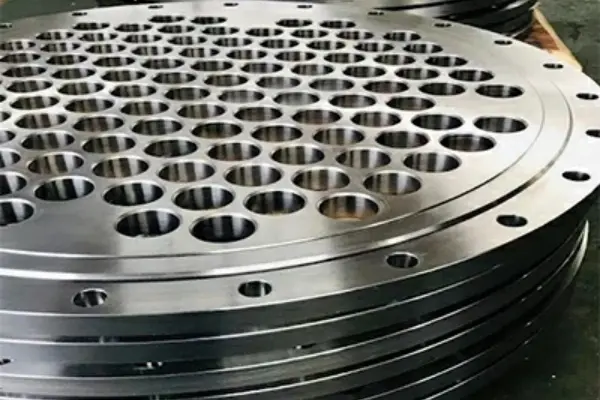

Large-format CP titanium plates are used for condenser tube sheets, flash chamber linings and water box panels. They provide total protection against microbiologically induced corrosion (MIC) in marine conditions.

Medical Devices & Energy

Grade 23 (Ti-6Al-4V ELI) plates support implant-grade medical applications. In energy sectors, titanium plates are used in heat recovery systems and offshore platform components.

Manufacturing Capability

Baoji Huacan operates from China's "Titanium Valley" in Baoji, Shaanxi — the heart of the country's titanium industry. Our production capabilities include:

· Annual melting capacity exceeding 5,000 tons

· Annual forging capacity exceeding 3,000 tons

· 40+ precision CNC machines including gantry machining centers

· A 4,000-ton hydraulic press for large structural components

· Full in-house capability from raw ingot to finished plate

The vertical integration allows you shorter lead times, consistent quality and clear traceability through every step of the process.

Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment
Rolling	Surface Treatment	Dimensional Inspection

​​​​​​​

Quality Control

Baoji Huacan follows a multi-stage inspection protocol for every titanium plate order:

Raw Material — Incoming titanium is verified by spectrometer chemical analysis and supplier certification review.

In-Process Control — Dimensional checks and process validation are performed at each manufacturing stage, from rolling to machining.

Non-Destructive Testing — Ultrasonic testing reveals interior voids, fractures or inclusions without destroying the plate.

Final Inspection – Finished plates are tested using CMM equipment, micrometres and surface roughness gauges to ASTM B265 tolerances.

Each shipment is accompanied by documentation - Mill Test Certificates (MTC), EN10204 3.1 reports, COC and comprehensive material traceability records.

Certifications

· ISO 9001 Quality Management System certified

· Products manufactured in compliance with ASTM B265, ASTM B348, AMS 4928, and DIN standards

· Material certificates available: MTC, EN10204 3.1, COC

FAQ

Packaging & Shipping

Each products order is carefully prepared for safe, damage-free delivery:

· Vacuum-sealed bags with desiccants prevent moisture and oxidation

· Custom foam inserts protect polished or precision surfaces

· Wooden crates for bulk plate shipments, rated for international freight

· Detailed labeling — heat number, grade, dimensions, and order reference on every package

We offer both air freight for urgent orders and sea freight for cost-effective bulk shipments worldwide.

Contact Us

Ready to source high-performance astm b265 titanium plate for your next project? Contact our team at sherry@hc-titanium.com for a fast, tailored quote.
