CNC Machined Titanium Valve Stem Caps — Precision Titanium Custom Parts for High-Performance Applications

CNC Machined Titanium Valve Stem Caps are very durable, lightweight and precisely threaded for demanding industrial and racing situations. These components are manufactured from grades 2, 5 (Ti-6Al-4V), 7, 9 or 23 titanium and comply with international standards such as ASTM, AMS and DIN. Baoji Huacan has 40+ high-precision CNC machines, 10+ years of titanium machining expertise and 1,000+ tonnes of yearly production capacity to provide dependable OEM/ODM solutions to worldwide customers.

Parameter	Details
Material Grade	Grade 5 (Ti-6Al-4V), Grade 2, Grade 9 available
Material Standard	ASTM, AMS, DIN or customer-specified standards
Valve Type / Thread	Schrader or Presta; thread size customized to application
Dimensions	Custom sizes; typical cap diameter 8–20 mm
Manufacturing Process	CNC Turning, CNC Milling, Thread Machining
Thread Tolerance	Per customer drawing or applicable thread standard
Dimensional Tolerance	Up to ±0.02 mm for selected machined features
Surface Finish	Machined, Polished, Sandblasted, Anodized or Pickled
Logo / Customization	Laser engraving, custom colors and designs available
Inspection & OEM/ODM	Dimensional inspection; OEM/ODM available based on drawings or samples

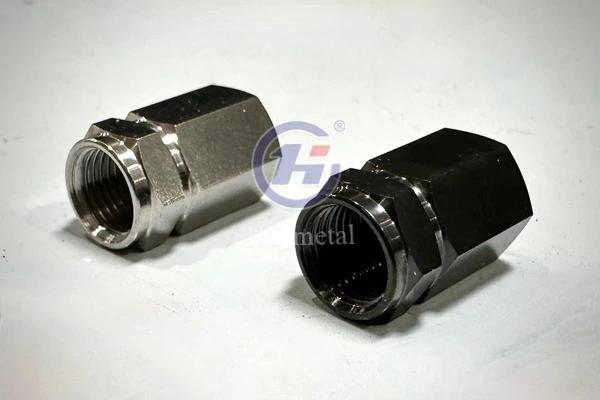

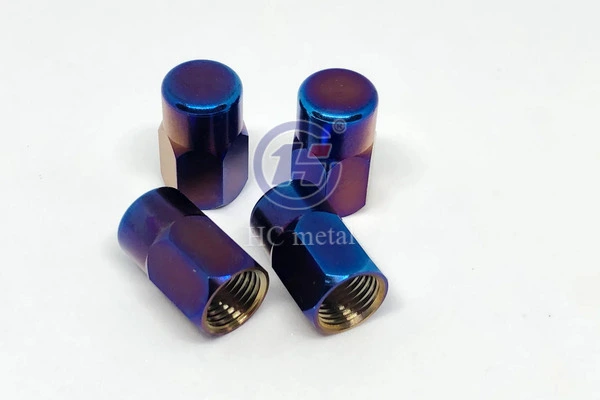

Titanium Valve Stem Caps

Corrosion Resistance: Titanium resists salt spray, road chemicals and ammonia-based tubeless sealants without degrading

High Strength-to-Weight Ratio: Grade 5 (Ti-6Al-4V) has excellent tensile strength, but is much lighter than steel or brass.

Thermal Stability: Keeps its structure at temperatures beyond 400°C, much beyond what plastic substitutes can handle

Precision Thread Machining: Clean, precise thread profiles eliminate stripping and provide a tight seal on Schrader or Presta valve stems

O-Ring Groove Integration: Machined recess for replacement O-Rings for secondary hermetic sealing

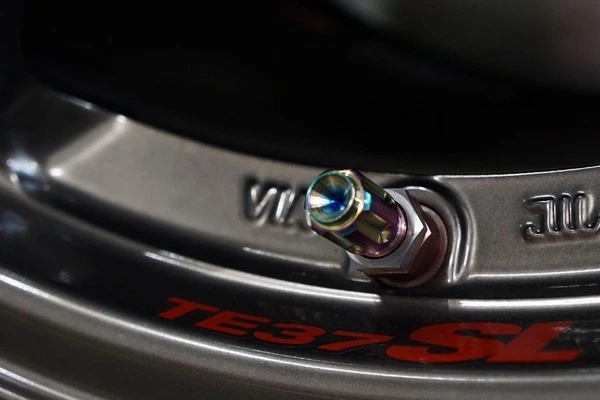

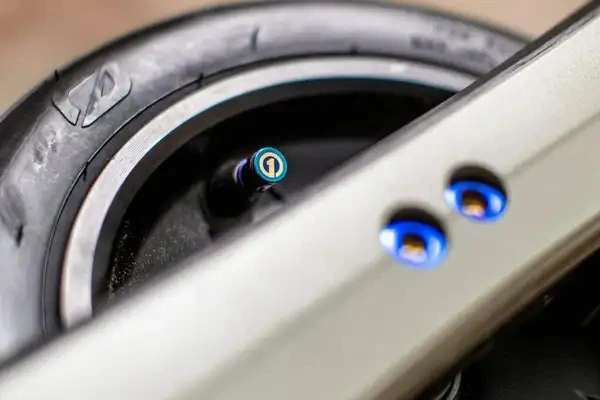

Automotive & Performance Cars Titanium Valve Stem Caps Application

Racing & Motorsport

Titanium Valve Stem Caps Application

High-End Bicycles & Cycling

Titanium Valve Stem Caps Application

High-Performance Motorsport (F1, GT3, Rally)

Brake systems in motorsport environments can generate radiant heat exceeding 500°C. Aluminium caps may seize due to heat and corrosion, while plastic caps can deform or melt. Titanium stem valve caps maintain thread integrity and structural stability under extreme conditions. They also help protect valve cores during high-G manoeuvres, ensuring reliable TPMS signal transmission.

Marine and Coastal Transportation

Boat trailers and coastal vehicles are continuously exposed to salt spray and humid environments. Titanium’s excellent corrosion resistance provides a long-term, low-maintenance solution, reducing the risk of valve caps seizing to valve stems even after years of seawater exposure.

High-End Cycling (Road, MTB, Tubeless)

Ammonia-based tubeless sealants can cause internal corrosion in aluminium valve caps. Titanium, including CNC Machined Titanium Valve Stem Caps, offers excellent chemical resistance against these substances. Its high mechanical strength also helps protect delicate Presta valve cores from impacts, rock strikes, and debris during technical riding.

Standard plastic or aluminium valve caps often struggle with heat, corrosion, and mechanical stress. Titanium overcomes all three challenges with outstanding durability and reliability.

Aluminium caps may cold weld to brass valve stems due to galvanic corrosion, making removal difficult after long-term use. Titanium’s excellent corrosion resistance and stable material properties significantly reduce this risk, allowing easier removal even after extended exposure.

Plastic caps can become brittle and crack under UV exposure and repeated temperature cycles. Titanium maintains its dimensional stability in extreme environments, from cryogenic temperatures to over 400°C, making it a reliable choice for demanding applications.

Baoji Huacan has more than 40 CNC lathes, machining centers and gantry machining equipment for titanium components. We have over 1,000 tonnes of annual capability for precision machining to serve both small bespoke requests and big volume industrial supplies.

Supporting processes include forging with a 4,000-ton hydraulic press, advanced heat treatment, and precision bar rolling — giving you a fully integrated titanium supply chain under one roof.


melting	melting	forging	forging	rolling

· Raw Material Verification: Chemical composition analysis via spectrometer before production

· In-Process Dimensional Checks: Real-time monitoring at each machining stage

· CMM Inspection: Coordinate measuring machines verify dimensional accuracy on finished parts

· NDT Testing: Ultrasonic testing detects internal flaws without damaging components

· Surface Inspection: Roughness testers and visual checks confirm finish quality

· Documentation: Full material certificates, inspection reports, and traceability records provided with every shipment

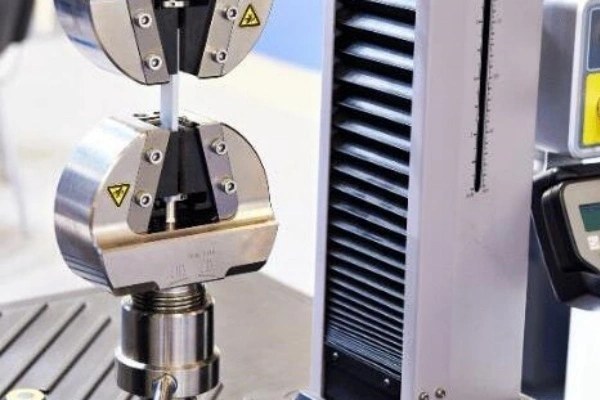

Mechanical Properties Testing

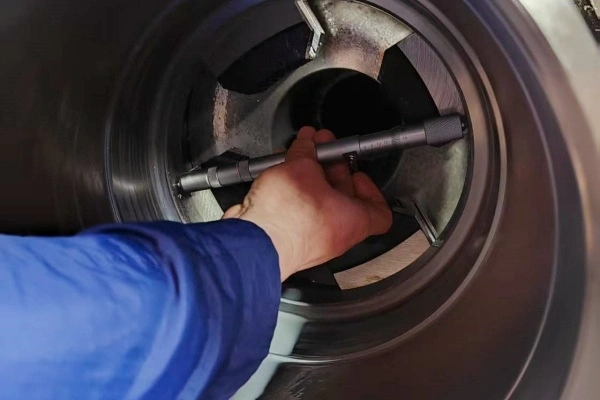

Inner Diameter Measurement

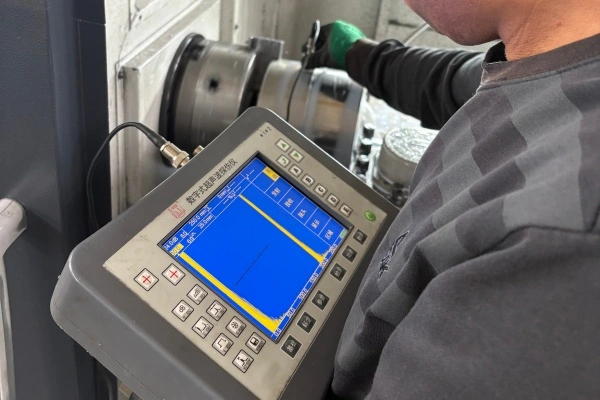

Ultrasonic Testing

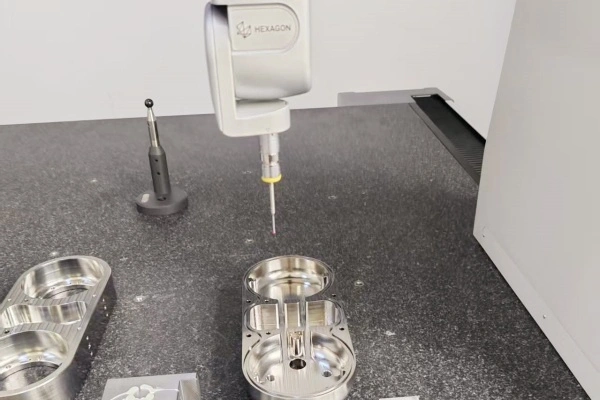

CMM Dimensional

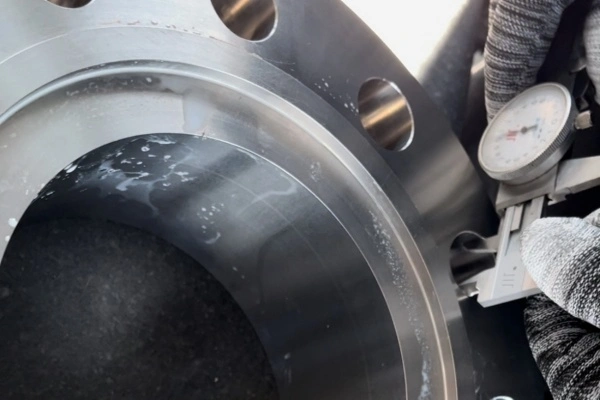

Mounting Hole Diameter Measurement

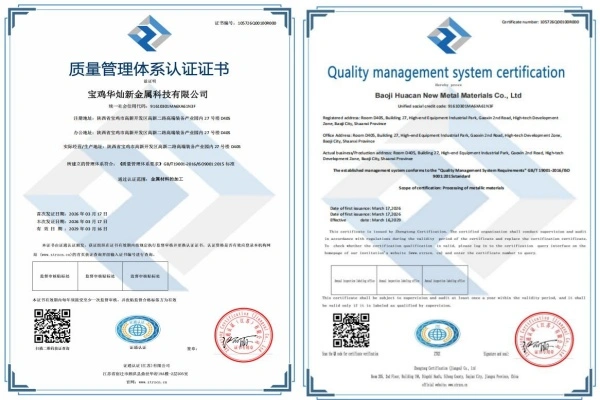

Quality Management System Certification

Packaging Method	Purpose
Custom Foam Inserts	Secure precision components and prevent surface damage during transit
Vacuum Packaging with Desiccants	Protect titanium parts from moisture and environmental exposure
Heavy-Duty Wooden Crates	Suitable for bulk orders and oversized components requiring extra protection
Product Labeling & Documentation	Provide clear identification, traceability records, and export documentation

Urgent orders may be sent via air freight. Sea freight is a cost efficient service for greater quantities.

Q: Will titanium caps seize onto brass valve stems?

A: Titanium is far more corrosion resistant than aluminium. Adding a little anti-seize paste after installation also helps ensure smooth removal.

Q: Why Grade 5 instead of Grade 2 for valve caps?

A: Grade 5 (Ti-6Al-4V) has a greater tensile strength and hardness, leading to cleaner, more durable threads in CNC machining than is possible with softer commercially pure titanium.

Q: Can the O-ring be replaced?

A：Yes. The machined O-ring recess holds a standard replaceable seal. If the rubber degrades over time, simply swap it and the titanium housing continues performing indefinitely.

Q: Are custom thread sizes available?

A：Absolutely. All thread specifications are produced according to your drawings or technical requirements — no fixed standard sizes are imposed.

Contact Us

Ready to source precision CNC Machined Titanium Valve Stem Caps? Send your drawings or requirements to sherry@hc-titanium.com for a fast custom quote.
