Precision Propeller Manufacturing: Ensuring Quality and Accuracy with Ultrasonic Testing

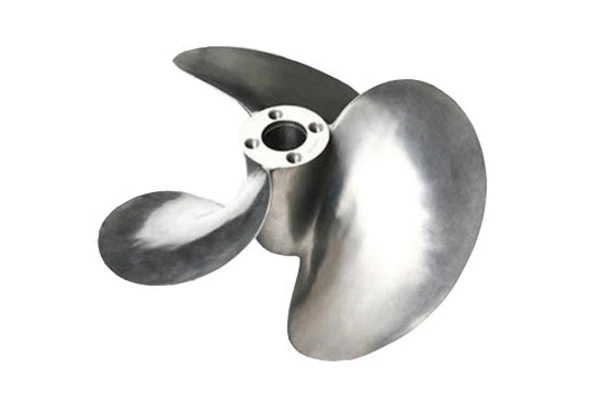

In marine propulsion, the internal integrity of a titanium propeller is important for reliable operation and service life. Ultrasonic testing (UT) is a non-destructive testing (NDT) method that can identify internal discontinuities without damaging the component. For titanium propeller manufacturing, effective inspection depends on appropriate probe selection, coupling, calibration, scanning procedures, and evaluation criteria.

Probe Selection and Coupling Methods for Titanium Propeller Inspection

The effectiveness of ultrasonic testing depends on selecting equipment according to the propeller's material condition, thickness, geometry, and expected discontinuities. Frequencies in the 2 to 10 MHz range may be used for suitable applications, but the appropriate frequency must be determined by the inspection procedure. Higher frequencies can provide better resolution, while lower frequencies generally offer greater penetration.

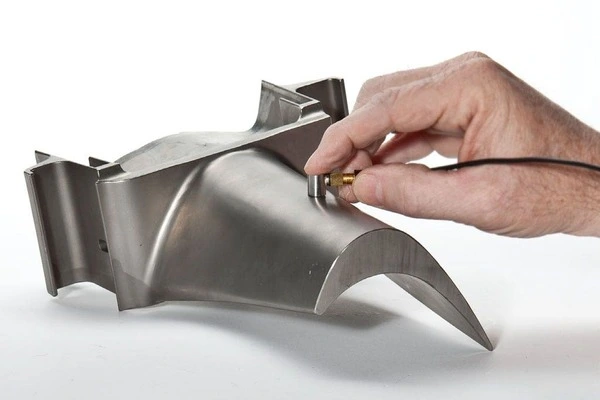

Straight beam probes can be used for thickness measurements and for detecting discontinuities that are favorably oriented for direct sound transmission. Angle beam probes may be selected when oblique insonification is needed to improve sensitivity to planar discontinuities or cracks with specific orientations. The refracted angle should be selected according to blade geometry, material thickness, expected flaw orientation, and required inspection coverage rather than applying one fixed angle range.

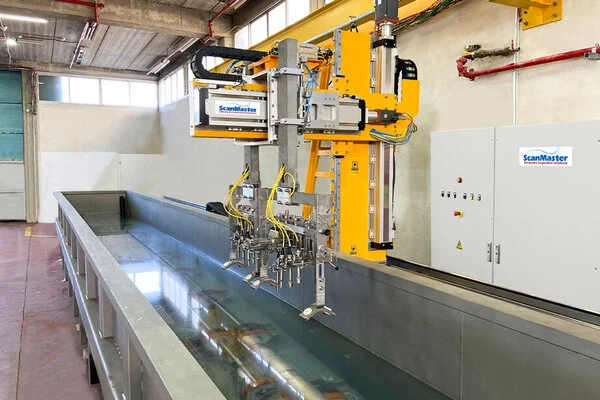

Proper coupling is essential because air between the probe and test surface can severely reduce ultrasonic energy transmission. Contact inspection may use suitable liquid or gel couplants to maintain efficient acoustic transmission. For automated systems, immersion or water-column techniques can provide more consistent coupling across suitable propeller surfaces.

Because propeller blades have curved and changing surfaces, specialized probe shoes or wedges may also be used. These components can help maintain appropriate probe positioning and, where required, control the sound path. Their design should match the local surface geometry and inspection requirements.

Calibration, Standards, and Traceability in Propeller Testing

Calibration and verification are essential for obtaining reliable ultrasonic inspection results. Reference blocks or calibration standards should have appropriate acoustic and geometric characteristics for the material and inspection procedure. Where required by the applicable specification, reference standards can contain known reflectors or artificial discontinuities for equipment setup and sensitivity verification.

ASTM E114 provides guidance for pulse-echo straight-beam contact testing, while ISO 16810 establishes general principles for ultrasonic testing of industrial products. These standards should not be treated as titanium propeller acceptance standards by themselves. The applicable product specification, classification requirement, engineering specification, or inspection procedure should define the testing technique, sensitivity, scanning coverage, and acceptance criteria. ISO 17640 is primarily intended for ultrasonic testing of welded joints and should therefore only be referenced when a relevant welded joint is being inspected.

Traceability is also important throughout the inspection process. Each titanium propeller should have an identification number or other traceable reference connecting the component with its material records, manufacturing history, inspection results, and applicable quality documents.

Inspection records may include equipment identification, calibration information, scan coverage, detected indications, indication locations, and evaluation results. These records provide useful evidence for quality control and may support customer, classification, or regulatory requirements where applicable.

Detecting Subsurface Cracks and Delaminations in Titanium Propellers

Ultrasonic testing can reveal internal discontinuities that may not be visible during conventional visual inspection. Cracks and other planar discontinuities can be challenging because their detectability depends strongly on their orientation relative to the ultrasonic beam. Multiple probe directions or techniques may therefore be required for reliable coverage.

Depending on the manufacturing route, relevant discontinuities may include cracks, porosity, inclusions, forging laps, or areas of incomplete material consolidation. The specific defects that need to be evaluated depend on whether the titanium propeller is produced by casting, forging, or another manufacturing process.

Complex blade geometry can make conventional UT more difficult because thickness and surface curvature change across the component. In these situations, inspection planning should account for probe access, sound paths, local thickness, and expected defect locations.

Phased array ultrasonic testing (PAUT) can provide greater flexibility when conventional probes cannot provide sufficient coverage. PAUT uses multiple elements to electronically steer and focus the ultrasonic beam. With an appropriate probe configuration and scan plan, it can improve coverage of complex areas and provide multiple inspection angles from a single probe assembly.

Time-of-flight diffraction (TOFD) may also be considered when component thickness, geometry, access, and defect characteristics are suitable. Its application should be based on an established procedure rather than assuming it is appropriate for every titanium propeller.

Conclusion

Ultrasonic testing is an important NDT method for evaluating the internal integrity of titanium propellers. Reliable results depend on appropriate probe selection, coupling, calibration, scan planning, and evaluation against defined acceptance criteria. Advanced methods such as PAUT or TOFD may provide additional capabilities when component geometry and inspection objectives justify their use.

UT does not replace every other inspection method. Visual inspection and other suitable NDT techniques may be used alongside UT when surface-breaking or other types of discontinuities need to be evaluated. A project-specific inspection plan provides a more reliable basis for quality assurance than applying a single testing method to every propeller.
