How to Machine Titanium Square Bar Without Tool Damage?

It can be hard to machine titanium square bar because it is strong, doesn't conduct heat well, and tends to work harden quickly, which speeds up tool wear. But the right mix of tools, cutting conditions, cooling, and machine rigidity can help keep the quality of the parts and the life of the tools. This guide shows you useful ways to machine titanium square bar that will help you avoid common problems.

What Is Titanium Square Bar Properties?

Before choosing grinding methods, it's important to know about the titanium square bar's qualities that affect how it cuts and how well the tools work.

High Strength-to-Weight Ratio

Titanium square bar is strong for its weight, which makes it useful in aerospace, medicine, and other demanding fields. Because it is strong, it also increases cutting forces and can make tools wear out faster if the cutting conditions, tool shape, or machine stiffness are not handled properly.

Low Thermal Conductivity

Titanium square bar doesn't transfer heat as well as many other metals that are widely made. So, the heat that is made when cutting can stay close to the cutting area instead of quickly spreading through the piece being cut. Because of this, it is important to have the right cutting conditions and water delivered effectively when grinding titanium material.

Work Hardening Tendency

Titanium square bar can work harden when the cutting edge rubs, stays on, or goes over a surface that has already been made many times. This layer has become harder, which can make cutting harder and speed up edge wear. It is usually more important to avoid rubbing and keep the chip load steady than to stick to a single speed or feed number.

To further understand the properties of titanium square bar and their effect on machining:

1. Chemical composition: Titanium alloys such as Ti-6Al-4V can have different machinability characteristics depending on composition and condition.

2. Microstructure: Alloy microstructure can influence cutting forces, tool wear, and surface response during machining.

3. Mechanical properties: Strength, hardness, and ductility affect the choice of tooling and cutting conditions.

4. Thermal properties: Low thermal conductivity contributes to heat concentration near the cutting edge during machining.

5. Comparison: Titanium square bar behaves differently from materials such as steel and aluminum, so their machining parameters should not be transferred directly.

These factors provide a practical basis for selecting tools and machining conditions.

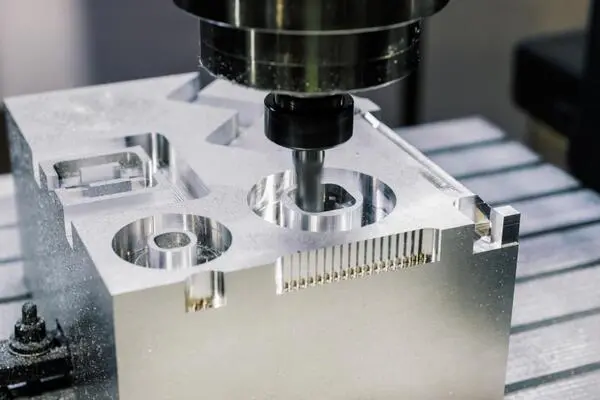

Essential Machining Techniques for Titanium Square Bar

The right tool, cutting settings, fluid supply, workholding, and controlled tool contact are all important for successfully making titanium square bar. These things should be thought about as a whole, not as different choices.

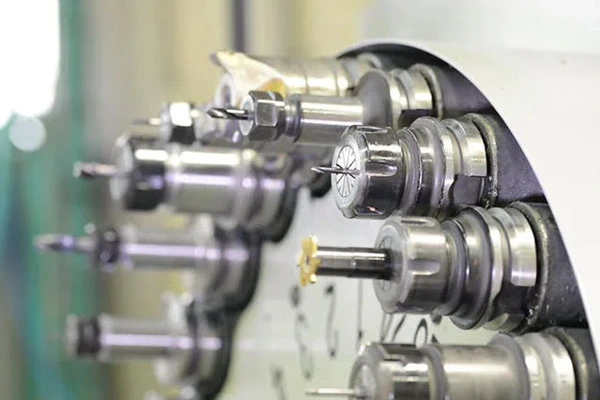

Selecting the Right Cutting Tools

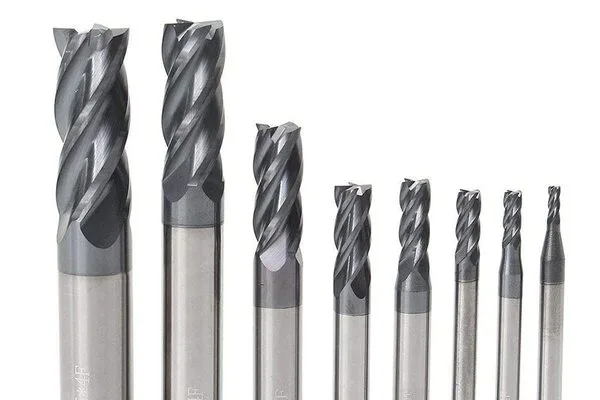

When working with titanium square bar, it's important to pick the right cutting tools. A lot of people use cemented carbide because it has a good balance of hardness, toughness, and wear resistance. When choosing a tool, you should think about the metal, the operation, the machine, and the coolant method.

- Tool material: Cemented carbide tools are commonly selected for titanium. PCD is not a universal choice for titanium because chemical interaction and edge behavior can limit its suitability in some cutting applications.

- Coating: TiAlN or AlTiN coatings may improve wear resistance under suitable cutting conditions, but performance depends on the tool substrate, geometry, alloy, speed, and coolant.

- Geometry: Sharp edges and suitable positive rake geometry can help control cutting forces and reduce unnecessary rubbing at the cutting zone.

- Tool rigidity: A rigid toolholder, short tool overhang, and stable machine setup help reduce deflection, vibration, and premature edge failure.

Optimizing Cutting Parameters

Cutting parameters should be selected according to the titanium alloy, tool diameter, operation, machine capability, and required surface finish.

- Cutting speed: Titanium is generally machined at lower cutting speeds than many steels, with the exact value determined by the tool and operation.

- Feed rate: Feed should provide a stable chip thickness. Excessively light feeds can encourage rubbing and heat generation rather than improve tool life.

- Depth of cut: Axial and radial engagement should be controlled to balance material removal, cutting force, and heat generation.

- Coolant application: High-pressure coolant directed into the cutting zone can improve heat control and chip evacuation when the machine and tooling support it.

Implementing Effective Machining Strategies

Machining strategies should maintain stable tool engagement and avoid conditions that cause rubbing, excessive heat, or sudden load changes.

- High-Speed Machining (HSM): HSM can be useful when it is applied with controlled radial engagement, suitable chip load, and a machine capable of maintaining the required toolpath.

- Trochoidal milling: Reduced radial engagement can lower cutting load and help manage heat, but allowable feed rates still depend on the tool, material removal rate, machine, and engagement conditions.

- Climb milling: Climb milling can help produce a consistent cutting action when machine rigidity and workholding are adequate. It should not be treated as a universal solution for work hardening.

- Constant engagement: Maintaining a stable engagement angle helps avoid sudden changes in cutting load and can improve tool life and surface quality.

For more practical machining guidance, several factors should be evaluated:

1. Tool geometry specifics: Rake, clearance, edge preparation, and tool diameter should match the titanium alloy and cutting operation.

2. Cutting parameter ranges: Speed, feed, and depth of cut should be developed for the specific alloy, tool, machine, and operation rather than copied from generic tables.

3. Coolant strategies: Flood and high-pressure coolant can support heat control and chip evacuation. Cryogenic methods may be considered for selected production requirements.

4. Advanced machining techniques: Ultrasonic-assisted or laser-assisted methods may provide benefits in specialized applications but require appropriate equipment and process validation.

5. Toolpath strategies: Facing, pocketing, and contouring require different engagement conditions and should be programmed accordingly.

6. Workholding considerations: Stable workholding and sufficient support are necessary to limit vibration and dimensional variation.

This approach gives manufacturers a clearer basis for adapting machining methods to specific titanium applications.

Overcoming Common Challenges in Titanium Square Bar Machining

Even with suitable tools and parameters, titanium square bar can present problems related to heat, work hardening, vibration, tool wear, and dimensional control. Identifying the cause helps avoid unnecessary tool changes or parameter adjustments.

Managing Heat Generation

Heat management is a major consideration when machining titanium square bar. Useful measures include:

- Use through-tool coolant or high-pressure coolant when the machine and tooling are designed for it. Cryogenic cooling can be evaluated for selected high-performance applications.

- Select tools based on hot hardness, wear resistance, edge strength, and chemical stability rather than thermal conductivity alone.

- Use toolpaths and cutting conditions that maintain controlled engagement and avoid excessive rubbing or prolonged contact.

Preventing Work Hardening

Work hardening can contribute to higher cutting forces and premature tool failure when machining titanium square bar. To reduce the risk:

- Maintain a stable chip thickness instead of using feeds that are too light for the selected tool.

- Avoid dwelling, repeated passes over the same surface, and rubbing between the tool and workpiece.

- Use sharp cutting edges and suitable rake geometry to promote cutting rather than excessive deformation.

Ensuring Dimensional Accuracy

Holding tight tolerances can be difficult when machining titanium square bar, particularly when heat and cutting forces cause dimensional changes. To improve accuracy:

1. Use a rigid machine setup and secure workholding to reduce deflection and vibration.

2. Monitor tool wear and use in-process measurement where the tolerance requirements justify it.

3. Apply controlled finishing passes with suitable tools and stable cutting conditions to achieve the required dimensions and surface finish.

To provide a more comprehensive view of challenges and solutions:

1. Built-up edge formation: Discuss the tendency of titanium to form built-up edges and strategies to mitigate this issue.

2. Chip control: Explore the challenges of chip formation and evacuation in titanium machining, including chip breaker designs and high-pressure coolant strategies.

3. Tool wear mechanisms: Detailed explanation of the various wear mechanisms (abrasion, adhesion, diffusion) affecting tools when machining titanium square bar.

4. Surface integrity: Discuss the importance of maintaining surface integrity in titanium parts and techniques to prevent surface defects during machining.

5. Cost considerations: Analysis of the economic challenges of titanium machining and strategies to improve cost-effectiveness without compromising quality.

6. Environmental concerns: Exploration of eco-friendly machining practices for titanium, including sustainable coolant options and waste management strategies.

This deeper dive into challenges and solutions will provide readers with a more nuanced understanding of titanium square bar machining complexities.

Conclusion

To machine titanium square bar without wearing out the tools too quickly, you need to balance the material's features, the tools you use, the cutting settings, the cooling system, how you hold the workpiece, and the design of your toolpath. Manufacturers shouldn't just follow general rules for cutting. Instead, they should adapt the process to the titanium metal, operation, tools, and tolerance that needs to be met. By keeping these things under tight control, you can make the machining process more efficient and extend the life of your tools.

At Baoji Huacan New Metal Materials Co., Ltd., we understand the processing requirements associated with titanium and other high-performance materials. Our ISO 9001 certified production facilities and technical team support the supply of titanium square bar and customized titanium bar solutions for demanding applications. We serve requirements involving aerospace, medical, and precision-machined components, with quality control covering material specifications and production requirements. Titanium's corrosion resistance also makes appropriate material selection important for applications exposed to demanding environments.

FAQs

What makes titanium square bar difficult to machine?

Titanium square bar can be difficult to machine because of its high strength-to-weight ratio, low thermal conductivity, and tendency to work harden. These characteristics can increase cutting forces, concentrate heat, and accelerate tool wear when cutting conditions are poorly controlled.

Can standard cutting tools be used for titanium square bar?

Standard tools may work for limited operations, but cemented carbide tools with suitable geometry and coatings are generally a more practical choice for titanium machining. The correct tool should be selected according to the alloy, operation, machine, and required surface quality.

How important is coolant when machining titanium square bar?

Coolant is important for controlling heat and removing chips when machining titanium square bar. High-pressure delivery can improve access to the cutting zone and support chip evacuation. The coolant method should match the machine, tool, cutting operation, and production requirements.

Mastering Titanium Square Bar Machining: Key Takeaways

Successful machining of titanium square bar requires control of material properties, tooling, cutting conditions, cooling, workholding, and toolpaths. A process developed around the actual titanium alloy and machining operation is more reliable than generic parameter recommendations. Baoji Huacan New Metal Materials Co., Ltd. supplies titanium materials and supports customized titanium bar requirements for demanding applications. For customized titanium bar solutions or technical guidance, contact the team at Joy@hc-titanium.com or Sherry@hc-titanium.com.
