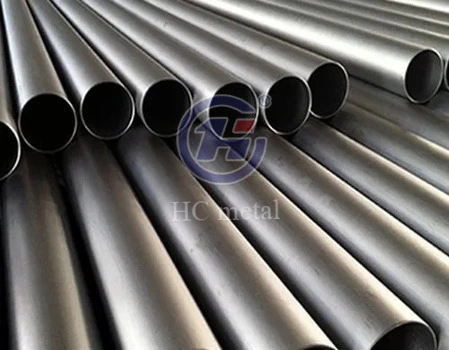

Titanium Alloy Pipe for Aerospace & Industrial Applications — High Strength, Custom Specifications

Titanium alloy pipe from Baoji Huacan New Metal Materials Co., Ltd. is engineered for demanding environments where strength, weight, and corrosion resistance must all be optimized. These pipes are made of Ti-6Al-4V or Ti-3Al-2.5V, conforming to ASTM B861 and AMS 4911. They are available in diameters from 10 mm to 500 mm and wall thicknesses from 0.8 mm to 25 mm. With more than 10 years experience, BJHC is a titanium machining company that produces over 1,000 tons per year for aerospace, chemical and industrial customers globally with constant quality.

Parameter	Details
Material Grade	Ti-6Al-4V (Grade 5), Ti-3Al-2.5V (Grade 9)
Diameter Range	10mm – 500mm
Wall Thickness	0.8mm – 25mm
Length	Customized
Surface Finish	Polished or Mill Finish
Product Standard	ASTM B861, AMS 4911
Density	~4.43 g/cm³
Max Operating Temp	Up to 315°C–425°C (standard alloys)
Tensile Yield Strength	≥828 MPa (Grade 5 / Ti-6Al-4V)
Tolerance Control	Per ASTM, AMS, or customer drawings

Ti-6Al-4V has a dual phase alpha-beta microstructure providing you a combination of strong tensile strength and good ductility. Ti-3Al-2.5V has a good combination of formability and strength especially for hydraulic and structural systems.

TiO₂ surface film is spontaneous and provides self-healing corrosion protection without any coating or treatment. This means lengthy service life in stagnant seawater, lowering acids or high chloride process streams. You get a true "fit-and-forget" lifecycle solution.

Our Precision Parts Processing Workshop

Titanium precision parts processing

Aerospace: The product has high specific strength that is used in hydraulic lines, structural tubing and engine parts. Weight savings are crucial here, as Ti-6Al-4V offers steel-level performance at a tenth of the mass.

Chemical Processing Resistance to acidic and chloride rich conditions makes these tubes appropriate for heat exchangers, reactor linings and transfer pipelines where stainless steel experiences quick pitting failure.

Marine & Offshore: Titanium tubing’s resilience to corrosion is critical to subsea pipelines and desalination equipment where traditional metals fail prematurely in seawater settings.

Medical & Energy Titanium tubes are applicable for medical device parts and geothermal energy systems due to their high biocompatibility and thermal stability.

Motorcycle Performance Parts

Additive Manufacturing Applications

Aerospace Components


Aerospace Components

BJHC has over 40 high precision CNC equipment, a 4,000 ton hydraulic press and state of the art rolling mills. Through strategic alliances, we have over 5,000 tons of melting capacity and over 3,000 tons of forging capacity to support an annual final product capacity of over 1,000 tons.

This integrated supply chain, from raw ingot to completed tube, provides for shorter lead times and greater quality control on your orders.


Vacuum Melting	Breakdown Forging	Forging & Rolling

For each production run, BJHC has a multi-step inspection methodology. Incoming titanium materials are validated using spectrometer-based chemical composition analysis and supplier verification checks.

Tight tolerances are maintained by real-time dimensional monitoring and process validation in production. Ultrasonic non-destructive testing is a technique for detecting interior defects such as cracks or voids without hurting the object. Finished pipes are inspected using CMMs, calipers and surface roughness gages and mechanical property testing confirms tensile strength, yield strength and hardness to ASTM, AMS and DIN standards.

Certifications

BJHC has ISO 9001 quality management system accreditation, which covers the complete manufacturing cycle, from selection of raw materials to final shipment. Material traceability records, inspection reports and product certificates are held in full for each batch.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What is the difference between Grade 5 and Grade 9 for piping applications?

A：Grade 5 (Ti-6Al-4V) offers higher tensile strength (≥828 MPa) for structural and aerospace use. Grade 9 (Ti-3Al-2.5V) provides better ductility and is preferred for hydraulic systems and tubing requiring moderate strength with ease of forming.

Q: Can the product be welded to steel systems?

A：Direct welding between titanium and steel creates brittle intermetallic compounds that cause immediate failure. Explosion bonding or mechanical flanges are the correct transition methods.

Q: Is NDT inspection included in every order?

A：Yes. Ultrasonic testing is standard in our quality protocol to detect internal flaws before shipment. Full inspection documentation is provided with every batch.

Q: What standards do your pipes conform to?

A：Our product is manufactured to ASTM B861 and AMS 4911. Custom compliance to DIN, ISO, or AMS standards is also available upon request.

Method	Details
Protection	Vacuum-sealed bags with desiccants
Cushioning	Custom foam inserts for delicate components
Bulk Shipment	Sturdy wooden crates
Documentation	Detailed labeling and tracking documentation
Shipping Options	Air freight (urgent) / Sea freight (bulk, cost-effective)

Every titanium alloy pipe order can be tailored to your exact requirements. You can specify diameter, wall thickness, length, surface finish, and alloy grade. BJHC supports production from prototype to mass batch.

Custom laser marking, part numbering, and CNC engraving are available. Drawings-based manufacturing ensures your components integrate precisely into your existing systems. OEM/ODM projects are welcomed.
