Grade 9 titanium rod

Product Introduction

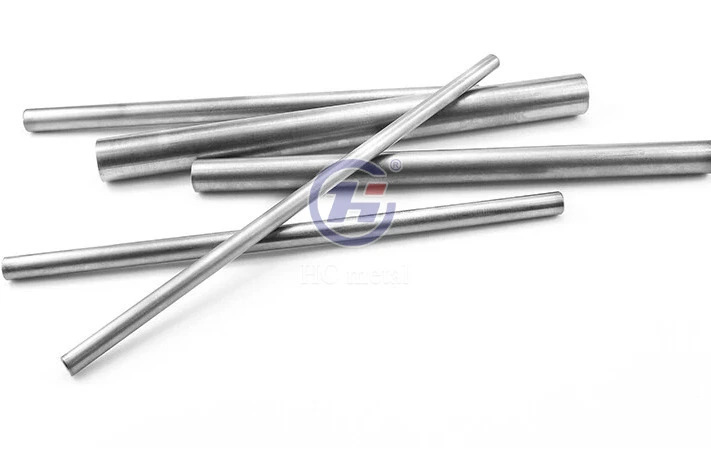

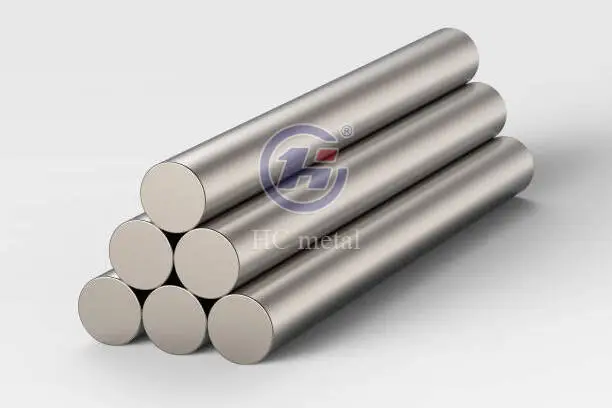

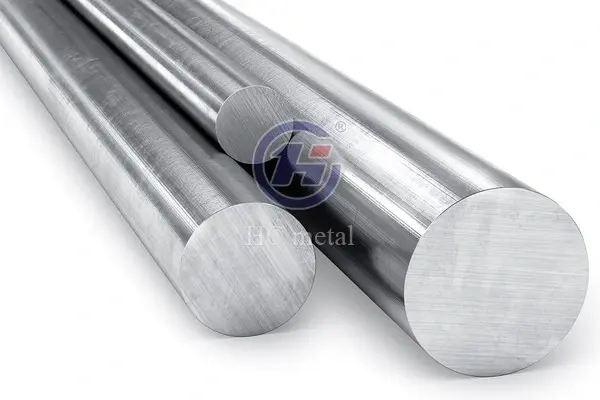

Grade 9 Titanium Rod (Ti-3Al-2.5V) — High Strength, Superior Formability for Demanding Industrial Applications

Grade 9 titanium rod, designated Ti-3Al-2.5V, is an alpha-beta alloy combining 3% Aluminum, 2.5% Vanadium, and balance Titanium. It is known in the industry as “half-6-4”. It provides 20–50% more tensile strength than the commercially pure grades, but with outstanding cold workability and weldability to balance strength and formability. This rod is produced by Baoji Huacan, which has over 10 years expertise in machining titanium, over 40 precise CNC machines, and over 1,000 tons of capacity annually. Support custom size, OEM/ODM, manufacture according to drawing.

Material Advantages & Specifications

01 Material Advantages

• Strength-Formability Balance: Grade 9 delivers 20–50% higher tensile strength than CP Grade 2 while remaining cold-formable — something Grade 5 cannot offer.
• Excellent Weldability: You can TIG weld this alloy using matching ERTi-9 filler wire. It's compatible with Grade 2-to-Grade 5 transitional joints, which simplifies complex fabrication.
• Corrosion Resistance: Ti-3Al-2.5V performs reliably in seawater, chemical environments, and high-humidity conditions — outlasting steel and many stainless alloys.
• Lightweight Advantage: Roughly 40% lighter than steel at comparable strength levels, reducing dead weight in structural and mobile applications.
• Two Supply Conditions Available: Annealed condition offers maximum ductility for forming. CWSR condition provides higher strength and fatigue resistance — specify the condition based on your machining and performance needs.

02 Techinical Specifications

Parameter	Details
Material Grade	Grade 9 Titanium (Ti-3Al-2.5V)
Material Standard	ASTM B348 or other applicable standards, subject to product form and customer requirements
Diameter Range	Custom diameters available; typical range: 3–100 mm, subject to stock availability and production capability
Length	Standard and custom lengths available; cut-to-length service upon request
Supply Condition	Annealed or cold-worked and stress-relieved, subject to specification
Dimensional Tolerance & Surface Finish	Tolerances according to applicable standards or customer drawings; as-drawn, machined, or polished finishes available
Quality Documentation	EN 10204 3.1 material test certificate (MTC) and Certificate of Conformity (CoC) available upon request



Product Application

• Aerospace Hydraulic Systems: The CWSR condition gives grade 9 titanium rod the fatigue resistance needed for hydraulic tubing, actuator rods, and structural airframe components.
• Chemical Processing: Its corrosion resistance in acid and chloride environments makes it ideal for heat exchanger supports, chemical pump shafts, and reactor internals.
• Sporting & Bicycle Industry: Lightweight rods are used in high-performance bicycle frames, golf shafts, and outdoor equipment where weight savings are critical.
• Medical Instrumentation: Where ductility and biocompatibility are both required — such as surgical tools and medical tubing — Ti-3Al-2.5V outperforms rigid Grade 5 implant alloys.
• Marine & Energy: Seawater corrosion resistance makes this alloy suitable for offshore structural components and desalination equipment.

Be used in a wide range of industries.



Bicycle Components

Aerospace

Sports Equipment​​​​​​​​​​​​​​

Manufacturing Capability

Baoji Huacan operates 40+ high-precision CNC lathes and machining centers, including gantry systems. Annual production capacity exceeds 1,000 tons of finished titanium products.

Our rolling and forging lines — including a 4,000-ton hydraulic press — support full-process production from ingot to finished rod. Annual melting capacity exceeds 5,000 tons.

Vacuum Melting	Breakdown Forging	Forging & Rolling

Quality Control

Baoji Huacan holds ISO 9001 quality management system certification, covering the full production chain from raw material intake to final shipment. All products are manufactured in compliance with ASTM B348, AMS, and DIN standards. Material test certificates (EN 10204 3.1 MTC) and Certificates of Conformance (COC) are available upon request.

Our multi-stage inspection process covers:

• Raw material verification — spectrometer composition analysis and supplier certification checks
• In-process monitoring — real-time dimensional checks at every production stage
• Ultrasonic testing — detects internal voids, cracks, or inclusions non-destructively
• CMM and gauge inspection — confirms dimensional accuracy against customer drawings
• Surface inspection — roughness testing and visual defect review before packaging
• Final documentation — full MTC, traceability records, and inspection reports per batchCertifications

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

FAQ

Packaging & Shipping

Customiztion Options

You can specify:

• Diameter & Length — any size per your drawing
• Supply Condition — Annealed or CWSR
• Surface Finish — natural, polished, anodized, or PVD coated
• Tolerances — per ASTM, DIN, or custom drawing
• Marking — laser marking or CNC-engraved part numbers
• Production Volume — prototype, small batch, or mass production
• OEM/ODM capability is fully available. Submit your drawing and we'll confirm feasibility quickly.

Contact our team at Joy@hc-titanium.com  to discuss your specifications, request samples, or submit your drawing for a fast quote for grade 9 titanium rod.
