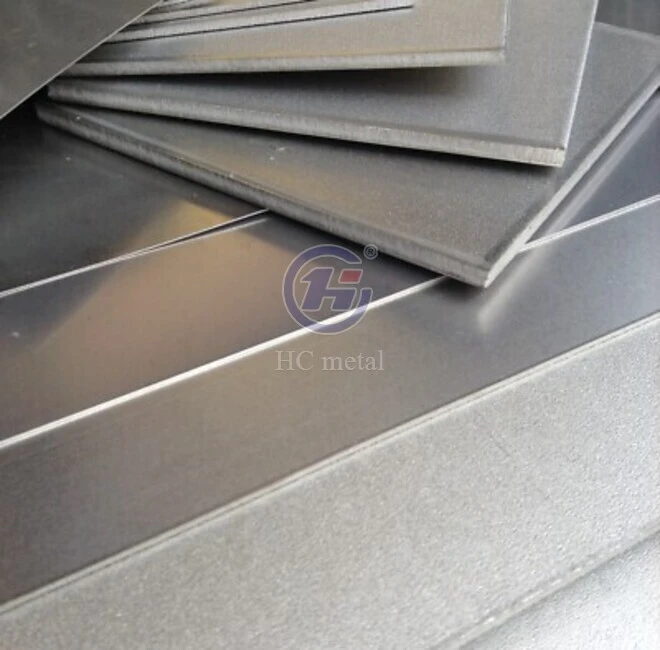

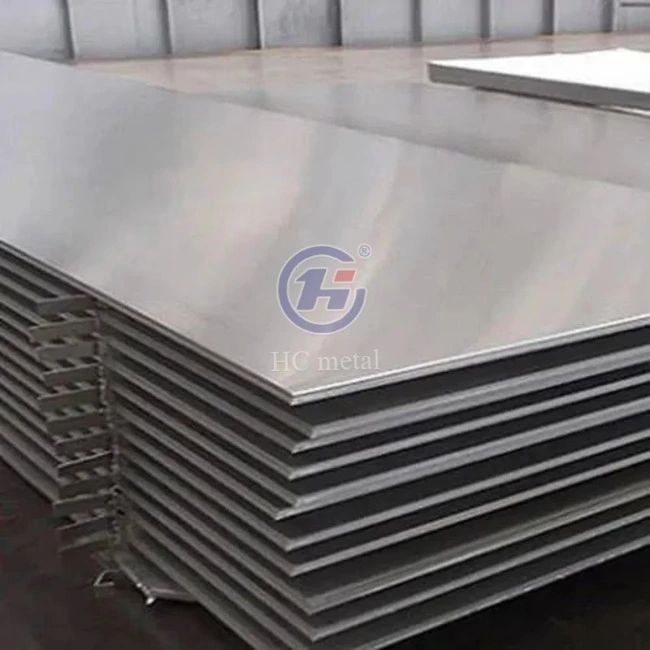

Titanium Alloy Plate for Aerospace, Marine & Industrial Applications — High-Strength, Lightweight Solution

Baoji Huacan's titanium alloy plate is manufactured from Ti-6Al-4V (Grade 5) material, meeting ASTM B265 and AMS 4928 standards. Available in thicknesses from 0.5mm to 100mm and widths up to 2000mm these plates offer a 40-50% weight saving over steel yet with comparable tensile strength. They come in mill and polished surface treatments, with full bespoke sizing, and are suited to demanding applications including aerospace, maritime and chemical processing.

Parameter	Details
Material Grade	Ti-6Al-4V (Grade 5)
Available Grades	Grade 2, Grade 5, Grade 7, Grade 9, Grade 23
Thickness Range	0.5mm – 100mm
Width	Up to 2000mm
Length	Customized
Surface Finish	Mill finish or polished
Product Standard	ASTM B265, AMS 4928
Tolerance	Per drawing or standard requirement
Production Method	OEM/ODM available

Plates are supplied as flat rolled mill products with an alpha-beta microstructure developed by controlled thermomechanical processing. This microstructure also provides a good compromise between ductility, fatigue resistance and high cycle strength.

Surface finishes are natural mill finish for structural purposes and polished finish for medical or precision designed components. Special finishes such as anodizing and PVD coating are available on request.

Our Precision Parts Processing Workshop

Aerospace & Defense: Application in airframe bulkheads, wing skins, engine firewalls and landing gear structures. The plate retains its dimensions under strong G-forces and temperature changes, hence avoiding deformation of the structure in supersonic platforms.

Marine & Chemical Processing Used in shell and tube heat exchangers, desalination plant pipework, PTA reaction tanks and hydrometallurgical autoclaves. Resistance to microbiologically induced corrosion (MIC) enables for smaller designs and longer service life than copper-nickel alternatives.

Medical Technology: Used in surgical instrument trays and orthopedic bone plates . Biocompatible and osseointegrative surface characteristics avoid immune rejection in load bearing implant applications.

Automotive & Energy: Used where high specific strength and corrosion resistance are needed in demanding thermal or chemical operating environments.

Motorcycle Performance Parts

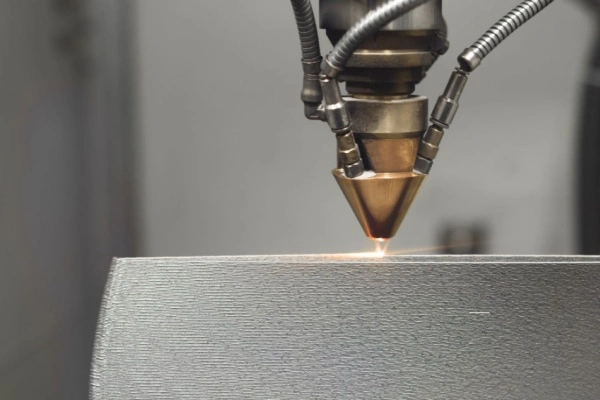

Additive Manufacturing Applications

Aerospace Components


Aerospace Components

Our facility in Baoji — China's Titanium Valley — operates 40+ high-precision CNC machines, including lathes, machining centers, and gantry systems. Annual production capacity exceeds 1,000 tons of finished titanium products.

Forging capacity exceeds 3,000 tons annually using a 4,000-ton hydraulic press and precision die forging equipment. This supports both large structural plates and small precision-cut components within a single supply chain.

We serve 100+ international clients across aerospace, medical, marine, and energy industries.


Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment

Rolling	Surface Treatment	Dimensional Inspection

Our multi-stage inspection protocol begins with spectrometer-based chemical composition analysis of all incoming titanium material. Only verified, certified material enters production.

In-process dimensional checks are performed at every manufacturing stage. Finished plates are inspected using coordinate measuring machines (CMM), micrometers, and surface roughness gauges to confirm tolerance compliance.

Non-destructive ultrasonic testing detects internal flaws before shipment. Every batch is accompanied by full material traceability records, inspection reports, and product certificates.

Certifications

Our production facility holds ISO 9001 quality management system certification, confirming that every process — from raw material selection to final inspection — meets internationally recognized quality management requirements.

Products are manufactured in compliance with ASTM B265 and AMS 4928 standards. Material test certificates (MTC) and certificates of conformance (COC) are available for each order.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What is the minimum order quantity?

A: We support both small batch and mass production. Contact us to discuss your specific volume requirements.

Q: Can you supply material certifications?

A: Yes. MTC, COC, and EN10204 3.1 documents are available for every order.

Q: Is custom thickness available beyond the standard range?

A: Absolutely. Our product can be customized in thickness, width, length, and surface finish based on your drawings.

Q: How long is the lead time?

A: Lead time depends on order size and specifications. Contact our team for a confirmed production schedule.

Method	Details
Component Protection	Custom foam inserts for delicate plates
Moisture Protection	Vacuum-sealed bags with desiccants
Bulk Shipment	Sturdy wooden crate packaging
Documentation	Full labeling and traceability documentation
Air Freight	Available for urgent orders
Sea Freight	Cost-effective option for bulk shipments

Every titanium alloy plate order can be fully customized to your technical requirements. You can specify thickness, width, length, surface finish, and material grade based on your drawings or project specifications.

OEM and ODM production is fully supported. Whether you need prototype quantities or mass production runs, our team works directly from your technical drawings to meet exact dimensional and tolerance requirements.

Custom surface treatments — including polishing, anodizing, and PVD coating — are available to match your application's performance or aesthetic needs.
