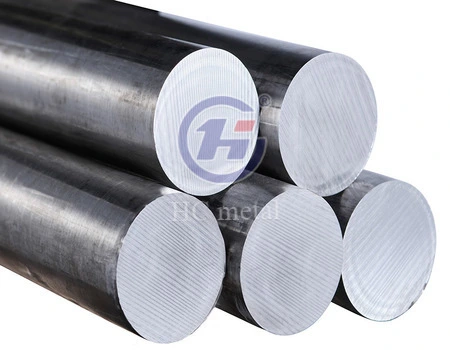

GR5 Titanium Rod for Aerospace, Medical & Industrial Use — High Strength, Custom Sizes Available

GR5 Titanium Rod (Ti-6Al-4V, Grade 5) is the most widely used titanium alloy in the world, accounting for over 50% of global titanium consumption. Made to ASTM B348, it contains 6% aluminium and 4% vanadium for superior tensile strength, low density (4.43 g/cm³), and proven corrosion resistance. It is available in diameters from 3mm to 250mm with lengths customised to suit the application, and is used in demanding industries such as aerospace, medical and energy.

Parameter	Details
Material Grade	Grade 5 Titanium (Ti-6Al-4V)
Chemical Composition	Titanium, 6% Aluminum, 4% Vanadium (nominal)
Material Standard	ASTM B348
Diameter Range	3–250 mm
Length	Customized
Surface Finish	Mill Finish or Polished
Density	4.43 g/cm³
Tensile Strength	Approx. 895 MPa (typical)
Elastic Modulus	Approx. 110 GPa
Operating Temperature	Application-dependent; up to approx. 400°C under suitable conditions
Customization	Custom dimensions and specifications available

Ti-6Al-4V has approximately three times the tensile strength of commercially pure Grade 2 titanium (~895 MPa vs. ~345 MPa), making it appropriate for load-bearing structural components.

The low density leads to a 45% weight reduction of components compared to steel without loss of mechanical performance. This is a straightforward answer to the strength-to-weight problem in aerospace and motorsport design.

The alloy is also non-magnetic — a critical property for MRI equipment and naval electronics — and performs reliably at continuous operating temperatures up to 400°C.

Our Precision Parts Processing Workshop

Titanium precision parts processing

Aerospace & Aviation: Airframe constructions, landing gear axles, compressor blades. The titanium rod addresses weight-strength tradeoffs in high-cycle fatigue settings at altitude.

Medical & Orthopaedics femoral stems, bone screws, dental implants used in. It has a similar elastic modulus (~ 110 GPa) to human bone, which reduces the stress shielding and improves the osseointegration results.

GR5 Titanium Rod for down well tools, valve stems and riser assemblies. Offshore Oil & Gas: It is resistant to H2S and chloride stress corrosion cracking in deep sea conditions where steel fails.

Motorcycle Performance Parts

Additive Manufacturing Applications

Aerospace Components


Aerospace Components

Annual melting capacity exceeds 5,000 tons. Annual forging capacity exceeds 3,000 tons. Our 40+ CNC machines handle both standard and complex geometries with consistent output.

All activities from bar rolling to precision turning and gantry machining are executed in house. This allows you control over quality, lead-time and pricing from a single supplier.


Vacuum Melting	Breakdown Forging	Forging & Rolling

We provide multi-stage inspection such as raw material inspection by spectrometer, process dimensional inspection and internal defect inspection by ultrasonic testing (UT).

Finished rods are measured using CMM’s, micrometres and surface roughness gauges. Tensile, yield and elongation values are determined according to ASTM E8 standards for mechanical property testing.

All shipments are accompanied with full paperwork including material test certificates (MTC), inspection reports and traceability records.

Certifications

Our manufacturing facility is certified to the ISO 9001 quality management system. All goods are made to ASTM B348 and AMS 4928 standards when appropriate.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: What is the difference between Grade 2 and the product?

A: Grade 2 is commercial pure titanium. Good corrosion resistance, but less strength (~345 MPa). GR5 has approximately 3 times the tensile strength (~895 MPa) and is the recommended material for structural and load bearing components.

Q: What surface finishes are available?

A：Mill finish and polished finish are standard options. Peeled and centerless ground finishes can also be provided for tighter diameter tolerances — specify your requirement when ordering.

Q: Is the rod non-magnetic?

A：Yes. Ti-6Al-4V is fully non-magnetic, making it suitable for MRI equipment and sensitive naval and electronic applications.

Q: Can you produce custom sizes?

A：Absolutely. Diameter, length, and surface finish are all customizable based on your drawings or specifications. OEM/ODM orders are welcome.

Method	Details
Inner Protection	Vacuum-sealed bags with desiccants
Cushioning	Custom foam inserts for precision parts
Outer Packaging	Sturdy wooden crates for bulk orders
Documentation	Full labeling, MTC, and shipment records
Shipping Options	Air freight (urgent) or sea freight (cost-efficient bulk)

Every order can be tailored to your engineering requirements. Available customization includes diameter, length, surface finish, and end treatment — all based on customer drawings or specifications.

OEM and ODM production is fully supported. Prototype quantities, small-batch runs, and full-scale production orders are all accommodated.

Custom laser marking and part numbering are also available for traceability and branding purposes.

Contact Us

Ready to source high-performance titanium bar like GR5 Titanium Rod for your next project? Send your drawings or specifications to sherry@hc-titanium.com for a fast quote.
