10mm Titanium Rod – Grade 5 Ti-6Al-4V High Strength Bar for Industrial & Precision Applications

Baoji Huacan 10mm titanium rod is made of Grade 5 Ti-6Al-4V titanium alloy, with tensile strength over 895 MPa and density of only 4.43-4.51 g/cm3. This round rod is made to ASTM B348 and AMS 4928 standards and has a great strength-to-weight ratio, being about 45% lighter than steel. Natural TiO2 corrosion resistance, strict tolerances, and complete OEM/ODM capacity. Serves aerospace, medical, marine and industrial industries globally.

Parameter	Details
Material Grade	Grade 5 Titanium (Ti-6Al-4V)
Available Grades	Grade 2, Grade 5, Grade 7, Grade 9, Grade 23
Diameter	10 mm (custom diameters available)
Length	Customized according to customer requirements
Tensile Strength	≥895 MPa
Density	4.43–4.51 g/cm³
Modulus of Elasticity	Approx. 110 GPa
Dimensional Tolerance	ISO h7, h8, h9 or according to customer drawings
Surface Finish	Natural, polished, anodized (customized)
Material Standards	ASTM B348, AMS 4928, DIN, ISO
Product Form	Round Rod / Bar
Customization	OEM / ODM available

High Specific Strength-Grade 5 Ti-6Al-4V may be purchased with tensile strengths in excess of 895 MPa and is about 45% lighter than similarly rated steel rods. This makes it suitable for weight-critical structural components.
Self-healing corrosion resistance-Titanium creates a stable TiO₂ oxide coating, which is self-repairing when damaged. Your components are almost immune to saltwater, chlorides and oxidising acids without coatings.
Biocompatible-Non-toxic and osseointegration friendly, appropriate for medical implants and surgical gear.
Non-Magnetic-Enables patients to safely undergo MRI scans, a major benefit in medical device applications.
Large Temperature Range-Dependable operation from -55 °C to 400 °C provides thermal cycling for aerospace and industrial applications.

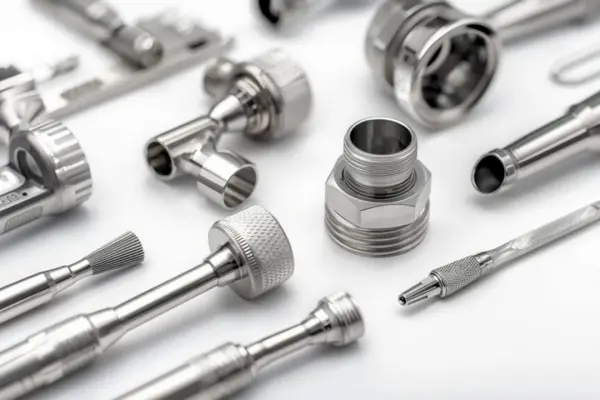

Our Precision Parts Processing Workshop

Titanium precision parts processing

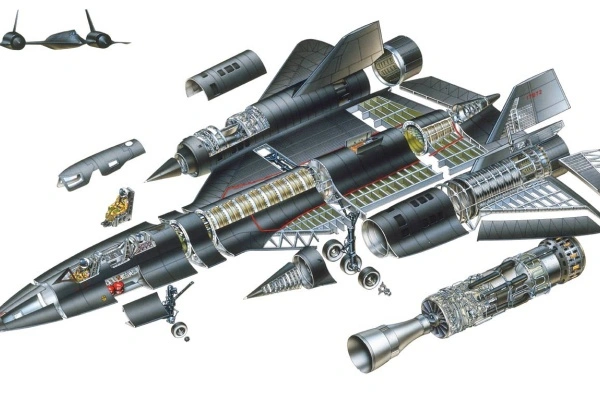

Aerospace – As feedstock for high-shear bolts, structural tie-bars, and landing gear actuator components. The 10mm titanium rod is used in airframes and engine pylons where it is exposed to high cyclic loads and temperature variations.

Medical Orthopedics — Grade 23 (Ti-6Al-4V ELI) rods are machined into intramedullary nails for tibia and femur fractures. The modulus of elasticity (~110 GPa) reduces stress shielding compared to cobalt-chrome implants.

Marine & Subsea – Used in ROVs as drive shafts and in racing boat components. Eliminates galvanic corrosion failures produced by salt water that usually destroys 316L stainless steel parts.

Chemical Processing - Resists oxidising acids and chloride conditions where stainless steels deteriorate fast, increasing component service life greatly.

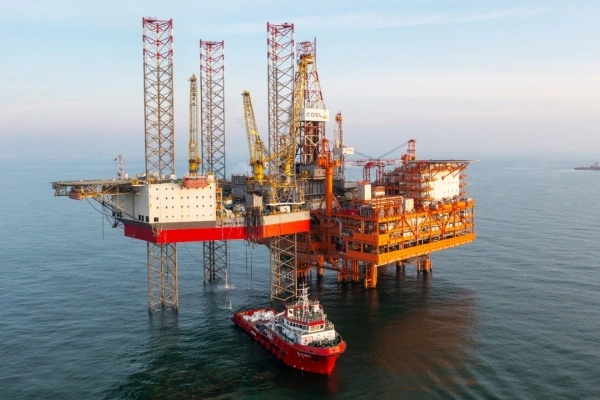

Marine & Offshore Equipment

Medical & Dental Components

Aerospace & UAV Components

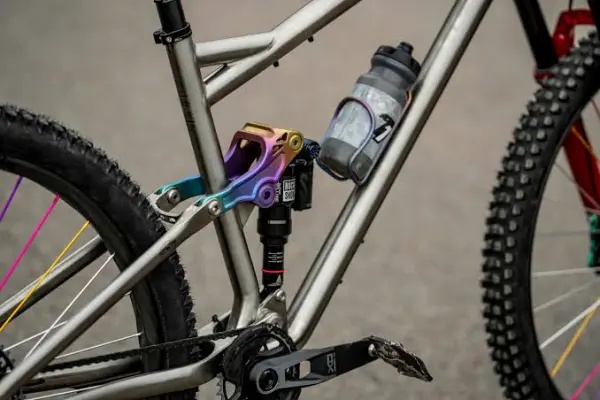

Bicycle, Motorcycle & Racing Components

Baoji Huacan operates 40+ CNC lathes and machining centers, including gantry systems. Annual production capacity exceeds 1,000 tons of finished titanium products and 3,000 tons of forged components.

Our forging equipment includes a 4,000-ton hydraulic press, air hammers, and ring-rolling machines — ensuring precise grain structure and dimensional accuracy at every stage.


Vacuum Melting	Breakdown Forging	Forging & Rolling

Our multi-stage inspection protocol covers every production step:

· Raw material verification — spectrometer composition analysis and supplier certification

· In-process monitoring — real-time dimensional checks and tolerance validation

· Ultrasonic NDT — detects internal cracks, voids, or inclusions without damaging parts

· CMM dimensional inspection — verifies critical dimensions against drawings

· Mechanical testing — tensile strength, yield strength, and hardness per ASTM/AMS/DIN

· Surface inspection — roughness testing and visual defect review before packaging

Baoji Huacan New Metal Materials Co., Ltd. holds ISO 9001 quality management system certification, covering every production stage from raw material input to final shipment. All products can be supplied with material test certificates (MTC), EN10204 3.1 certificates, and certificates of conformance (COC) upon request.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: Is the product medical implants compatible?

A: Yes. Grade 23 (Ti-6Al-4V ELI) complies with ASTM F136 for medical purposes including orthopaedic implants.

Q: What is your minimum order quantity?

A: MOQ is determined by specifications. Please contact us directly for a customised quotation.

Q: What standards do your rods comply with?

A: ASTM B348, AMS 4928, DIN/ISO. MTC & COC documents provided.

Q: What grade is your standard product?

A: We use Grade 5 (Ti-6Al-4V) as our standard material. We also provide Grade 2, 7, 9 and Grade 23 as per your application.

Each shipment is carefully prepared to protect product integrity during transit:

· Custom foam inserts for individual rod protection

· Vacuum-sealed bags with desiccants for moisture control

· Sturdy wooden crates for bulk or international shipments

· Full labeling and documentation for easy tracking and customs clearance

We offer both air freight for urgent orders and sea freight for cost-effective bulk shipments worldwide.

Contact Us

Ready to source a reliable 10mm titanium rod for your project? Contact our team at sherry@hc-titanium.com for specs, pricing, or OEM inquiries.
