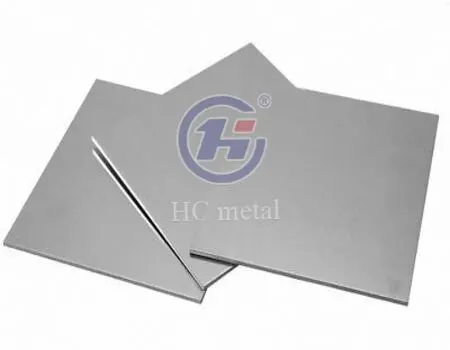

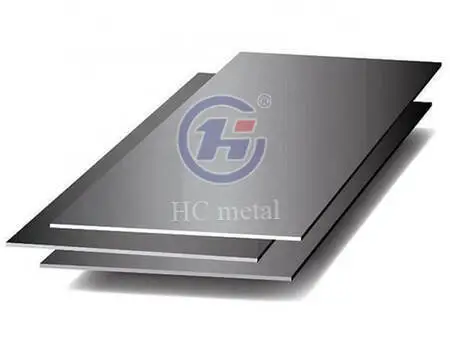

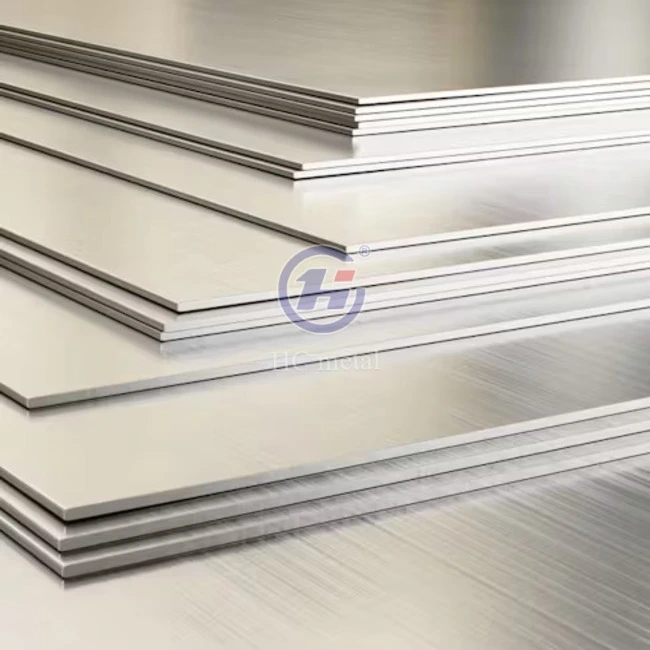

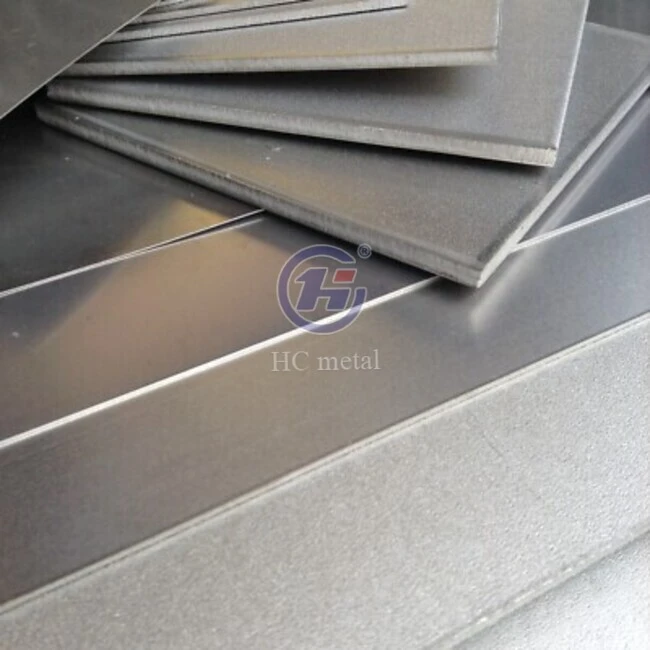

10mm Titanium Plate for Industrial & Aerospace Use — High Strength, Corrosion Resistant

Baoji Huacan's 10mm titanium plate is a precision flat-rolled product designed for demanding structural and industrial applications It is available in Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9 and Grade 23 and offers tensile strength up to ~895 MPa, cutting weight of components by close to 45% as against steel plate of similar dimensions. Each plate is manufactured to ASTM B265 and AMS 4911 standards and is subjected to multi-stage quality inspection. Baoji Huacan has over 10 years of titanium machining expertise and an annual output of over 1,000 tonnes. It can serve OEM/ODM orders, bespoke sizes and drawing-based manufacture for worldwide B2B customers.

Parameter	Details
Product Type	Titanium Plate / Titanium Sheet
Thickness	10 mm (Custom thickness available)
Available Grades	Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 (Ti-6Al-4V ELI)
Standard Size	300 × 150 mm (Reference size; custom dimensions available)
Material Standards	ASTM B265 / AMS 4911
Tensile Strength	Up to 895 MPa (Grade 5 Titanium)
Surface Finish	Natural Titanium Finish, Polished, Sandblasted, Anodized, Custom Surface Treatments
Dimensional Tolerance	According to ASTM B265; special flatness requirements available upon request
Production Capability	Prototype development, small batch production, and mass production
Quality Certification	ISO 9001 Quality System, MTC (EN 10204 3.1), Certificate of Conformance (COC)

High strength-to-weight ratio — Grade 5 reaches ~895 MPa tensile strength at roughly half the weight of steel
Outstanding corrosion resistance — Performs reliably in chloride, acidic, and saline environments
Uniform microstructure — Hot rolling and annealing ensure consistent grain structure through the full thickness
Alpha-case free surface — Surface treatment removes oxygen-enriched layers that cause brittleness
Excellent flatness — Precision leveling meets tight tolerances required for CNC machining setups
Multiple grade options — From commercially pure Grade 2 to high-strength Grade 5 and biocompatible Grade 23

Our Precision Parts Processing Workshop

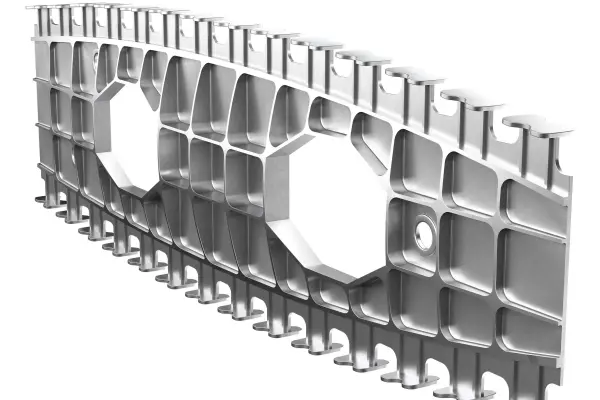

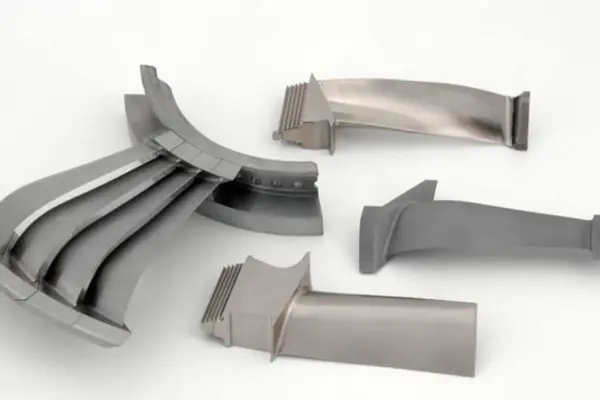

Aerospace & Defence — Aerospace bulkheads, structural frames and armour panels where weight savings are required without the loss of load capability.

Chemical Processing – Reactor vessels, heat exchanger plates and tank liners where carbon steel is quickly destroyed in chloride or acidic conditions.

Marine & Shipbuilding — Hull components, propeller shafts, and underwater structures exposed to continuous saltwater contact.

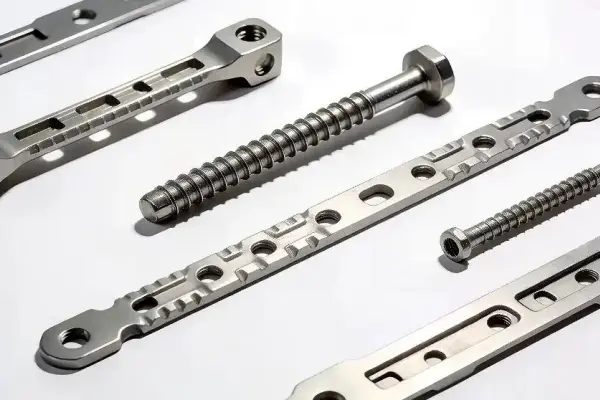

Medical Devices — Implant-grade plates using Grade 23 for biocompatible structural applications.

Energy & Power — Desalination equipment, offshore platforms, and geothermal components requiring long service life in corrosive conditions.

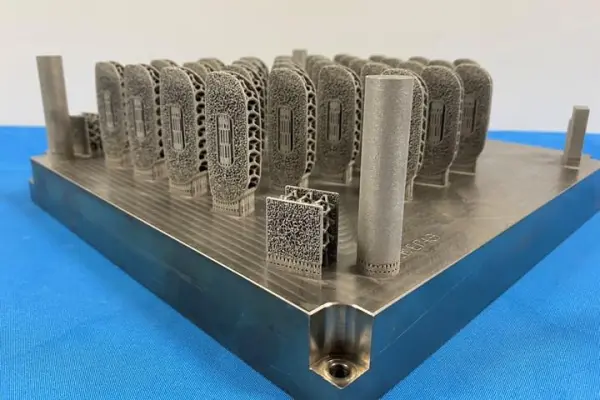

3D Printing

titanium plate application

Aerospace & Defence

titanium plate application

Chemical Processing

Medical Devices

titanium plate application

We have 40+ high-precision CNC equipment in Baoji, including CNC lathes, machining centers, and gantry systems. Annual manufacturing capacity is over 1000 tonnes of finished titanium products.

Melting Capacity: > 5,000 tons/year using VAR and Plasma Arc melting furnaces. Annual forging capacity is more than 3,000 tonnes, including a 4,000 tonne hydraulic press for structural parts.

This end-to-end supply chain – from ingot to completed plate – provides you with full traceability, shorter lead times and consistent quality on every order.


Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment

Rolling	Surface Treatment	Dimensional Inspection

Baoji Huacan follows a strict multi-stage inspection protocol for every titanium plate batch:

Raw Material Verification — Chemical composition confirmed via spectrometer analysis and supplier certification checks before production begins.

Ultrasonic Testing (UT) — Conducted per AMS 2631 Class A or ASTM B548 to detect internal laminations, centerline segregation, or voids hidden within the 10mm cross-section.

Dimensional & Flatness Inspection — CMM, digital calipers, height gauges, and surface roughness testers verify thickness tolerance and flatness deviation to ASTM B265.

Mechanical Testing — Tensile and guided bend tests per ASTM E8 confirm yield strength and elongation in both longitudinal and transverse rolling directions.

Alpha-Case Check — Cross-sectional metallography confirms absence of brittle oxygen-enriched surface layers.

Final Documentation — Every batch ships with full MTC (EN 10204 3.1), COC, and material traceability records.

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Frequently asked Questions

Learn more about titanium grades, custom machining, lead times, and OEM solutions.

Q: Can I order a custom size instead of the standard 300×150mm reference?

A：Yes. All dimensions — length, width, and thickness — are fully customizable based on your drawings or project specifications.

Q: How do you cut the product on location?

A: Inert gas shielding waterjet or laser cutting is recommended. This avoids the heat affected zones and edge cracking that can occur with mechanical shearing at 10mm gauge.

Q: Why is ultrasonic testing mandatory for 10mm plates?

A：At 10mm thickness, internal rolling defects such as centerline segregation or voids cannot be detected visually. UT ensures structural integrity — essential for pressure vessel and aerospace applications.

Q: Do you provide material test certificates?

A：Yes. Every batch comes with MTC (EN 10204 3.1), confirming chemical composition, mechanical properties, and full material traceability.

Each titanium plate is packaged to prevent surface damage and moisture ingress during transit:

· Vacuum-sealed bags with desiccants for moisture protection

· Custom foam inserts for surface-sensitive polished plates

· Sturdy wooden crates for bulk or heavy shipments

· Detailed labeling and documentation for easy tracking and customs clearance

Shipping options include air freight for urgent orders and sea freight for cost-effective bulk deliveries worldwide.
