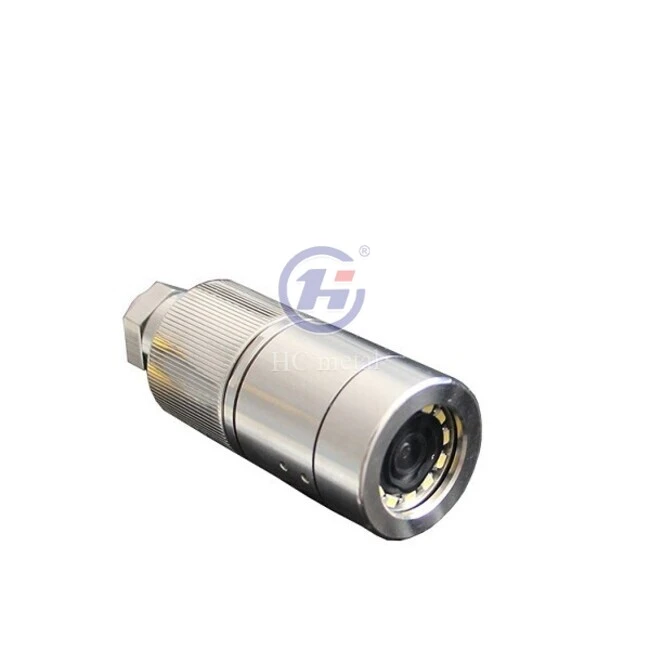

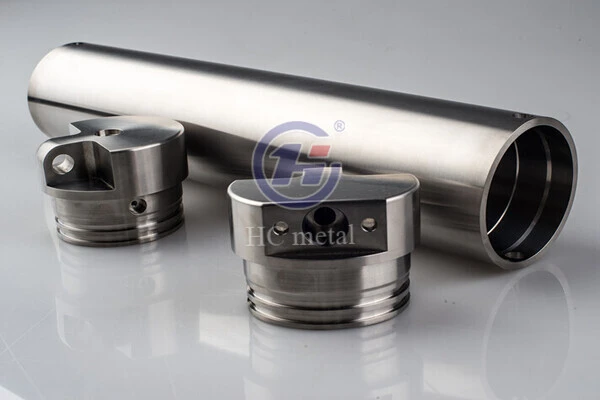

High-Strength Titanium Housing for Scuba Diving Cameras — Custom Precision Titanium Enclosure for Extreme Underwater Environments

High-Strength Titanium Housing for Scuba Diving Cameras - When you can't compromise on underwater image, this material provides the structural integrity and corrosion immunity that aluminum just can't match. These housings are made from Grade 5 (Ti-6Al-4V) or Grade 2 titanium, rated to 800m with a wall thickness of 3mm, CNC machined to a tolerance of ±0.03mm and anodized for long-term saltwater resistance. The housing is 45% lighter than stainless steel and has better structural performance with a tensile strength of 895–1000 MPa and a density of just ~4.43 g/cm3.

Parameter	Specification
Material Grade	Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23
Material Standard	ASTM B348 / Applicable ASTM, AMS or other agreed specifications
Maximum Operating Depth	800 m standard design; custom depth ratings available subject to engineering validation
Wall Thickness	3 mm standard; customizable according to design requirements
CNC Machining Tolerance	±0.03 mm
O-Ring Sealing Surface Finish	Ra ≤0.8 μm
Dimensions & Interfaces	Customized to customer drawings, including threads, ports and mounting features

High-Strength Titanium Housing for Scuba Diving Cameras

Feature	Titanium Housing	Aluminum Housing	Stainless Steel Housing
Corrosion Resistance	Excellent; protected by a stable passive oxide layer	Moderate; surface protection may be needed	Good; susceptible to crevice corrosion in certain environments
Density	~4.43 g/cm³	~2.7 g/cm³	~7.9 g/cm³
Tensile Strength	895–1000 MPa (Grade 5, depending on material condition)	~270 MPa (typical, alloy-dependent)	~515 MPa (typical, grade-dependent)
Service Life in Saltwater	Long service life with proper design and maintenance	May require protective coatings and maintenance	Requires appropriate grade selection and periodic inspection
Magnetic Properties	Non-magnetic	Non-magnetic	Depends on grade; some grades are magnetic
Maintenance Requirements	Generally low; periodic seal and O-ring inspection	Coating and corrosion protection may require maintenance	Periodic inspection and maintenance may be required
Customization	Custom CNC machining and OEM production available	Customization available, depending on design and process	Customization available, depending on design and process

Underwater Monitoring Systems

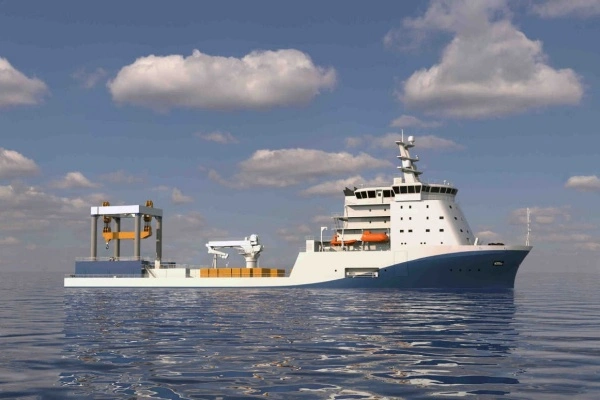

High-Strength-Titanium-Housing-Applications

Underwater Monitoring Systems

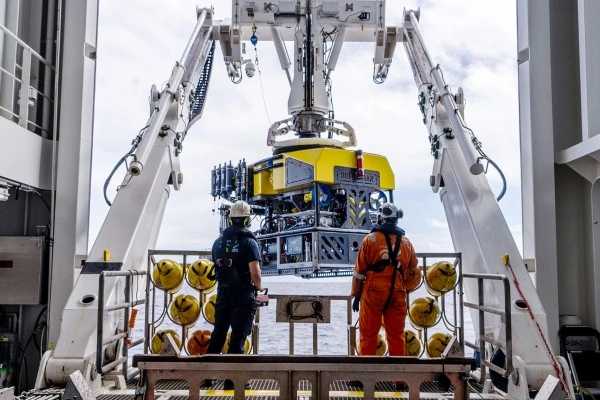

High-Strength-Titanium-Housing-Applications

Marine Scientific Research

High-Strength-Titanium-Housing-Applications

Cinema-grade cameras (RED, ARRI) fitted to ROVs and AUVs working at depths more than 200m are protected by titanium housings, able to withstand pressures of over 600 bar during hydrothermal vent site and seabed mapping operations.

Technical & Cave Cinematography: In overhead environments where equipment scrapes against rock, titanium remains inert after surface scratching. Unlike aluminum, no reactive metal is exposed, keeping the housing structurally sound throughout decompression stops.

Long-Term Offshore Monitoring: For oil, gas, and marine biology deployments lasting months, the complete absence of galvanic corrosion ensures sealing surfaces remain intact for High-Strength Titanium Housing for Scuba Diving Cameras — eliminating the flooding failures common in long-duration aluminum housings.

Our facility in Baoji — China's "Titanium Valley" — operates 40+ precision CNC machines including 5-axis machining centers and gantry systems. Annual precision machining capacity exceeds 1,000 tons of finished components.

Upstream capabilities include VAR/PAM melting with 5,000+ tons annual capacity and forging with a 4,000-ton hydraulic press. This vertical integration ensures full material traceability and consistent quality from ingot to finished housing.


melting	melting	forging	forging	rolling

Every housing undergoes a multi-stage inspection protocol:

CMM dimensional verification — O-ring groove geometry, concentricity ±0.02mm, all critical interfaces
Hydrostatic pressure testing — Tested at 1.25–1.5× rated depth in hyperbaric chamber
Dye Penetrant Inspection (DPI) — Detects surface micro-cracks on welds and machined corners
Material certification — PMI and chemical composition verified against Grade 5 or Grade 2 specs
Surface roughness inspection — Sealing surfaces confirmed at Ra 0.8µm or better

Certifications

Our manufacturing facility is ISO 9001 quality management system certified for raw material intake, in-process control and final inspection. ASTM B348, AMS 4928 and DIN standards are part of the material standards compliance.

Mechanical Properties Testing

Inner Diameter Measurement

Ultrasonic Testing

CMM Dimensional

Mounting Hole Diameter Measurement

Quality Management System Certification

Q: Why choose titanium over aluminum for a scuba camera housing?

A：Titanium's passive oxide layer prevents galvanic corrosion permanently. Aluminum sealing surfaces pit and degrade in saltwater over time, risking flooding. Titanium housings offer indefinitely longer service life.

Q: What depth can these housings be rated to?

A：Standard configurations are rated to 800m. Because of titanium's high yield strength, custom designs can be engineered for depths reaching 11,000m without excessive wall thickness or weight penalty.

Q: Does titanium require special post-dive maintenance?

A：The housing itself needs no corrosion treatment. Rinsing off salt crystals is recommended for O-ring hygiene. All maintenance focus falls on the silicone O-rings and optical ports — the metal is chemically inert.

Q: Can I request custom port layouts or handle configurations?

A：Yes. All structural features — port positions, handle design, connector routing — are fully customizable based on your 2D drawings or 3D models. OEM/ODM production is supported.

Q: Is a sample or prototype order available?

A：Yes. Small-batch prototype production is supported for R&D validation before committing to full production runs. Our team can also provide material selection and structural optimization advice during the design stage. This is the trusted approach many buyers use when specifying the product for the first time.
