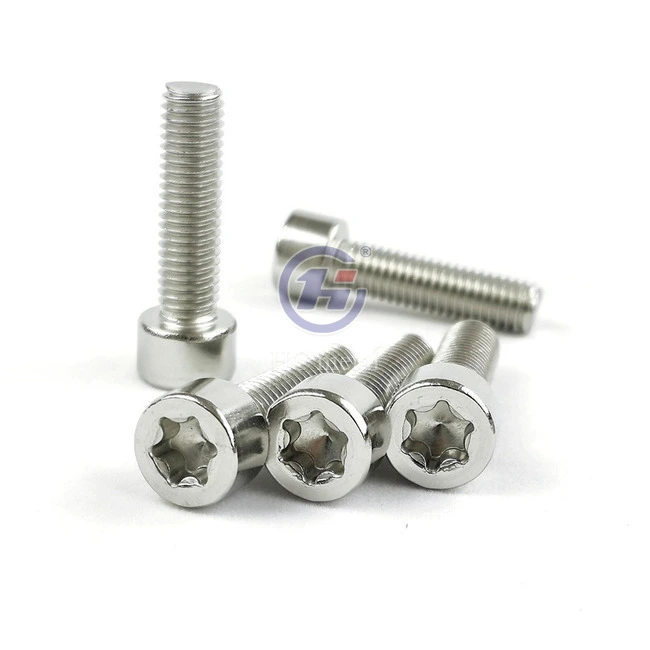

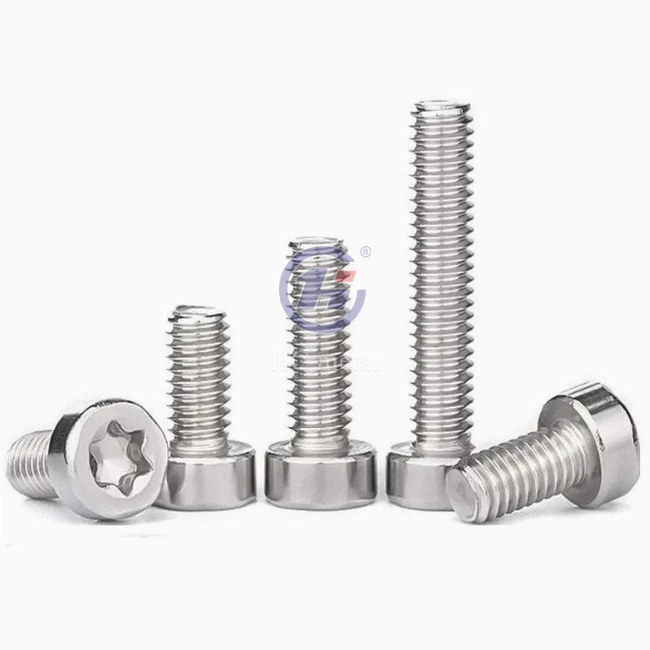

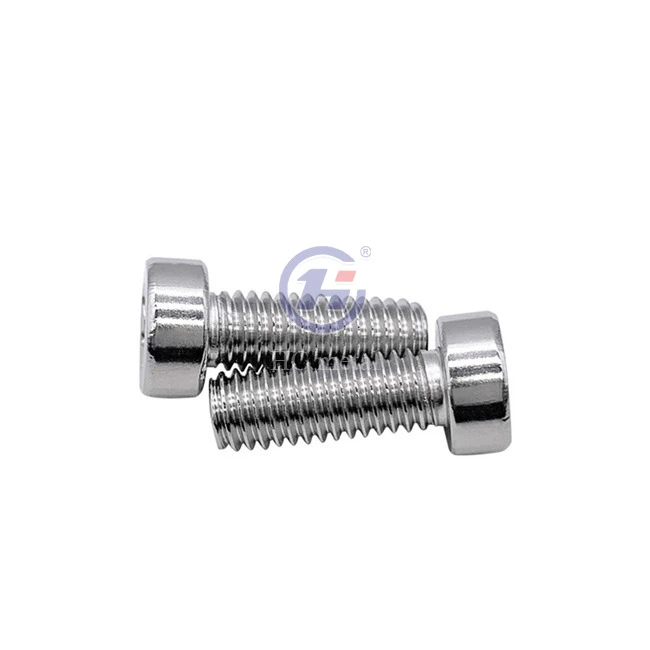

ISO14580 M4 Titanium Bolts — Hexalobular Socket Cheese Head Fasteners for Lightweight Precision Applications

ISO14580 m4 titanium bolts are hexalobular socket cheese head screws manufactured from titanium alloy, designed for applications where weight reduction, corrosion resistance, and drive reliability are critical. These M4 bolts meet the dimensional requirements of ISO 14580. These bolts include a low profile cylindrical head with a Torx drive mechanism and 0.7mm thread pitch. They are made from Titanium Grade 5 (Ti-6Al-4V) which has a tensile strength of 895 MPa or more and are around 45% lighter than steel counterparts. 8–30mm long. Anodized or brilliant polished finish.

Why Choose Our ISO14580 M4 Titanium Bolts

This is a big reason purchasers step up from regular hex or Phillips fasteners to the hexalobular (Torx) drive mechanism. It distributes the driving power equally to six contact lobes . This prevents cam-out failure, and allows more torque to be transferred without harming the titanium head .

Titanium Grade 5 (Ti-6Al-4V) has a high strength-to-weight ratio. Bolts have about 60% the density of steel (4.51 g/cm³) yet may retain their structural integrity under high loads. Their spontaneous passive oxide coating renders them almost impervious to seawater, chlorides and oxidizing acids.

Whether you are creating racing drones, maritime enclosures or medical imaging equipment these bolts are built to perform where dependability and accuracy matter most.

Parameter	Details
Standard	ISO 14580
Thread Size	M4 × 0.7 Pitch
Thread Tolerance	6g (Custom Thread Tolerances Available)
Material Grade	Titanium Grade 5 (Ti-6Al-4V); Grade 2 Available
Head Type	Hexalobular Socket Cheese Head
Length Range	8–30 mm (Custom Lengths Available)
Tensile Strength	≥895 MPa
Yield Strength	≥825 MPa
Density	4.43 g/cm³
Surface Finish	Anodized, Bright Polished, or Custom Finish
Operating Temperature Range	-196°C to 400°C
Magnetic Property	Non-magnetic
Manufacturing Process	CNC Machining, Threading, Surface Treatment
Inspection	Dimensional Inspection, Thread Gauge Inspection, Material Traceability
Certificate	Material Test Certificate (EN 10204 3.1) Available
Customization	OEM / ODM Production Available Based on Drawings

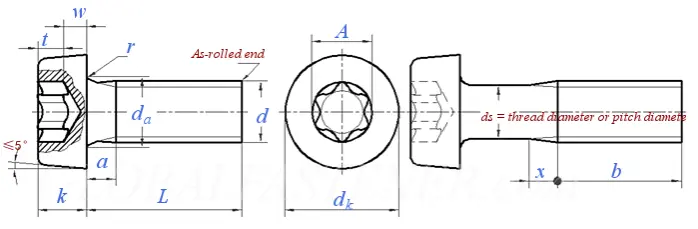

Thread Size D		M2	M2.5	M3	(M3.5)	M4	M5	M6	M8	M10
P	Pitch	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
a	max	0.8	0.9	1	1.2	1.4	1.6	2	2.5	3
dk	max=nominal size	3.8	4.5	5.5	6	7	8.5	10	13	16
dk	min	3.62	4.32	5.32	5.82	6.78	8.28	9.78	12.73	15.73
da	max	2.6	3.1	3.6	4.1	4.7	5.7	6.8	9.2	11.2
k	max=nominal size	1.55	1.85	2.4	2.6	3.1	3.65	4.4	5.8	6.9
k	min	1.41	1.71	2.26	2.46	2.92	3.47	4.1	5.5	6.54
r	min	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.4	0.4
w	min	0.5	0.7	0.75	1	1.1	1.3	1.6	2	2.4
x	max	1	1.1	1.25	1.5	1.75	2	2.5	3.2	3.8
Socket No.		6	8	10	15	20	25	30	45	50
A	Ref.	1.75	2.4	2.8	3.35	3.95	4.5	5.6	7.95	8.95
t	max	0.84	0.91	1.27	1.33	1.66	1.91	2.29	3.05	3.43
t	min	0.71	0.78	1.01	1.07	1.27	1.52	1.9	2.66	3.04

Lightweight Drone Bolts: M4 titanium bolts hold the arms of a carbon fiber frame together where every gram counts. The Torx drive provides for accurate torque without stripping during field maintenance and titanium’s galvanic compatibility avoids frame corrosion at the fastener contact.

Marine Navigation & Sensor Enclosures: Salt spray and constant moisture demand corrosion-proof fasteners. The hexalobular drive maintains reliable torque for O-ring compression even after repeated exposure to seawater — a point where stainless steel hex bolts commonly fail.

Medical Imaging Equipment (MRI): Titanium's non-ferromagnetic property makes these bolts essential in MRI assembly. The secure Torx drive prevents tool slippage near sensitive superconducting magnets, making them a preferred choice for precision instrument builders.

Cycling & Instrumentation: Weight-conscious cyclists and instrument designers use these bolts for component mounting where a combination of low weight, corrosion resistance, and aesthetic finish is required.

Bicycle & Cycling

Motorcycle Modification

Automotive Performance & Racing

RC Models & Drones

Marine Equipment

Precision Equipment

· Cam-out Prevention: Torx hexalobular drive transfers torque through lobe flanks, not corners, protecting the soft titanium head during installation

· Lightweight Advantage: Approximately 45% lighter than equivalent steel fasteners

· Corrosion Immunity: Passive oxide film resists saltwater, chlorides, and oxidizing acids without any coating dependency

· Non-Magnetic: Safe for use near MRI systems and sensitive electronic assemblies

· Thermal Stability: Maintains mechanical performance from cryogenic conditions up to ~400°C

· Galvanic Compatibility: Titanium pairs safely with carbon fiber composites, eliminating the galvanic corrosion risk associated with aluminum fasteners

Material Features

Baoji Huacan New Metal Materials Co., Ltd. operates from China's "Titanium Valley" in Baoji, Shaanxi Province — the heart of China's titanium industry. Our facility runs 40+ high-precision CNC lathes, CNC machining centers, and gantry machining centers.

With 10+ years of titanium machining experience and annual production capacity exceeding 1,000 tons, we support everything from prototype batches to high-volume orders. Our upstream capabilities — including VAR melting and precision bar rolling — give us full traceability from raw ingot to finished fastener.

We serve 100+ international clients across aerospace, marine, medical, and industrial sectors.

Production begins with verified titanium bar stock meeting ASTM B348 standards. Material composition is confirmed by XRF spectrometry before machining starts.

CNC precision turning shapes each bolt's cheese head geometry and M4 thread to ISO 14580 tolerances. Our 40+ CNC lathes and machining centers ensure consistent dimensional accuracy across both prototype and bulk production runs.

Thread rolling or cutting is followed by Go/No-Go gauge verification to confirm the 6g thread fit class. Surface finishing — anodizing or bright polishing — is applied as the final production step before inspection.


Material Preparation	Heading / Forging	Heat Treatment	Precision Machining

Thread Manufacturing	Cleaning	Inspection	Surface Treatment

Every batch of the product passes through our multi-stage inspection protocol:

· XRF Material Verification: Confirms Grade 5 vs Grade 2 composition before production begins

· Go/No-Go Thread Gauging: Validates 6g thread fit class for reliable mating

· CMM Dimensional Inspection: Checks head geometry, socket depth, and shank straightness against ISO 14580 tolerances

· Torque-to-Failure Testing: Random sampling verifies hexalobular drive integrity without plastic deformation

· Surface Inspection: Visual and roughness checks before packaging

· Full Documentation: Material test certificates (MTC), inspection reports, and traceability records supplied with every shipment

Certifications

Our production facility holds ISO 9001 Quality Management System certification, covering the entire process from raw material intake to final shipment. Every stage is governed by documented quality procedures, ensuring consistent output that meets or exceeds customer specifications.

Your application requirements drive our production specifications for ISO14580 m4 titanium bolts. We support:

· Custom lengths beyond the standard 8–30mm range

· Custom thread specifications including fine pitch or non-standard pitches

· Material selection: Grade 2 for maximum chemical resistance; Grade 5 for structural loads; Grade 23 for biomedical applications

· Surface finishes: Anodized in multiple colors, bright polished, or natural titanium finish

· Custom laser marking or CNC engraving for part numbers or brand logos

· Drawing-based production: Submit your technical drawings for fully customized geometry

· OEM/ODM available for private-label and volume procurement programs

Packaging Method	Application
Custom Foam Inserts	Individual protection for precision titanium fasteners and machined components
Vacuum-Sealed Bags with Desiccants	Moisture and contamination protection during storage and transportation
Export-Grade Wooden Crates	Secure protection for bulk shipments and long-distance transportation
Detailed Labeling & Documentation	Product identification, traceability, and smooth customs clearance

We offer air freight for urgent orders and sea freight for cost-effective bulk shipments. Export packaging complies with international logistics requirements.

Q: What is the torque recommendation for M4 Grade 5 titanium ISO 14580 bolts?

A：A general guideline is 3.0–4.0 Nm. Always use a calibrated torque wrench — tactile tightening frequently causes thread yield in titanium fasteners.

Q: How do I prevent galling during installation?

A：Apply a molybdenum disulfide-based anti-seize paste. Alternatively, specify an anodized finish to modify surface friction and reduce cold-welding risk.

Q: Should I choose Grade 2 or Grade 5 for my application?

A：Choose Grade 5 (Ti-6Al-4V) for structural or load-bearing assemblies requiring ≥895 MPa tensile strength. Choose Grade 2 if chemical resistance and ductility take priority over strength.

Q: Are these bolts compatible with carbon fiber frames?

A：Yes. Titanium is galvanically compatible with carbon fiber, unlike aluminum which corrodes rapidly in contact with CF in the presence of moisture.

Q: Can you produce custom lengths outside 8–30mm?

A：Yes. We manufacture according to customer drawings and specifications. Submit your requirements to sherry@hc-titanium.com for a tailored quote.

Contact Us

Ready to source precision-grade ISO14580 m4 titanium bolts? Send your specifications or drawings to sherry@hc-titanium.com — fast response guaranteed.
