Titanium Surface Inspection: Ensuring Zero Defects

Due to its high strength-to-weight ratio and great corrosion resistance, titanium alloy housing is frequently used in aircraft, naval, medical, and other demanding uses. However, choosing the right material isn't the only thing that affects how well it works. The surface state, the accuracy of the measurements, quality control during production, and checking are also important. A good surface check helps find flaws that aren't accepted and makes sure that parts meet the needs of the product and the customer.

Introducing Titanium Alloy Housing Surfaces

Titanium alloy housing is a good choice for parts that are put through tough working conditions because of its strength, low density, and corrosion resistance. Depending on the job, commercially pure titanium and alloys like Ti-6Al-4V are common materials. For precision-machined housings, the state of the surface is especially important. Scratches, cracks, machine lines, contamination, and rust can change how well something works in terms of wear, its look, or the finishing that comes after. So, inspection shouldn't just be a final visible check; it should be a part of the whole manufacturing process.

Importance of Surface Quality in Titanium Alloy Housing

The surface quality of a Titanium alloy housing can affect how reliable it is and how long it lasts. Acceptance requirements change based on the type of material, the design of the part, the way it was made, and what it will be used for.

Surface breaks can become stress gathering places for aircraft parts when they are loaded and unloaded over and over again. Titanium offers good resistance to seawater corrosion, but it is still important to take into account contamination, localised damage, crevice conditions, and contact with metals that are not the same. So, the goal of inspection is to find problems that might affect how well something works and see if they meet certain standards for acceptance.

Common Surface Defects in Titanium Alloy Housing

Scratches, pits, cracks, dents, machine lines, discolouration, and embedded contaminants are all common surface flaws. Internal breaks, like holes or spots, should be looked at separately because they might need a measurement check. A defect's importance rests on its size, depth, location, direction, and how it affects the service. In some situations, a small mark for looks might be fine, but on a surface that is vulnerable to wear and tear, it's not. For review choices to be made consistently, acceptance standards must be made very clear.

Impact of Manufacturing Processes on Surface Quality

The manufacturing method has a direct effect on the state of the surface. If the cutting settings and tools are not handled correctly, CNC grinding could leave tool lines, burrs, or damage in certain areas. If the shielding isn't good enough, welding can change the colour or cause oxidation. If the air flow isn't controlled, heat treatment can also change the surface. For Titanium alloy housing, makers should check important areas at the right times during production. Cleaning, deburring, finishing the surface, and checking the process can help keep small problems in the manufacturing process from becoming problems with the quality of the finished product.

Advanced Inspection Techniques for Titanium Surfaces

There is no one way to check that can find every kind of flaw. A good inspection plan includes methods based on the shape of the part, the state of the material, the type of flaw, and the requirements that apply. Non-destructive testing can be used in addition to visual and dimensional inspection when surface or internal flaws could affect performance. The equipment, inspection areas, acceptance criteria, and records that need to be kept should all be spelt out in the inspection procedures.

Visual and Microscopic Inspection Methods

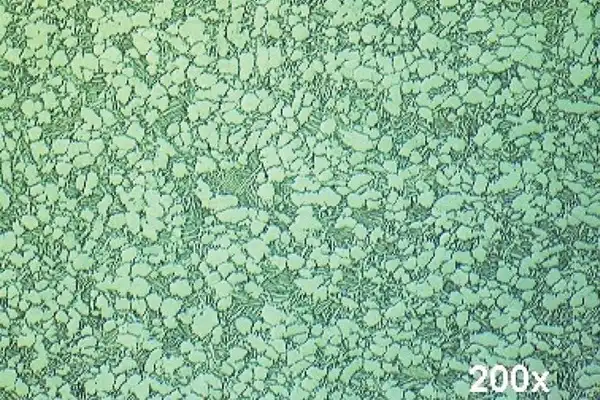

Visual inspection is often the first step in evaluating Titanium alloy housing surfaces. With the right lighting and a clean surface, inspectors can see dents, scratches, burrs, discolouration, and machine lines. When smaller problems need to be looked at, microscopic inspection gives you a better view. It can be used with measuring dimensions and checking the surface finish of precise parts. When small or internal cracks could affect how well a part works, visual analysis shouldn't be used instead of NDT.

Non-Destructive Testing Technologies

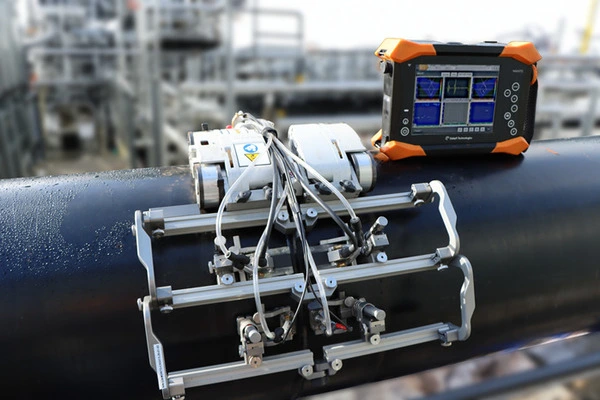

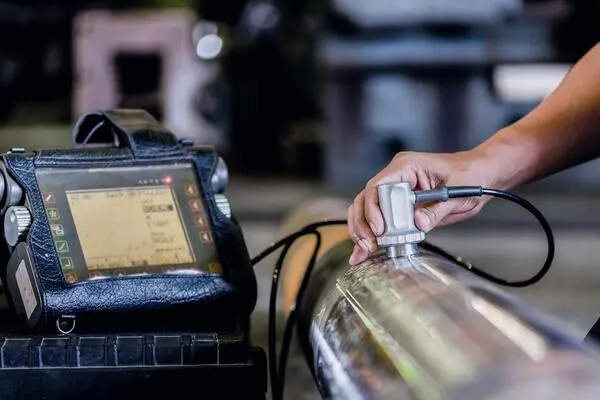

Non-destructive testing, or NDT, gives you more information about a part without breaking it. Eddy current tests can be used to find some surface and near-surface breaks in titanium metals that are conductive. Suitable parts can be checked for internal discontinuities using ultrasound tests. X-rays can show some internal geometric features, and computed tomography (CT) scans can give more thorough information for shapes that aren't simple. The right way relies on the width, shape, ease, type of flaw, and needed ability to find it.

Automated Inspection Systems

Automated inspection systems can improve repeatability when manufacturers produce large quantities of similar components. Machine-vision systems can identify predefined dimensional or visible surface variations.

However, automated systems must be properly calibrated and validated for the actual component. Human review may still be required for unusual indications or conditions outside programmed acceptance limits. Combining automated inspection with established quality procedures can improve consistency and efficiency.

Quality Control Protocols for Titanium Alloy Housing

A reliable quality control system should cover material verification, process control, inspection, documentation, and final acceptance. Requirements should be established according to customer drawings, material specifications, and intended service conditions. For custom Titanium alloy housing, quality planning should begin before machining so that material grade, dimensions, tolerances, surface requirements, NDT methods, and documentation can be agreed upon.

Establishing Inspection Criteria

Clear inspection criteria provide a consistent basis for acceptance. Requirements may include dimensional tolerances, surface finish, allowable visual indications, NDT acceptance levels, and customer specifications. Where applicable, inspection procedures can reference relevant ASTM, AMS, ISO, or other industry requirements. The selected standard should match the material, manufacturing process, application, and customer requirements.

Implementing Multi-Stage Inspection Processes

Multi-stage inspection helps identify problems before final production. Material certificates can be verified before manufacturing, while in-process inspection can check critical dimensions and machining conditions. Final inspection may include visual examination, dimensional measurement, surface-finish verification, and specified NDT. This approach reduces reliance on a single final inspection.

Documentation and Traceability

Inspection records provide evidence that components were manufactured and tested according to defined requirements. Depending on the project, documentation may include material certificates, dimensional reports, NDT reports, heat-treatment records, and final inspection results. Traceability also helps manufacturers identify material batches, production processes, inspection results, and relevant equipment when investigating quality issues.

Conclusion

Reliable Titanium alloy housing requires coordinated material selection, manufacturing control, surface inspection, dimensional verification, and traceability. Using inspection methods appropriate to the component and defect type helps manufacturers improve consistency and verify compliance with defined requirements.

At Baoji Huacan New Metal Materials Co., Ltd., we provide titanium bars, plates, and custom machined parts with controlled manufacturing and inspection procedures. Customers can provide drawings, material grades, dimensions, surface requirements, and testing specifications for production evaluation.

Frequently Asked Questions

What are the key benefits of using titanium alloy housing in marine environments?

Titanium alloy housing provides high strength-to-weight performance and excellent resistance to seawater corrosion, making it suitable for marine equipment where durability and weight control are important.

How often should titanium alloy housing be inspected for surface defects?

Inspection frequency depends on the application, operating environment, maintenance program, and applicable specifications. Critical components may require more frequent inspection.

Can surface defects in titanium alloy housing be repaired?

Some minor conditions may be addressed through controlled polishing, deburring, or finishing. Cracks or defects exceeding acceptance criteria may require engineering evaluation or replacement.

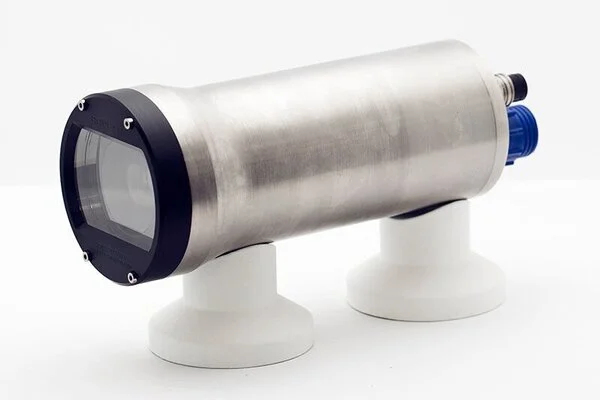

Titanium Alloy Housing: Precision and Performance

Titanium alloy housing provides a combination of strength, low weight, and corrosion resistance for demanding applications. At Baoji Huacan, we support custom titanium manufacturing based on drawings and project requirements, including material selection, machining, surface inspection, dimensional control, and quality documentation.

For custom requirements, contact Joy@hc-titanium.com or Sherry@hc-titanium.com with your drawings, titanium grade, dimensions, surface requirements, inspection specifications, and expected quantity. Our team can review your requirements and discuss a suitable manufacturing and inspection approach.
