Medical Titanium Plate for Implants & Surgical Fixation — Biocompatible, Sterilizable, OEM Custom

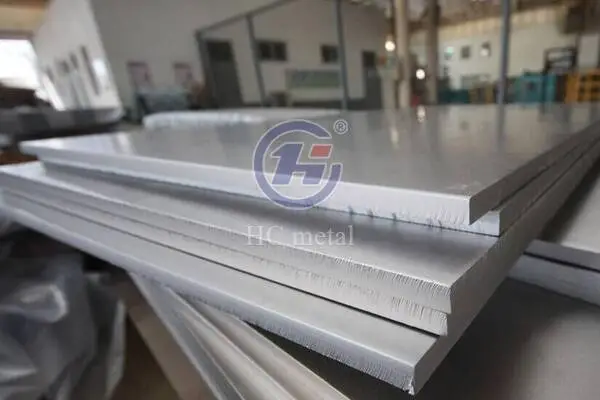

Baoji Huacan's medical titanium plate is a precision-engineered, bio-inert titanium sheet designed for implantable devices, internal fixation, and surgical instrumentation. It is manufactured from Grade 2 (CP Ti) or Ti-6Al-4V ELI and has an elastic modulus of around 110 GPa, much closer to human cortical bone than stainless steel (200 GPa). This decreases stress shielding and helps bone rebuilding. The naturally formed TiO₂ passive layer inhibits ion release and guaranties long-term biocompatibility. It is fully non-ferromagnetic, MRI compatible, sterilizable and OEM-customizable.

Parameter	Details
Material Grade	Grade 2 (CP Titanium), Grade 5 (Ti-6Al-4V), Grade 23 (Ti-6Al-4V ELI)
Applicable Standards	ASTM F67 / ASTM F136 for applicable implant-grade materials; ASTM B265 for titanium plate material, subject to grade and product requirements
Plate Thickness	Reference: 5 mm; other thicknesses available upon request, subject to material grade and manufacturing capability
Plate Dimensions	Reference size: 100 × 50 mm; custom dimensions available based on drawings and material availability
Dimensional Tolerances	Manufactured to customer drawings or agreed specifications; tolerances confirmed during quotation
Surface Finish	As-machined, mechanically polished, or other specified finishes; anodizing available subject to material and process requirements
Manufacturing Processes	Precision CNC machining, cutting, drilling, milling, deburring, and surface finishing, as applicable to the part design
Customization & Traceability	Custom sizes, thicknesses, hole patterns, contours, and laser marking; material certification and inspection documentation available as agreed
Quality & Compliance	Material grade, mechanical properties, chemical composition, and inspection requirements confirmed against the applicable material specification and purchase order

· Lightweight construction — reduces patient discomfort and surgical load

· Corrosion resistant — performs reliably in the physiological environment long-term

· Sterilizable — compatible with all standard sterilization methods

· Non-toxic — safe for permanent implantation in adult patients

· Excellent fatigue strength — especially in Ti-6Al-4V ELI grade for load-bearing applications

Our Precision Parts Processing Workshop

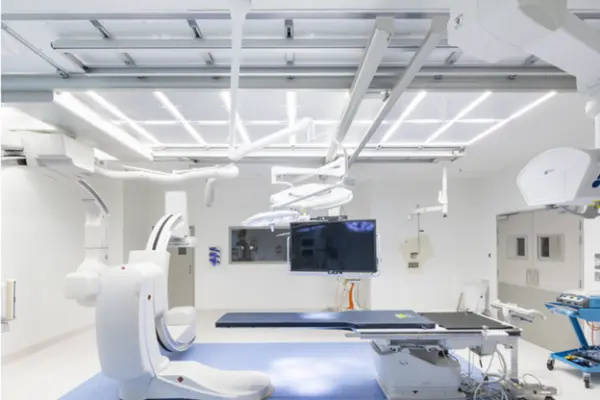

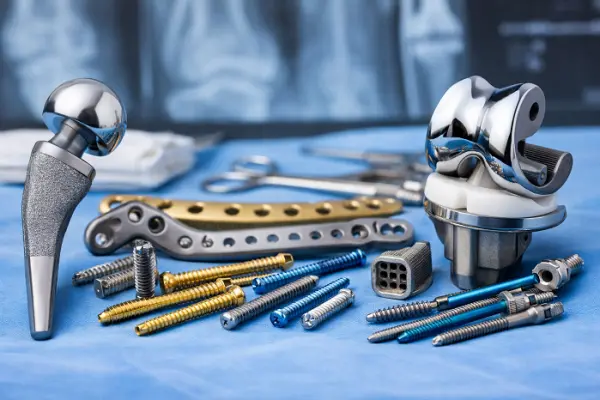

Orthopedic Surgery. Used in bone fracture fixation plates for femur, tibia, and cranial reconstruction where bone-modulus matching is critical.

Craniofacial & Neurosurgery. Thin-profile plates are contoured intraoperatively for skull reconstruction and facial bone repair.

Spinal Fixation. Titanium plates serve as anterior cervical fixation components, where MRI compatibility post-surgery is essential for follow-up diagnostics.

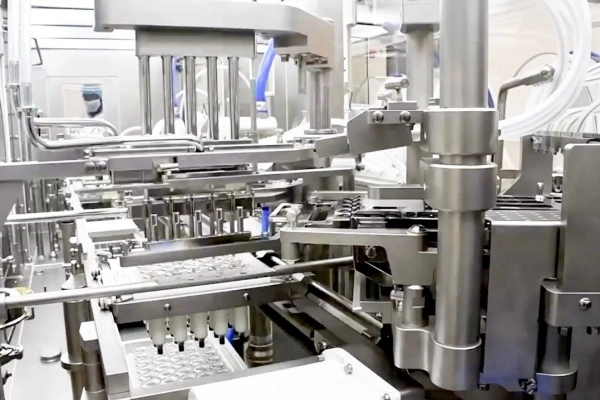

Surgical Instrumentation & Device Housing. Used in the fabrication of housings and structural components for active medical devices requiring sterilizable, corrosion-resistant enclosures for medical titanium plate.

Be used in a wide range of industries.

Orthopedic Implants

Medical Devices

Healthcare Equipment

Every plate starts with high-purity titanium melted under vacuum arc remelting (VAR) or plasma arc melting (PAM) conditions. This strictly controls interstitial elements — carbon, oxygen, and nitrogen — ensuring microstructural homogeneity and minimal defect inclusion.

After melting, billets undergo precision rolling with tight tolerance control, producing uniform grain structure and consistent mechanical properties throughout the plate. Our 40+ CNC machining centers then handle complex profiling, contouring, and finishing operations based on your technical drawings.

Post-machining, each plate receives surface treatment — polished or anodized as specified — followed by thorough deburring and cleaning before inspection.

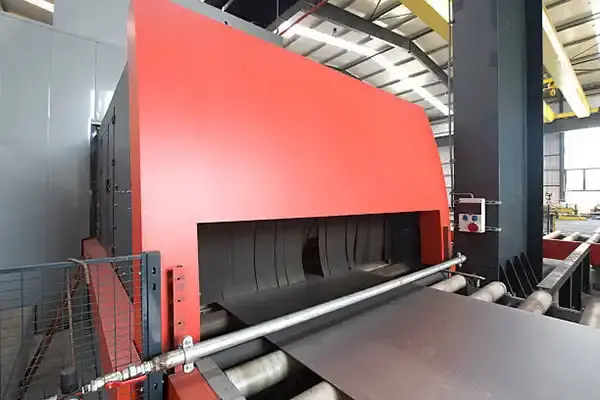

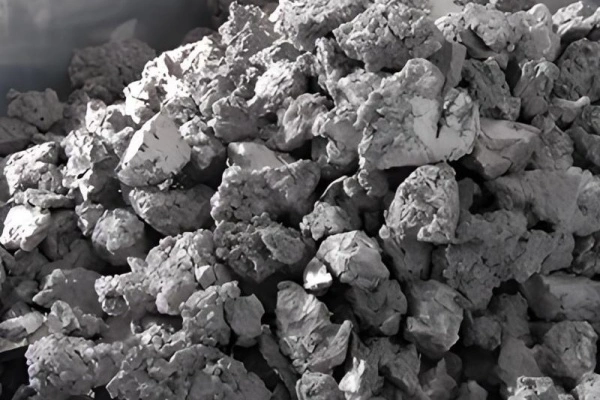

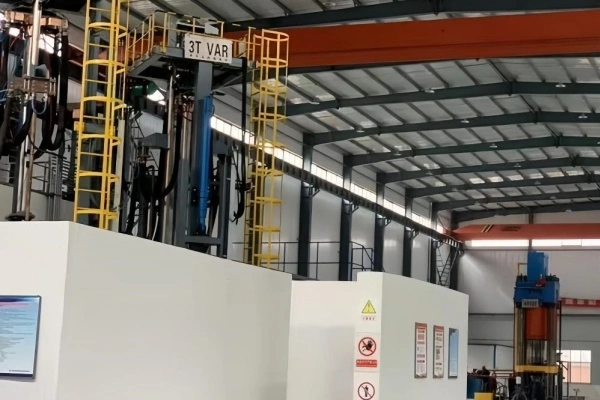

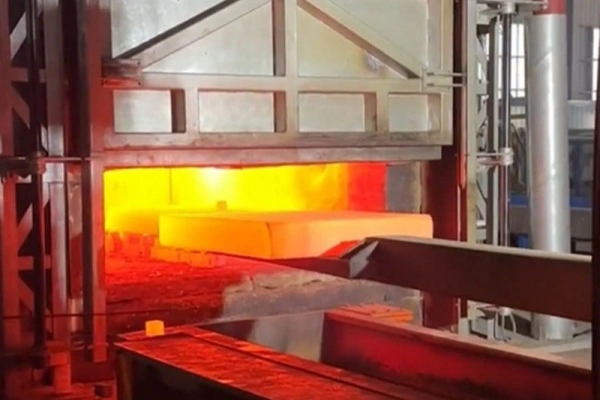

Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment

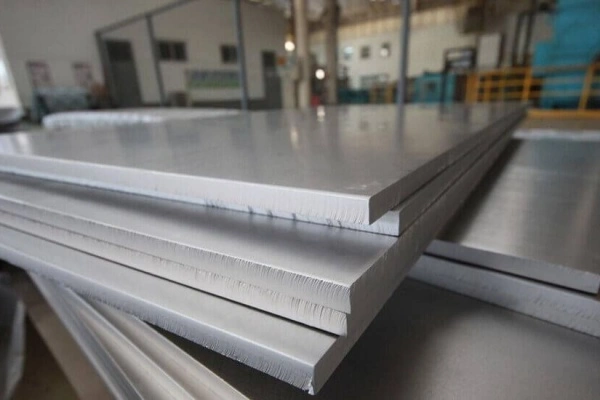

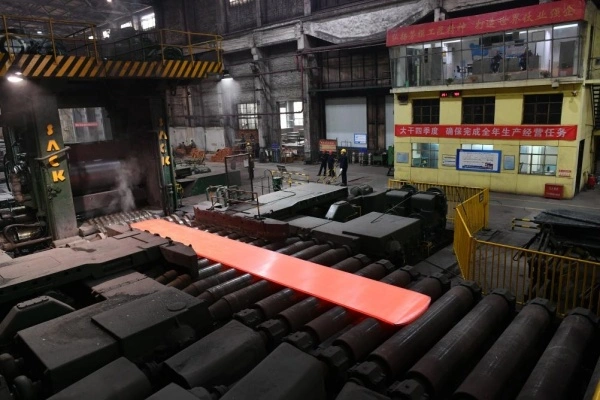

Rolling	Surface Treatment	Dimensional Inspection

BJHC follows a strict multi-stage inspection protocol. Incoming materials are verified by spectrometer chemical analysis and supplier certification checks. In-process dimensional monitoring ensures every plate stays within tolerance throughout machining.

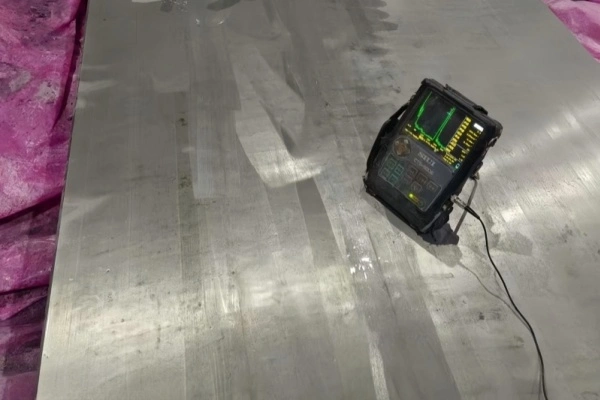

Ultrasonic non-destructive testing detects internal flaws without damaging components. Final inspection uses CMMs, surface roughness testers, and mechanical testing for tensile strength and hardness — all documented with full material traceability records and inspection certificates.

Certifications

ISO 9001 Quality Management System Certified
Materials traceable to ASTM F67, ASTM F136, and ASTM B265
Material Test Certificates (MTC) and Certificate of Conformance (COC) available upon request

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Each product is vacuum-sealed with desiccants to prevent moisture exposure. Foam inserts protect surfaces during transit. Bulk orders ship in sturdy wooden crates. Full labeling and traceability documentation are included with every shipment. Air freight is available for urgent orders; sea freight supports cost-effective bulk delivery.

Your application is unique — and your titanium plate should match it exactly. We support full OEM/ODM manufacturing based on customer drawings and technical requirements.

You can specify thickness, overall dimensions, surface finish, grade selection, and laser marking or CNC-engraved part numbers. Prototype, small-batch, and mass production runs are all supported.
