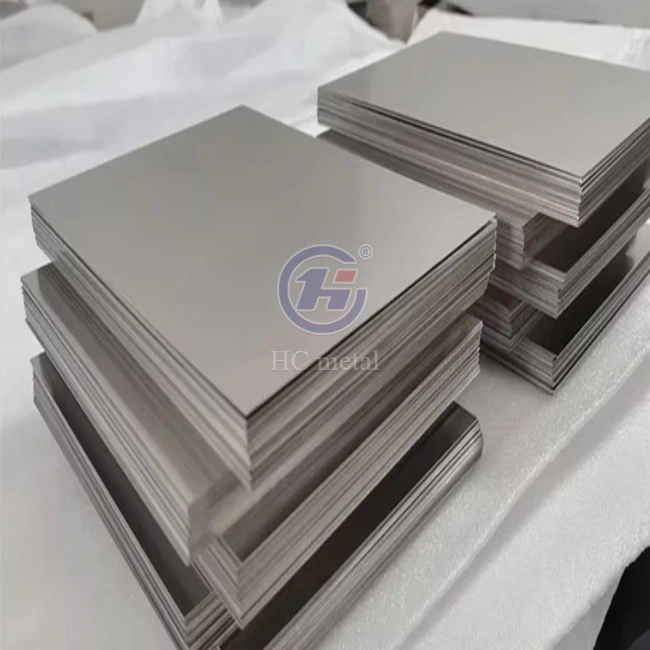

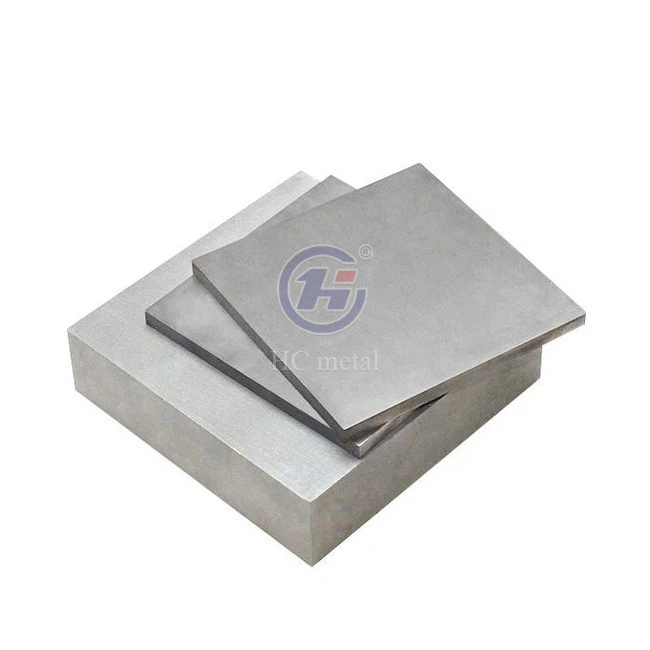

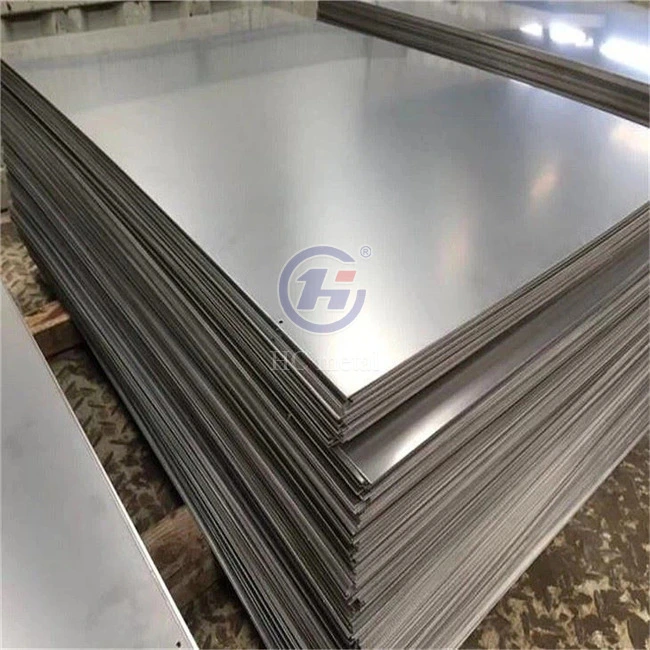

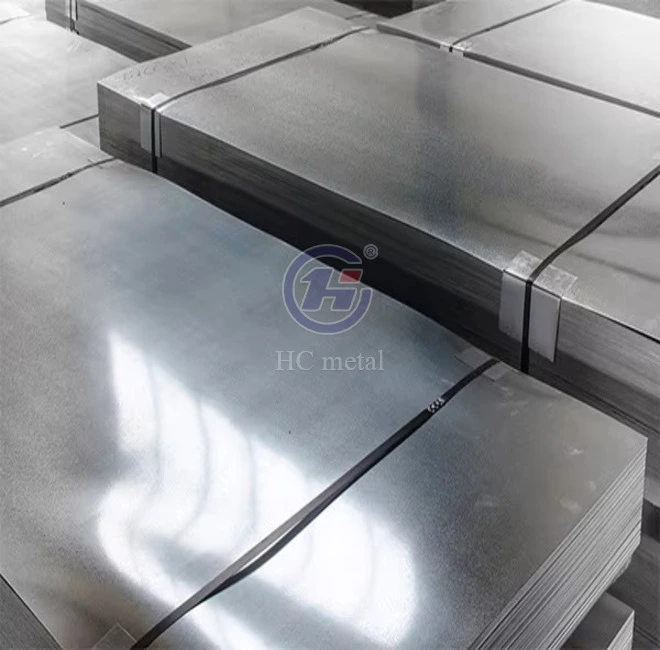

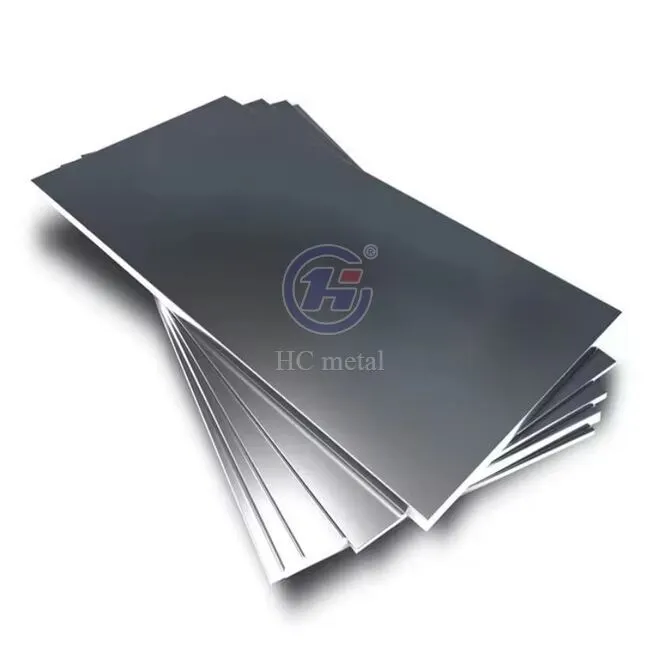

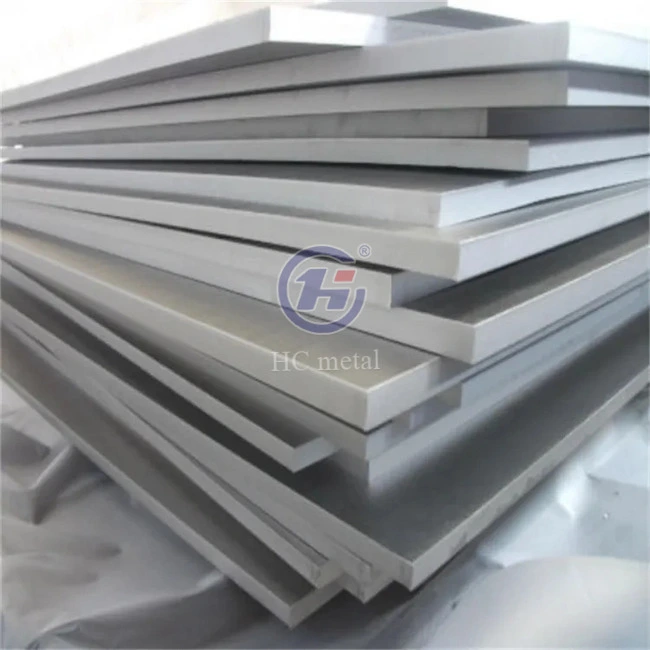

6Al 4V Titanium Plate for High-Strength Industrial Applications — Custom Sizes & OEM Solutions

6al 4v titanium plate (Grade 5, UNS R56400) is the industry's most trusted alpha-beta titanium alloy, accounting for over 50% of global titanium usage. Baoji Huacan supplies this material with a density of just 4.43 g/cm³, yield strength ≥ 828 MPa, and ultimate tensile strength ≥ 895 MPa. We provide our plates in polished finish and bespoke sizes according to ASTM B265 and AMS 4911. 10+ years of machining expertise for aerospace, medical and industrial consumers. OEM/ODM competence with 1,000+ tonnes yearly production capacity.

Parameter	Value / Option
Material Grade	Grade 5 Titanium (Ti-6Al-4V, UNS R56400)
Material Standard	ASTM B265 / AMS 4911 / MIL-T-9046
Density	4.43 g/cm³ (0.160 lb/in³)
Ultimate Tensile Strength	≥895 MPa (≥130 ksi)
Yield Strength (0.2% Offset)	≥828 MPa (≥120 ksi)
Melting Point	1604–1660°C (2919–3020°F)
Typical Service Temperature	Up to 400°C (depending on application conditions)
Available Thickness	Customized according to drawings or requirements
Available Size (W × L)	Customized sizes available
Surface Finish	Polished / Machined / Natural / Anodized / Custom Finish
Available Titanium Grades	Grade 2, Grade 5, Grade 7, Grade 9, Grade 23 (Ti-6Al-4V ELI)
Manufacturing Capability	Prototype, Small Batch, and Mass Production
Quality Control	Material traceability, dimensional inspection, and third-party inspection available

· Exceptional strength-to-weight ratio: Tensile strength comparable to low-alloy steel, at just 4.43 g/cm³

· Heat treatability: Solution Treated and Aged (STA) processing available for higher-strength requirements

· Corrosion resistance: Passive oxide film resists marine, chemical, and chloride environments

· High-temperature stability: Reliable performance up to 400°C (750°F) for industrial use

· Fatigue resistance: Excellent crack propagation resistance for dynamic load applications

· Custom surface options: Polished, natural titanium finish, anodized, or PVD-coated per your spec

Our Precision Parts Processing Workshop

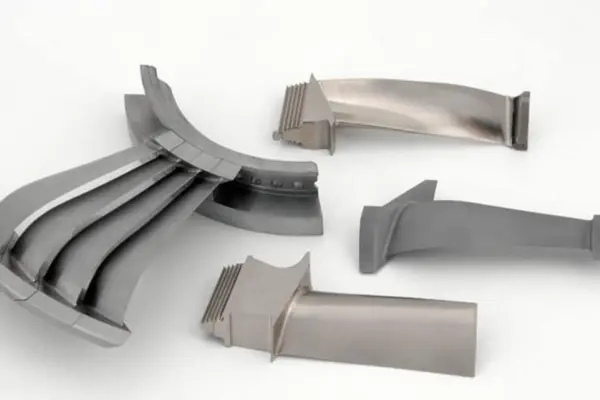

Aerospace: The alloy's high strength-to-weight ratio and fatigue resistance help structural panels, bulkheads, and engine components.

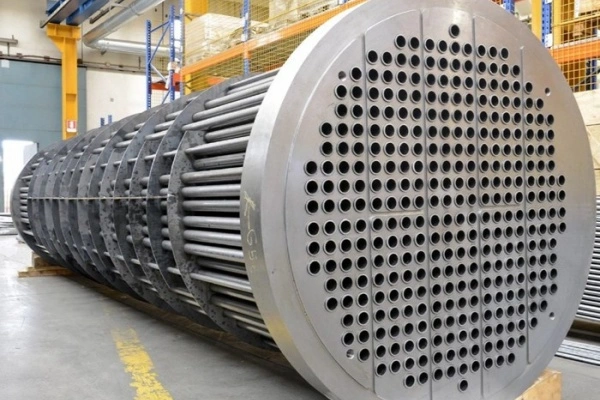

Marine & Offshore: The alloy develops a passive oxide coating, which makes it well suited for heat exchangers, hull components and subsea structures that are exposed to saltwater.
Medical Devices: The Grade 23 (ELI) version provides improved fracture toughness for implants and surgical tools. Instruments and housings: standard grade 5.

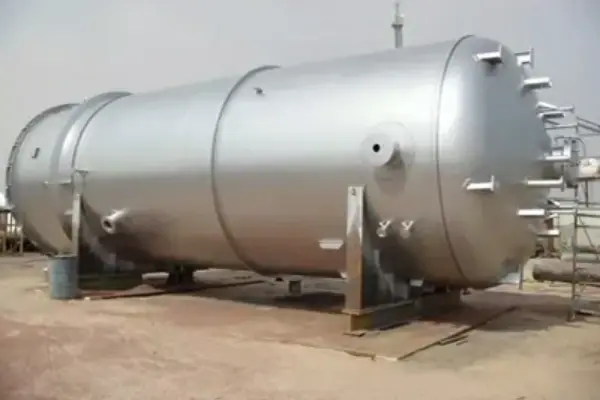

Chemical Processing: Reduced maintenance costs for reactor vessels and pipe systems due to resistance to chloride stress corrosion cracking.
Energy & Industrial: For turbine parts, pressure vessels and other high load construction where weight reduction is important.

Energy & Industrial:

Chemical Processing

Aerospace

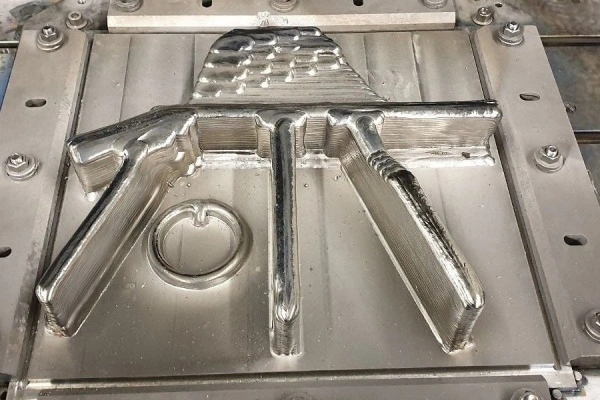

3D Printing

Baoji Huacan operates from China's "Titanium Valley" in Baoji City, with 40+ CNC machines including lathes, machining centers, and gantry systems. Our annual production capacity exceeds 1,000 tons of finished titanium products.

Our strategic partners provide VAR and PAM melting with over 5,000 tons annual ingot capacity. Forging capability includes a 4,000-ton hydraulic press for large structural parts.

This integrated setup means you get consistent quality from ingot to finished plate, all within one supply chain.


Raw Material Selection & Inspection	Vacuum Melting	Heat Treatment

Rolling	Surface Treatment	Dimensional Inspection

Every batch of 6al 4v titanium plate goes through our multi-stage inspection protocol:

Raw material verification: study of chemical composition by spectrometry

In-process monitoring: Dimensional checks at each step of manufacturing

Ultrasonic Testing (UT): Internal fault identification to assess structural integrity (AMS 2631 compliant)

CMM dimensional inspection: Checking that final dimensions are within drawing tolerances

Mechanical property testing Tensile strength, yield strength and hardness confirmed to ASTM/AMS/DIN standards

Surface inspection: Roughness testing and visual checks before packaging

Material Testing & Analysis

Ultrasonic Testing & NDT Inspection

ISO 9001 Quality Management System

Q: What is the difference between Grade 5 and Grade 23 plate?

A：Grade 23 (ELI) has lower oxygen, nitrogen, and iron content, giving better fracture toughness. It is preferred for medical implants and cryogenic use. Grade 5 is the standard industrial and aerospace choice.

Q: Can this plate be welded?

A：Yes. It is oxygen sensitive and has to be handled under tight inert gas (Argon or Helium) shielding and back-purging. For thicker parts, Electron Beam Welding is generally chosen.

Q: What is the maximum service temperature?

A：Approximately 400°C (750°F) for continuous use. Above this, oxidation and creep strength loss become significant concerns.

Q: Is ultrasonic testing included?

A：UT is performed on structural and aerospace-grade plates. For plates above 6mm, internal inspection is standard practice in our process.

Q: Do you accept custom drawing orders?

A：Absolutely. We manufacture product according to your technical drawings, with full OEM/ODM support across all dimensions and finishes.

Rods are packed in rigid PVC tubes to maintain straightness during transit, then placed in vacuum-sealed bags with desiccants and wooden crates for bulk orders. Air freight and sea freight options are available. Full labeling and traceability documentation included.
